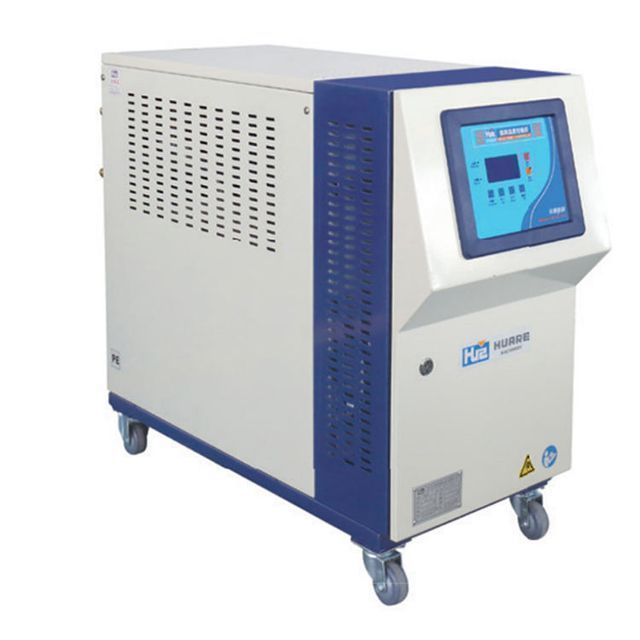

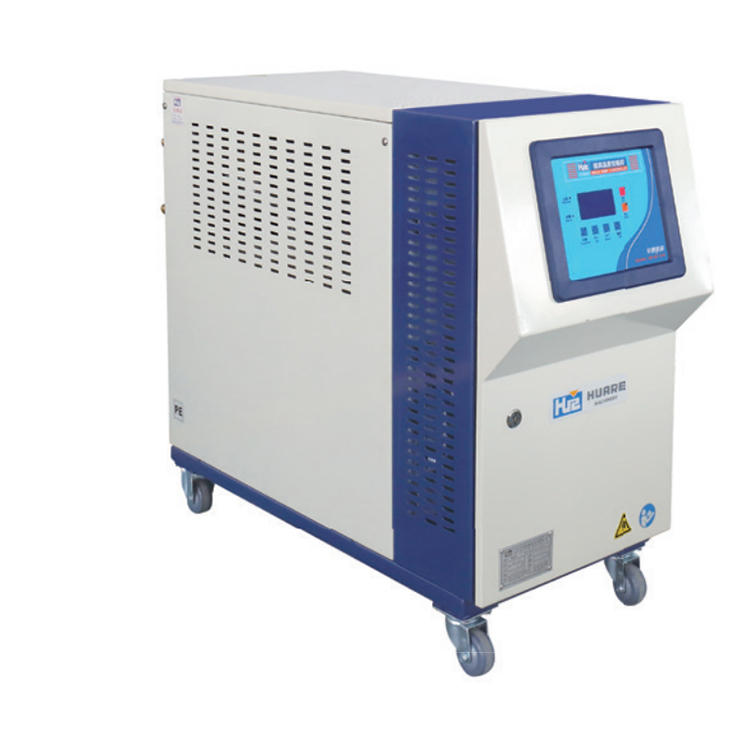

HUARE HMC-W rapid heating high temperature resistant sealed water mold temperature controller 150
- $1072.00 /set
- 1 set
- Ningbo Huare Machinery Manufacturing Co., Ltd.
- Zhejiang, China
- Ms xia Summer
| Temperature control accuracy: | 0.5 | Showroom location: | not any |
| Packaging Details: | Standard wooden case as usual | Applicable industries: | manufacturing plant |
| Health status: | new | temperature range: | Normal temperature -90/120 |
| Local service location: | not any | After Warranty Service: | Online support |
| Supply capacity: | 200 sets per month | cooling method: | direct |
| After-sales service provided: | Free spare parts | Core components: | motor |
| place of origin; place of origin: | Zhejiang, China | Dimensions (L*W*H): | 790*310*770mm |
| payment terms: | letter of credit, wire transfer | Main selling point: | easy to operate |
| strength: | 6kw-18kw | Mechanical test report: | if |
| port: | Ningbo or Shanghai | Marketing Type: | Hot Products of 2019 |
| brand: | Hua Rui | application: | Plastic Industry Mold Heaters |
| Pump power: | 0.37kW | Internal Pipe Size: | 3/8" (2x2) |
| weight: | 61 | Core Components Warranty: | 1 year |
| Video external inspection: | if | Voltage: | 380V/50Hz/3-phase dedicated power supply |
| Warranty: | 1 year | type: | water temperature machine |
Applications
HMC water mold temperature controllers are used to heat molds and maintain temperature, but can also be used for other similar applications. Using ordinary tap water as the medium, the boiling point of water synchronous pressure increases this feature, it can make the water temperature as high as 90 ℃ or 120 ℃, using low-viscosity water, can achieve rapid heating and heat transfer effect.

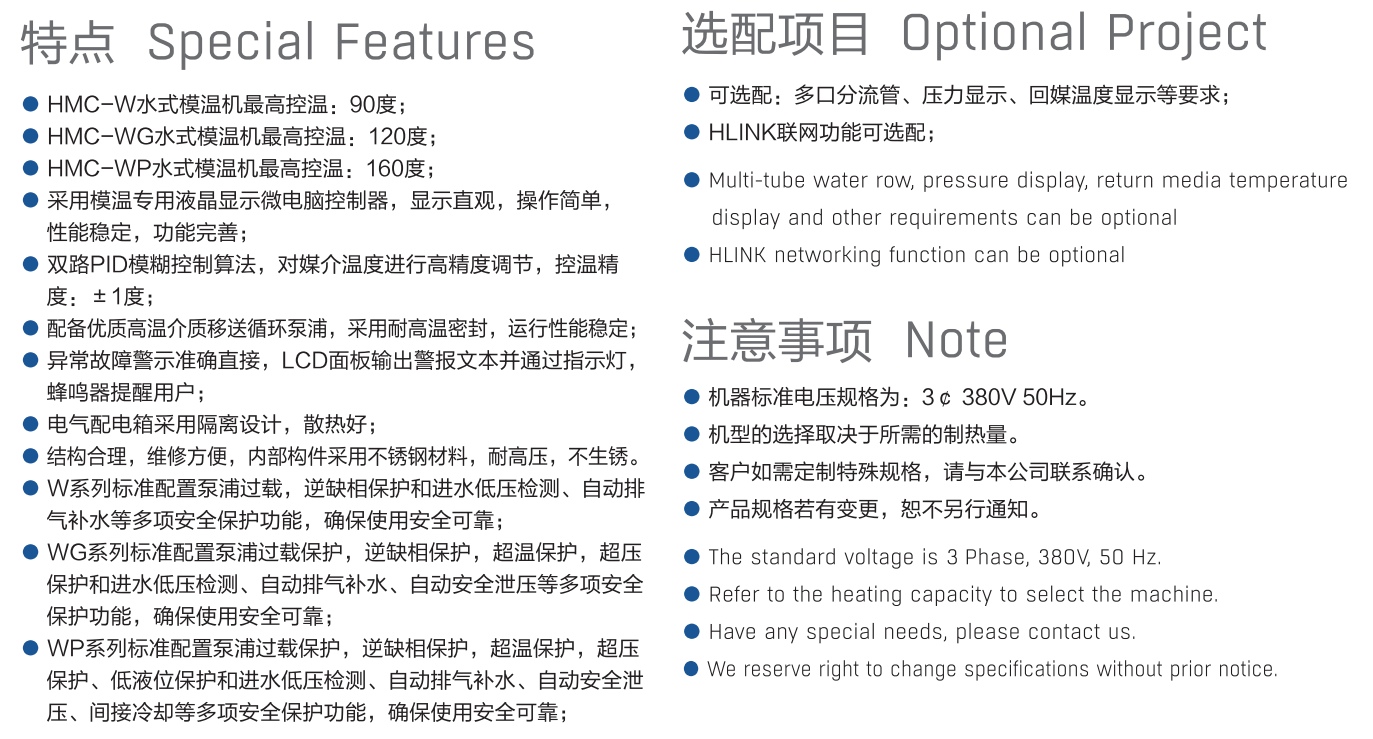

main feature
1) Equipped with high-quality high-temperature medium circulating pump, high-temperature resistant seal, and stable performance.
2) Using LED controller, the display is intuitive, the operation is simple, the performance is stable, and the function is perfect.
3) Using double PID fuzzy control algorithm, the medium temperature adjustment precision is high, and the temperature control precision is ±1℃.
4) Equipped with multiple safety protections for pump overload, reverse phase phase loss protection, water shortage protection, overheat protection and overpressure protection to ensure safe and reliable operation.
5) The functions of low pressure detection, automatic overpressure safety relief, automatic emptying and adding water, etc., are easy to operate and have a high degree of automation.
6) The abnormal warning is accurate and the fault is directly, the LED panel outputs the alarm text and reminds the consumer through the indicator buzzer.
7) Reasonable structure, easy maintenance, internal parts are made of stainless steel, high pressure resistance, no rust.
