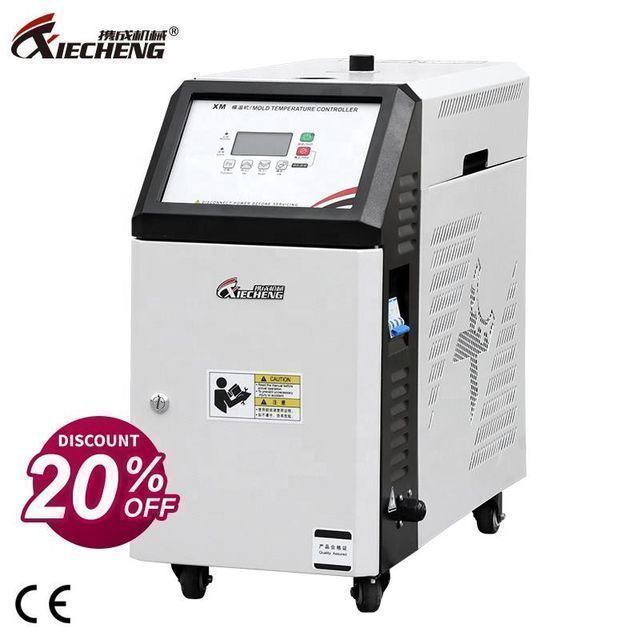

Hot oil mold temperature controller for injection mold
- $510.00 /set
- 1 set
- Jiangmen Xiecheng Machinery Co.,Ltd.
- Guangdong, China
- Ms Amy Zhau
PRODUCT DETAIL
| Showroom location: | Vietnam, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Uzbekistan, Malaysia | place of origin; place of origin: | Guangdong, China |
| Applicable industries: | Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Construction Engineering, Energy & Mining | brand: | Xiecheng |
| Temperature control accuracy: | +/- 0.1 degrees | type: | Oil temperature machine |
| Loading distance: | 30m | Internal Pipe Size: | 3/4 inch |
| Video external inspection: | if | Marketing Type: | Popular products |
| Warranty: | 1 year | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| port: | Jiangmen/Guangzhou/Shenzhen | weight: | 55 |
| Core components: | PLC, motor, pump | Dimensions (L*W*H): | 730*310*643mm |
| Voltage: | 380V/50Hz/3Phase as usual | cooling method: | indirect cooling |
| Security Settings: | 6 Protection | Health status: | new |
| life: | 5+ years | Supply capacity: | 500 sets per month |
| application: | Plastic Industry Mold Heaters | Inlet/Outlet Diameter: | 3/8''*4 |
| strength: | 750 | usage: | plastic industry |
| Mechanical test report: | if | Packaging Details: | Within 7-15 days after receiving the deposit |
| temperature range: | 30~200 degrees | Core Components Warranty: | 1 year |
| heating power: | 9KW | Main selling point: | easy to operate |
| Pump flow: | 45L |
Product Description
Oil mold temperature controller
Standard oil heaters, used to heat molds and maintain temperature, although they can be used for other similar applications. The high temperature oil from the mold is returned to the cooling tank, where it is cooled by indirect cooling. Then it is pressurized by a high-pressure pump, sent to a heating tank, and finally sent to a constant temperature mold. Up to 200°C.
Product Specifications
Model | XC-TM6KW-O | XC-TM9KW-O | XC-TM12KW-O | XC-TM18KW-O | XC-TM24KW-O | XC-TM36KW-O | |||||
Transmission medium | heat transfer oil | ||||||||||
maximum temperature | 200°C | ||||||||||
Pump (kW) | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | |||||
Pump flow (L/min) | 42 | 56 | 56 | 110 | 110 | 140 | |||||
Loading distance (m) | 28 | 38 | 38 | 60 | 60 | 815 | |||||
Heating power (KW) | 6 | 9 | 12 | 9*2 | 12*2 | 12*3 | |||||
Inlet and Outlet Diameter | 3/8``x2 | 3/8``x4 | 3/8``x4 | 1''x1 | 1''x1 | 1.5``x1 | |||||
Dimensions (mm) | 730*310*643 | 730*310*643 | 730*310*643 | 830*370*694 | 830*370*694 | 1090*520*983 | |||||
About. Net weight/kg) | 49 | 52.5 | 55 | 80 | 135 | 193 | |||||
If you want more sizes, please contact us for details

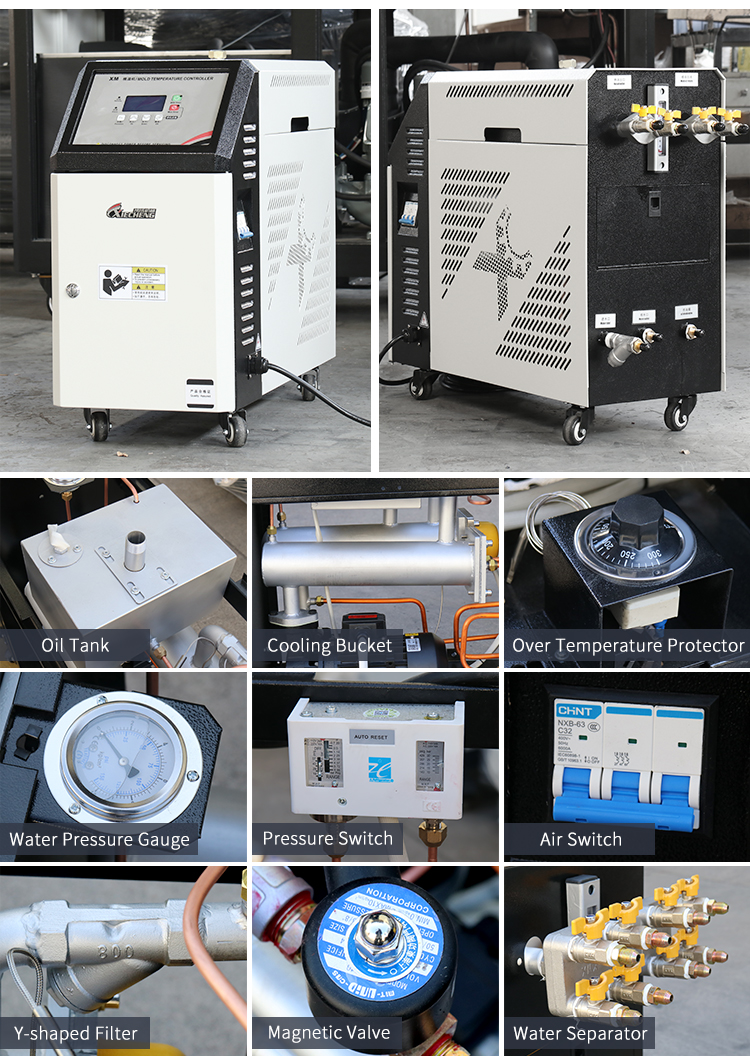

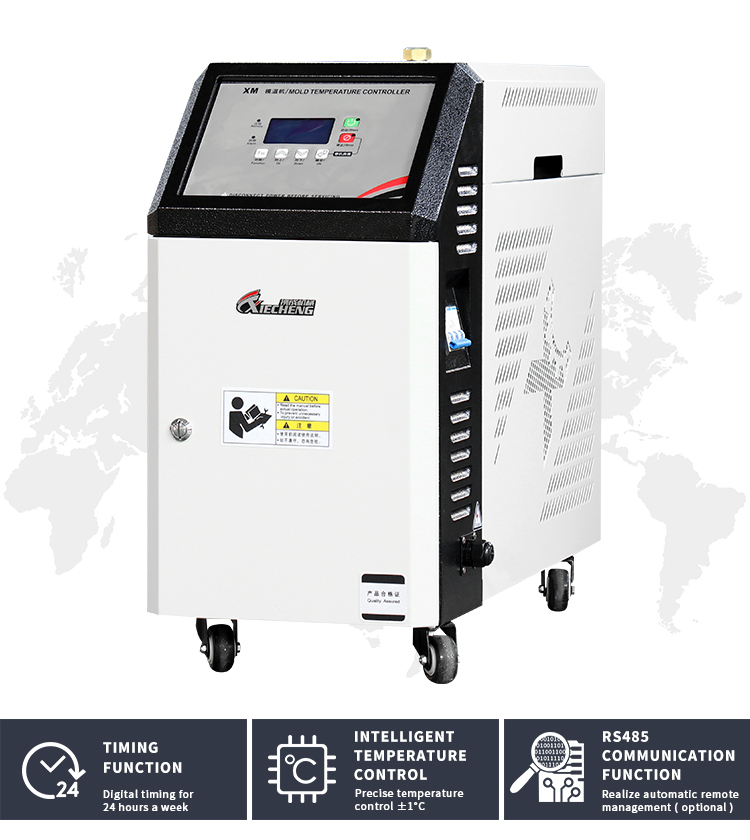

Products real shot
Product Details

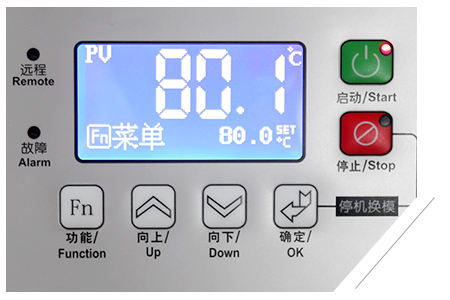

01 LCD controller
▪ The advanced microcomputer liquid crystal controller can display the actual temperature and the set temperature at the same time. It is easy to operate, the accuracy is ±0.1℃, the continuity is long and the efficiency is high. ▪ 24 hours a week digital timekeeping for automatic operation.

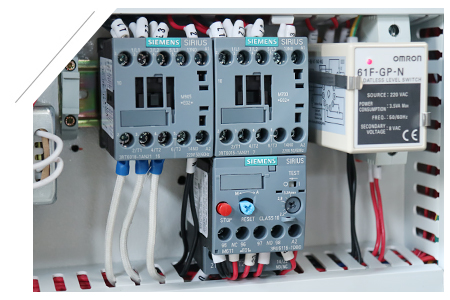

02 Siemens Electric
Siemens electrical components ensure stable operation and responsibility of the machine.

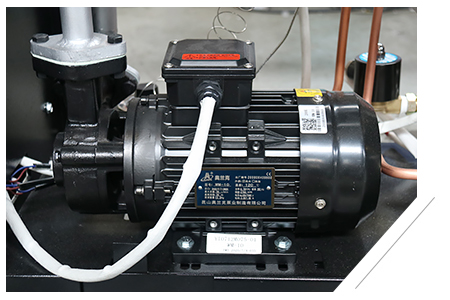

03 water pump
Adopt high-efficiency water pump. It maintains accurate temperature levels and is suitable for precision forming production.

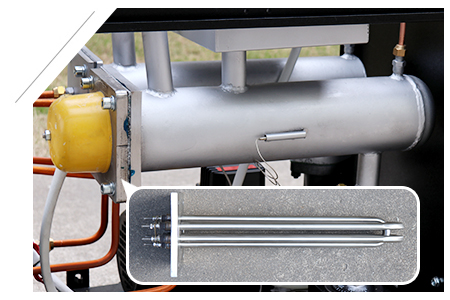

04 Heating wire
useSUS304 seamless heating wire, stainless steel flange, Not easy to burn out, durable.

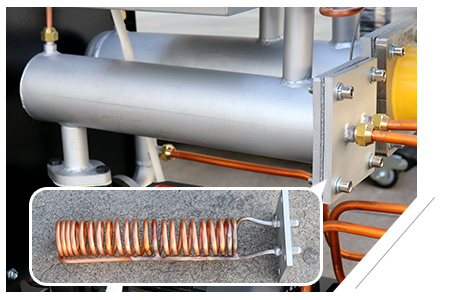

05 Radiator tubes and barrels
▪ usepure copperHeat pipe, better heat dissipation effect;
▪ The radiator canister isStainless steel, Corrosion resistance, long life.

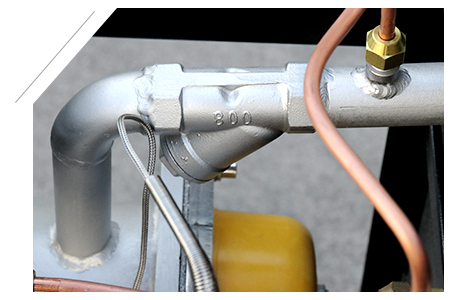

06 SUS304 stainless steel seamless
SUS304 stainless steel seamless heating cylinder and main pipeline ensure corrosion resistance, no leakage and long service life.

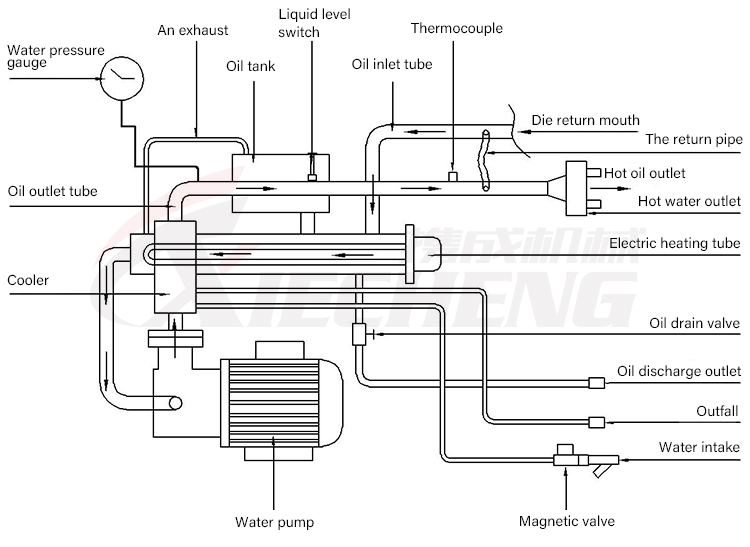

working principle

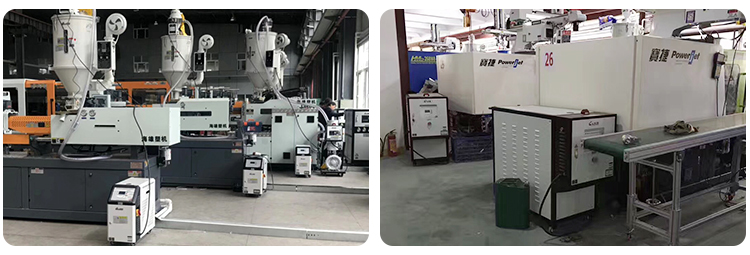

Customer case
Widely used in plastic molding, light guide plate die-casting, rubber tires, rollers, chemical reactors, adhesive industry, plasticizing and mixing industries, etc.
