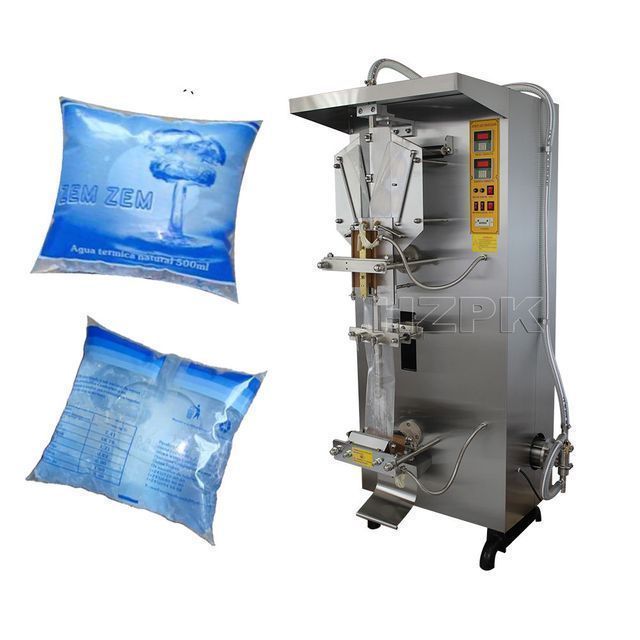

HZPK automatic small milk drink water liquid detergent small bag filling and sealing machine
- $1750.00 / 1 - 2 units
$1550.00 / 3 - 9 units
$1250.00 / >=10 units - 1 unit
- Zhejiang Haizhou Packing Machine Co., Ltd.
- Zhejiang, China
- Ms Remon Liu
PRODUCT DETAIL
| Core Components Warranty: | 1 year | Mechanical test report: | Not available |
| Supply capacity: | 100 sets per month | weight: | 300kg |
| Filler: | milk, water, oil, juice, liquid | Certification: | Chief Executive |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants, Food and Beverage Stores | Packaging Details: | Our products come in boxes. We will check if the machine is operational before sending it out. When you receive the goods, please open the package to check whether the goods are in good condition before express delivery. If the box is damaged or something else happens, please contact us in time. |
| Warranty: | 1 year | Health status: | new |
| Bag length: | 50-150mm | payment terms: | L/C,Western Union,T/T |
| application: | Food, Beverage, Merchandise | type: | filling machine |
| Packaging capacity: | 50-500 | storehouse: | 2188 |
| Bag width: | 40-150mm | Filling accuracy: | 99% |
| Showroom location: | not any | place of origin; place of origin: | Zhejiang, China |
| brand: | HZPK | Mechanical Capability: | 2000BPH |
| Drive Type: | electrical | Video external inspection: | if |
| Core components: | motor, pump | Materials used for packaging: | plastic |
| Marketing Type: | New Products 2021 | After-sales service provided: | Online support, video technical support, free spare parts |
| port: | Ningbo/Wenzhou | Auto grade: | automatic |
| type of packaging: | Stand up bags, bags | Voltage: | 220V 50Hz |
| Dimensions (L*W*H): | 880*760*1800mm | Main selling point: | automatic |
| Film width: | 100-320mm |
Why choose us
1. More than 10 years of packaging machine manufacturing
2. 11 years Alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. The product has passed CE certification
3. 100% QC inspection before shipment
4. 12 months warranty
5. The product has passed CE certification
Product Description
The automatic plastic bag liquid filling machine is suitable for filling and sealing of water, juice, milk and other liquids. It can automatically complete bag making, metering, filling, sealing, cutting, counting and printing batch numbers.feature:1. The frame and liquid contact parts are 304 stainless steel. 2. Film output system: It is composed of 304 stainless steel slide rail plate. 3. Electrical control system: It consists of control panel, wiring, and AC contactor system. 4. Equipped with UV sterilizer and date encoder. 5. The front panel is equipped with a data counting unit.
Model | SJ-1000 | SJ-2000 |
Bag length(mm) | 50-150 | 50-250 |
Bag width(mm) | 65-150 | 40-175 |
Film width(mm) | 150-320 | 100-380 |
Packaging capacity (ml) | 50-500 | 200-1000 |
Capacity (bags/hour) | 1100-1300 | 1100-1300 |
Power(Kw) | 220V, 380v/50Hz 1.6Kw | 220V, 380v/50Hz 2.5Kw |
Dimensions (mm) | 880x760x1800 | 1050x850x2050 |
Weight (kg) | 300 | 380 |

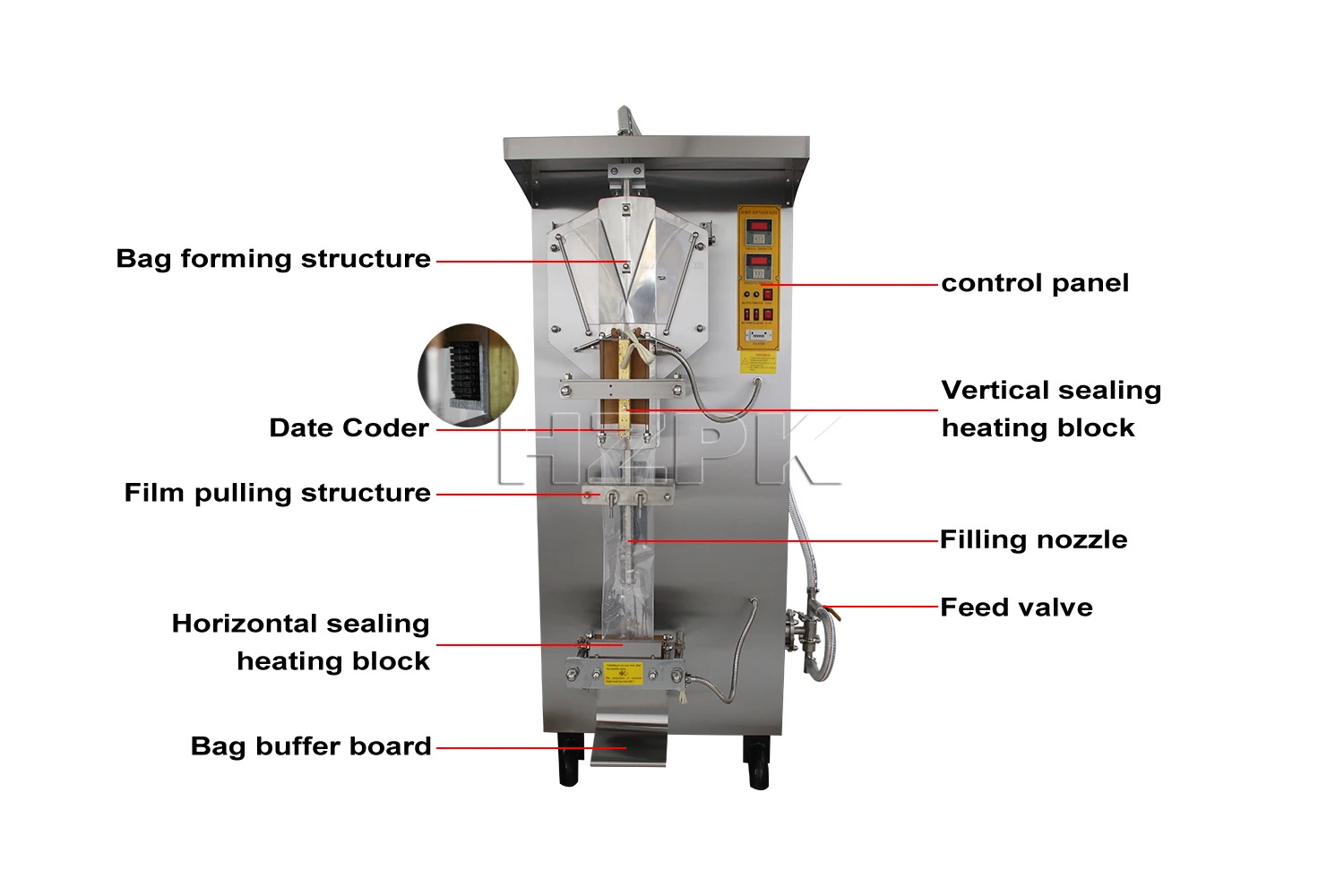

detailed picture

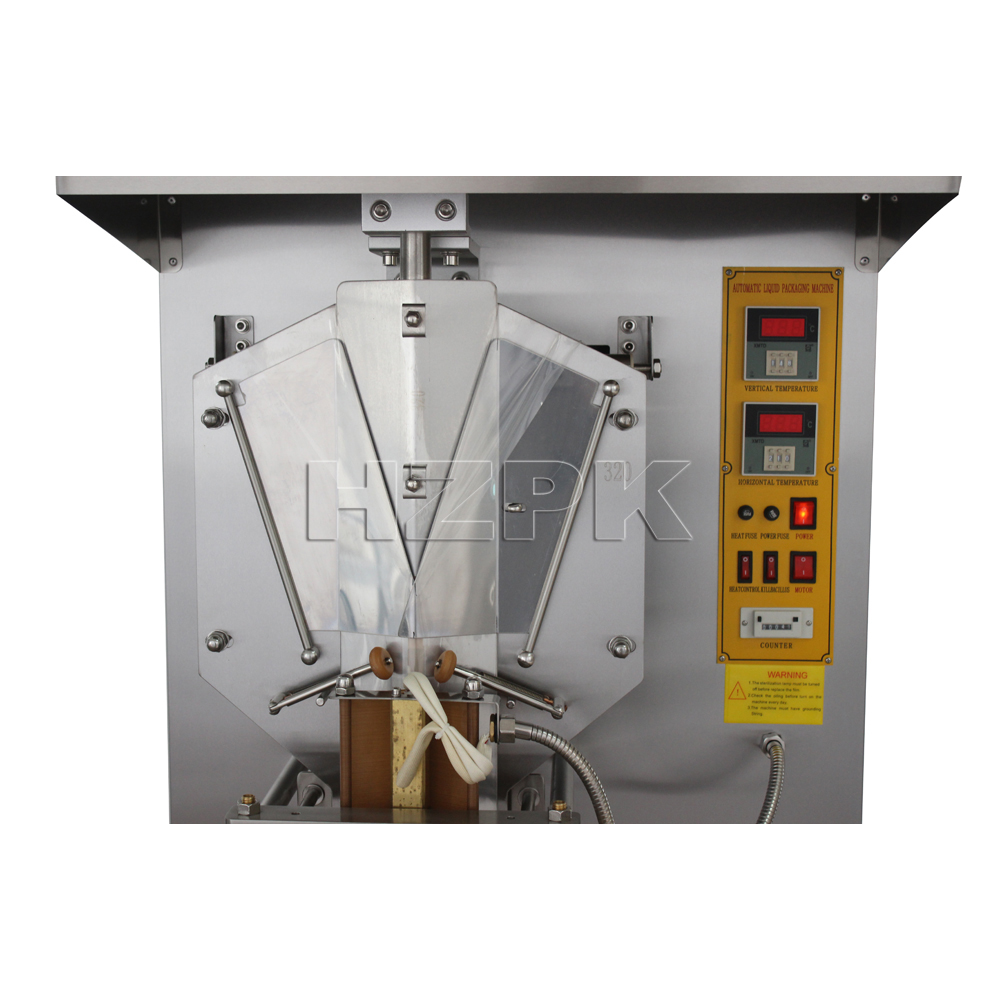

bag making structure
The film is passed through a formed structure and sealed to form a bag. The size of the bag can be controlled according to the width of the film.

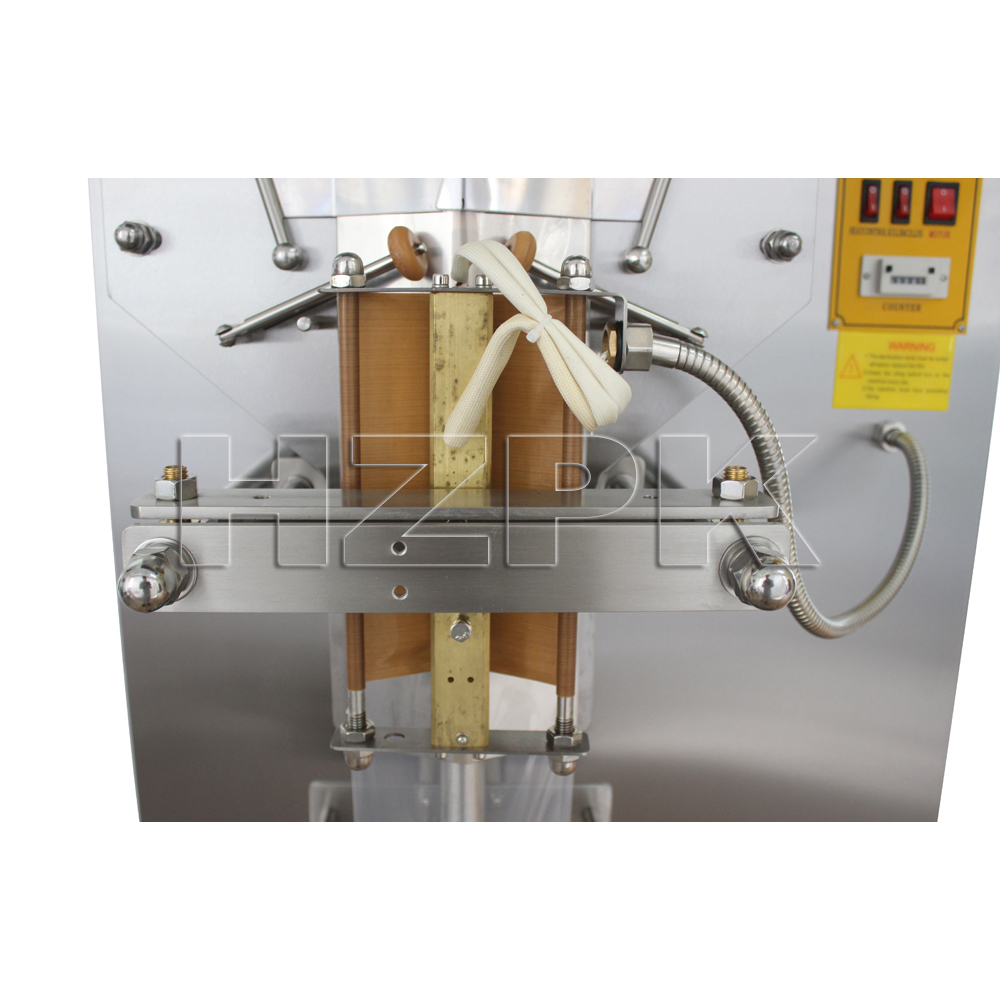

vertical seal
Pure copper heats up rapidly.
Good thermal conductivity, zero deformation

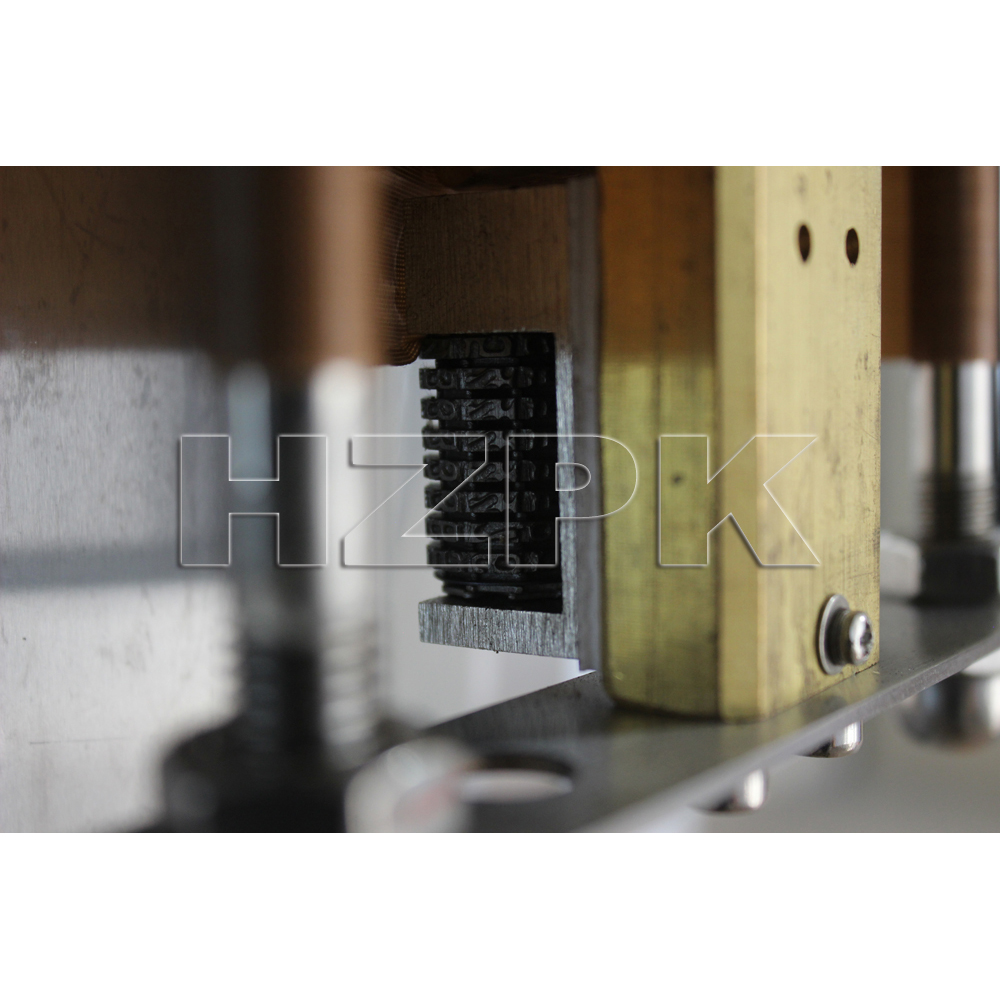

coding part
Ribbon and stencil available.

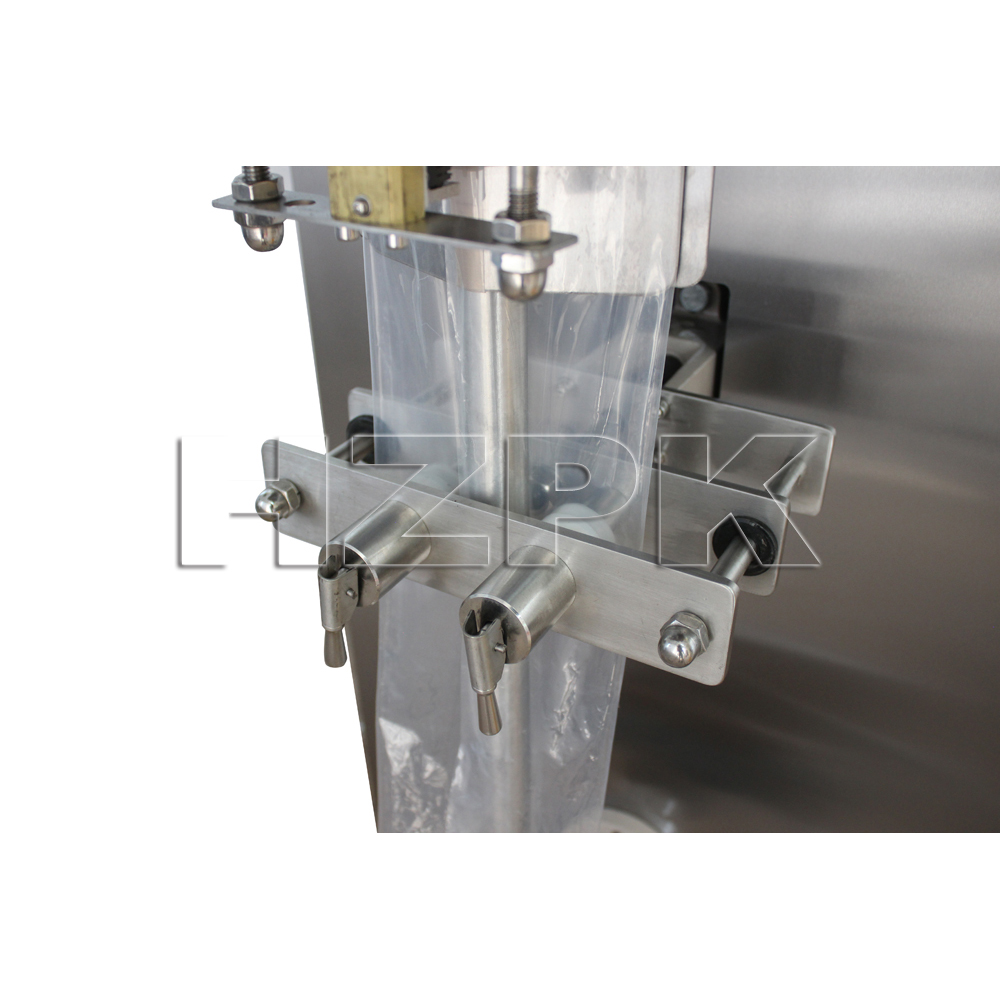

Pull bag part
The bag pulls smoothly and the length is accurate.

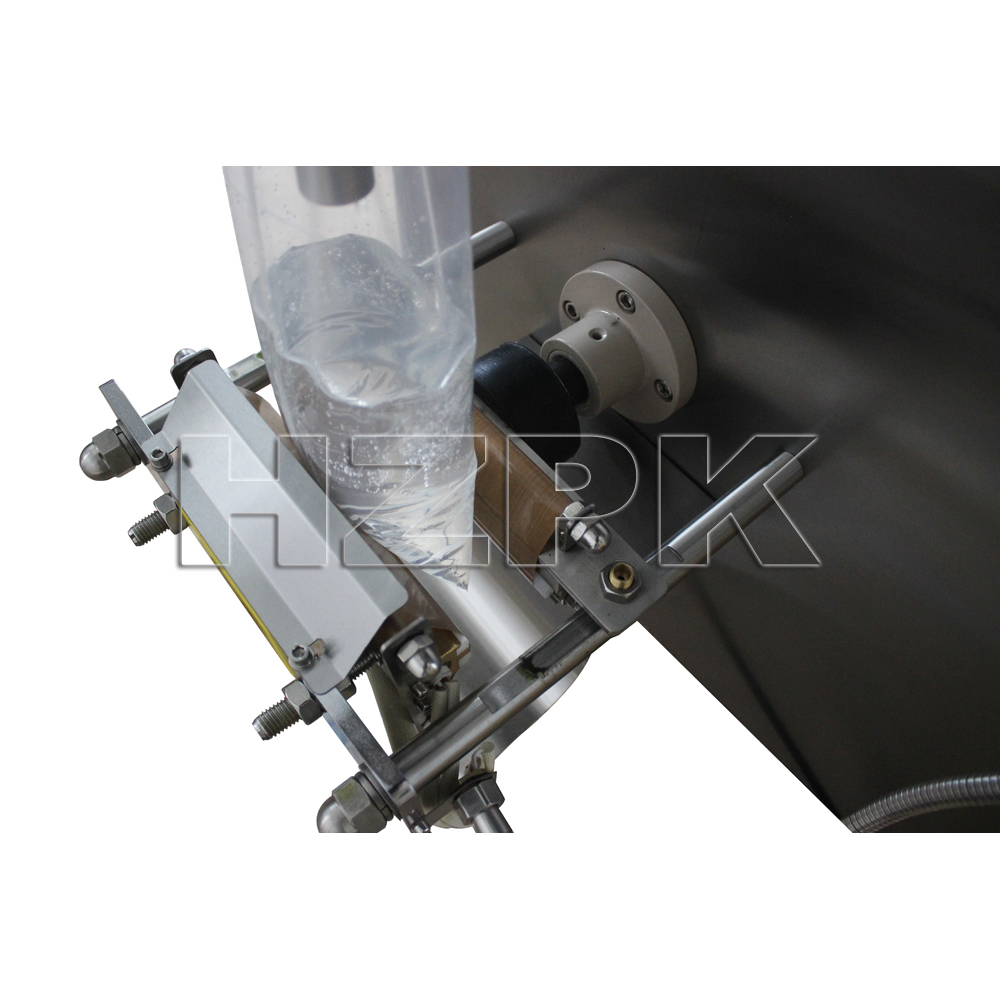

Seal and cut
Pure copper heats up quickly, and the seal is beautiful and firm.

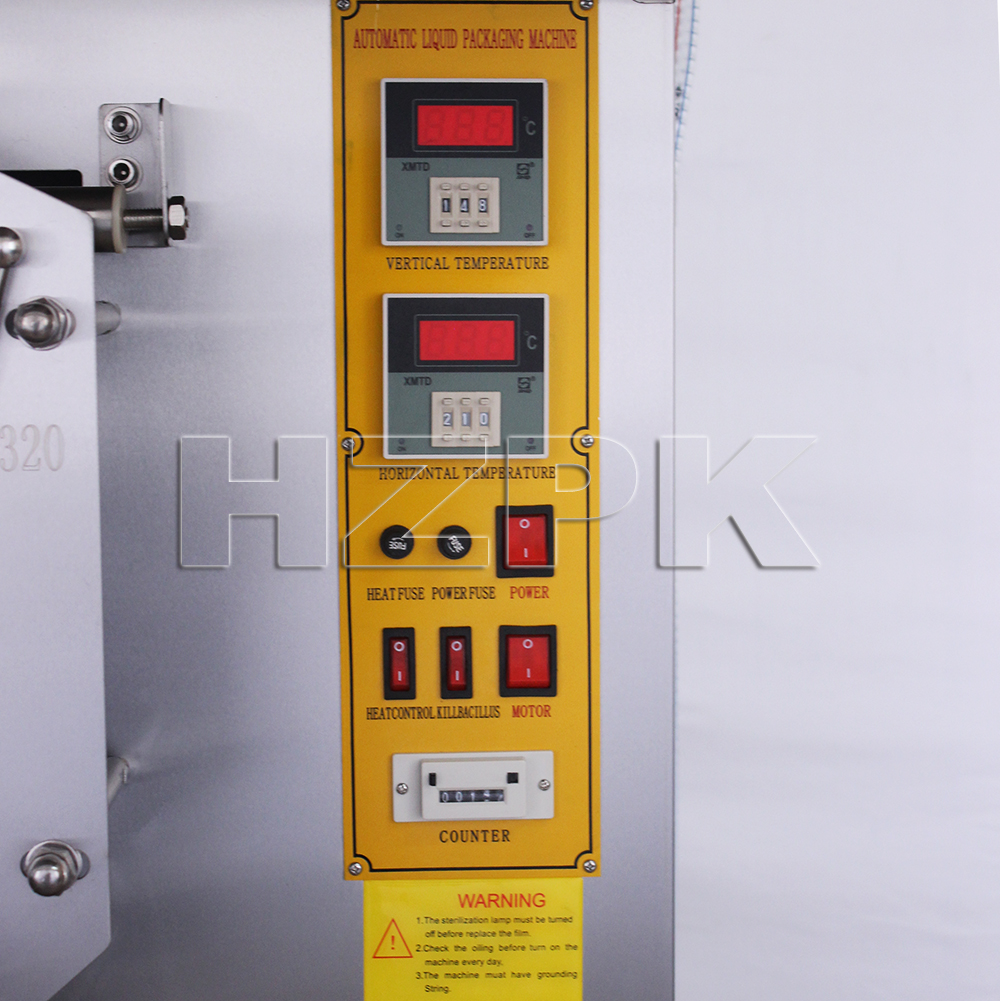

control panel
Humanized design control panel, easy to operate, adjust temperature, automatic counting, germicidal lamp, etc.
