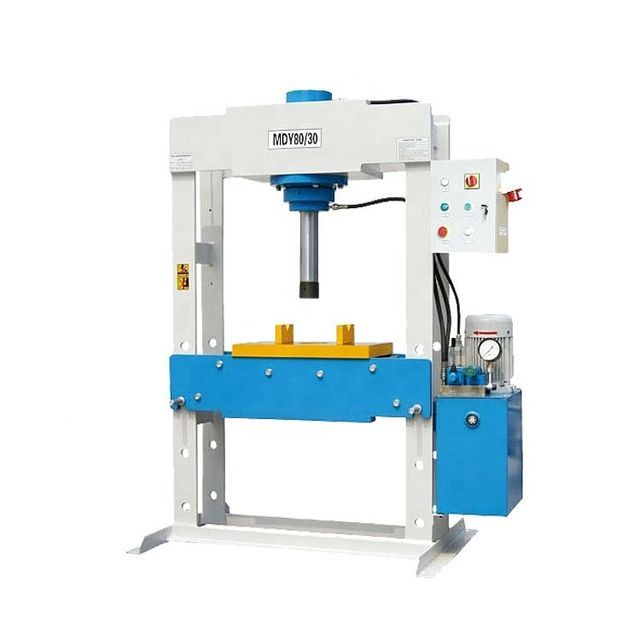

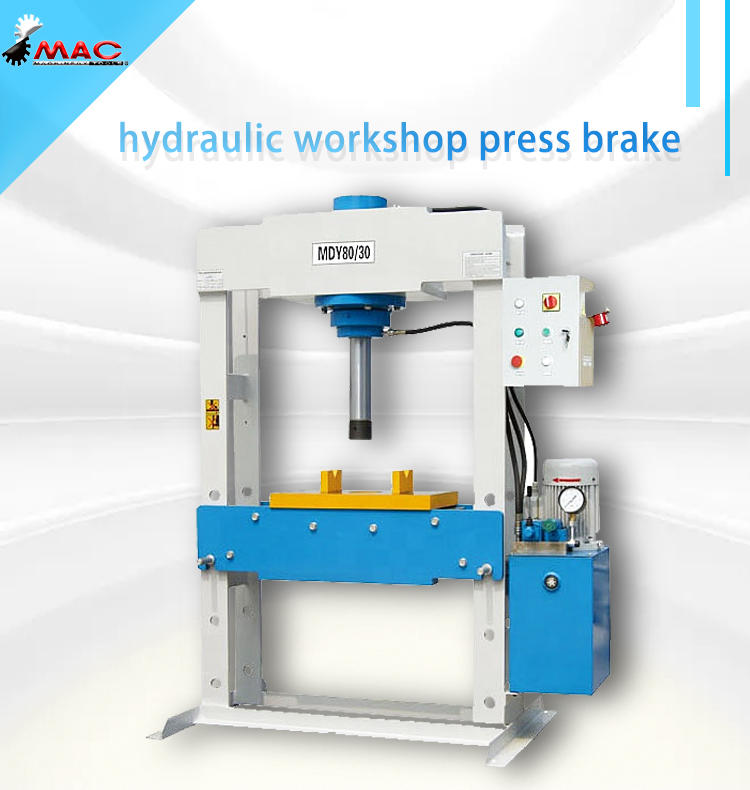

High precision industrial electro-hydraulic small workshop press
- $785.00 /set
- 1 set
- Almaco Machine Tool Co., Ltd.
- Jiangsu, China
- Mr Bill Jin
PRODUCT DETAIL
| quality: | OK | Video shipment inspection: | if |
| Health status: | new | Origin: | Jiangsu, China |
| Warranty: | 14 months after bill of lading | Packaging Details: | Ordinary standard packaging |
| Type of machine: | H type hydraulic press | Supply capacity: | 40 sets per month |
| brand: | Almaco | Weight (ton): | 1.42 tons |
| Main selling points: | high accuracy | Motor power (kW): | 7.5 kW |
| color: | blue and white | system: | normal |
| control: | hydraulic | Showroom location: | not any |
| Mechanical test report: | if | Applicable industries: | Building material stores, machinery repair shops, manufacturing plants, construction projects |
| Name: | workshop press | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Nominal force (kN): | 1000 kN | Resilience (kN): | 100 kN |
| Voltage: | 380V/3Ph/50Hz | Core components: | Motor, PLC, gearbox |
| Slider stroke (mm): | 350 | After-sales service provided: | Engineers available to service machinery overseas |
| Core component warranty: | 1 year | accurate: | high precision |
| port: | Shanghai | Marketing Type: | New Products 2020 |
| Dimensions (L*W*H): | 1500*1300*2000mm | model: | MDY100/35 |
| Energy source: | hydraulic | Function: | metal processing |
| CNC or not: | normal |
Product Description
The main structure
A hydraulic press is a machine that uses hydraulic oil as the working medium, uses the hydraulic pump as the power source, and relies on the force of the pump to make the hydraulic oil enter the cylinder/piston through the hydraulic pipeline. Then there are several sets of sealing elements that cooperate with each other in the cylinder/piston. The positions of the sealing rings are different, but they all play the role of sealing and cannot damage the hydraulic oil. Finally, the hydraulic oil circulates in the oil tank through the one-way valve, so that the cylinder/piston does the circulation work, and completes the mechanical movement as the productivity.
A hydraulic press is a machine that uses hydraulic oil as the working medium, uses the hydraulic pump as the power source, and relies on the force of the pump to make the hydraulic oil enter the cylinder/piston through the hydraulic pipeline. Then there are several sets of sealing elements that cooperate with each other in the cylinder/piston. The positions of the sealing rings are different, but they all play the role of sealing and cannot damage the hydraulic oil. Finally, the hydraulic oil circulates in the oil tank through the one-way valve, so that the cylinder/piston does the circulation work, and completes the mechanical movement as the productivity.
Specification
Nominal pressure (KN) | System working pressure | engine | Table adjustment (mm) | Weight (kg) | |

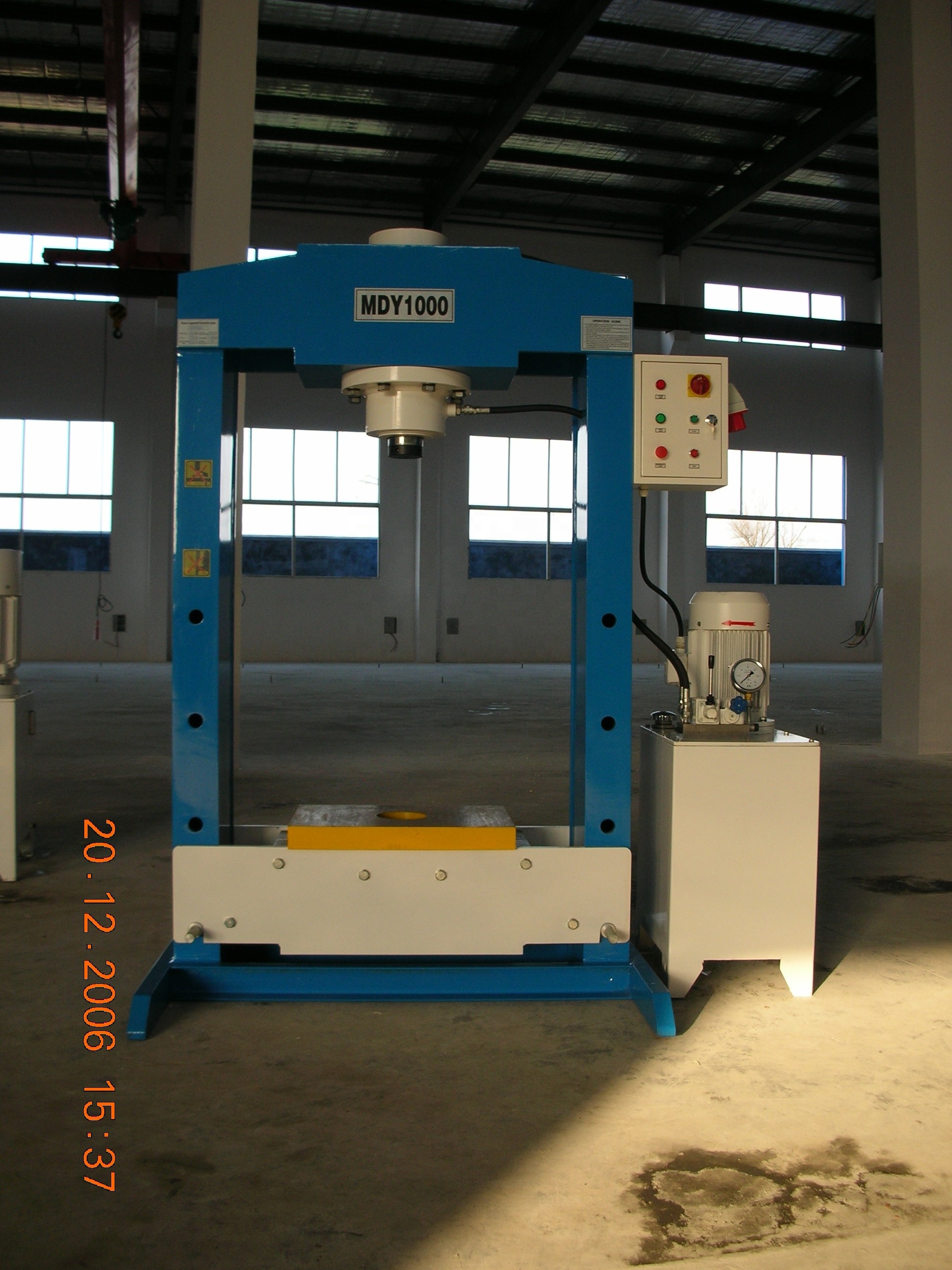

MDY1000 | 1000 | 30 | 7.5 | 300*2 | 1380 |

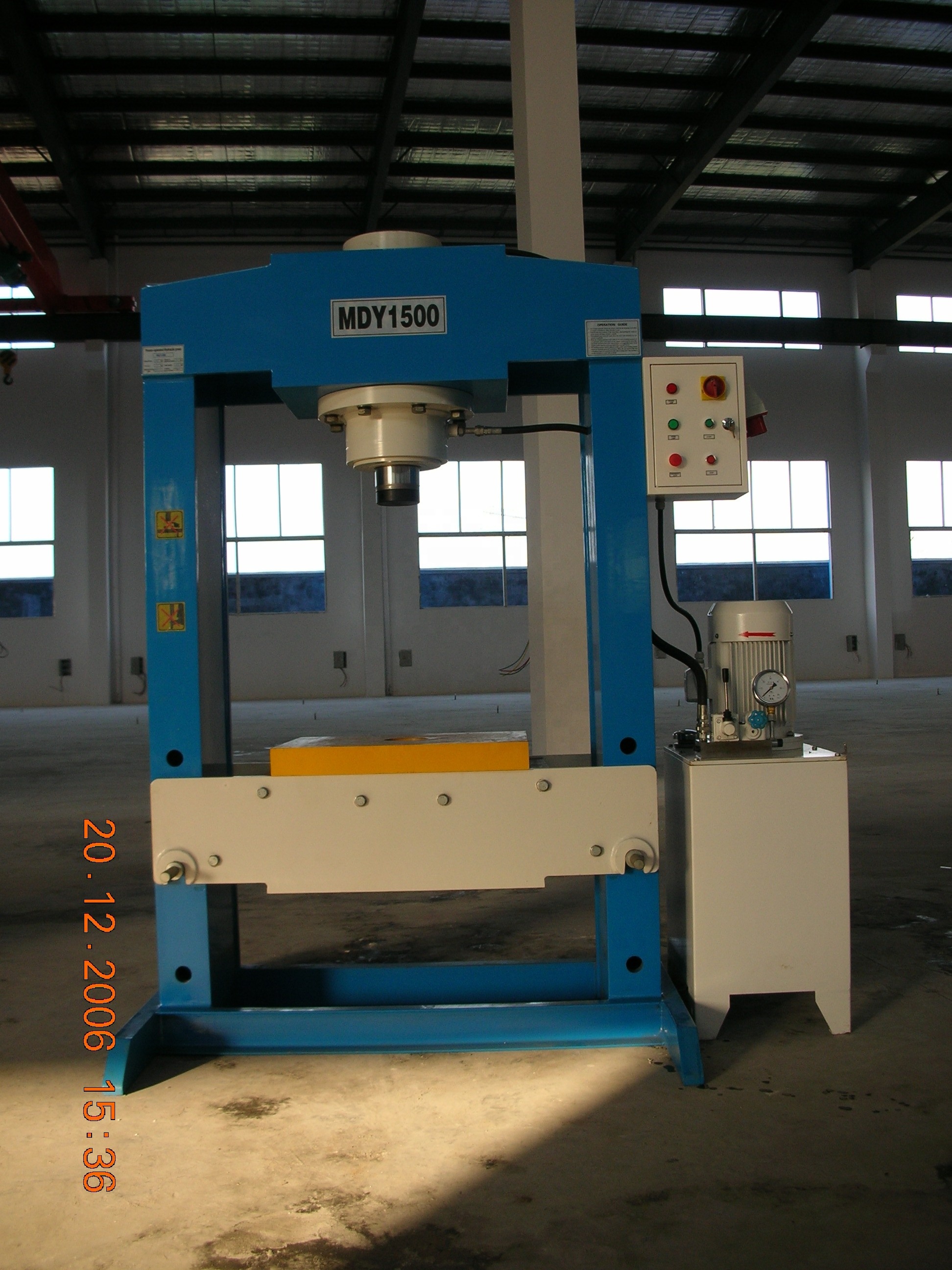

MDY1500 | 1500 | 30 | 7.5 | 300*2 | 2010 |
MDY2000 | 2000 | 30 | 7.5 | 300*2 | 2480 |
MDY3000 | 3000 | 30 | 7.5 | 300*2 | 3350 |
MDY300 | 300 | 30 | 7.5 | 300*2 | 405 |
MDY500 | 500 | 30 | 7.5 | 300*2 | 550 |
MDY630 | 630 | 30 | 7.5 | 300*2 | 850 |

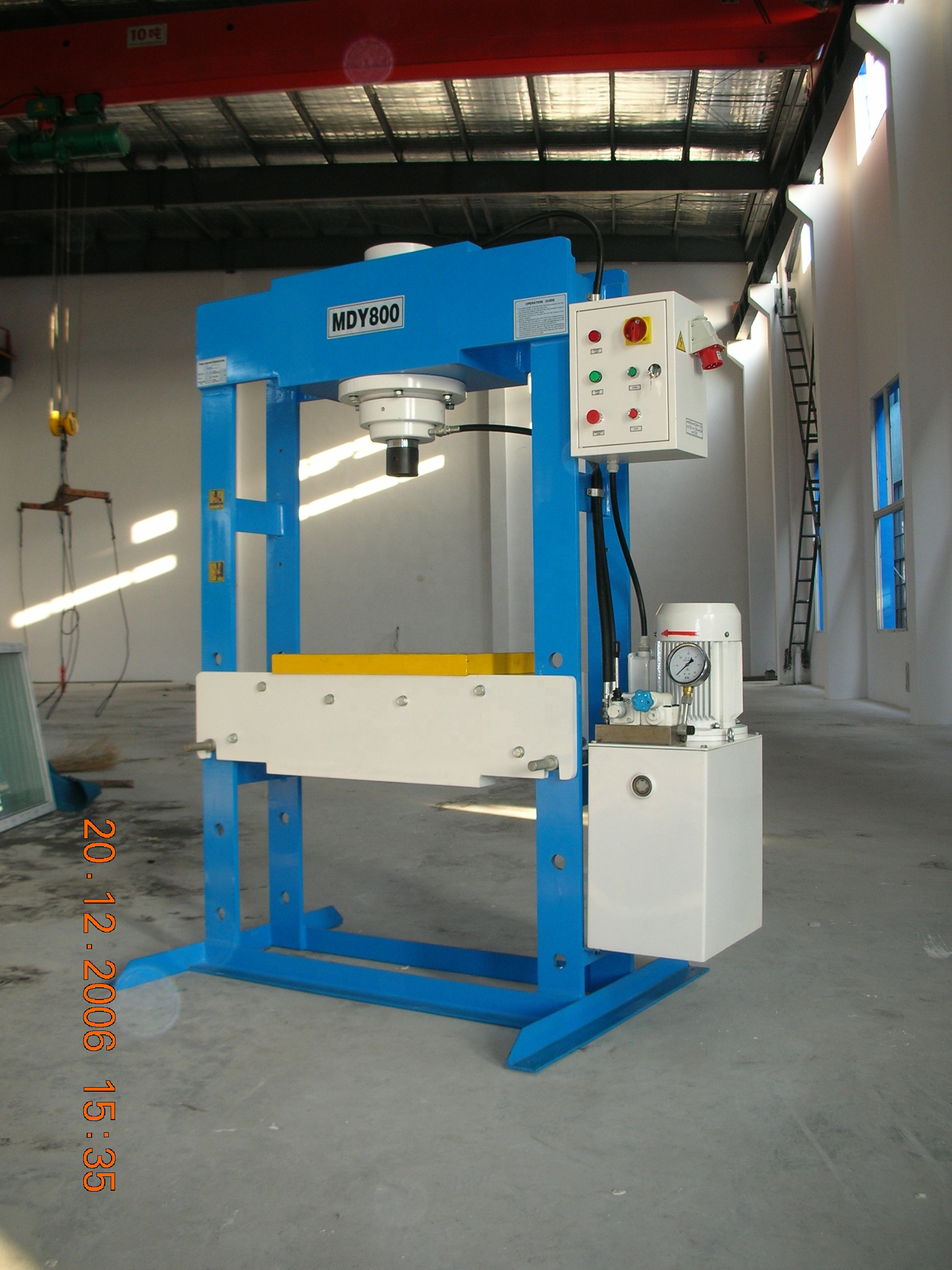

MDY800 | 800 | 30 | 7.5 | 300*2 | 1020 |
A | Second | C | Man | Second | f | G | |
MDY1000 | 1435 | 1200 | 2264 | 1060 | 1100 | 350 | 400 |
MDY1500 | 1502 | 1250 | 2295 | 1100 | 1050 | 350 | 530 |
MDY2000 | 1635 | 1300 | 2315 | 1200 | 995 | 350 | 550 |
MDY3000 | 1680 | 1350 | 2535 | 1200 | 995 | 350 | 660 |
MDY300 | 1310 | 700 | 1885 | 700 | 1040 | 250 | 320 |
MDY500 | 1440 | 800 | 1965 | 800 | 1075 | 250 | 350 |
MDY630 | 1570 | 900 | 2050 | 900 | 1015 | 300 | 385 |
MDY800 | 1680 | 1100 | 2070 | 1000 | 1005 | 300 | 395 |
