High precision surface grinder AHR 4080 (400*800mm) surface grinder
- $3000.00 /set
- 1 set
- Dongguan City Biga Grating Machinery Co., Ltd.
- Guangdong, China
- Ms Mandy Mandy

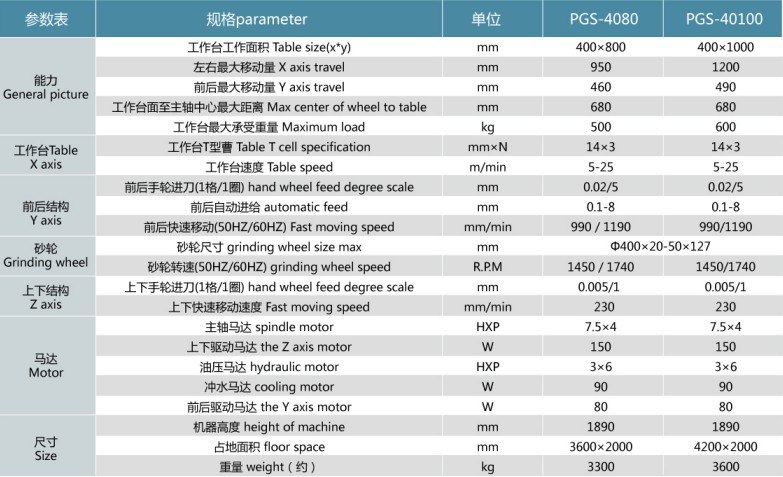

| Packaging Details: | Outer packing: standard export wooden box, inner packing: stretch film | Table size (mm): | 400*800 |
| Marketing Type: | New Products 2020 | Weight (kg): | 2600 |
| Power (kW): | 7.5 | Video shipment inspection: | if |
| Warranty: | 1 year | After warranty service: | Video technical support, online support, spare parts |
| Dimensions (L*W*H): | 2510*2150*1890 | Wheel Size(mm): | 400 |
| Grinding length (mm): | 950 | Spindle motor: | 7.5*4 |
| Core component warranty: | 1 year | CNC or not: | CNC |
| Showroom location: | not any | Local service location: | not any |
| Table travel (X) (mm): | 950 | port: | Shenzhen, Guangzhou |
| Main selling points: | high accuracy | Applicable industries: | Manufacturing plants, machinery repair shops, construction works |
| payment terms: | L/C, T/T, Western Union | X-axis travel: | 950mm |
| Machine size: | 2510*2150*1890mm | Surface roughness (μm): | 0.03 microns |
| After-sales service provided: | online support, video technical support, online support, video technical support, free spare parts | brand: | BICA |
| Fast movement speed: | 230mm/min | Y-axis travel: | 460mm |
| place of origin; place of origin: | Guangdong, China | type: | Surface Grinder |
| Maximum load: | 600 kg | Table travel (Y) (mm): | 460 |
| Mechanical test report: | if | Health status: | new |
| Core components: | Motors, bearings, gearboxes, engines, gears, pressure vessels, pumps, PLCs | weight: | 2600 kg |
| Supply capacity: | 100 sets per month | table size: | 400*800mm |

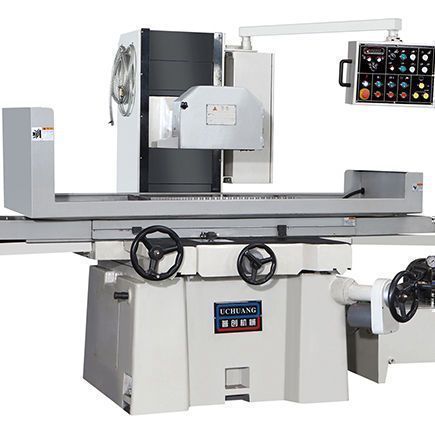

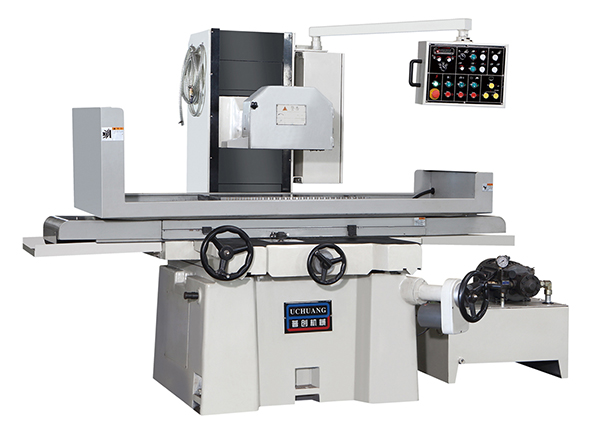

High Quality AHR 4080 Surface Grinder
Applications
Can be used for surface grinding of parts. It can meet various grinding requirements such as plane precision grinding, large allowance grinding, and simple shape grinding. It can grind workpieces made of alloy steel, stainless steel, ordinary steel, cast iron, etc. The surface grinder has high precision, good reliability, reasonable structure design and sufficient static, dynamic and thermal rigidity. The precision of the machine tool is kept good, and the adoption of advanced technology can ensure the good dynamic quality of the system at all levels. The selected servo drive system has high precision, good reliability and fast response. The machine tool is easy to use, operate and maintain, with beautiful appearance and good after-sales service.
Machine Features
Three-axis design, high rigidity hard rail structure, to ensure long-term precision
Taiwan spindle swing ≤ 2um
No vibration in the hydraulic system to ensure machine precision
Suitable for heavy cutting and fine grinding, high processing efficiency
AHR : Automatic Horizontal Feed
Electronic fast up and down feed
AHR: Automatic Lateral Feed
Automatic fast up and down feed (with 750W servo motor)
