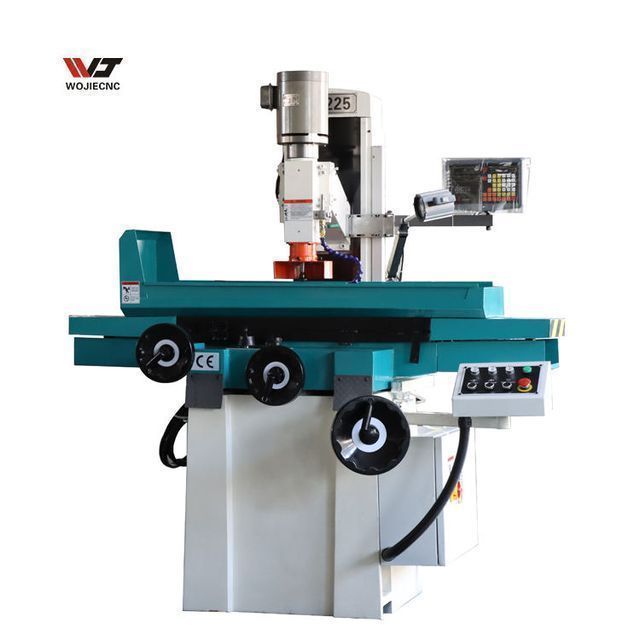

Surface grinder small cylinder head cylinder surface grinder M7225 vertical surface grinder
- $2400.00 / 1 - 2 sets
$1950.00 / 3 - 4 sets
$1800.00 / >=5 sets - 1 set
- Zaozhuang Wojie CNC Machinery Co., Ltd.
- Shandong, China
- Ms Wendy Zhong
PRODUCT DETAIL
| Year: | 2022 | Power (kW): | 1.5 |
| Main selling points: | competitive price | Weight (kg): | 1000 |
| CNC or not: | normal | Applicable industries: | Manufacturing plants, machinery repair shops, retail stores |
| Warranty: | 1 year | Core component warranty: | 2 years |
| Table cutting area: | 560*250*490 | Table travel (Y) (mm): | 250 |
| Surface roughness (μm): | 0.01 micron | Supply capacity: | 100 sets per month |
| Health status: | new | Mechanical test report: | if |
| payment terms: | L/C, Western Union, D/A, Block Surface Grinder M7225 Vertical Surface Grinder | port: | Qingdao or Shanghai port |
| Packaging Details: | The machine will be packed by plywood shell surface grinder small cylinder head and block surface grinder M7225 vertical surface grinder | Table size (mm): | 500*250 |
| On handwheel feed: | 0.01/scale 1.25/turn | Name: | grinder |
| Table speed: | 3-23m/min | Front and rear wheel feed: | 0 02/Graduation 2.5/Transfer |
| Showroom location: | India, Indonesia, Germany, Argentina, Australia, Vietnam, Morocco, South Africa, South Korea, Malaysia, Italy, Sri Lanka, Kyrgyzstan, Saudi Arabia, Chile, Kazakhstan, United States | Wheel Size: | 180*13*31.75mm |
| Core components: | engine | Number of T-slots: | 14*1mm |
| Video shipment inspection: | if | Wheel Size(mm): | 180 |
| Marketing Type: | New Products 2022 | Table travel (X) (mm): | 560 |
| Voltage: | customer request | Grinding length (mm): | 500 |
| type: | Surface Grinder | Dimensions (L*W*H): | 1800*1400*1800 |
| Package preview: | Origin: | Shandong China | |
| brand: | my jay |

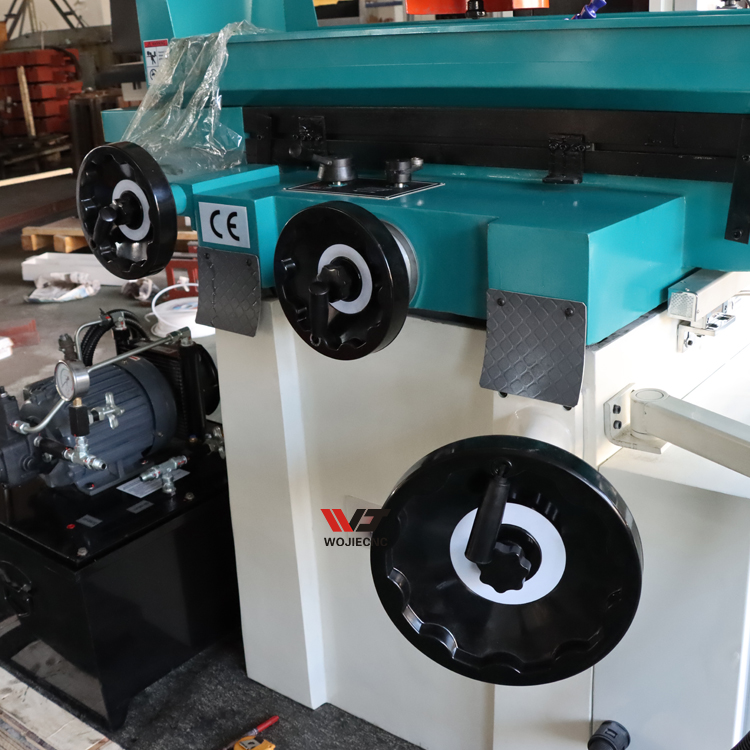

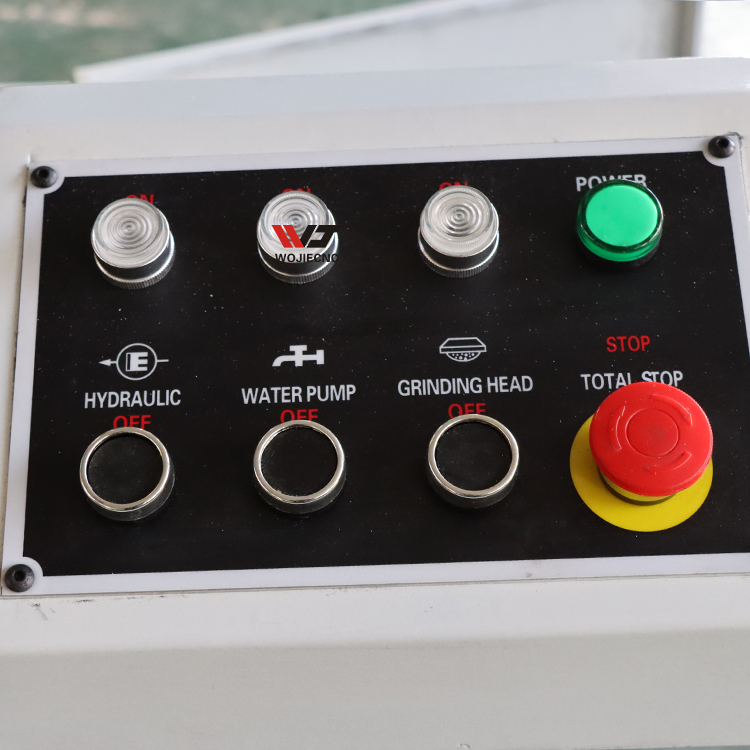

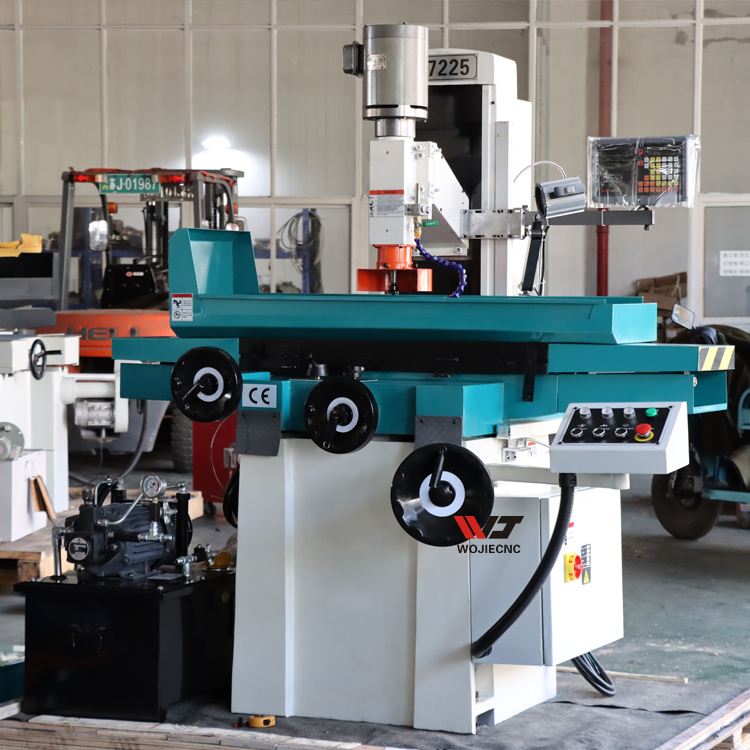

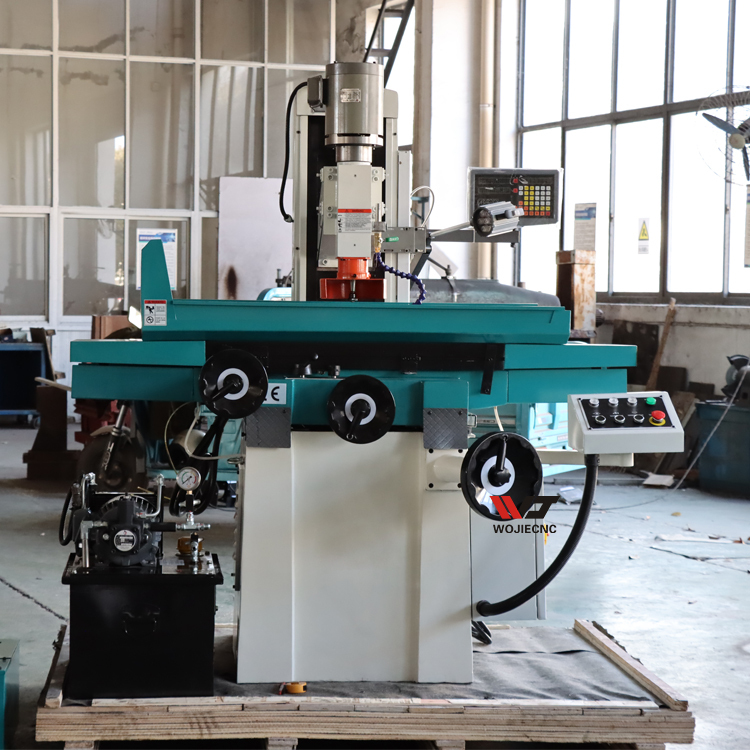

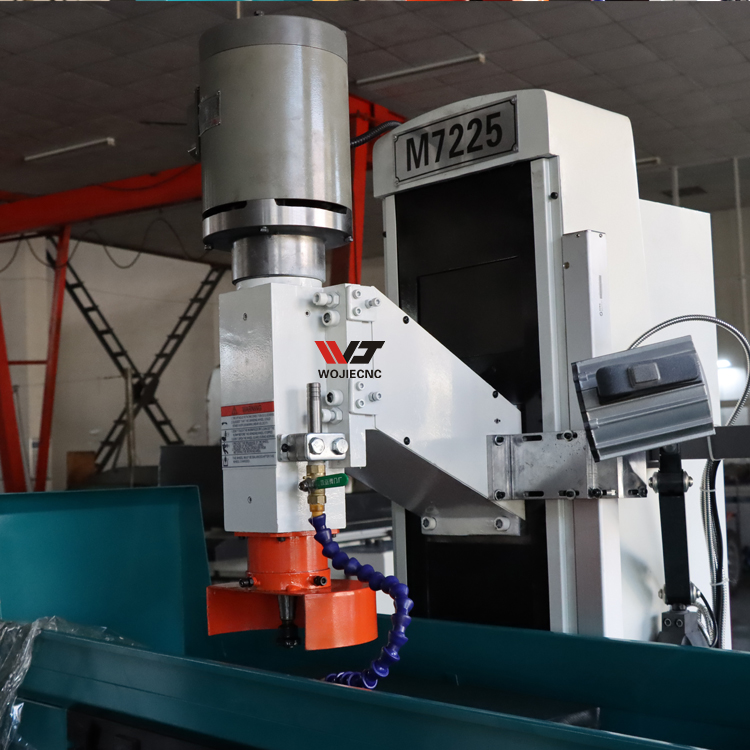

detailed image
Applications
Main performance characteristics:
Main performance characteristics:
1. The bed of the grinding machine and the grinding head are rigid. 2. The column adopts
Three-point adjustment, compact structure. 3. The working table is a rectangular strong magnetic sucker. 4. High efficiency, can cooperate with empty silicon filling demagnetization. 5. Equipped with cooling liquid purification device.
Three-point adjustment, compact structure. 3. The working table is a rectangular strong magnetic sucker. 4. High efficiency, can cooperate with empty silicon filling demagnetization. 5. Equipped with cooling liquid purification device.
application:
It is suitable for various processing machinery, auto parts, fixtures, magnetic steel, and mold parts processing industries.
The machine tool can grind steel, iron, ceramic and non-ferrous metal parts.
Main technical indicators of the product:
Main technical indicators of the product:
Technical Parameters | unit | M7225 | ||
Maximum grinding workpiece (length x width x height) | mm | 560×250×490 | ||
Workbench movement | cross | mm | 560 | |
vertical | mm | 250 | ||
Distance from table top to spindle center | mm | 490 | ||
slide | Double V-shaped steel ball guide rail | |||
maximum workload | Kilogram | 250 | ||
Table size (length x width) | mm | 500×250 | ||
Number of T-slots | mm*n | 14*1 | ||
Table speed | m/min | 3-23 | ||
Hand wheel infeed | mm | 0.02/scale 2.5/turn | ||
Hand wheel vertical feed | mm | 0.01 scale 1.25/turn | ||
Wheel size (dia×width×bore) | mm | 200×16×31.75 | ||
Spindle speed | 50 Hz | Rotating speed | 2850 | |
Inverter motor | Rotating speed | 0-6000 | ||
Spindle motor | kilowatt | 1.5 | ||
cooling pump | kilowatt | 0.4 | ||
Machine size (length x width x height) | mm | 1800×1400×1800 | ||
Package size (length x width x height) | mm | 1960×1630×1870 | ||
net weight | Kilogram | 1000 | ||
cross weight | Kilogram | 1100 | ||
Standard accessories:
coolant tank
Standard Magnetic Chuck
balance shaft
rim
wheel extractor
Leveling wedges and bolts
Toolbox and Tools
Standard grinding wheel
working lamp
Grinding wheel dresser (without diamond pen)
Built-in electromagnetic chuck controller
2 axis digital display
CE certification
machine vise
vacuum pump
coolant tank
Standard Magnetic Chuck
balance shaft
rim
wheel extractor
Leveling wedges and bolts
Toolbox and Tools
Standard grinding wheel
working lamp
Grinding wheel dresser (without diamond pen)
Built-in electromagnetic chuck controller
Optional accessories:
2 axis digital display
CE certification
machine vise
vacuum pump
