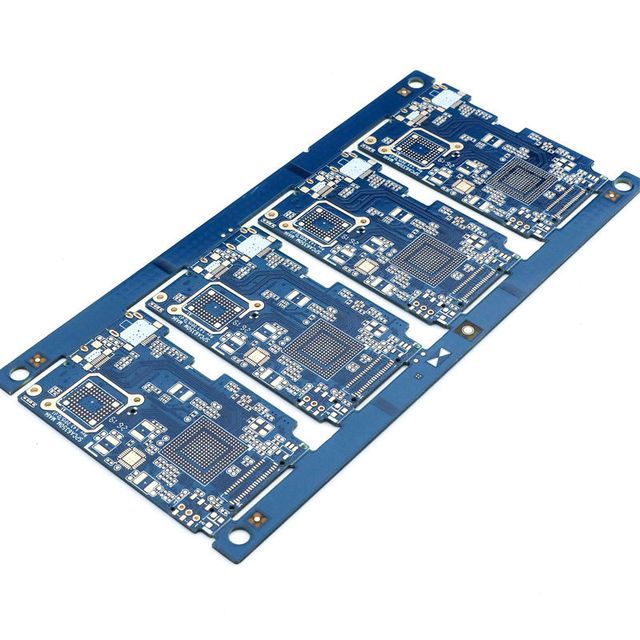

High quality PCB printed circuit board with competitive price supplier
- $2.50 /piece
- 1 piece
- Shenzhen Bluewill Technology Co., Ltd.
- Guangdong, China
- Mr Dylan Liu
PRODUCT DETAIL
| Plate thickness: | 1.6mm | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| minute. Hole size: | 6 million | model: | BW015 |
| minute. Line spacing: | 5 million | minute. line width: | 5 million |
| Surface treatment: | HASL lead-free | brand: | weight |
| Substrate: | FR4 | Board size: | 60*35mm |
| Origin: | China | Copper thickness: | 1 oz |
technology
Rigid PCB Specifications:
| thing | ability |
| layers | 1-48 layers FR4 PCB, 1-4 layers aluminum |
| Material | FR4, aluminum base, ceramic base, Rogers, Taconic, etc. |
| Minimum trace | 2 million |
| minimum space | 2 million |
| minimum aperture | 4 million |
| Hole aspect ratio | 16:1 |
| Maximum Board Size | 600 mm x 800 mm |
| copper thickness | 0.5 - 6 oz |
| Solder mask | Green, yellow, white, blue, black, red |
| surface treatment | HASL, OSP, immersion silver/gold/tin, gold plating, gold fingers, etc. |
Flexible Printed Circuit Board Specifications:
| thing | ability |
| layers | FPCB: 1-6 layers; soft and hard board: 2-8 layers |
| Material | PI, PET, PEN, FR4, etc. |
| Minimum trace | 2 million |
| minimum space | 2 million |
| Maximum Board Size | 500 mm x 600 mm |
| copper thickness | 1/3 - 2 oz |
| Solder mask | Green, yellow, white, blue, black, red |
| surface treatment | HASL, OSP, immersion silver/gold/tin, gold plating, gold fingers, etc. |
Estimated delivery time
| type | General Prototyping | rapid prototyping | Quantity manufacturing |
| single sided | 2-3 days | 12 hours | 5-6 days |
| Double panel | 3 to 4 days | 24 hours | 7-8 days |
| 4 layer board | 6-7 days | 48 hours | 9-10 days |
| 6 layer board | 8-10 days | 72 hours | 12-14 days |
| 8 layer board | 12 days | 96 hours | 16-18 days |
| 10 layer board | 14 days | 120 hours | 10-20 days |
