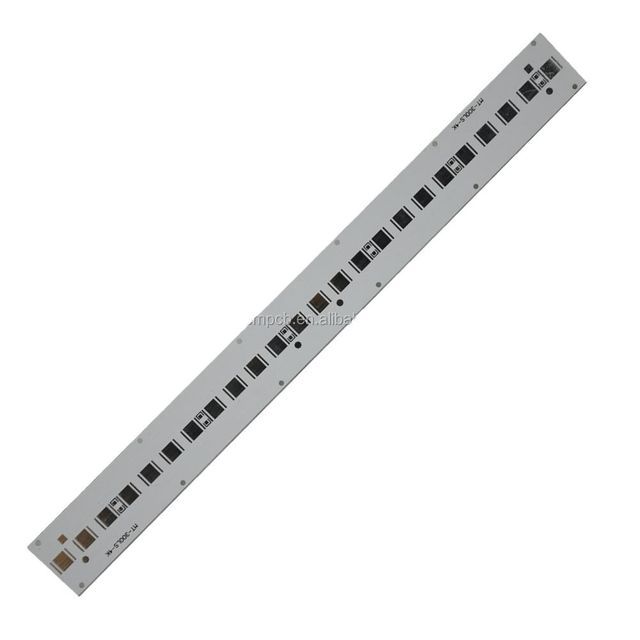

LED Street Light Aluminum PCB Board from LED PCB Manufacturer
- $1.50 / 2 - 999 pieces
$0.80 / 1000 - 9999 pieces
$0.70 / >=10000 pieces - 2 pieces
- Shenzhen Semshine Tech Co., Ltd.
- Guangdong, China
- Ms Molly Mao
PRODUCT DETAIL
| Plate thickness: | 1.6mm | document: | Protel 99se/P-CAD/Autocad/Cam350 |
| Packaging Details: | Inner packing: vacuum packing, plastic bag Outer packing: standard carton packing | minute. line width: | 0.15 mm |
| Etching Tolerance: | ±1mil(±25um) | Substrate: | FR-4 |
| standard: | IPC-A-610G | Board size: | 200*20 |
| Serve: | PCB&PCBA | Twist & Wind: | ≤0.5% |
| Sales unit: | single product | Solder mask color: | green |
| Outer packing: | Standard carton packaging | inner packaging: | Vacuum packing, plastic bag |
| Copper thickness: | 1.0 oz | minute. Hole size: | 0.12mm |
| Single pack size: | 20X2X0.16 cm | minute. Line spacing: | 0.15 mm |
| brand: | Sam Shane | Surface treatment: | HAL lead-free |
| Origin: | Guangdong, China | Certificate: | ROSH. ISO9001 certificate |
| model: | Semshine-2923 | Gross weight per piece: | 0.014 kg |
| type: | Aluminum plate | support: | Original Equipment Manufacturer/Original Design Manufacturer |
Product Description
Welcome to Senshang
- contract drafting (noun
- PCB design and assembly
- Provide prototyping and flexible production
- Accept small orders
- fast delivery time
PCB manufacturing specification
| 1 | describe | PCB specification |
| 2 | Material | FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum |
| 3 | layer | 1-20 |
| 4 | plate thickness | 0.2mm-4.0mm |
| 5 | Plate Thickness Tolerance | +/-10% |
| 6 | copper thickness | 17.5um-175um (0.5oz-5oz) |
| 7 | Minimum Trace Width | 0.15 mm |
| 8 | Minimum Space Width | 0.15 mm |
| 9 | Minimum drilling diameter | 0.2mm |
| 10 | PTH copper thickness | 0.4-2 mil (10-50 microns) |
| 11 | Etching Tolerance | ±1mil(±25um) |
| 12 | V-shape chamfer | 25°,30°,45°,60° |
| 13 | Pearl wire strength | ≥ 6 lb/in (≥ 107 g/mm) |
| 14 | Impedance Control and Tolerance | 50Ω±10% |
| 15 | twisted | ≤0.5% |
| 16 | Solder mask | Green, red, blue, white, black, yellow |
| number 17 | Surface treatment/plating | HASL/Lead-free HASL/OSP/gold plating/immersion gold/immersion gold |
| 18 | Certificate | ROSH. ISO9001 |
| No. 19 | document | Protel 99se/P-CAD/Autocad/Cam350 |
| 20 | inner packaging | Vacuum packing, plastic bag |
| twenty one | outer packaging | Standard carton packaging |
PCB Assembly Detailed Terms
| 1 | quantity | Prototype and low-volume PCB assembly from 1 board to 250, is professional, but we can handle up to 1000 orders |
| 2 | Assembly type | SMT and through-hole |
| 3 | Solder type | Water Soluble Solder Pastes, Leaded and Lead-Free |
| 4 | Element | Passives as small as 0201 size BGAs and VFBGAs Leadless Chip Loader/CSP Double-sided SMT assembly Fine pitch to 08 mil BGA repair and reballing Parts Removal and Replacement - Same Day Service |
| 5 | bare board size | Minimum: 0.25x0.25 inches Maximum: 20x20 inches |
| 6 | file format | material list Gerber file Pick and place files (XYRS) |
| 7 | Service type | Turnkey, Partial Turnkey or Consignment |
| 8 | Component packaging | cutting tape tube reel loose parts |
| 9 | rotation time | Same day service to 15 day service |
| 10 | test | Flying probe test XRAY detection AOI test |
PCB or PCB Assembly File Request
1. Gerber file of PCB bare board
2. BOM (Bill of Materials) for assembly
To shorten lead times, please let us know if there are any acceptable component substitutions.
3. Test guide and test fixture (if required)
4. Programming files and programming tools (if required)
5. Provide schematic diagram if necessary
