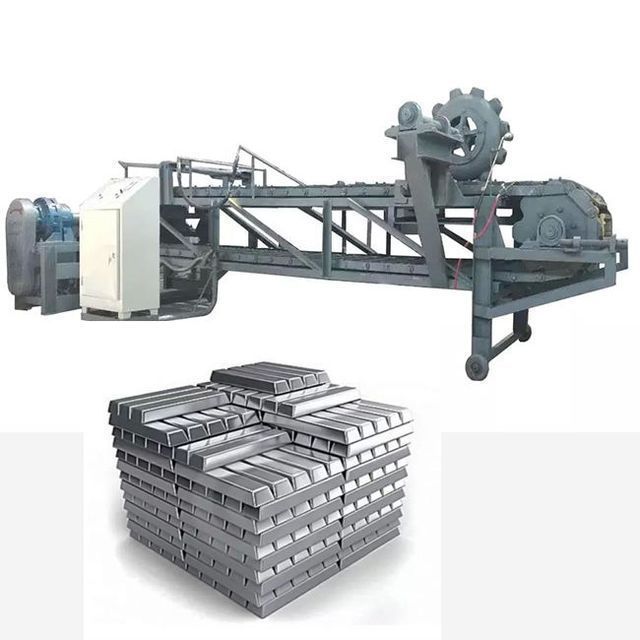

High-quality recycled aluminum 1-5 tons aluminum ingot continuous die-casting machine production line
- $5000.00 /set
- 1 set
- AdTech Metallurigical Materials Co.,Ltd
- henan, China
- Mr Adtech Xiong
PRODUCT DETAIL
| Video shipment inspection: | if | Material: | Aluminum/copper etc. |
| Applicable industries: | aluminum casting | brand: | advertising technology |
| Warranty: | 1 year | Mechanical test report: | if |
| Advantage: | low energy consumption | thing: | Electric continuous casting machine |
| Core component warranty: | 1 year | Main selling points: | high productivity |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Ukraine ceramic fiber refractory cone | Showroom location: | not any |
| Supply capacity: | 15 sets per month | Voltage: | 380V |
| strength: | 320kw | Health status: | new |
| Core components: | PLC, motor | type: | fully automatic |
| product name: | Aluminum ingot continuous casting machine | port: | any port in China |
| technology: | Die casting technology | Dimensions (L*W*H): | according to customer |
| Weight (kg): | 8700 | Certification: | International Organization for Standardization |
| application: | Foundry industry | Marketing Type: | New Product 202 |
| Origin: | Henan, China | Type of machine: | automatic |
| feature: | energy saving | Final product: | Aluminum/Copper Ingot |
| Packaging Details: | custom packaging |
Product Description
application:

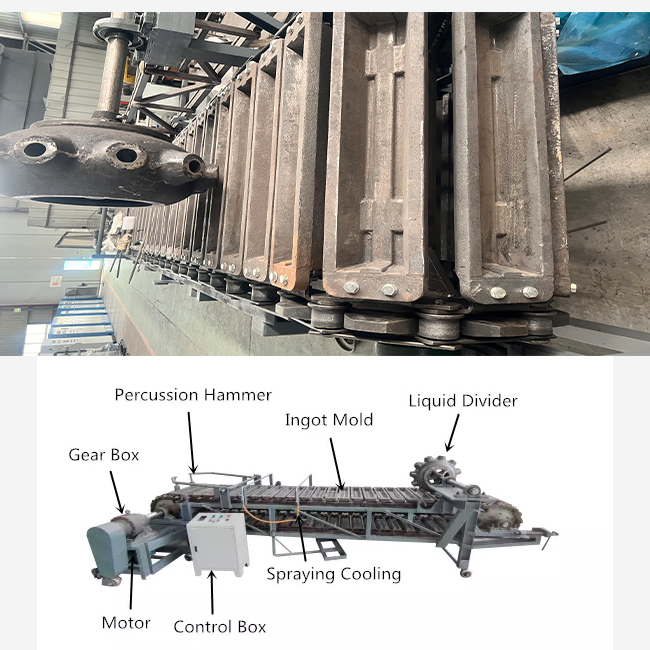

Continuous casting machine lines for casting aluminum ingots,Structure: including frame, driving device, conveyor, mold, liquid separator, cooling device and other parts.
* 1. The frame is composed of welded channel steel.
* 2. The drive is composed of motor, reducer, front and rear sprockets, and coupling.
* 3. The conveyor is composed of chain plates, rollers and hinge pins.

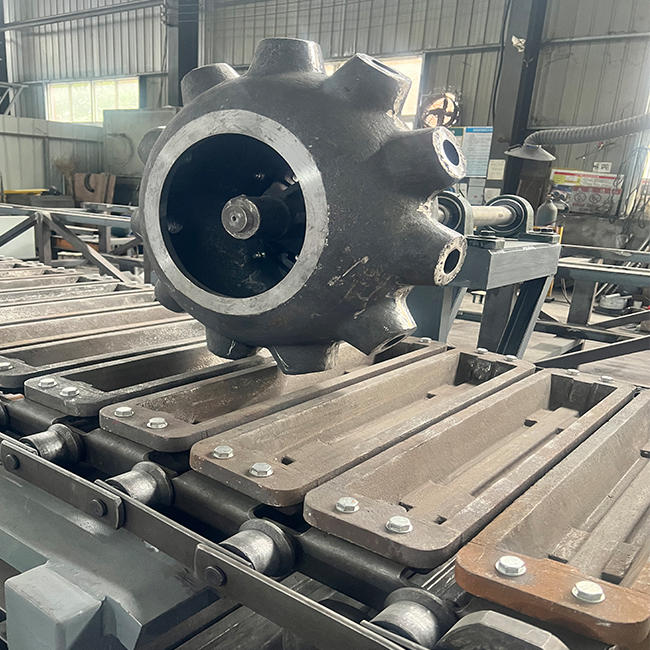

* 4. Distributor consists of ladle or diversion ditch and liquid distributor.
* 5. Cooling consists of water pipes, nozzles, and valves.
* 1. The frame is composed of welded channel steel.
* 2. The drive is composed of motor, reducer, front and rear sprockets, and coupling.
* 3. The conveyor is composed of chain plates, rollers and hinge pins.
* 4. Distributor consists of ladle or diversion ditch and liquid distributor.
* 5. Cooling consists of water pipes, nozzles, and valves.
Features and Benefits:
Features and Benefits:
1. Simple operation: easy operation and installation, good heat dissipation effect.
2. Stable operation: continuous casting for 24 hours.
3. Longer service life.
4. Adjustable water valve: 100% demoulding rate.
1. Simple operation: easy operation and installation, good heat dissipation effect.
2. Stable operation: continuous casting for 24 hours.
3. Longer service life.
4. Adjustable water valve: 100% demoulding rate.
Aluminum Furnace Specifications | ||||||||
Model | Power(KW) | Input voltage (V) | IF Frequency(HZ) | Transformer (KVA) | ||||
0.25 tons | 180 | 3*380 | 2000 | 250 | ||||
0.5 tons | 400 | 3*380 | 1500 | 500 | ||||
1 ton | 700 | 3*660 | 800 | 900 | ||||
2T | 1000 | 3*660 | 600 | 1600 | ||||
3T | 1500 | 3*950 | 500 | 2500 | ||||
5 tons | 2000 | 3*950 | 500 | 3300 | ||||
