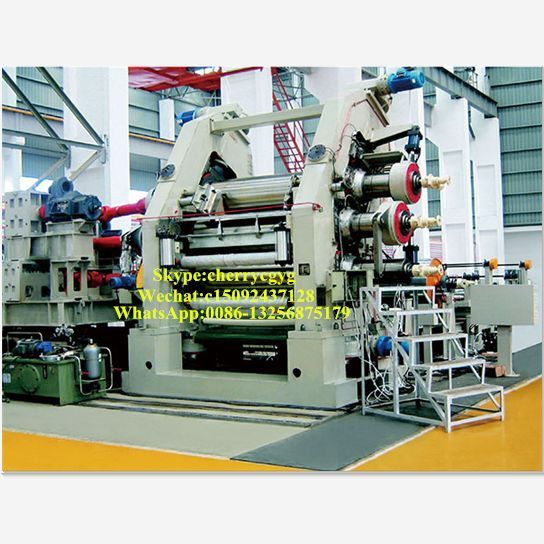

High-quality three-roll PVC calender/soft and hard PVC sheet production line
- $6000.00 /set
- 1 set
- Qingdao Chaoguangyue Industry Co., Ltd.
- Shandong, China
- Mr Daguang Qiu
| After-sales service provided: | Engineers available to service machinery overseas | Core components: | PLC, engine, bearing, gearbox, motor, gear, water pump |
| type: | Rubber calender | Health status: | new |
| Video shipment inspection: | if | Power (kW): | 75 |
| Marketing Type: | normal product | Packaging Details: | Export package, FCL or as your request. |
| Core component warranty: | over 5 years | Main selling points: | high productivity |
| Number of rollers: | three | Origin: | Shandong China |
| Surface heat treatment: | polished; chromed | brand: | cgy |
| Dimensions (L*W*H): | 7320*2200*2900mm | Mechanical test report: | if |
| After warranty service: | On-site maintenance and repair services | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Weight (kg): | 21000 kg | Processing type: | extruder |
| Warranty: | over 5 years | Voltage: | 220v, 240v, 380v, 400v, 415v, 440v |
| Supply capacity: | 30 sets per month | Showroom location: | Ukraine, Japan, Malaysia, Turkey, UK, Vietnam, Brazil, Saudi Arabia, Mexico, Russia |
| Certification: | ISO/CE/SGS | port: | Qingdao port or any port in China |
| Applicable industries: | manufacturing plant |

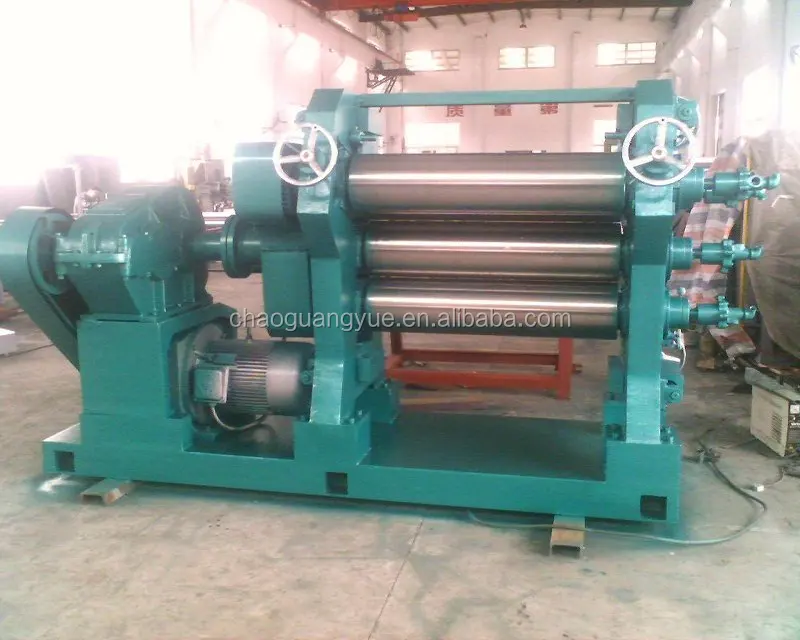

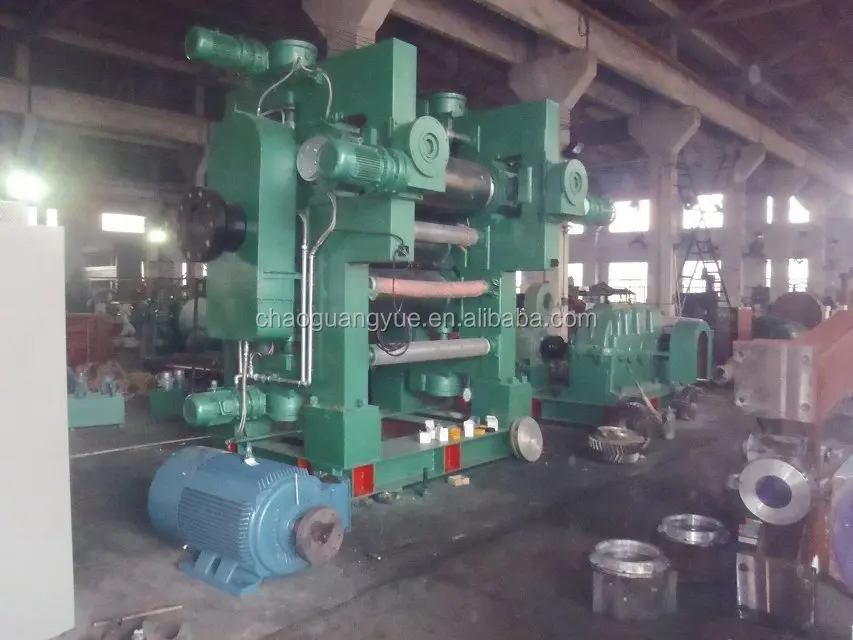

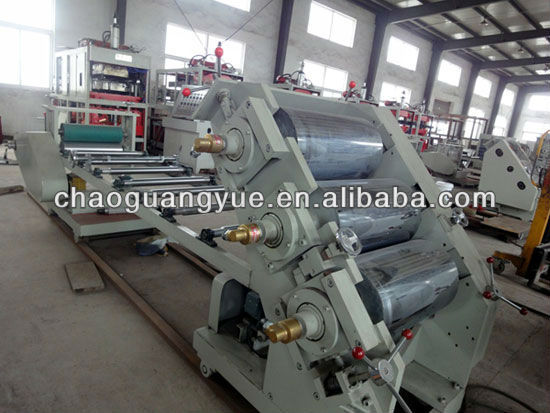

High-quality three-roll PVC calender/soft and hard PVC sheet production line
1. Application
For rubber or plastic calendering, fabric fractionation and rubber or plastic compounding.
2. Features
1. The roller is made of chilled alloy cast iron, with an inner cavity, which can be heated evenly by steam or cooled by water to meet different requirements.
2. The ground working surface is smooth, hard and wear-resistant.
3. The upper roll has crown compensation for roll bending, so the thickness of the product is uniform along the width direction.
4. The connecting gear is integrated with the planetary gear reducer.
5. Just turn the friction ratio regulator to easily change the friction ratio of the rollers to meet different rolling, splitting and calendering requirements.
6. The whole machine has compact design, low noise and long service life.
7. The roll and the output shaft of the gearbox are connected by a gear coupling, and the roll runs smoothly, which is conducive to product quality.
8. The machine is driven by silicon-controlled DC motor, and the working line speed can be adjusted steplessly within the specified range, which is suitable for various purposes.
9. Equipped with an emergency brake to stop the machine in an emergency. Provide accessories such as warp let-off device and winding device.
3. Process parameters
|
Model and parameters |
XY3I 630 XY3L 631 |
XY3I 630 XY3L 631 |
XY3I 1400 |
XY3I 1500 |
XY3I 1730 |
XY3I 2130 |
|
Roll diameter (mm) |
230 |
360 |
400 |
450 |
610 |
710 |
|
Roll working length (mm) |
630 |
1120 |
1400 |
1500 |
1730 |
2130 |
|
rolling ration |
1:1:1 |
1:1:1 |
1:1:1 |
1:1:1 |
1:1:1 |
1:1:1 |
|
|
1:1.38:1.38 |
0.73:1:1 |
1:1.38:1.38 |
|
|
|
|
1:1.42 |
1:1.38:1 |
|
1:1.38:1 |
1:1.5:1 |
|
|
|
Middle roll line speed (r/min) |
0.8-8 |
3-21.06 |
3-26.39 |
2.62-26.2 |
5.5-54 |
8-50 |
|
Adjust nip (mm) |
0-7 |
0-10 |
0-10 |
0-6 |
0-20 |
0-20 |
|
Minute calendered product (mm) |
0.2 |
0.2 |
0.2 |
0.2 |
0.15 |
0.15 |
|
Thickness (mm) |
||||||
|
Motor power (kw) |
100-500 |
500- |
1200 |
1400 |
1400 |
1400 |
|
Dimensions (mm) |
3168 |
5550 |
6500 |
7420 |
7010 |
7650 |
|
890 |
1640 |
1500 |
2200 |
3950 |
4560 |
|
|
1830 |
2120 |
2440 |
2900 |
3730 |
4080 |
|
|
About weight (t) |
2.6 |
11 |
twenty two |
26 |
52 |
60 |
Our packing way: export standard (wooden packing) or according to your requirement.
our service:
1. We will design, manufacture, install and test the machines according to customers' requirements. Train relevant personnel for customers to ensure that customers fullyMaster the use and maintenance techniques.
2. Our service department is always listening to customer feedback and providing spare partsParts were in time.

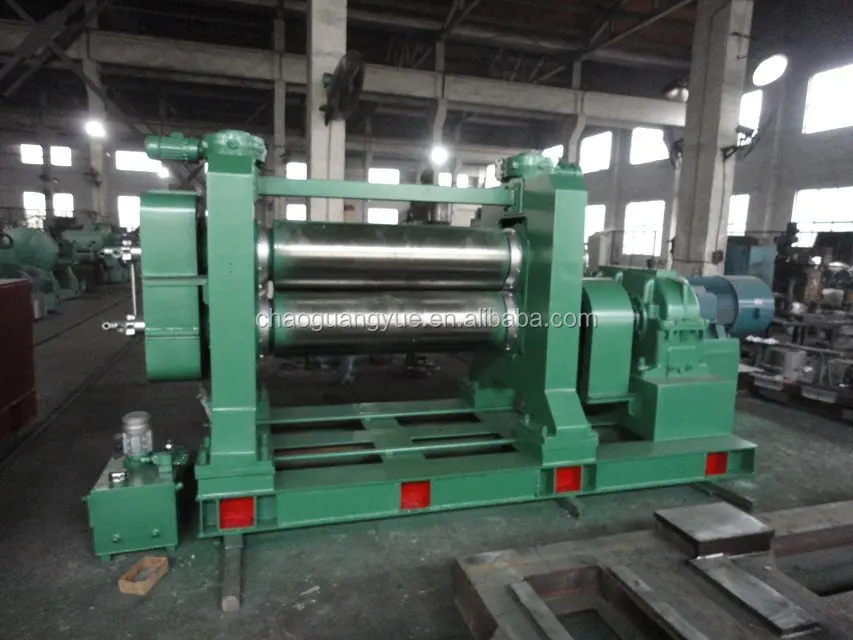

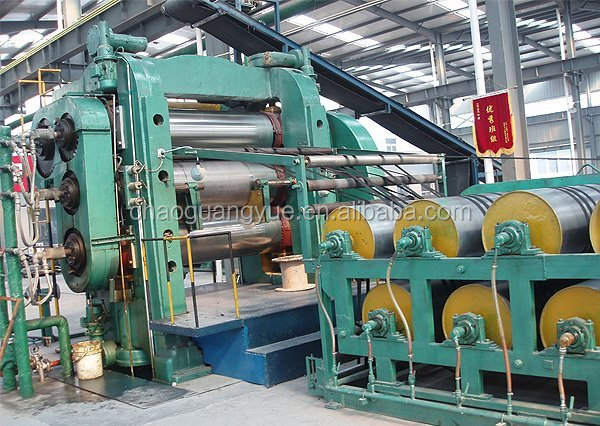

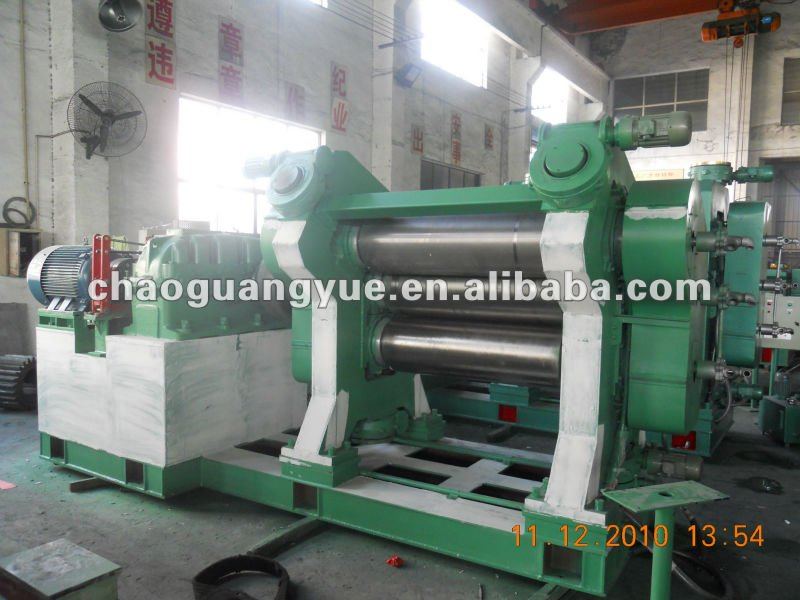

Welcome to visit our factory, we can show you the working status of the machine:
If our products win your interest, please send us an inquiry and we will provide you with detailed information. We can also manufacture machines according to your requirements.
