Hot sale 1250A SAW welding machine MZ-1250R submerged arc welding machine with trolley
- $2500.00 /set
- 1 set
- Shanghai Sanyu Industry Co., Ltd.
- Shanghai, China
- Mr Alan Ji
PRODUCT DETAIL
| port: | Shanghai | Supply capacity: | 1000 sets per week |
| State of health: | new | size: | 1140*2590*920 |
| Packaging Details: | carton | Core component warranty: | 1 year |
| Pulse frequency: | 100 Hz | Nominal Duty Cycle: | 60% |
| Warranty: | 1 year | brand: | Sanyu |
| Main selling points: | easy to operate | Weight (kg): | 365 kg |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | No-load voltage: | 60-70 |
| Mechanical test report: | if | aspect: | 1140*590*920MM |
| After warranty service: | spare parts | Marketing Type: | normal product |
| Duty cycle: | 60% | usage: | saw |
| Voltage: | 3 phase 380V | place of origin; place of origin: | China Shanghai |
| intellectual property: | twenty one | Power factor: | 0.73 |
| Showroom location: | Egypt, Italy | Applicable industries: | Mechanical repair shops, manufacturing plants, construction works |
| Motor type: | IGBT | Arc current: | 250A~1250A |
| strength: | 99KVA | After-sales service provided: | online support |
| current: | 250-1250 | Video shipment inspection: | if |
| Arc current: | 250A~1250A | Core components: | IGBT module |
MZ 630/ 1000/1250 380V SAW inverter automatic submerged arc welding machine
Product Description
| 1. The power supply adopts high-power thyristors for automatic buried welding |
| 2. Horizontal or 10-degree groove butt welding, fillet welding with or without groove. |
| 3. Wide adjustment range of welding current, stable arc and low noise |
| 4. Double wire feeder, powerful wire feeding function |
| 5. Stepless adjustment of wire feeding speed and welding speed; |
| 6. Suitable for ring welding, filling welding, butt welding, lap welding and flat fillet welding; |

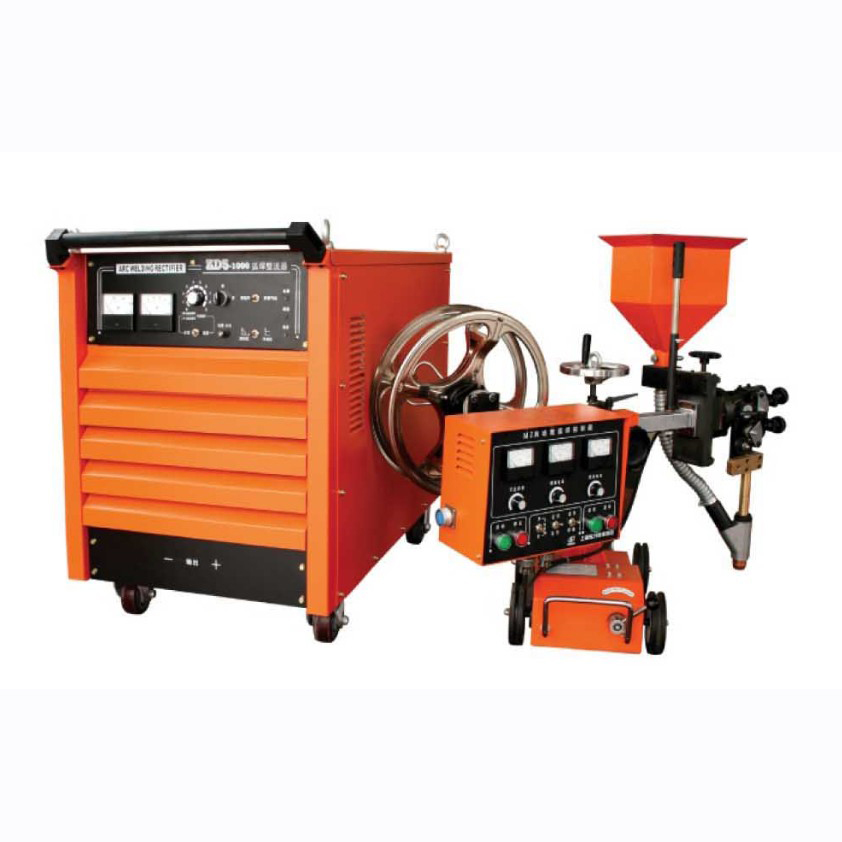

MZ 630/ 1000/1250 Automatic submerged arc welding machine
| project/model | MZ-630 | MZ-1000 | MZ-1250 |
| Input voltage (V) | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Phase | 3 | 3 | 3 |
| Rated input capacity (KVA) | 48.3KVA | 86KVA | 99KVA |
| open circuit voltage | 76V | 76V | 76V |
| Welding current | 120-630A | 150-1000A | 250A-1250A |
| duty cycle | 60% | 60% | 60% |
| Wire diameter | 2-3mm | 3-5mm | 3-6mm |
| welding speed | 15-70cm/min | 30-120cm/min | 30-120cm/min |
| tractor weight | 60 kg | 60 kg | 65 kg |
| head lateral bevel | 30° | 30° | 30° |
| Vertical adjustment range | 85mm | 85mm | 85mm |
| Horizontal adjustment range | 60mm | 60mm | 60mm |
| head rotation angle | ±180° | ±180° | ±180° |
| power supply weight | 290 kg | 335 kg | 370 kg |
| power supply size | 960*490*800mm | 1140*590*920mm | 1140*590*920 |
