Semi-trailer beam welding machine/trailer longitudinal beam production line
- $20000.00 /set
- 1 set
- Shandong Shuipo Welding & Cutting Equipment Manufacture Co., Ltd.
- Shandong, China
- Ms Shuipo Shandong
| port: | Qingdao/Tianjin | Table speed: | >2180mm/min |
| Health status: | new | Wing height: | 50-260mm |
| strength: | AC 380V 50HZ, AC 380V 50HZ | Warranty: | 1 year |
| Supply capacity: | 100 sets/year semi-trailer production line | brand: | water slope |
| aspect: | 2810 | Voltage: | 380V |
| usage: | welding | Name: | Semi-trailer production line |
| Effective welding length: | L-2000mm | Position of welding: | Flat fillet weld |
| Rail length: | according to customer | Welding speed: | 250-1200 mm/min |
| Flux collector: | 100kg*2 | Packaging Details: | According to the customer's requirements for the semi-trailer production line |
| Web width: | 200-600mm | After-sales service provided: | Online support, on-site maintenance and repair services |
| Certification: | CCC, CE, ISO9000 | payment terms: | L/C, T/T |
| Origin: | Shandong China | Applicable industries: | Commercial vehicle industry |
| Motor type: | AC motor |
Gantry type H beam welding machine / water slope gantry main beam welding machine /H-beam submerged arc welding machine/steel structure beam automatic welding machine semi-trailer H-beam welding machine production line

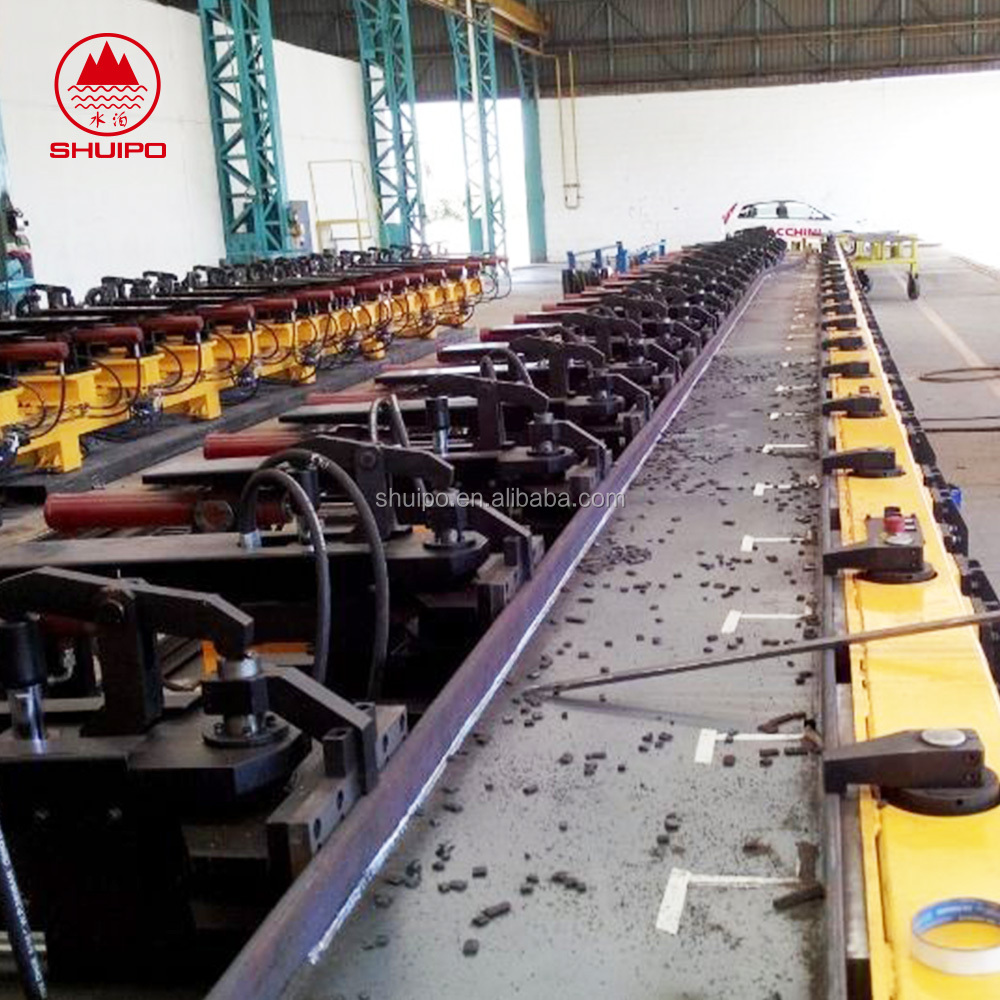

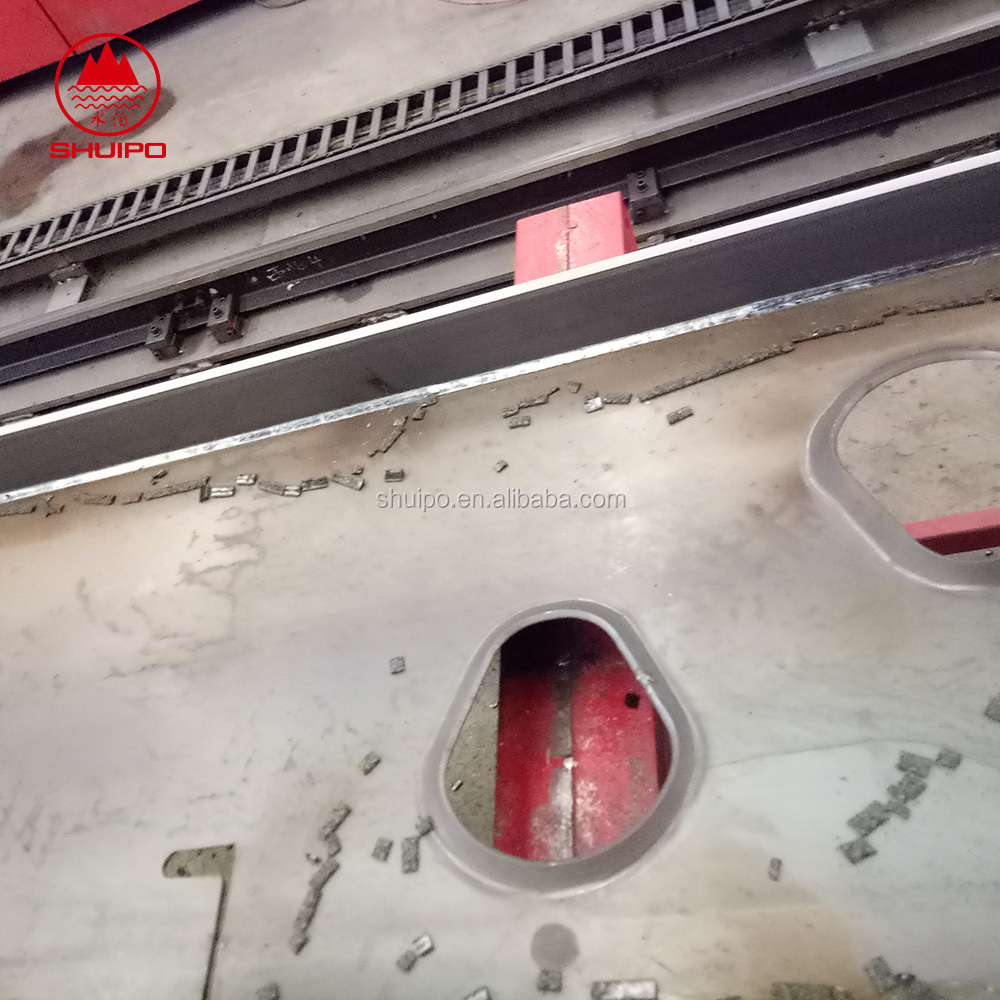

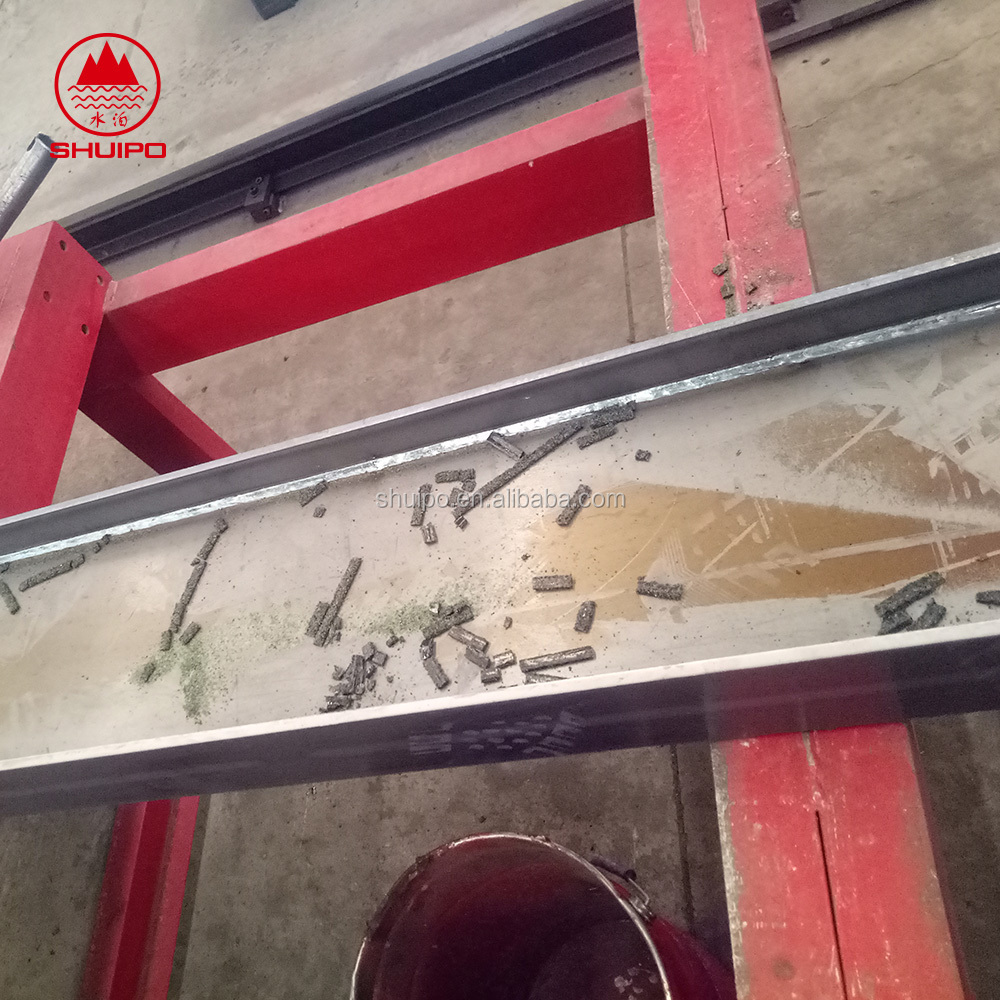

1. Trailer girder welding machine/trailer girder submerged arc welding machine/semi-trailer steel structure girder automatic welding machine H-beam welding machine production line product picture
2. Trailer Beam Welding Machine/H Beam Welding Machine/Steel Structure Beam Automatic Welding Machine H Beam Welding Machine Product Introduction
The gantry longitudinal welding machine can weld parallel seams at one time, especially irregular
Beam (≤30°variable section). It is one of the most useful submerged arc welding
Machines currently in use in the special vehicle industry
Gantry longitudinal welding machine adopts advanced PLC program input
technology and microelectronics. The CPU can process two sets of data, and control the two flashlights to chase stars until the end point stops. this machine
With a fault self-checking system, the system can tell you where the error is. The machine has good welding quality, easy operation,
high efficiency. It can provide stable welding quality for your products, and can
It also ensures stable welding quality in mass production.
This machine adopts flexible and reliable profiling technology to realize
Automatic stitch tracking and automatic adjustment. During welding, there are
No jitter phenomenon, high work efficiency
improve.
Three. Trailer girder welding machine/H-beam welding machine/semi-trailer steel structure beam automatic welding machine H-beam welding machine production line product technical parameters
| vertical drive | dual drive | ||||
| Work material | Carbon steel, Low-alloy steel | ||||
| Work piece thickness | Stencil: 6-14mm | ||||
| Wing plate: 14-25mm | |||||
| Work scope | Stencil width: 200-800mm Flap height: 50-260mm | ||||
| width | Measurement | 2810mm | |||
| Effective weld length | 200-700mm | ||||
| machine width | 3700mm | ||||
| length | Rail length | 18000mm | |||
| Effective weld length | 16000mm | ||||
| energy source | Lincoln DC-1000 | ||||
| input power | 2*50KW | ||||
| welding scope | Machine traverse speed | 3000mm/min | |||
| welding speed | 250-1200 mm/min | ||||
| Wire diameter | 4.0mm | ||||
| Welding current | 300-1000A | ||||
| duty cycle | 100% | ||||
| vertical movement distance | 230mm | ||||
| Maximum effective weld length | 700mm | ||||
| Reel Capacity | 25Kg | ||||
| Flux bucket capacity | 50Kg/set | ||||
| ambient temperature | -10℃-40℃ | ||||
| Relative humidity | ≤70% | ||||
| strength | 380V±5%,50HZ | ||||

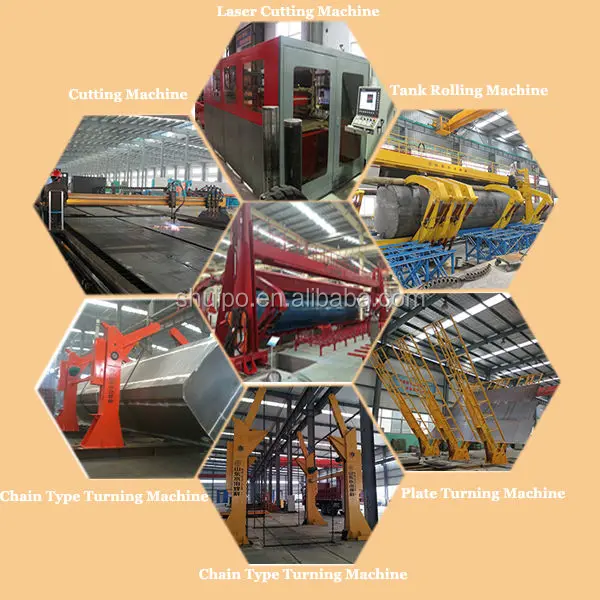

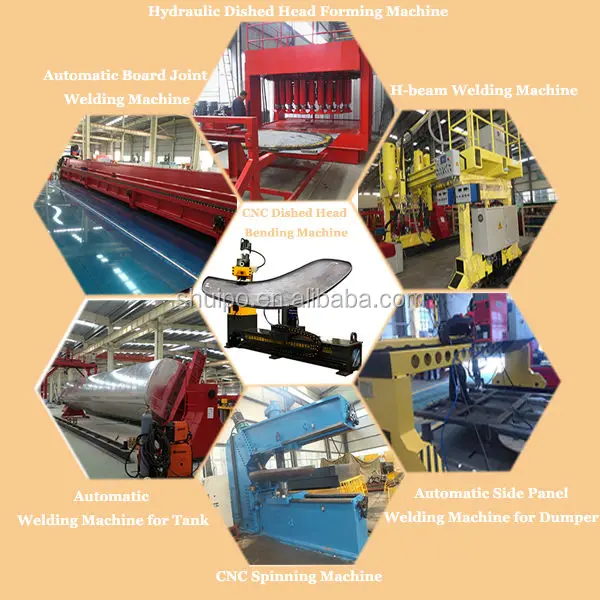

More products for you to choose

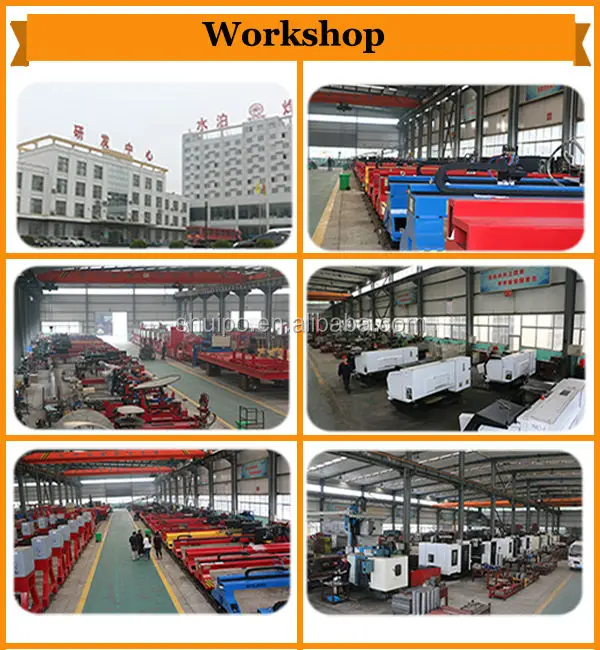

company exhibition
1. About us
Shandong Shuibo Welding and Cutting Equipment Manufacturing Co., Ltd. focuses on
R&D, manufacturing,
Special vehicles, engineering machinery, shipbuilding and
steel structure. Our company covers an area of 42,000 square meters, of which 12,000
square meters of construction area. The registered capital of our company has reached
10 million yuan, our total assets reached 60 million yuan.

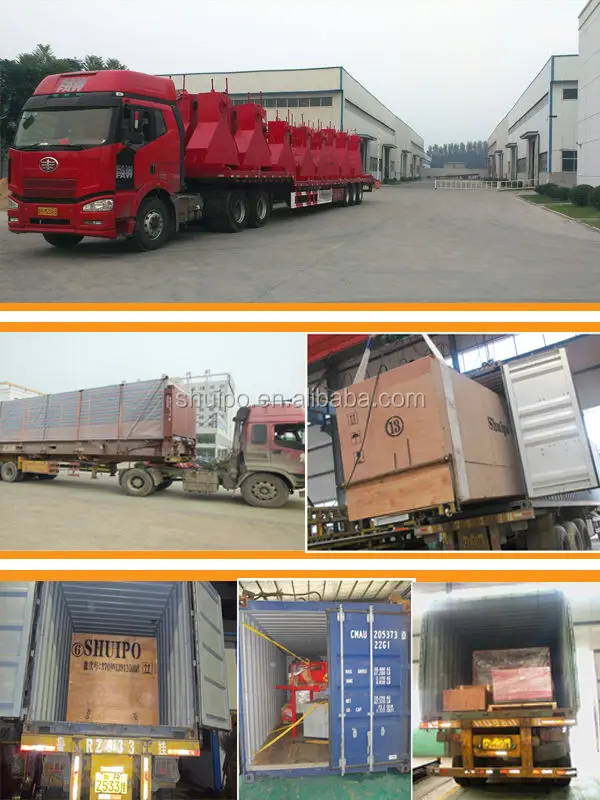

2. Packaging
3. Our market
| main market: | south asia |
| North America | |
| South America | |
| middle East | |
| Southeast Asia | |
| Africa | |
| Eastern Europe | |
| Western Europe | |
| Total annual sales: | $50 million - $100 million |
| Export percentage: | 31% - 40% |
