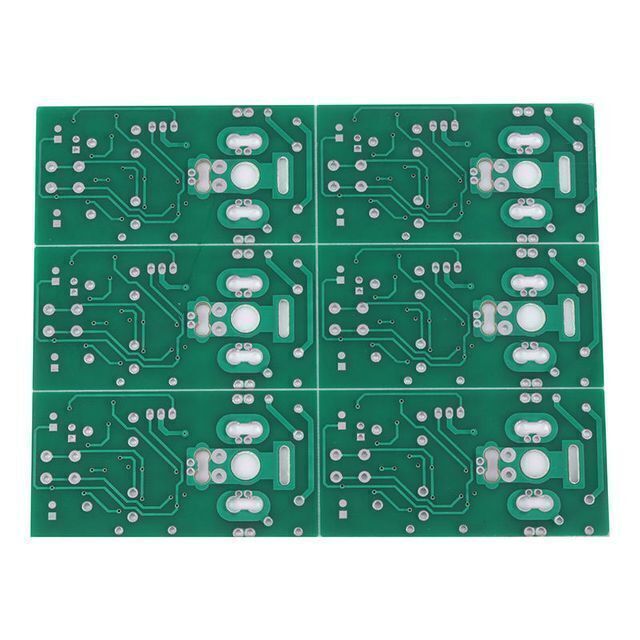

Hot sale 4G 5G high frequency pcb manufacturer communication printed circuit board Pcb Board for 4G 5G communication

PRODUCT DETAIL
Material:FR4 /Aluminum/CEM3/CEM1/FR1;Port:shenzhen, HK;
Type:Electronic Board,High Frequency PCB;Solder mask color:Blue.green.red.black.white.etc;
Package Preview:;MOQ:1pcs;
Min. Hole Size:0.075mm;Certificate:ROHS/ISO9001;
Min. Line Width:0.075mm;Silkscreen color:Black White;
Board Thickness:1.0mm;Brand Name:KL;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Surface Finishing:Hasl lead free/ENIG/OSP;
Copper Thickness:1oz;Min. Line Spacing:0.075mm;
Packaging Detail:PCB: Vacuum packing with carton box PCBA: ESD packing with carton box;Place of Origin:China;
Testing Service:100% E-testing;Board Size:5*5*0.2cm;
Supply Ability:90000 Acre/Acres per Month;Product name:Printed Circuit Board;
Model Number:kl8874;Base Material:FR4/Aluminum/CEM;
Package:Vacuum Package;Number of Layers:1 Layer-18layer;
Video Description
Kangling Electronic Technology CO.,LTD
—————————————————————— ——————————————————————
Quick Turn Lead Time
Standard Lead Time
Layer Count:
Lead Time
Special Requirement
Layer Count:
Sample Lead Time
Volume order lead time
1L/2L
2-3days
24 Hours, 48 Hours
2L
4days
10days
4L
3-4days
48 Hours
4L
5days
11days
6L
4-5days
72 Hours
6L
6days
12days
8L
5-6days
NA
8L
8days
14days
10L
6-7days
NA
10L
10days
16days
12L
7-8days
NA
12L
12days
18days
14L
8-9days
NA
16L-32L
18days
24days
Our Fabrication Capability
Kangling Electronic Technology CO.,LTD
—————————————————————— —————————————————————
Items
Capacity
1.Base Material
FR-4, High TG FR-4, FR2, Aluminum, Rogers, CEM-1, CEM-3, Taconic, ceramic , crockery, Metal-backed Laminate
2.Layers
1-18layer
3.Finised inner/outer copperthickness
1-6OZ
4.Finished board thickness
0.2-7.0mm
5.Min hole size
Mechanical hole: 0. 15mm   Laser hole: 0. 1mm
6.Controlled
Impedance
+/-5%
7.Plugging vias capability
0.2-0.8mm
 8.Outline profile
Rout, V-cut, Bridge, Stamp hole
9.Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin,
Immersion Silver, Hard Gold, OSP...
10.Min.Trace Width & Line Spacing
0.075mm/0.1mm(3mil/4mil)
11.Min.Hole Diameter
for CNC Driling
0.1mm(4mil)
12.Min.Hole Diameter for punching
0.9mm(35mil)
13.Biggest panel size
610mm* 508mm
14.Hole Positon
+/-0.075mm(3mil) CNC Driling
15.Conductor Width(W)
0.05mm(2mil)or;    +/-20% of original artwork
16.Hole Diameter(H)

PTH L:+/-0.075mm(3mil);
Non-PTH L:+/-0.05mm(2mil)
17.Outline Tolerance
0.125mm(5mil) CNC Routing;
+/-0.15mm(6mil) by Punching
18.Warp & Twist
0.70%
19.Insulation Resistance
10Kohm-20Mohm
20.Conductivity
<50ohm
21.Test Voltage
10-300V
22.Panel Size
110×100mm(min);   660×600mm(max)
23.PCB Standard
IPC class 2 & IPC class 3
24.High frequency material
Arlon
25.Certificate
ROHS, IPC
26.Service
One-stop Service,  24Hours Technical Services,  PCB Design
27.Warranty
0.5-1 Year
28.MOQ
1pcs
29.Way of shipping
DHL, Fedex, UPS, TNT, LC AT SIGHT
30.Delivery time
3-7days
31.Payment
T/T, Union, PayPal
32.Sample delivery
24Hours delivery
Raw Material Control
Kangling Electronic Technology CO.,LTD
-------------------------------------------------------- ----------------------------------------------------
Product Details
Kangling Electronic Technology CO.,LTD
------------------------------------------- ---------------------------------------------
Why Choose us?
Kangling Electronic Technology CO.,LTD
-------------------------------------- --------------------------------------

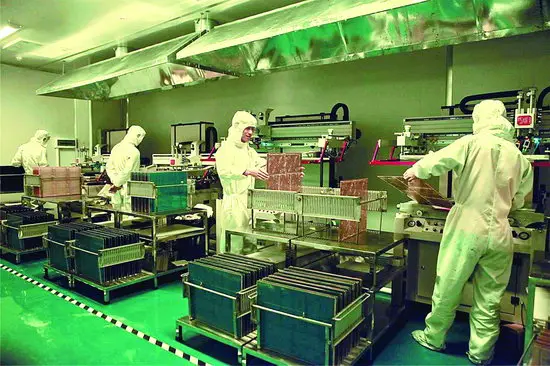

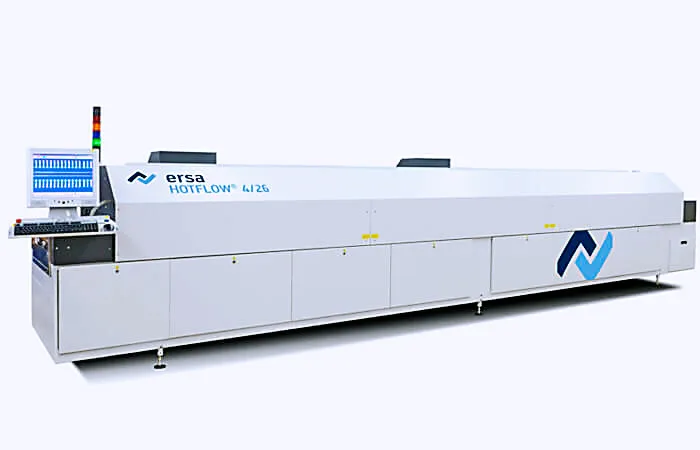

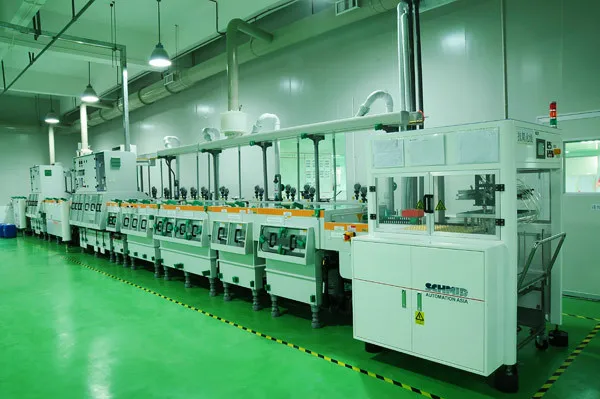

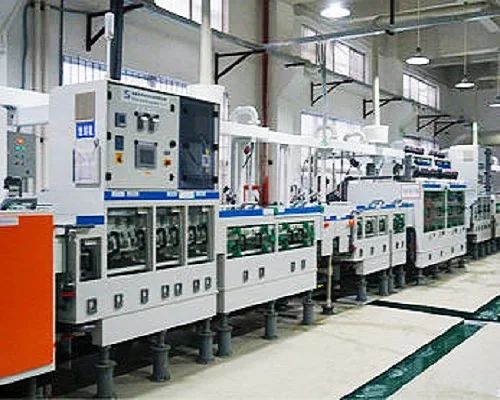

Our Equipment
Kangling Electronic Technology CO.,LTD
---------------------------------------------------------------------------- ----------------------------------------------------------------------------
Other Products
Kangling Electronic Technology CO.,LTD
------------------------------------------------------------------------------- ------------------------------------------------------------------------------
Packing & Delivery
Kangling Electronic Technology CO.,LTD
---------------------------------------------- ----------------------------------------------
Packaging Details：
Our company is not only trying to give customers a good product but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Shipping:
1.Confirming your shipping address is correct before delivery
2.Orders processed timely after the payment verification
3.Professional package. No worry about goods breakage.
4.Service transit time is upon different carrier, may vary particularly during holiday.

Common packaging:
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box

Port：
Shenzhen, HK
FAQ
Kangling Electronic Technology CO.,LTD
------------------------------------------------ -----------------------------------------------
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(30.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PCB,FPC,PCBA,MPCB

4. why should you buy from us not from other suppliers?
<1>We do some policy to keep raw material safe.
<2> We have high class non-dust workshops.
<3> QC in workshop and packaging.
<4> When meet the quality complains, we will hold a meeting with production, purchasing and packaging departments in 24 hours.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency: TT in advantage;
Accepted Payment Type: Paypal, WESTERN UNION, VISA, ESCROW;
Language Spoken:Chinese, English.
VIEW MORE
