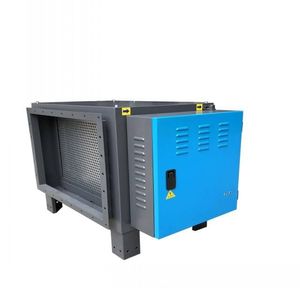

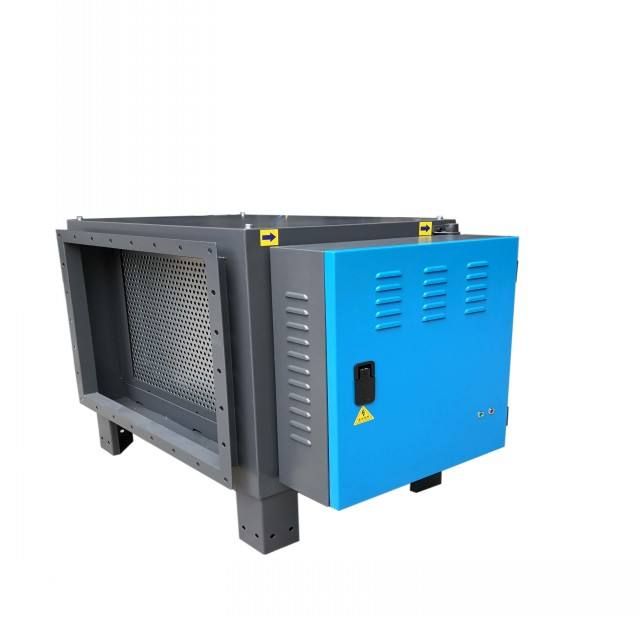

Hot selling restaurant canteen electrostatic fume purifier factory in 2022
- $469.99 / 5 - 49 sets
$379.99 / >=50 sets - 5 sets
- Nanning Juwei Machinery And Electricity Technology Co., Ltd.
- Guangxi, China
- Ms Allison N
PRODUCT DETAIL
| Applicable industries: | Hotels, factories, restaurants, home use | port: | Nanning |
| Core Components Warranty: | 1 year | Purification efficiency: | 97 |
| payment terms: | letter of credit, wire transfer | Showroom location: | Vietnam |
| Product advantages: | Efficient electric field | Electric field material: | Anti-corrosion aluminum alloy plate |
| Warranty: | 1 year | Flange size: | 584*463 |
| Packaging Preview: | Mechanical test report: | if | |
| Health status: | new | Air volume (m3/h): | 4000 |
| brand: | Juwei | Dimensions (L*W*H) mm: | 543*862*702 |
| Number of electric fields: | 1 | Marketing Type: | New Products 2020 |
| Packaging Details: | Packed in wooden box. | Rated power (W): | 48 |
| Discharge method: | Low altitude | Video external inspection: | if |
| Supply capacity: | 500 units per month | place of origin; place of origin: | Guangxi, China |
| Core components: | Static electricity | Cabinets/Finishes: | Carbon steel surface treatment, powder coating |
| product name: | Electrostatic Air Purifier | Weight (kg): | 68 kg |
Product Description

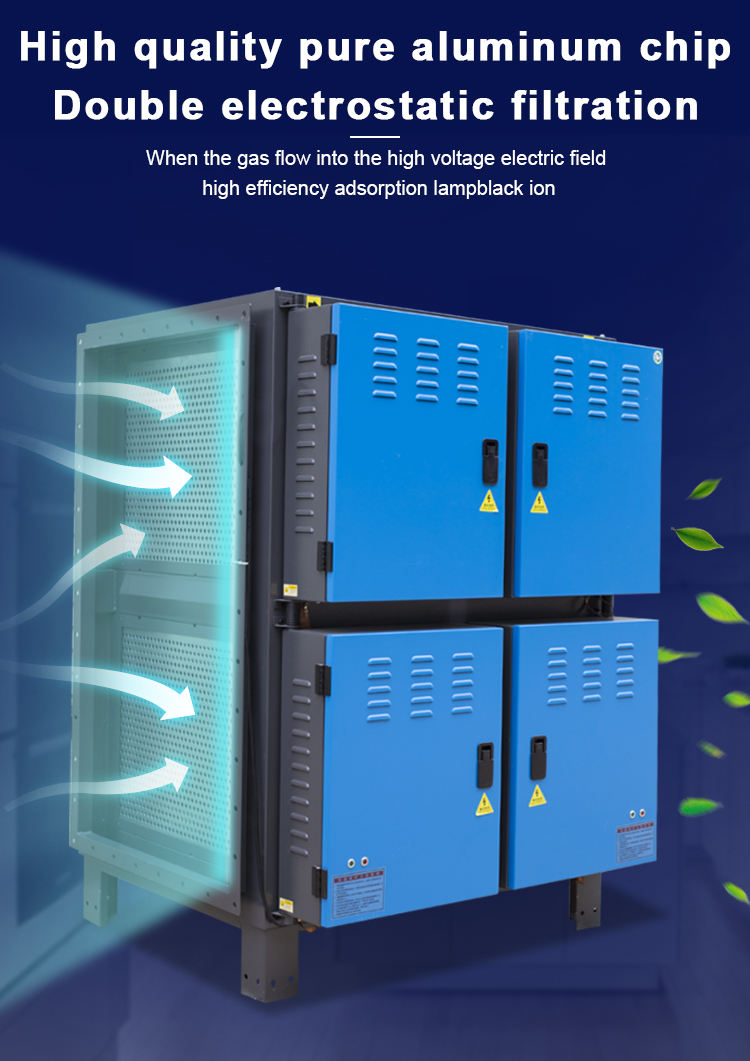

Electrostatic precipitators

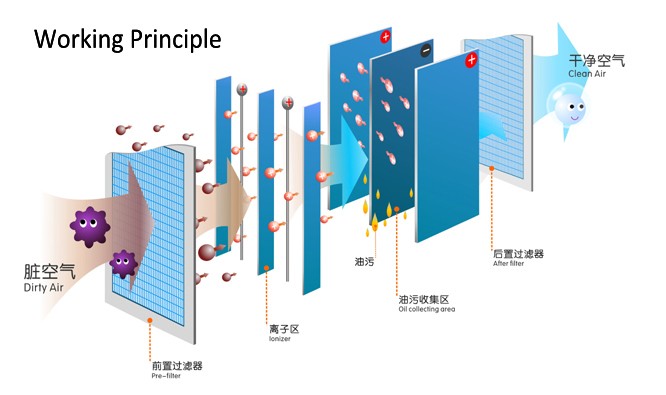

China Juwei Electrostatic Air Purifier is a filter device that removes fine particles such as oil, oil fume, oil fume, dust and smoke produced by cooking, grilling, laser and thermal heating, etc. Using the power of the high voltage electric field, the particles are brought to positive and negative potentials, and then they will be collected by the positive and negative collectors, turning dirty air into clean air. Our machines have been tested to remove up to 98% of particles.
Air volume (m3/h) | 4000 |

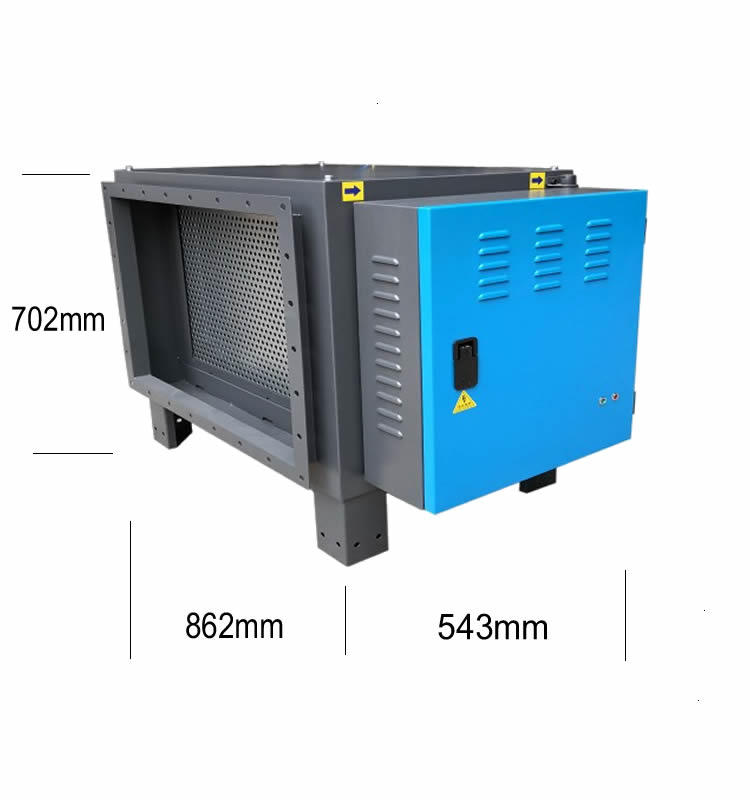

Dimensions (L*W*H)mm | 543*862*702 |
Flange size (mm) | 584*463 |
Rated power (w) | 48 |
input power | 220v/50hz |
Electricity | 1 |
Weight (kg) | 52 |

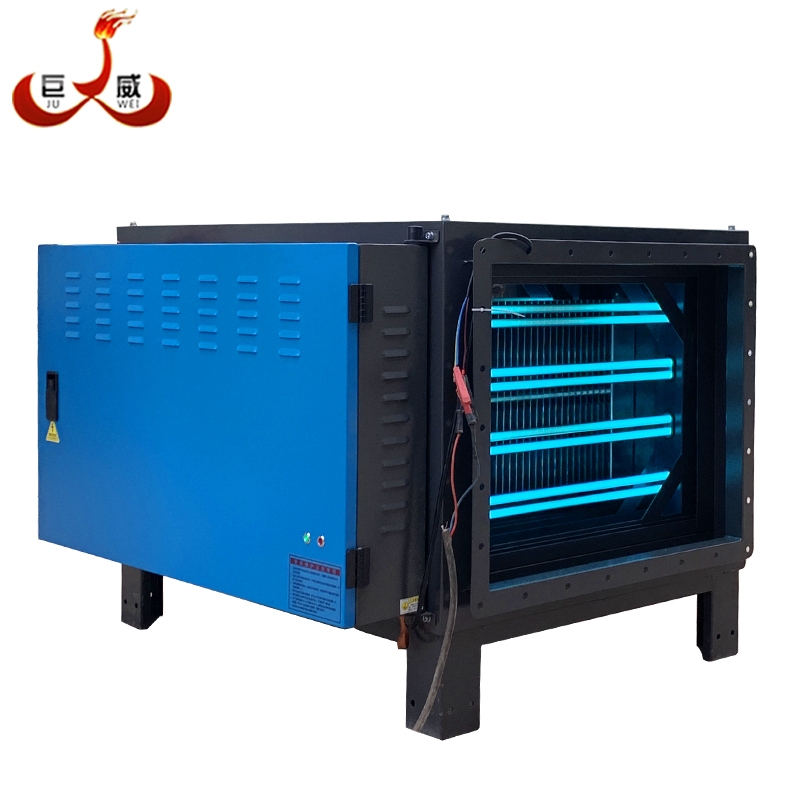

The dual-band UV photolysis matrix can effectively degrade the passing odor gas and remove odor, and the patch structure is convenient for maintenance and cleaning
detailed picture

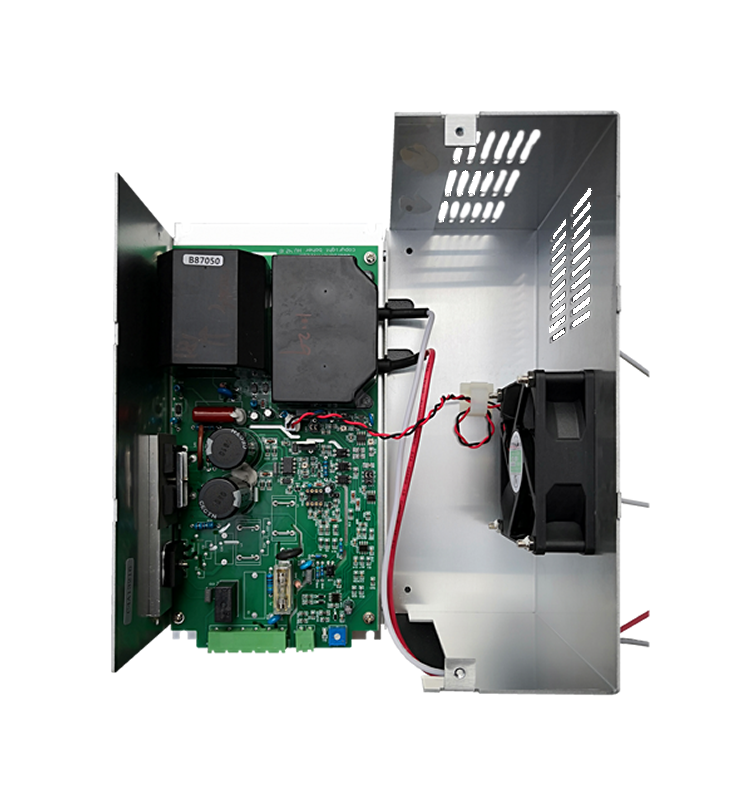

high pressure
Voltage is an important element and it should be as high as possible. Ensure maximum particle ionization and capture
Efficiency, both our ionizer and collector batteries use very high voltages.
Efficiency, both our ionizer and collector batteries use very high voltages.

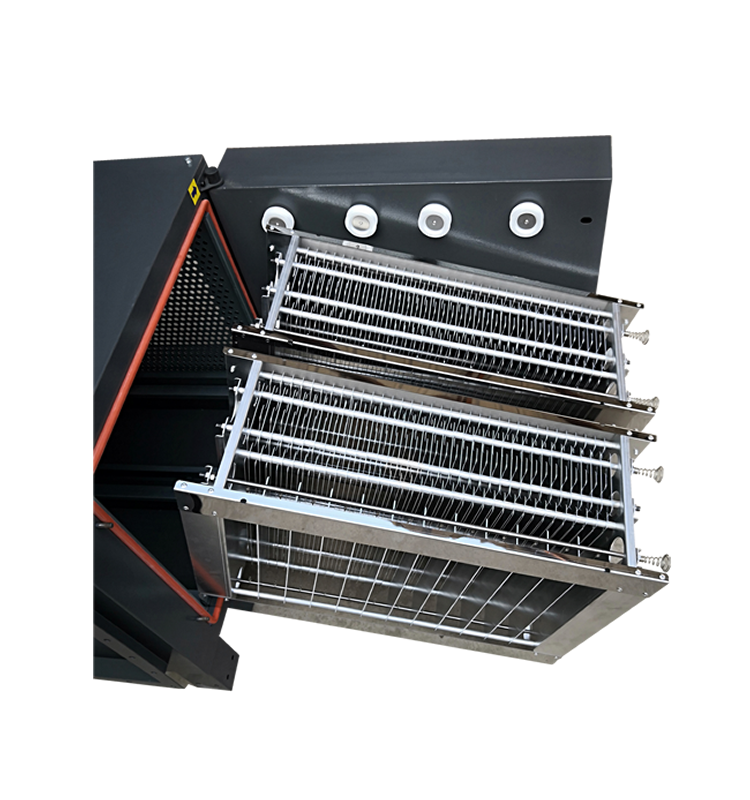

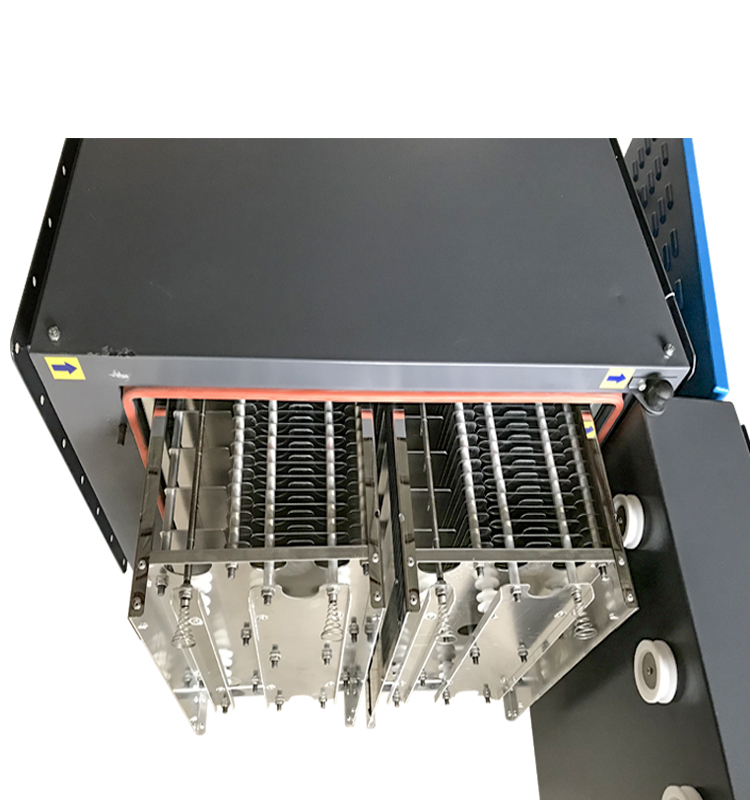

The largest ionized grease and smoke particles are as they pass through the ionization electrode, so they can be captured as they pass through the ionization electrode
Parallel plates of collector cells.
Parallel plates of collector cells.

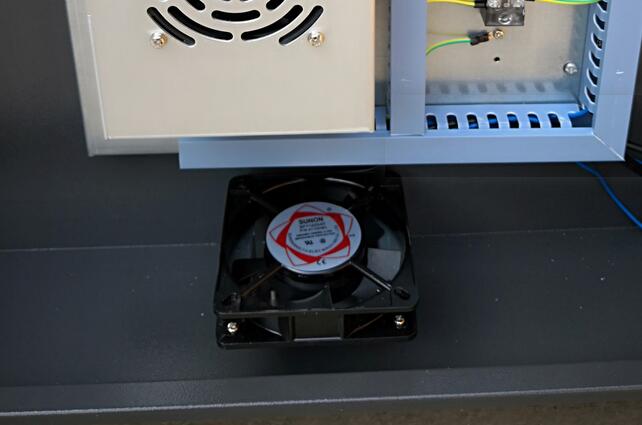

There is a cooling fan under the control box to cool down the temperature and avoid malfunction.

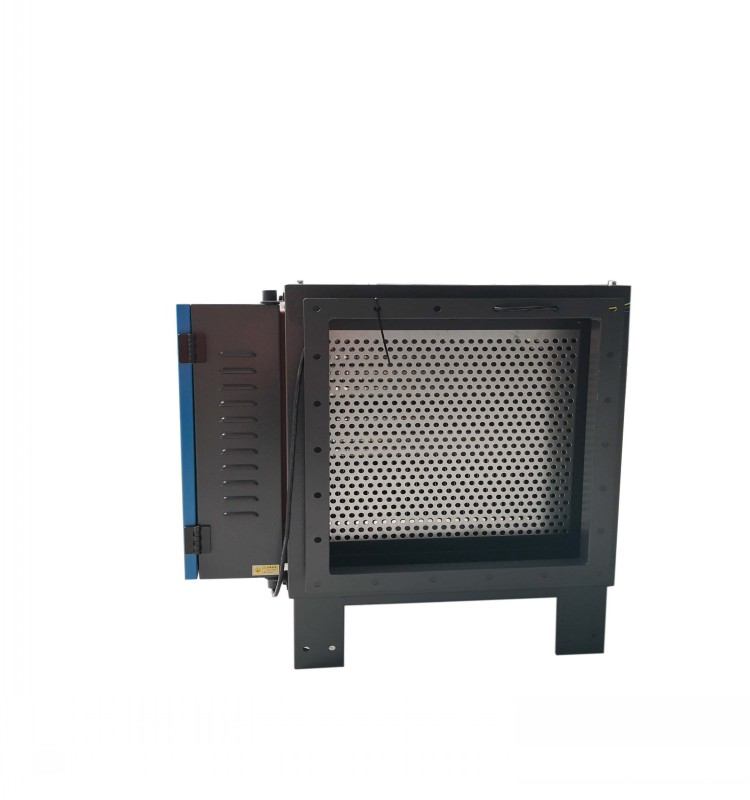

The water inlet and outlet are covered with honeycomb net to prevent foreign matter from entering, and the purification effect is more obvious
compared to
Plate structure purifier
1. The collection section consists of multiple parallel plates, which are resistant to dirt and easy to clean2. Small size, cost saving
3. Low power consumption, power saving
3. Low power consumption, power saving

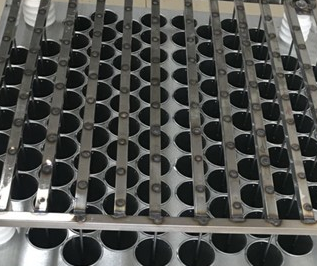

Honeycomb structure purifier
1. Easy to accumulate oil and high maintenance cost2. Large volume, additional logistics costs, shipping costs, etc.
3. More power consumption
3. More power consumption

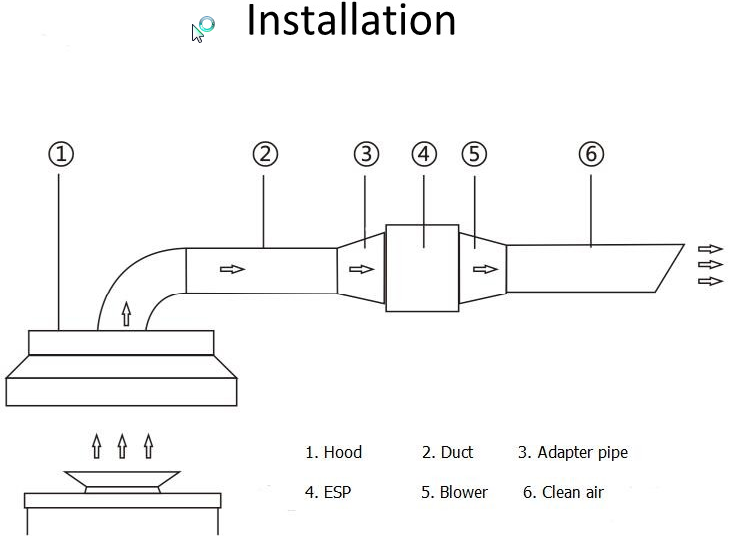

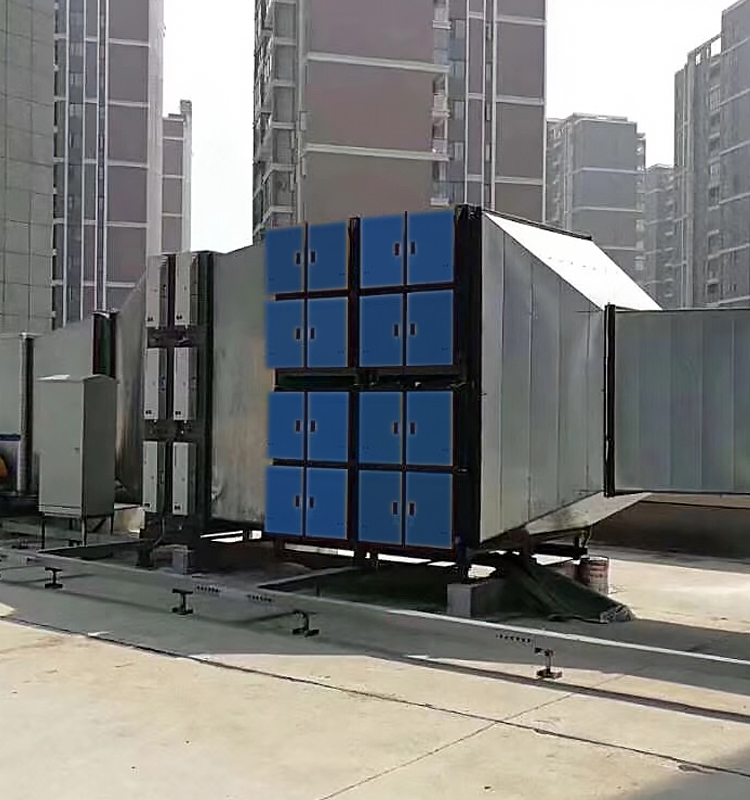

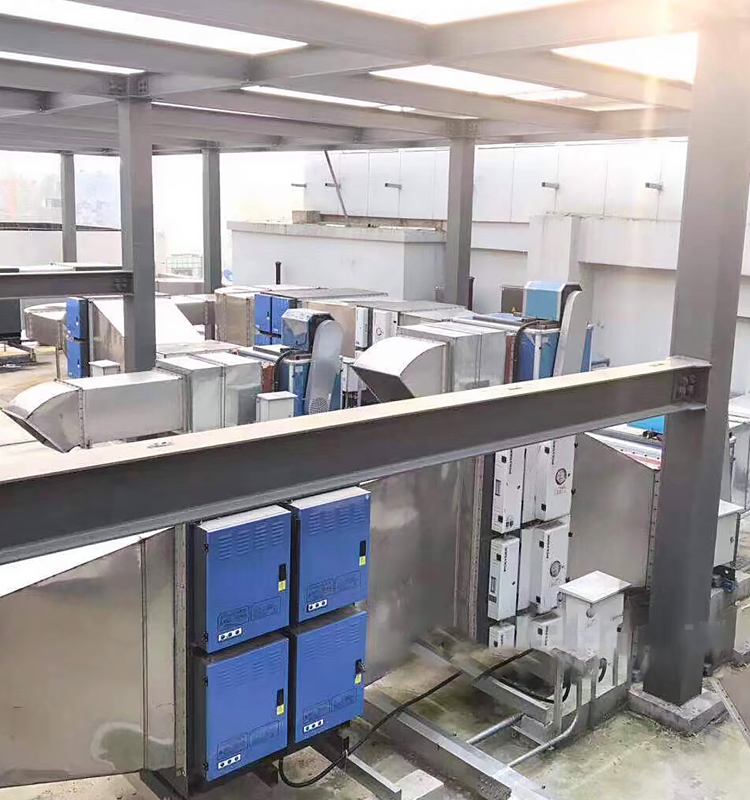

App install
The ESP cleaner should be installed before the exhaust fan

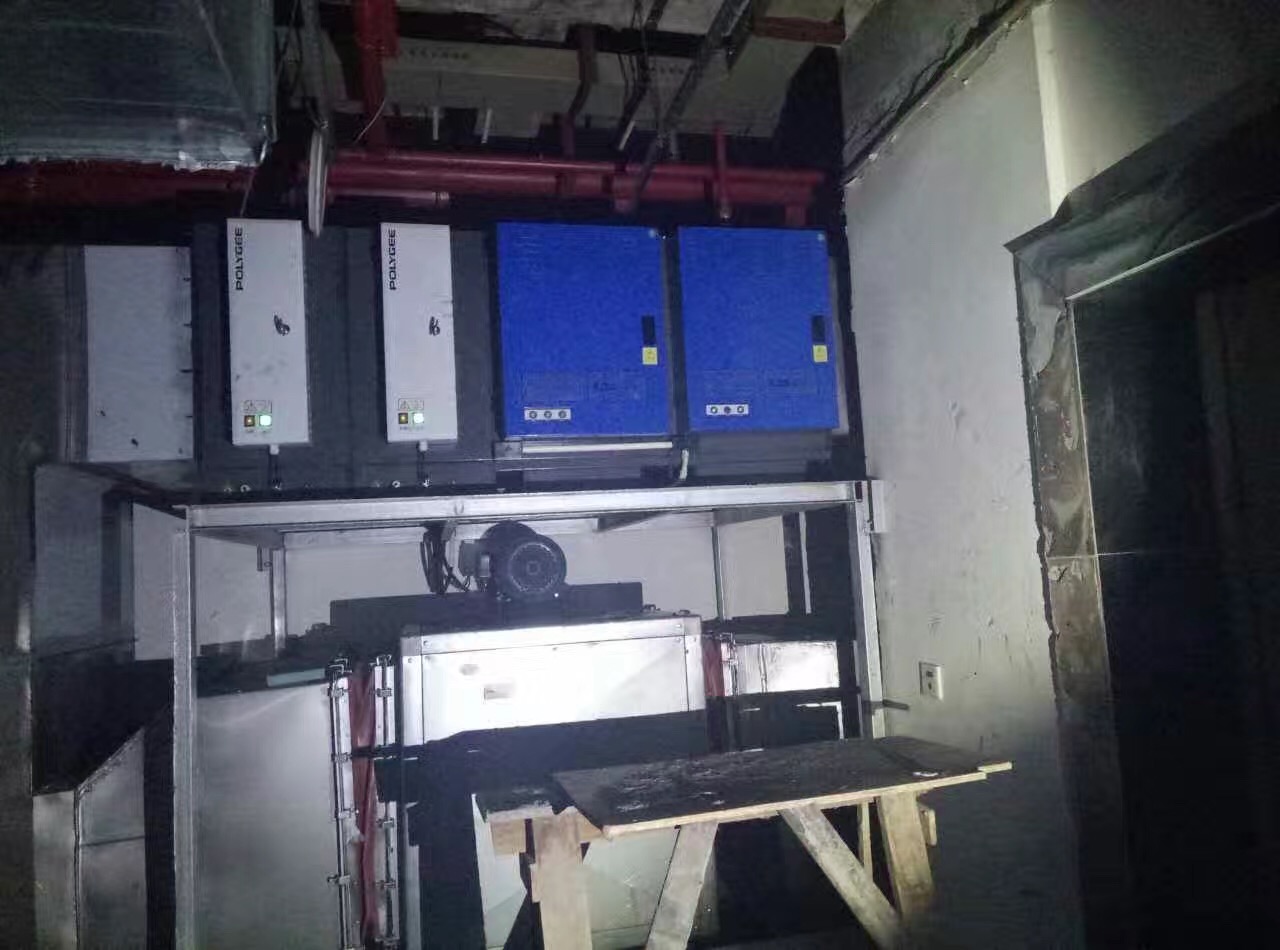

Typical applications of our machines include Commercial kitchen exhausts, supermarkets, hotels, schools, air handling units (AHU), factories, workshops, CNC machining shops and many other locations.

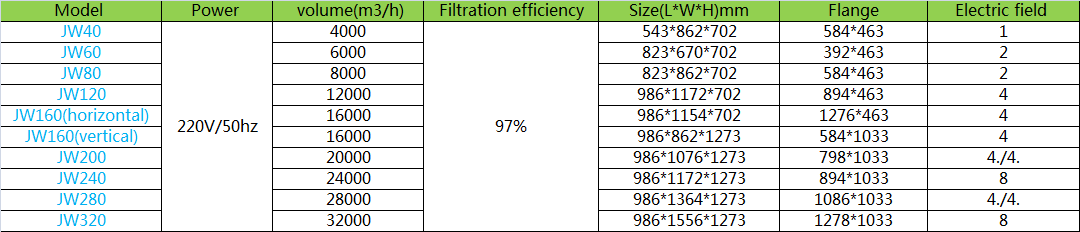

Size Information
