Industrial Commercial Exhaust Dust Filter Exhaust Gas Scrubber, Scrubber
- $199.00 /set
- 1 set
- Qingdao DEER Environmental Protection Technology Co., Ltd
- Shandong, China
- Ms Juno Lang
PRODUCT DETAIL
| Mechanical test report: | if | Keyword three: | exhaust air scrubber |
| Applicable industries: | Building materials stores, machinery repair shops, print shops, energy and mining | Keyword two: | wet scrubber |
| Water pump power: | 0.75-7.5kw | Core components: | Water pump, engine, motor, PLC |
| maximum. air flow: | 1200-30000 cubic meters per hour | port: | Qingdao |
| Name: | Industrial Commercial Exhaust Dust Filter Exhaust Gas Scrubber | payment terms: | L/C, T/T |
| frame: | carbon steel/stainless steel/PP | Video shipment inspection: | if |
| Origin: | Qingdao, China | Health status: | new |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Keyword one: | Gas purification tower |
| Showroom location: | not any | Local service location: | not any |
| Package preview: | Purification efficiency: | 99.9% | |
| Packaging Details: | Wrapped with plastic film and packed in wooden pallets or wooden boxes, then fixed in containers | brand: | Qingdao deer |
| Core component warranty: | 1 year | Tower diameter: | 500-2500mm |
| Marketing Type: | New Products 2020 | After-sales service provided: | Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support |
| Supply capacity: | 5000 sets per year | Warranty: | 1 year |
Product Description
smoke scrubber

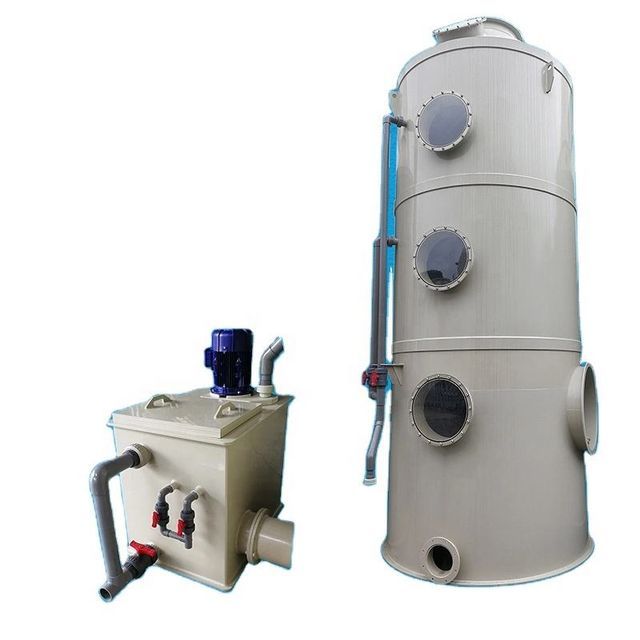

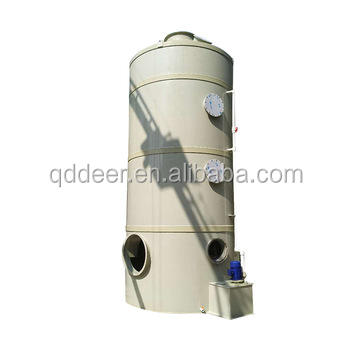

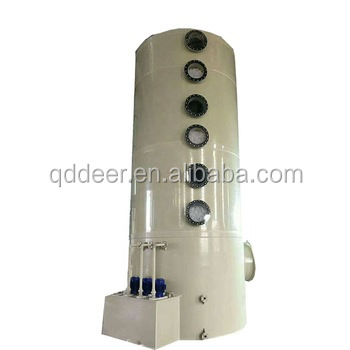

Qingdao DER-T air purification tower ----- gas treatment machinery, wet scrubber system

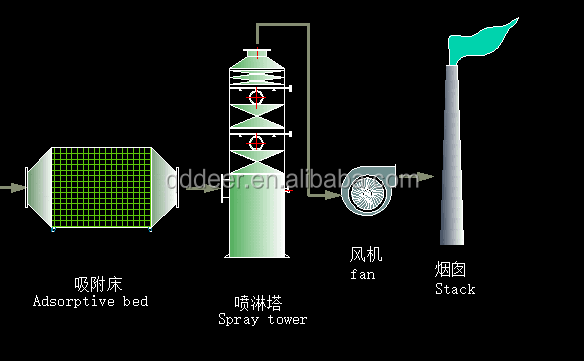

Purification principle

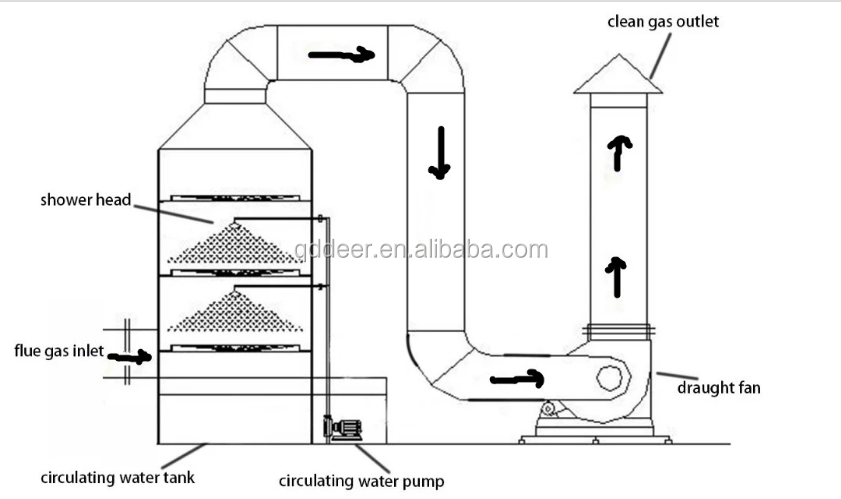

Its basic principle is to use the contact between gas and liquid to transport the pollutants in the gas into the liquid, and then separate the clean gas from the polluted liquid, so as to achieve the purpose of purifying the air. After the particle pollutants are in contact with the detergent, the droplets or liquid film spread on the airflow particles or humidify the particles, so that the particles are separated and removed by gravity and inertial forces. Gaseous pollutants enter the washing liquid through turbulent flow, molecular diffusion, iso-mass transfer, chemical reaction and other transfer phenomena, and are separated from the incoming gas. Chemicals can also be added to the wash solution to control odor substances by absorbing them.The exhaust gas passes through the scrubber, and the gas-produced liquid is treated by reverse adsorption—the liquid is sprayed downward from the top of the tower in the form of mist (or small water droplets). The exhaust gas flows out from the bottom of the tower in reverse to achieve the purpose of gas-liquid contact. This treatment method can reduce the temperature of the exhaust gas, adjust the gas, remove particulate matter, etc., and discharge it into the atmosphere after being treated in the demisting section.
structure includes

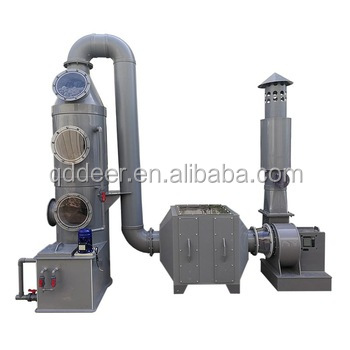

The equipment itself includes the body, filling layer, defogging layer, circulating spray pipeline and circulating water channel
Fields of application of fume scrubbers
Electronic industry, semiconductor industry, PCB industry, LCD industry, steel and metal industry, electroplating and metal surface treatment industry, pickling process, dye, pharmaceutical, chemical industry, deodorization, removal of SOx/NOx and other water-soluble air pollution in combustion exhaust gas Material governance.
Model | Airflow (m3/h) | Tower diameter (mm) | Inlet diameter (mm) | Water tank diameter(mm) | Tower height(mm) | Pump power (Kw) |
DER-T500 | 1200 | 500 | 200 | 800 | 3500 | 0.75*2 |
DER-T600 | 2000 | 600 | 200 | 1000 | 3500 | 0.75*2 |
DER-T700 | 3000 | 700 | 300 | 1000 | 4000 | 3.0*2 |
DER-T800 | 4000 | 800 | 300 | 1200 | 4000 | 3.0*2 |
DER-T1000 | 5000 | 1000 | 400 | 1400 | 4500 | 4.0*2 |
DER-T1200 | 6000 | 1200 | 450 | 1400 | 4500 | 4.0*2 |
DER-T1400 | 8000 | 1400 | 500 | 1400 | 5000 | 5.5*2 |
DER-T1600 | 10000 | 1600 | 600 | 1600 | 5000 | 5.5*2 |
DER-T1800 | 15000 | 1800 | 700 | 1800 | 5500 | 5.5*2 |
DER-T2000 | 20000 | 2000 | 800 | 2000 | 5500 | 7.5*2 |
DER-T2200 | 25000 | 2200 | 1000 | 2200 | 6000 | 7.5*2 |
DER-T-2500 | 30000 | 2500 | 1000 | 2500 | 6000 | 7.5*2 |

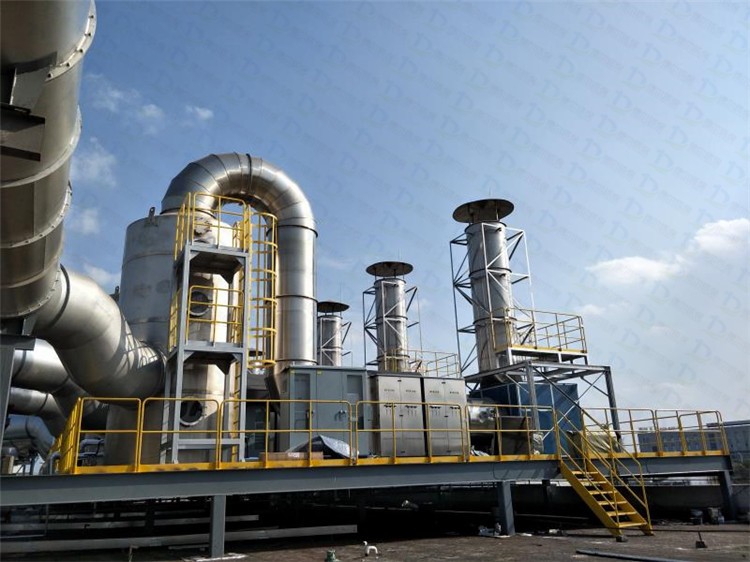

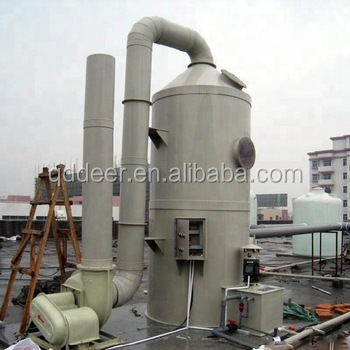

Project cases
