JH high-efficiency and energy-saving alcohol distiller
- $6999.00 /set
- 1 set
- Wenzhou Aowei Machinery Co., Ltd.
- Zhejiang, China
- Ms Tina Zhang
| payment terms: | Letter of credit, wire transfer | Core component warranty: | 1 year |
| Place of origin: | Zhejiang, China | weight: | 500kg |
| strength: | To be determined | port: | Shanghai/Ningbo |
| Applicable industries: | Manufacturing plants, food and beverage plants | brand: | ONW |
| Video outbound inspection: | if | Surface treatment: | Mirror or matte polish |
| Material: | Stainless steel 304, 316L | Certification: | To be determined |
| After-sales service provided: | Engineers can repair machinery overseas with online support | feed: | dilute alcohol or fermentation broth |
| vitality: | steam. | Packaging details: | Plastic film, cotton cloth, wooden box - alcohol still |
| Package preview: | Health status: | new | |
| Warranty: | 1 year | Mechanical test report: | if |
| Processing type: | Carbonated drinks | Supply capacity: | 10 sets of alcohol stills per month |
| high: | ≤9m | Output alcohol: | 90-95% degree |
| Voltage: | To be determined | Core components: | Blood vessel |
| Dimensions (length*width*height): | To be determined | Showroom location: | not any |
| Marketing type: | Hot Products of 2019 | Processing: | Distillation, concentrator |

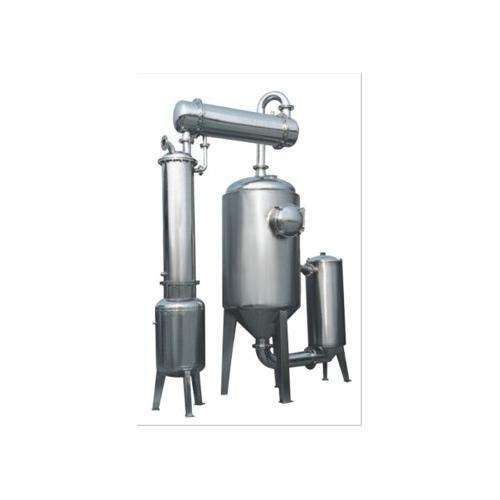

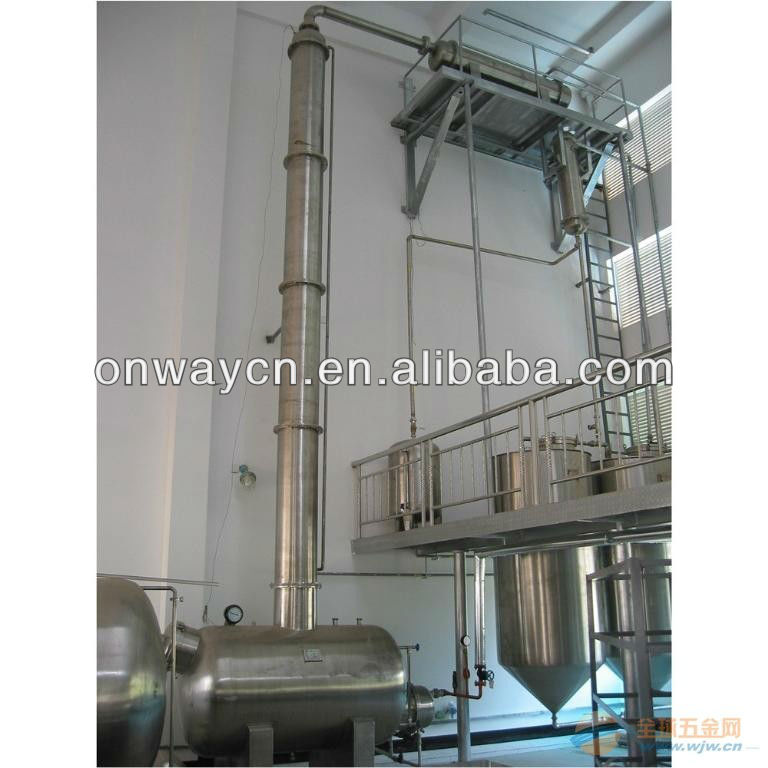

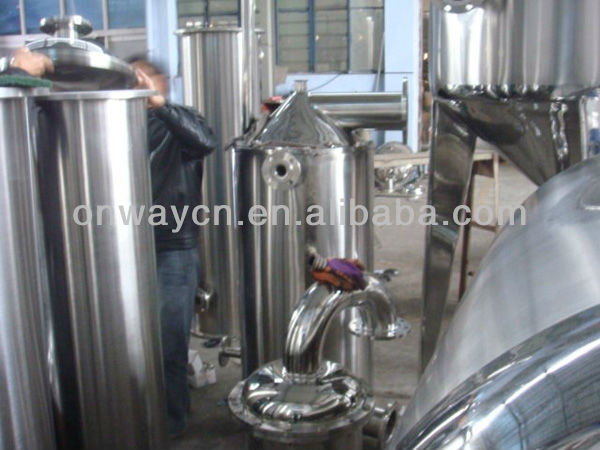

Jianhuaalcohol still(Alcohol distillation equipment, alcohol distiller) consists of a main body, a tower body, a condenser, a cooler, a buffer tank, and a high-level storage tank.
This equipment changes the traditional tower tank into a concentrator, integrating concentration and recovery. It is especially suitable for the concentration and recovery of alcohol solvents under normal pressure and high temperature. But not suitable for heat-sensitive materials.
Suitable for dilute alcohol recovery in food, light industry and chemical industries. It is beneficial to reduce production costs and economic benefits. It can distill dilute alcohol of 30~50 degrees to 93~95 degrees. The final product has high alcohol content, which can increase the reflux ratio, but reduces the output of the final product, and the alcohol content of the raffinate drops by ≤3 degrees. It is a good equipment dedicated to alcohol recovery and distillation.
Alcohol distiller technical parameters-alcohol distiller
|
|
JH-200 |
JH-300 |
JH-400 |
JH-500 |
JH-600 |
JH-800 |
|
Tower volume (L) |
640 |
1220 |
1450 |
2300 |
2505 |
3200 |
|
Tower height (mm) |
6000 |
7000 |
7000 |
7000 |
7500 |
7500 |
|
High tank volume (L) |
300 |
400 |
650 |
800 |
1000 |
1500 |
|
Condenser area (m2) |
5 |
8 |
11 |
18 |
25 |
45 |
|
Cooling area (m2) |
1 |
1.5 |
2.2 |
4 |
6 |
8 |
|
Heated area (square meters2) |
3.0 |
6.0 |
6.5 |
10 |
15 |
26 |
|
Recycling capacity (kg/h) |
45~50 |
90~1000 |
150~160 |
280~300 |
420~440 |
600~620 |
|
Recovery concentration(%) |
93~95 |
|||||
|
package style |
Stainless Steel Corrugated Loading Material |
|||||
|
size Length×width×height |
2300×700×7300 |
2600×800×7500 |
2500×1000×9000 |
3000×1200×9000 |
3500×1400×1000 |
4200×1800×1000 |
Still drinking, still drinking, still drinking, still drinking, still drinking, still drinking
Still drinking, still drinking, still drinking, still drinking
