Kelp vegetables seaweed seaweed seaweed mesh continuous conveyor belt dryer drying equipment
- $48000.00 / 1 - 2 sets
$40000.00 / >=3 sets - 1 set
- Changzhou Shinma Drying Engineering Co., Ltd.
- Jiangsu, China
- Mr Neo Shi
PRODUCT DETAIL
| Core Components Warranty: | 1 year | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Material: | SUS304 or SUS16 | weight: | 4500kg |
| Production capacity: | 100kg-1500kg | Packaging Details: | According to customer requirements |
| port: | Shanghai | Voltage: | 220V-380V |
| feature: | Continuous delivery | Supply capacity: | 20 sets per year |
| Showroom location: | not any | Mechanical test report: | if |
| Dimensions (L*W*H): | According to the model | Heat source: | Gas/Steam/Heat Oil/Electricity |
| place of origin; place of origin: | Jiangsu, China | Health status: | new |
| warranty period: | 1 year | Marketing Type: | New Products 2020 |
| brand: | new horse | application: | drying |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants, Farms, Food and Beverage Stores | payment terms: | L/C,Western Union,T/T |
| Main selling point: | continuously | Video external inspection: | if |
| Warranty: | 1 year |
product description
Evaporation volume seaweed vegetable sargassum seaweed net continuous conveyor belt dryer
The raw material to be treated should be distributed on a conveyor belt by suitable mechanisms such as star distributors, swing belts, crushers or granulators, which pass through a channel comprising one or more heating units. Each heating unit is equipped with an air heater and circulation system. Each channel has one or more moisture drainage systems. As the conveyor passes, the hot air passes through the material from top to bottom or bottom to top. This allows the raw material to dry evenly.
Function list
According to the characteristics of the moisture content of fresh coconut, when the belt dryer is drying, the critical moisture content is
About 15%, i.e. using constant speed drying to remove free water before reaching critical moisture content, after
When the critical water content is reached, it is removed by rapid dehydrationCombine water.
About 15%, i.e. using constant speed drying to remove free water before reaching critical moisture content, after
When the critical water content is reached, it is removed by rapid dehydrationCombine water.
As a general rule, an assembly line should have three working sections, which are pre-drying (1) constant speed dehydration
(2) Speed reduction and dehydration (3). During (1) and (2), 80% of the moisture can be removed, and the temperature of the raw material will be maintained at the hot wet bulb temperature. (3) In the process of removing 20% moisture, the temperature of the raw material is close to the temperature of the hot air discharged.
(2) Speed reduction and dehydration (3). During (1) and (2), 80% of the moisture can be removed, and the temperature of the raw material will be maintained at the hot wet bulb temperature. (3) In the process of removing 20% moisture, the temperature of the raw material is close to the temperature of the hot air discharged.
Product Specifications
Do not | thing | data |
1 | water evaporation | 525 kg/h |
2 | operating temperature | 80-160℃ |
3 | Initial water content ω1 Final water content ω2 | 90% ≤10% |
4 | heat source | steam |
5 | Oversized equipment | 17810(L)*4470(W)*3340(H) |
6 | Effective drying area | 45.12 square meters |
7 | gross weight | about 35 tons |
Technical parameters of other models

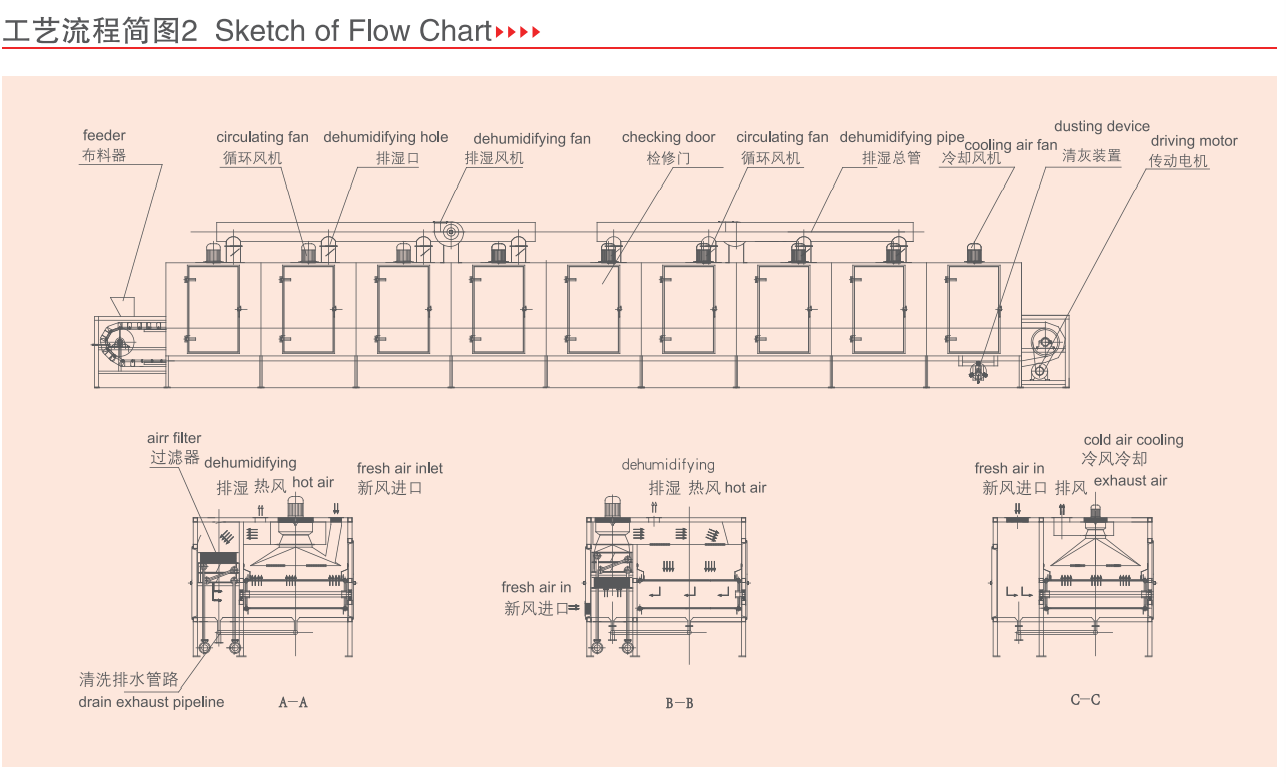

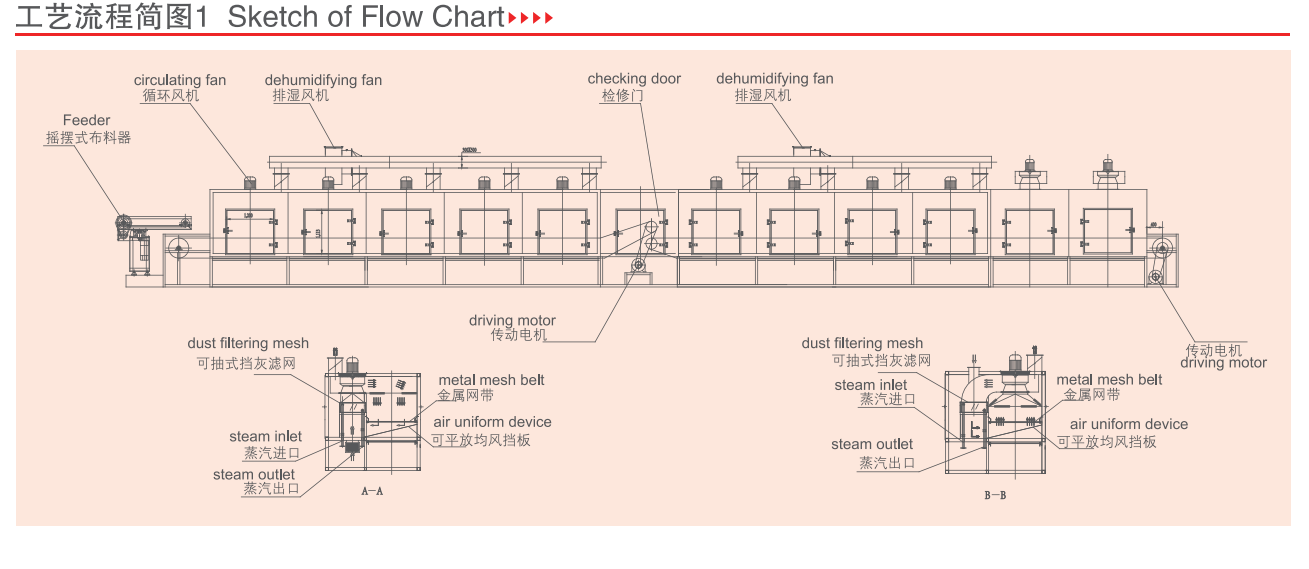

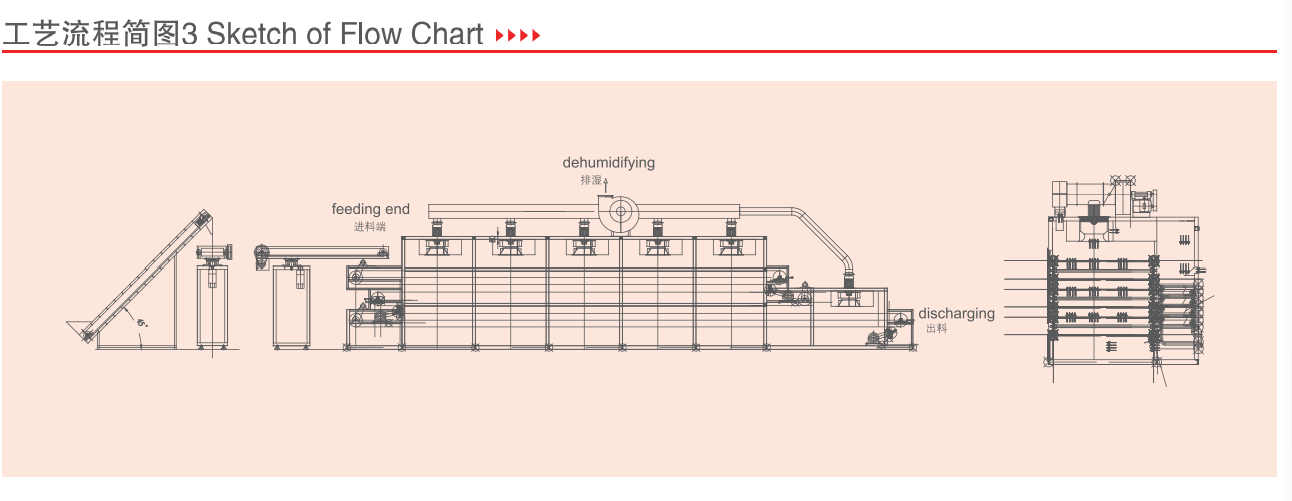

Schematic diagram of the flow chart
