LCR-7100A Continuously adjustable frequency 12Hz to 100kHz Precision LCR bridge meter digital LCR meter 100kHz, accuracy 0.05%

PRODUCT DETAIL
Warranty:1 yearList mode features:10 steps
memory:100 sets inside, 500 sets outsidebrand:double spinning
Test frequency:12Hz~100kHzCertificate:CE
level of accuracy:0.05%Supply capacity:500 pieces per month
Measurable resistance range:0.01mΩ - 99.999MΩBasic accuracy:0.05%
payment terms:Letter of credit, wire transfer, credit cardproduct name:LCR meter 100kHz
type:LCR tablePlace of origin:Guangdong, China
Calibration function:open circuit, short circuit, loadmodel:LCR-7100A
Packaging details:Double layer cartonport:Shenzhen
Output impedance:30Ω, 100Ωinterface:RS232, USB host, handler
Test level:0.1V, 0.3V, 1V
Product Description
The high-precision LCR tester LCR7000A is a compact desktop professional LCR tester equipped with a 4.3-inch TFT LCD display.

The test frequency range of the digital LCR meter is 100kHz, 200kHz, 300kHz and 500kHz. Basic test accuracy is 0.05%.

Digital LCR tester can be used to test passive components, such as incoming material inspection, production and sorting of passive components.

feature

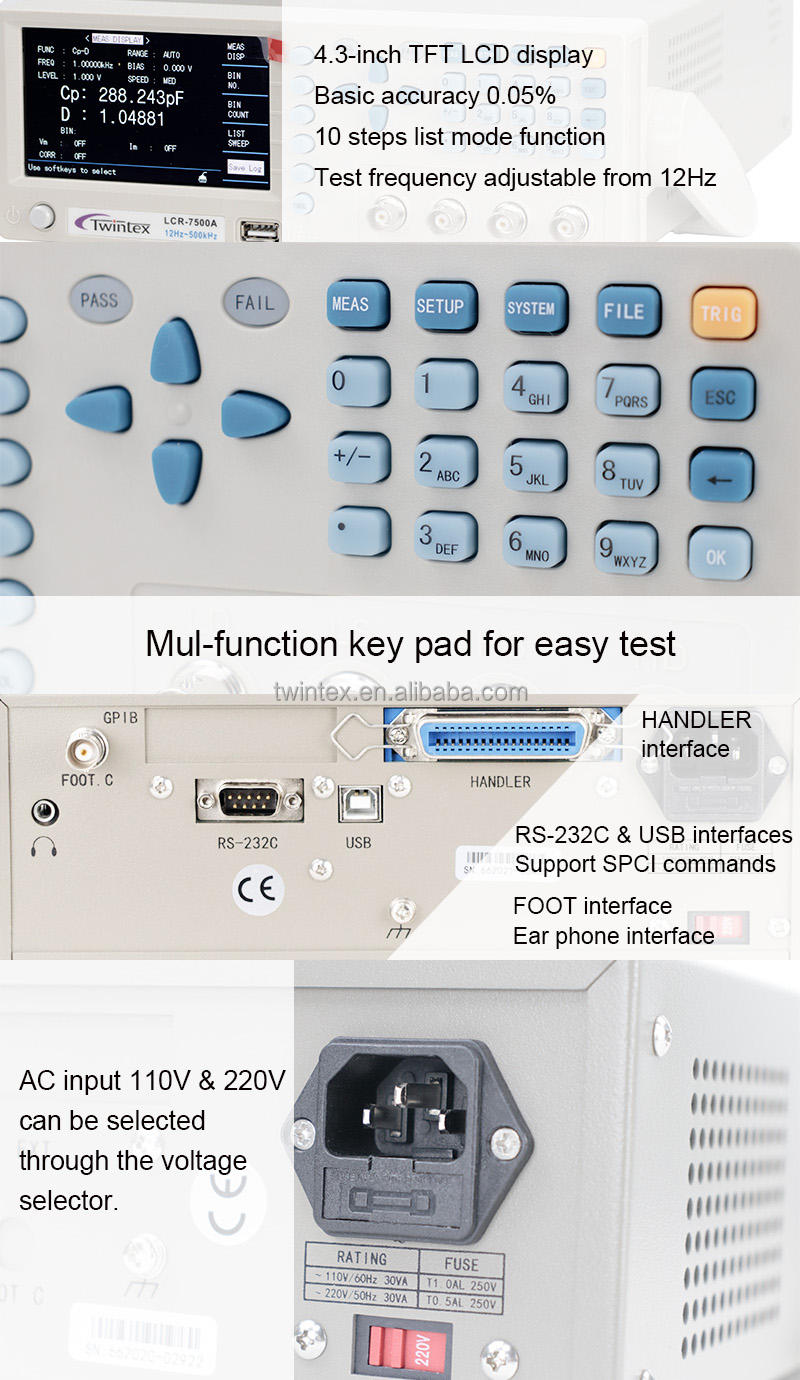

>>>32-bit core processor >>>5-digit 4.3-inch TFT LCD display >>>4 signal source output impedance: 30Ω, 100Ω, 10/100, /10CC >>>List mode function, 10 steps >>>100 sets of memory for internal storage/save >>>500 U disk storage/save memory, supports FAT16 and FAT32 files >>>Save the last parameter settings before power outage >>>Standard interface: RS-232, HANDLER, USB HOST, USB Device, FOOT C, headphone

Specification
Model
LCR-7100A
LCR-7200A
LCR-7300A
LCR-7500A
Measurement function
Test parameters
| Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
Test signal frequency
12Hz~100kHz
12Hz~200kHz
12Hz~300kHz
12Hz~500kHz
Minimum frequency step size
0.1 millihertz
Basic accuracy
0.05%
Equivalent Circuit
Series Parallel
Math functions
Absolute deviation and percentage deviation
range mode
Auto, hold, manual selection
Trigger mode
internal, manual, external, bus
Measurement speed
Fast: Maximum 75, Medium: 12, Slow: 3 (times/second) (≥1kHz)
Average times
1-255
delay
0-60s, step size 1ms
Calibration function
open circuit, short circuit, load
display mode
Direct, Δ, Δ%, V/I (monitor test voltage and current)
exhibit
6-digit 4.3-inch LCD display (480x272 RBG5)
list mode
10 steps
Measurement signal
Output impedance
30Ω, 100Ω, 10/100, 10/CC
Test level and accuracy
Normal: 5mV~2Vrms, accuracy 10%, minimum step 1mV, maximum test current 20mA
Constant level: 5mV~1Vrms, accuracy 6%, minimum step 1mV
DC bias source
0V, 1.5V, 2V accuracy 1%
Measurement display range
|Z|, R, X
0.01mΩ - 99.9999MΩ
DC Resistance
0.001 milliohm - 99.9999 milliohm
|Y|,G,B
0.00001μS - 99.9999S
C
0.00001pF - 9.99999F
L
0.00001 µH – 99.9999 kHz
D
0.00001 - 9.99999
ask
0.00001 – 99999.9
θ (degrees)
-179.999° - 179.999°
θ(radial)
-3.14159 - 3.14159
Δ%
-999.999% ~ 999.999%
Comparators and interfaces
Comparators
10 bins (9 passed, 1 failed) and 1 AUX bin
memory
100 sets of memory for internal parameter setting storage/save
500 sets of U disk parameter settings storage/save
Standard interface
Standard: RS232, USB HOST, HANDLER, EAR PHONE, PEDAL interface
Optional interface
universal interface bus
General
operating environment
0℃ - 40℃, ≤80%RH
energy source
110/220V±10%, 47~63Hz
energy consumption
≤50VA
Accessories
4-terminal Kelvin test clamp leads, RS232 cable, power cord, operating manual
aspect
265 width*100 height*340 depth mm
weight
About 4.5kg
