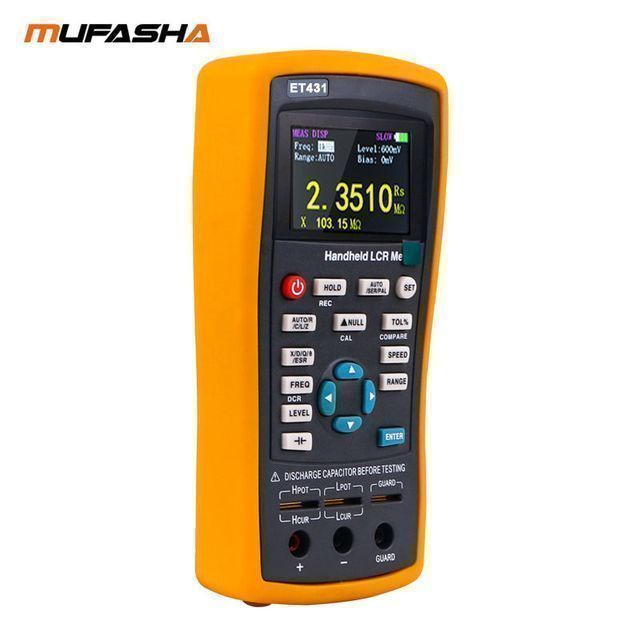

MUFASHA ET431 capacitance meter portable digital lcr meter
- $146.82 / 1 - 99 pieces
$131.36 / 100 - 999 pieces
$123.64 / 1000 - 9999 pieces
$109.73 / >=10000 pieces - 1 piece
- Changzhou Boer High Technology Co., Ltd.
- Jiangsu, China
- Mr Jay Li
PRODUCT DETAIL
| Rear stand: | yes | Calibration function: | Open calibration, short calibration |
| model: | ET431 | Display: | 2.8 inch TFT LCD screen |
| Single package size: | 28X22.5X8 cm | Gross weight per piece: | 1.200 kg |
| Packaging Details: | carton | Measurable resistance range: | 0.0001Ω~20.000MΩ |
| Package preview: | place of origin; place of origin: | Jiangsu, China | |
| Warranty: | 3 months - 1 year | Sales unit: | single product |
| Accuracy class: | 0.2% | brand: | wooden sofa |
| net worth: | yes | Types of: | LCR table |
Product Description

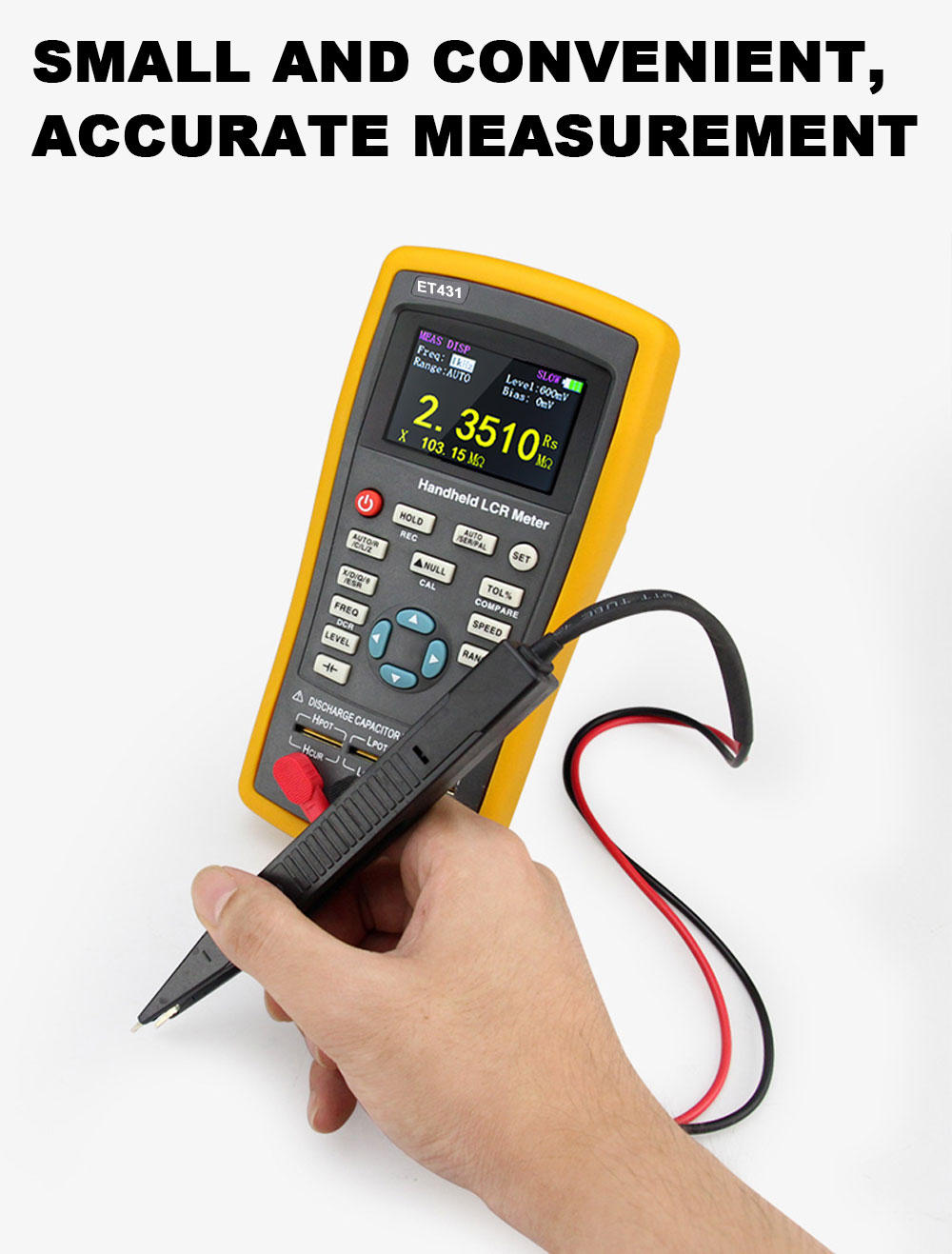

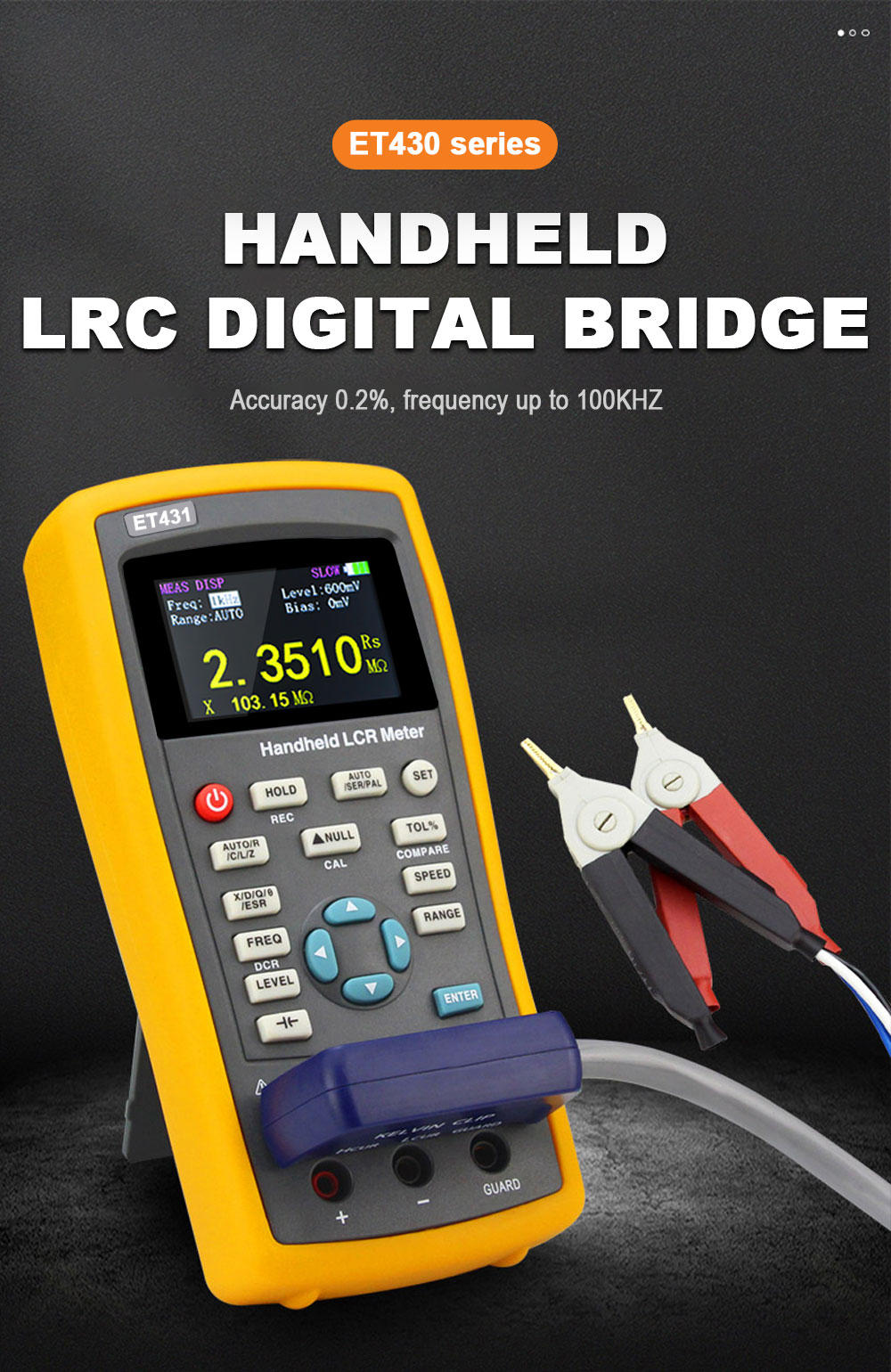

Product description: ET43 series handheld LCR is a portable handheld measuring instrument used to measure the parameters of inductance, capacitance, resistance and other components. Small 5V lithium battery, suitable for desktop use. It is also portable and mobile.
Product parameters
test frequency | 100Hz, 20Hz 1KHz, 10KHz 40kHz, 100KHz | 100Hz, 120Hz 1KHz, 10KHz | 100Hz, 120Hz 1KHz, 10KHz 40kHz, 100KHz | 100Hz-100KHz Continuously adjustable, 1Hz step | |||||
basic accuracy | 0.3% | 0.2% | 0.2% | 0.2% | |||||

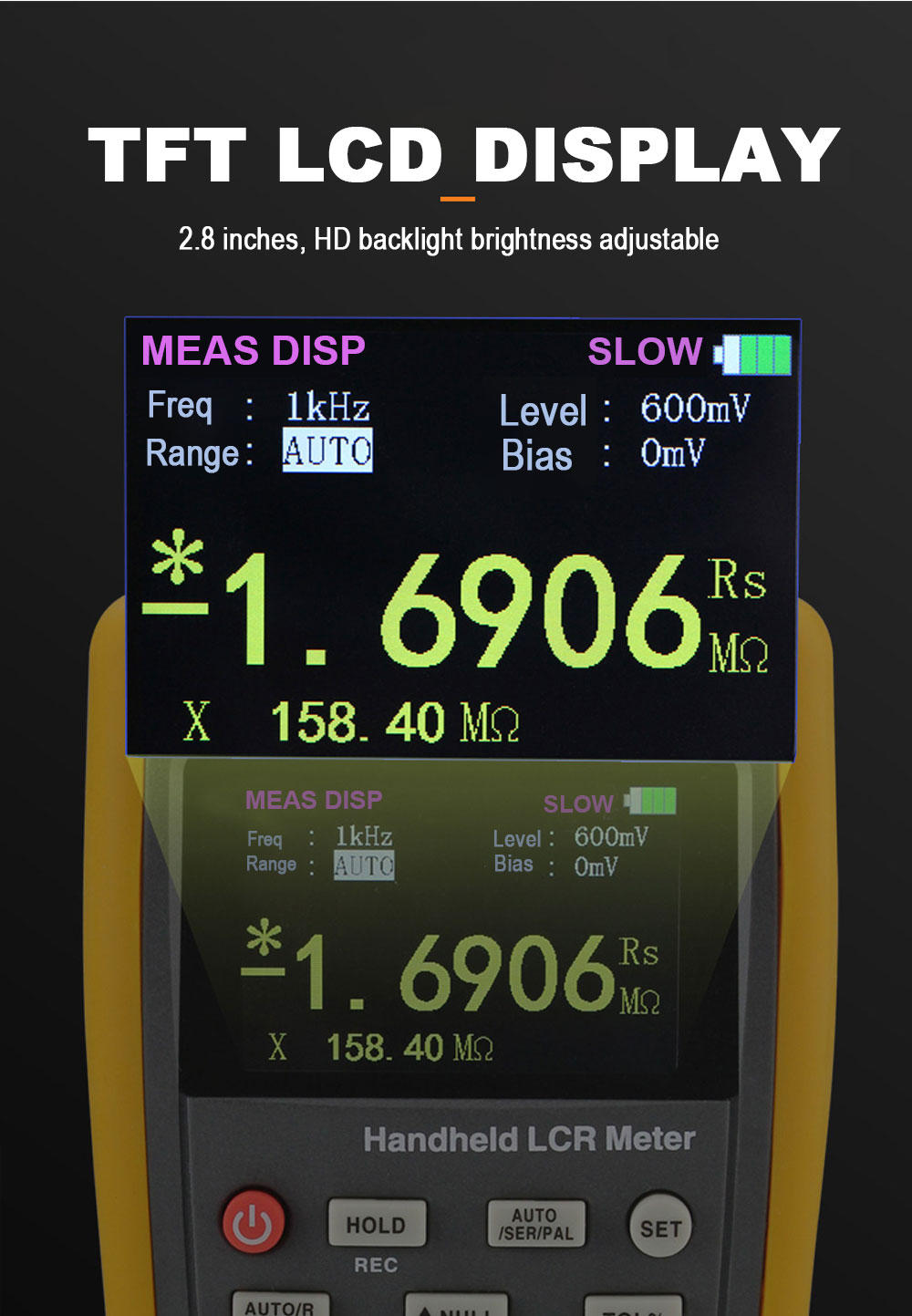

display screen | 2.8 inch TFT LCD screen | ||||||||
display digits | Main parameter: 5 digits, secondary parameter: 5 digits | ||||||||
Measurement parameters | Main parameters: L/C/R/Z, secondary parameters: X/D/Q/θ/ESR | ||||||||
Electrolytic capacitor method | √ | √ | √ | √ | |||||
DCR mode | x | √ | √ | √ | |||||
Measuring range | L: 0.000µH～2000H, C: 0.000pF～20.000mF, R: 0.0001Ω～20.000MΩ | ||||||||
Measure display speed | 1 time/s (slow), 2 times/s (medium speed), 4 times/s (fast) | ||||||||
internal bias | x | 0-500mV adjustable, 1mV step | |||||||
test level | 300mVrms;600mVrms | 100mVrms, 300mVrms, 600mVrms, 1Vrms | 10mV-1100mV adjustable | ||||||
Calibration function | Open calibration, short calibration | ||||||||
filter function | The filter limit range can be set from 1% to 50%, with fixed points of 1%, 5%, 10% and 20%. | ||||||||
Deviation measurement | It is used to compare and display the deviation percentage of components and set nominal values | ||||||||
Operating temperature | 0℃~40℃ | ||||||||

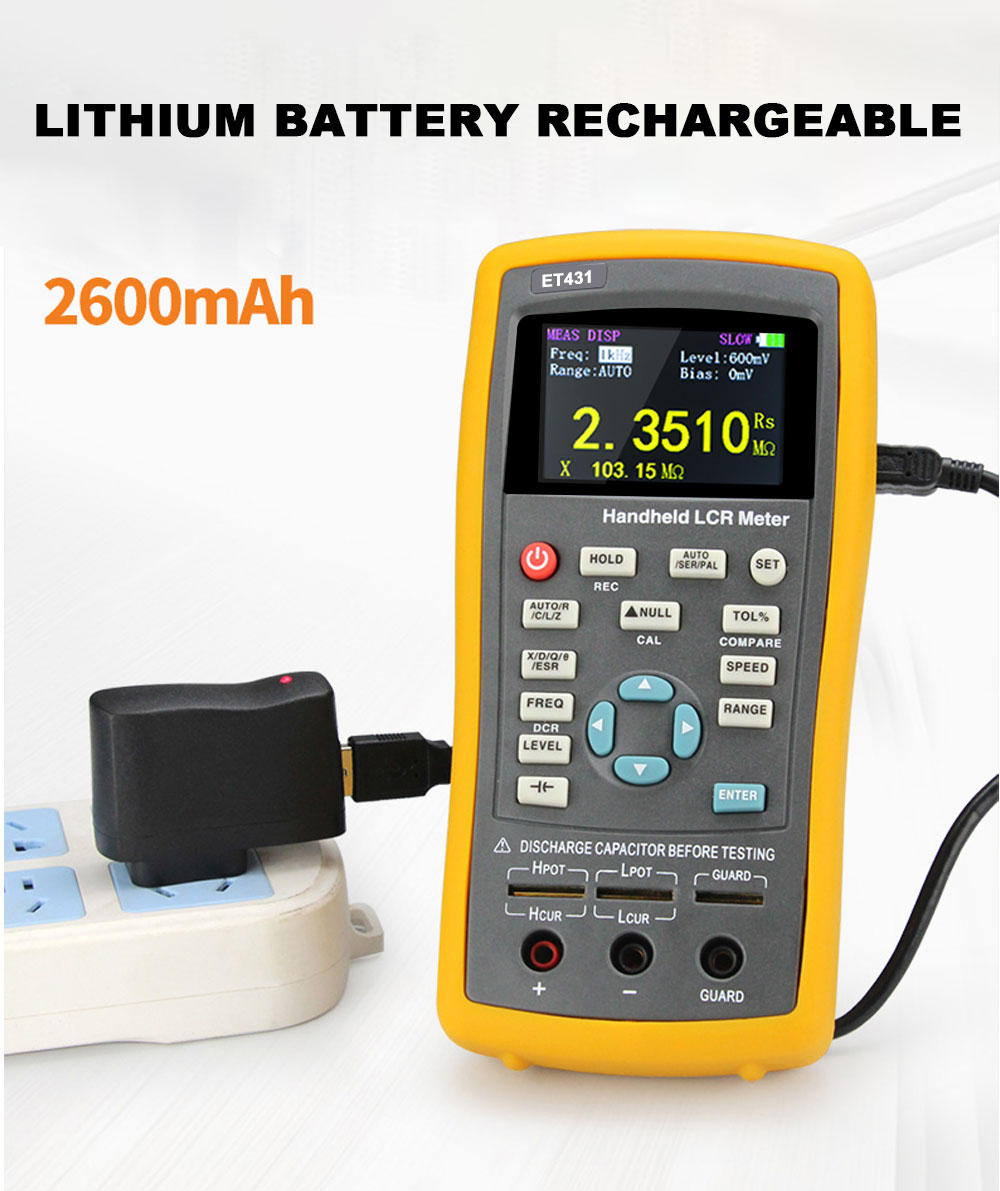

strength | 2600mAh | ||||||||

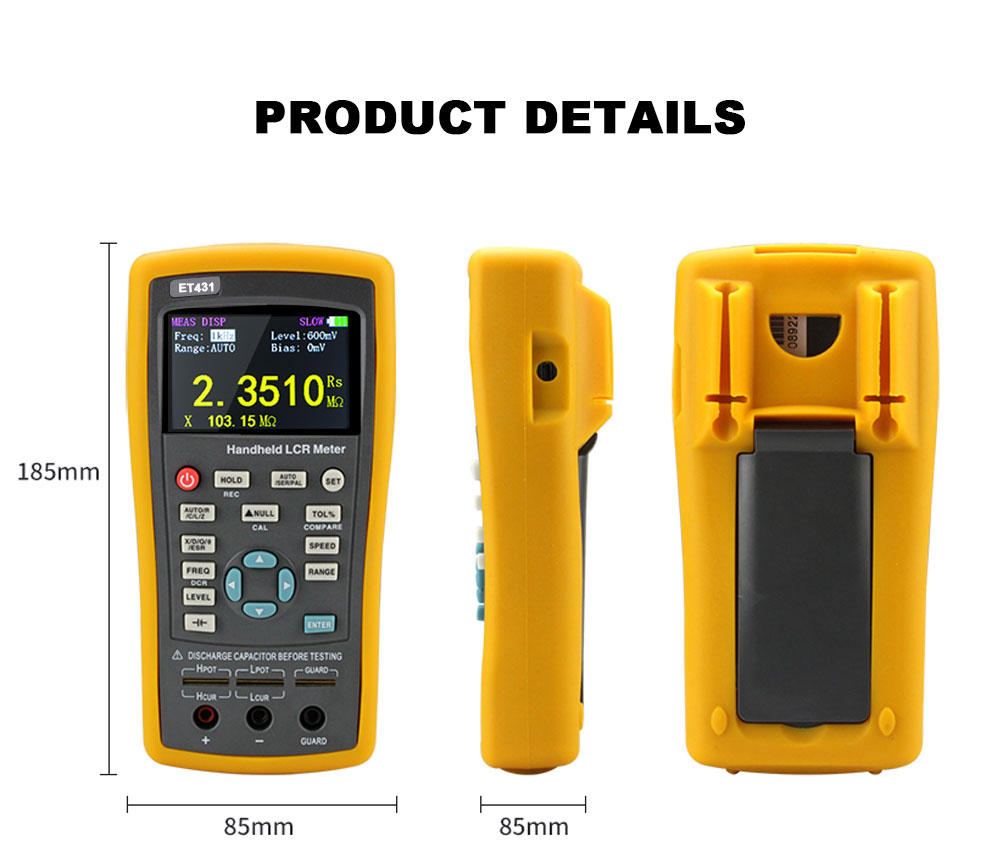

Gift box weight/dimensions | 900g/270*215*70mm | ||||||||

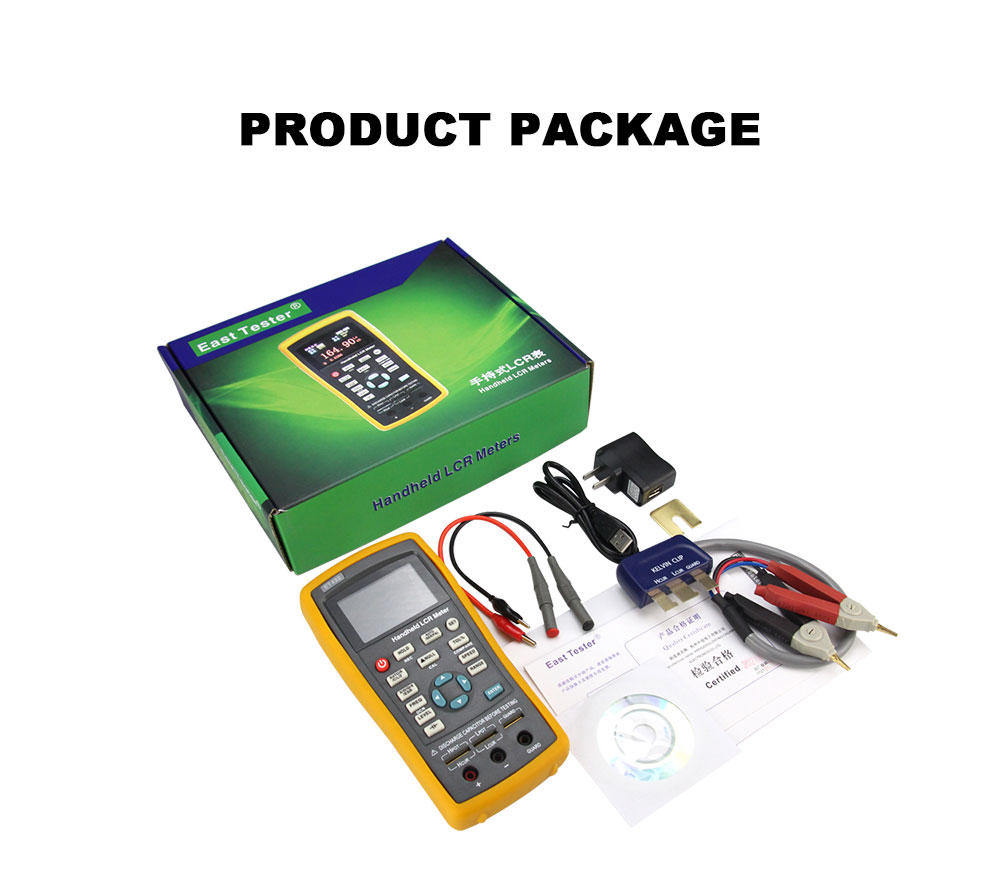

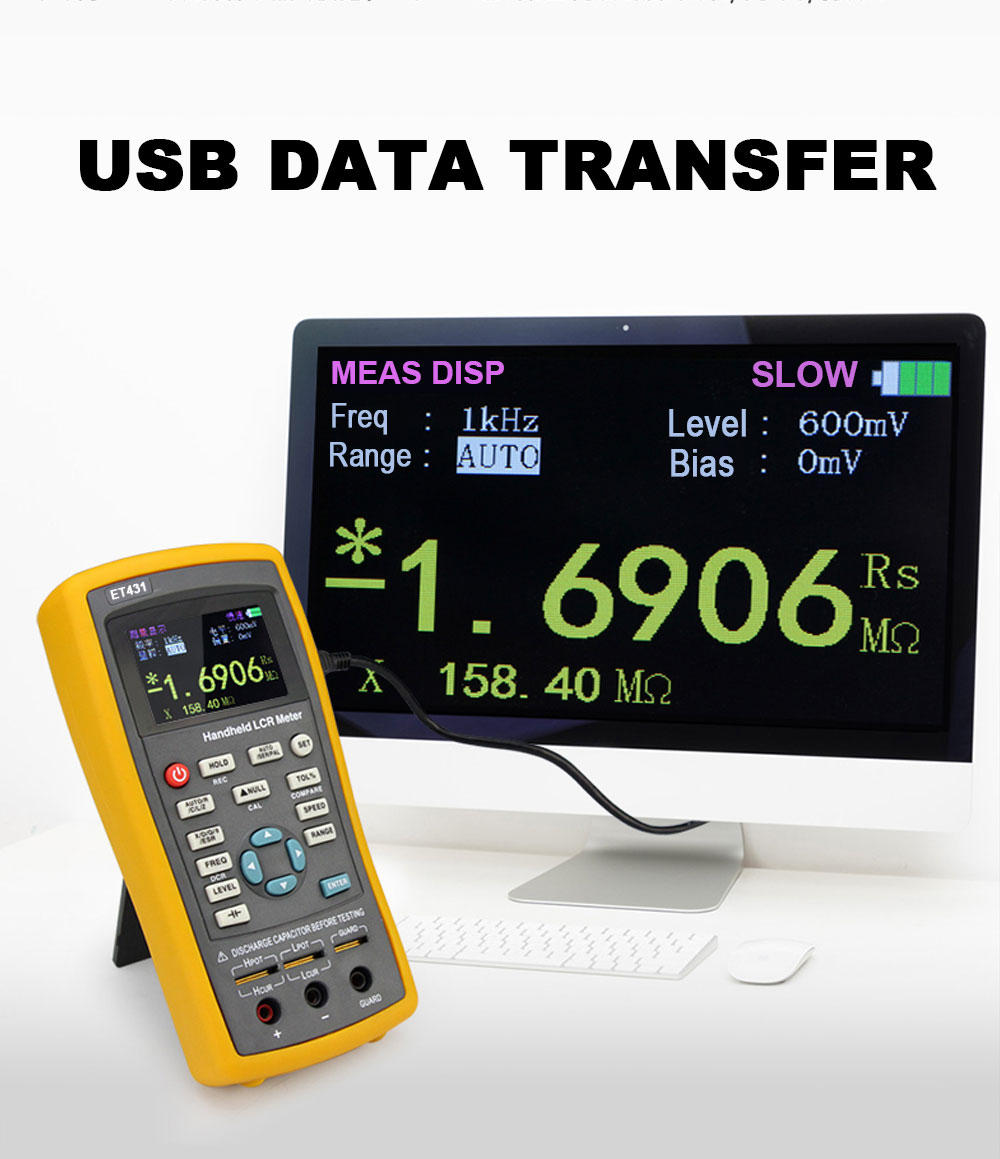

Kit Contents | Handheld LCR (built-in lithium battery), CD, Mini-USB communication cable, power adapter, red/black rubber plug-alligator clip Test line, shorting bar, 4-terminal Kelvin test clip (optional for ET430, standard for other models) | ||||||||
