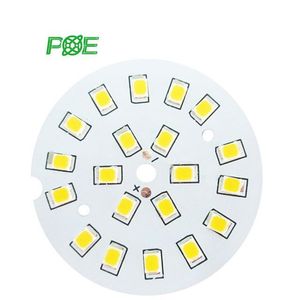

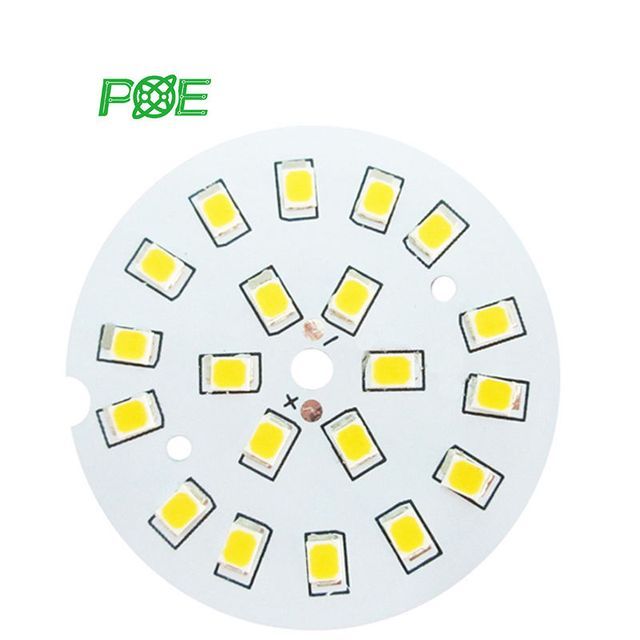

LED PCB circuit board 94v0 Manufacturer PCBA FR4 Aluminum led light pcb
- $9.50 / 1 - 99 pieces
$4.80 / 100 - 4999 pieces
$1.80 / 5000 - 9999 pieces
$0.95 / >=10000 pieces - 1 piece
- Shenzhen Wanfeng Technology Co., Ltd.
- Guangdong, China
- Ms Joy Hu
PRODUCT DETAIL
| Packaging Details: | PCB: Carton Vacuum Packing PCBA: ESD Carton Packing FR4 LED PCB Board Printed Circuit Board LED Circuit Board | model: | PCB-0057 |
| Origin: | Gua | application: | Electronic equipment |
| Serve: | One-stop service | thing: | LED circuit board |
| Minute line width: | 4000000 | Minute Hole Size: | 0.075mm |
| Surface treatment: | HASL lead-free | Shipping: | buyer's request |
| Solder mask color: | green | brand: | not any |
| Copper thickness: | 1 oz | Board Dimensions: | 50*50MM |
| Substrate: | fr4 | Minute line spacing: | 4000000 |
| Name: | FR4 printed circuit board PCB | Package preview: | |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | Maximum Copper Thickness: | 6 oz |
| Plate thickness: | 1.6 mm | Plug capacity: | 0.2-0.8mm |
| Supply capacity: | 20000 square meters per month | type: | Aluminum plate |
| Printed Circuit Board Standards: | IPC-II standard | Certificate: | rose. ISO9001 |
| port: | Shenzhen, Hong Kong |
Product Description
thing | aluminum productionability |
Substrate | aluminum |
layers | 1-2 |
Finished inner/outer copper thickness | 1-2OZ |
Finished plate thickness | 0.2-3.0mm |
Thermal Conductivity | 0.5/1/1.5/2W/mK |
smallest size | 1500mm 1 layer |
Controllable Impedance | +/-5% |
Syllabus Introduction | Rout/ V-cut/ Bridge/ stamp hole |
surface treatment | HASL, lead-free HASL, immersion gold, immersion tin, immersion silver, hard gold, flash gold, OSP... |
Aluminum substrate specification: 1W/mk | ||||
thing | Test Methods | unit | index | |
Insulation Thickness | IPC-TM-650 2.2 18.1 | afternoon | 100 | |
Thermal Stress | IPC-TM-650 2.4 13.1 | small | 288℃>120S | |
Peel strength | IPC-TM-650 2.4 8.1 | N/mm | 1.5 | |
withstand voltage | direct current | kV | Grinding plate: 1.2 Oxidation: 1.5 | |
breakdown voltage | air conditioner | kV | 3 | |
CTI | GB/T 4207 | V | 575 | |
glass transition temperature | IPC-TM-650 2.4 25 | ℃ | 130 | |
Coefficient of Thermal Expansion (TMA) | IPC-TM-650 2.4 24 | %(50-260℃) | 0.5 | |
surface resistance | IPC-TM-650 2.6 17.1 | Wechat business | 4.18×103 | |
volume resistance | IPC-TM-650 2.6 17.1 | QUR | 3.27×107 | |
Dielectric constant 1 MHZ | IPC-TM-650 2.6 5.9 | / | / | |
Dissipation Factor 1 MHZ | IPC-TM-650 2.6 5.9 | / | / | |
water absorption | IPC-TM-650 2.6 2.1 | % | <0.5 | |
Thermal Conductivity | ASTM E1464 | Width/m | 1.3 | |
heat resistance | / | ℃/watt | 0.7-0.9 | |
flammable | UL 94 Vertical Law | small | t1:0,t2:0 | |

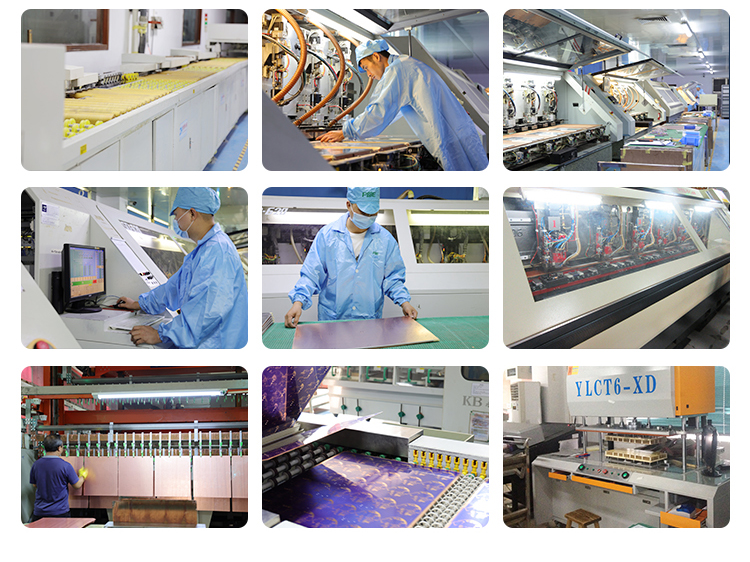

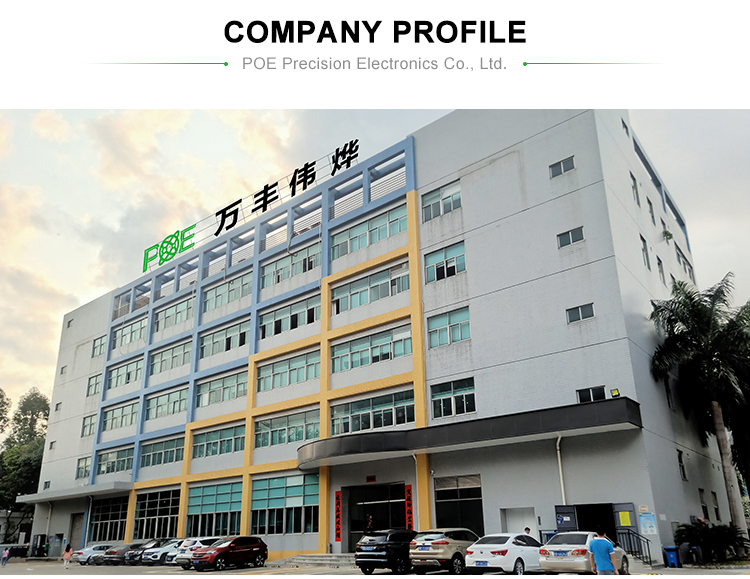

Since 1996, POE has become a major provider of PCB fabrication, PCB assembly and parts sourcing services. For years, our clients have relied on us to deliver their time-sensitive work at the highest quality. We are capable of producing FR4 PCB, Aluminum PCB, HDI PCB, Multilayer PCB (up to40layers), Goldfinger PCBs and Rogers PCBs. POE has been committed to the manufacture and supply of high-quality printed circuit boards, which are widely used in many industries such as communication, medical equipment, industry, aerospace, computer, automobile, electric power and instrumentation. Whether your needs are low-volume prototypes, medium or high-volume production, POE is committed to delivering high-quality products and services on time and on budget.
