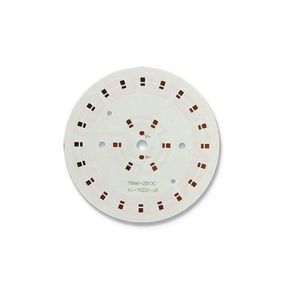

SMD aluminum led pcb /3w 5w 7w 9w 12w 15w 18w bulb round led pcb
- $0.50 / 1 - 4999 pieces
$0.40 / >=5000 pieces - 1 piece
- Jiangmen Xinda Electronic Co., Ltd.
- Guangdong, China
- Ms Serena Zhan
PRODUCT DETAIL
| Substrate: | FR4,FPC, CEM-3, 22F, VO, HB, KB | Copper thickness: | 15uf, 18uf, 22uf, 25uf, 35uf, etc. (1/2oz-2oz) |
| brand: | Xinda | LED light source: | 3000K/4000K/6000K |
| type: | Aluminum plate | payment terms: | Western Union, T/T |
| Plate shape: | Rectangular, round, grooved, notched, complex and irregular | Board Dimensions: | 0.4/0.6/0.8/1.0/1.2/1.5/1.6/2.0/3.0mm |
| Origin: | Guangdong, China | Plate thickness: | 0.4/0.6/0.8/1.0/1.2/1.5/1.6/2.0/3.0mm |
| port: | Zhongshan Port, Guangzhou Port, Shenzhen Port | V-cut corner: | 30, 45, 60 degrees |
| Minute line width: | 0.15mm | Supply capacity: | 1,000,000 pieces per month |
| Packaging Details: | PE film packaging, vacuum packaging machine, carton | Surface treatment: | Immersion tin, OSP |
| Surface treatment: | Immersion tin, OSP | layer: | single layer |
| Package preview: | Minute line spacing: | 0.15mm | |
| model: | XD-SMD-2 | Solder Mask: | green. Red. blue. white. Black. Yellow |
| Minute Hole Size: | Single layer, 0.5mm |
Product Description

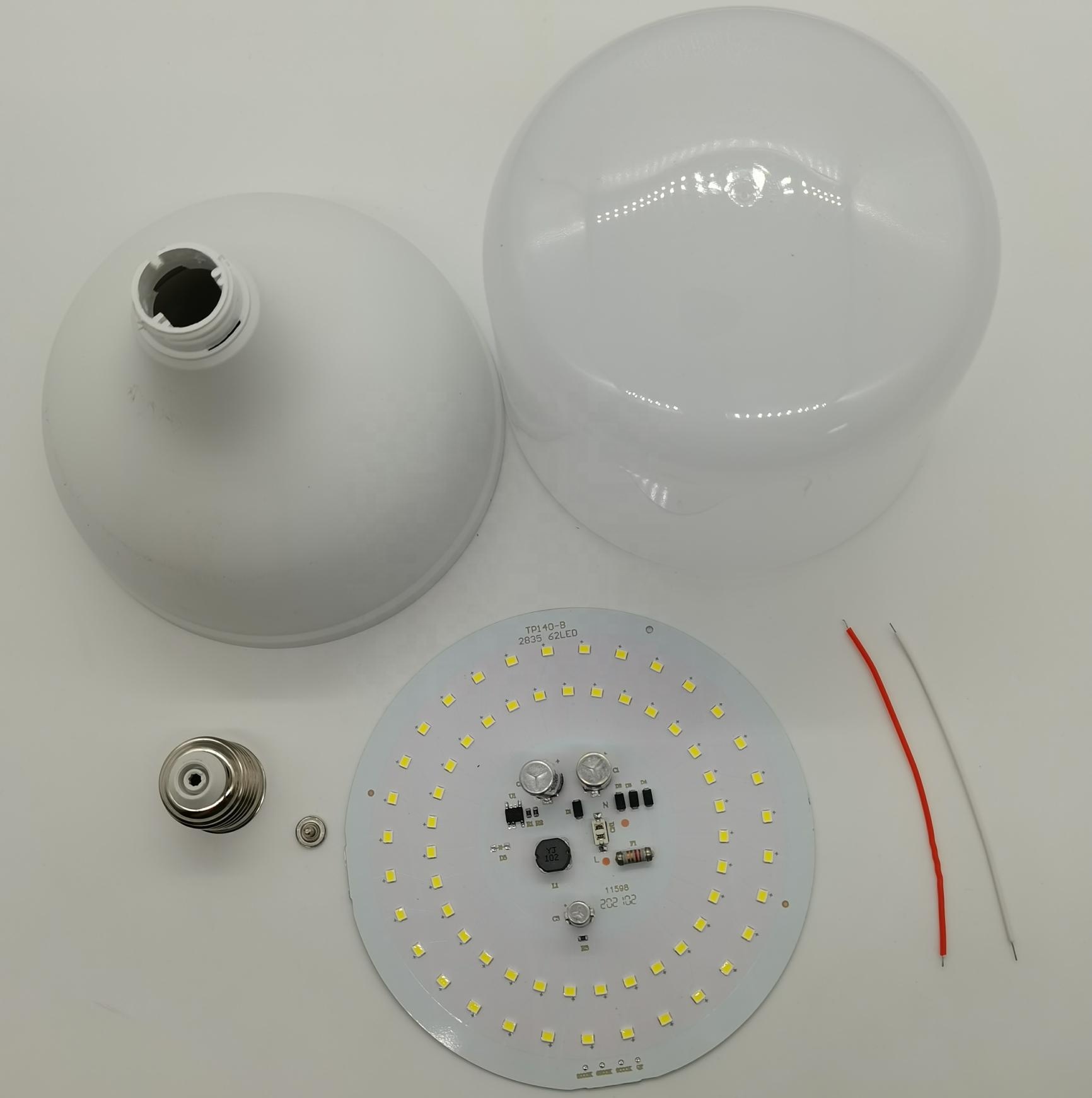

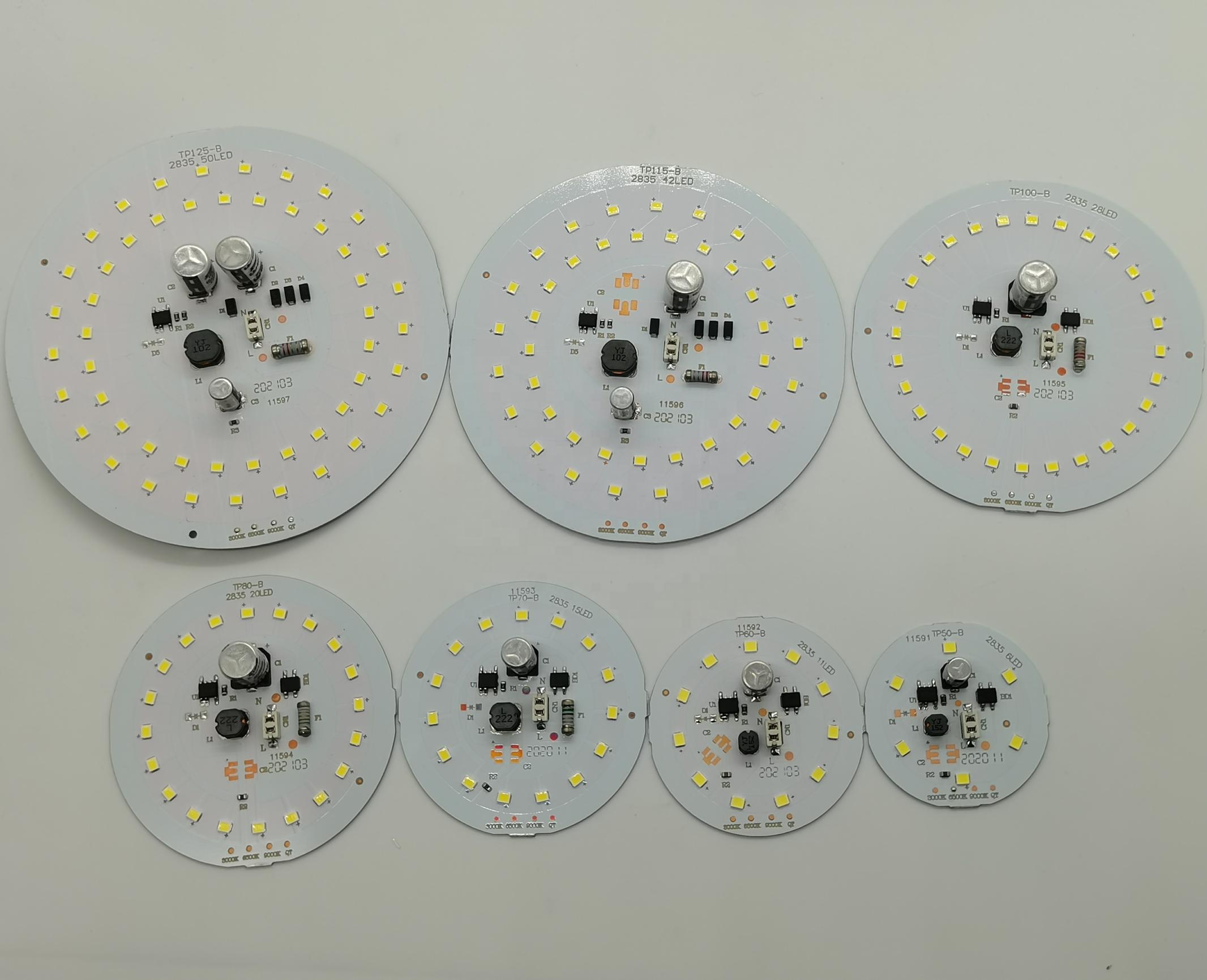

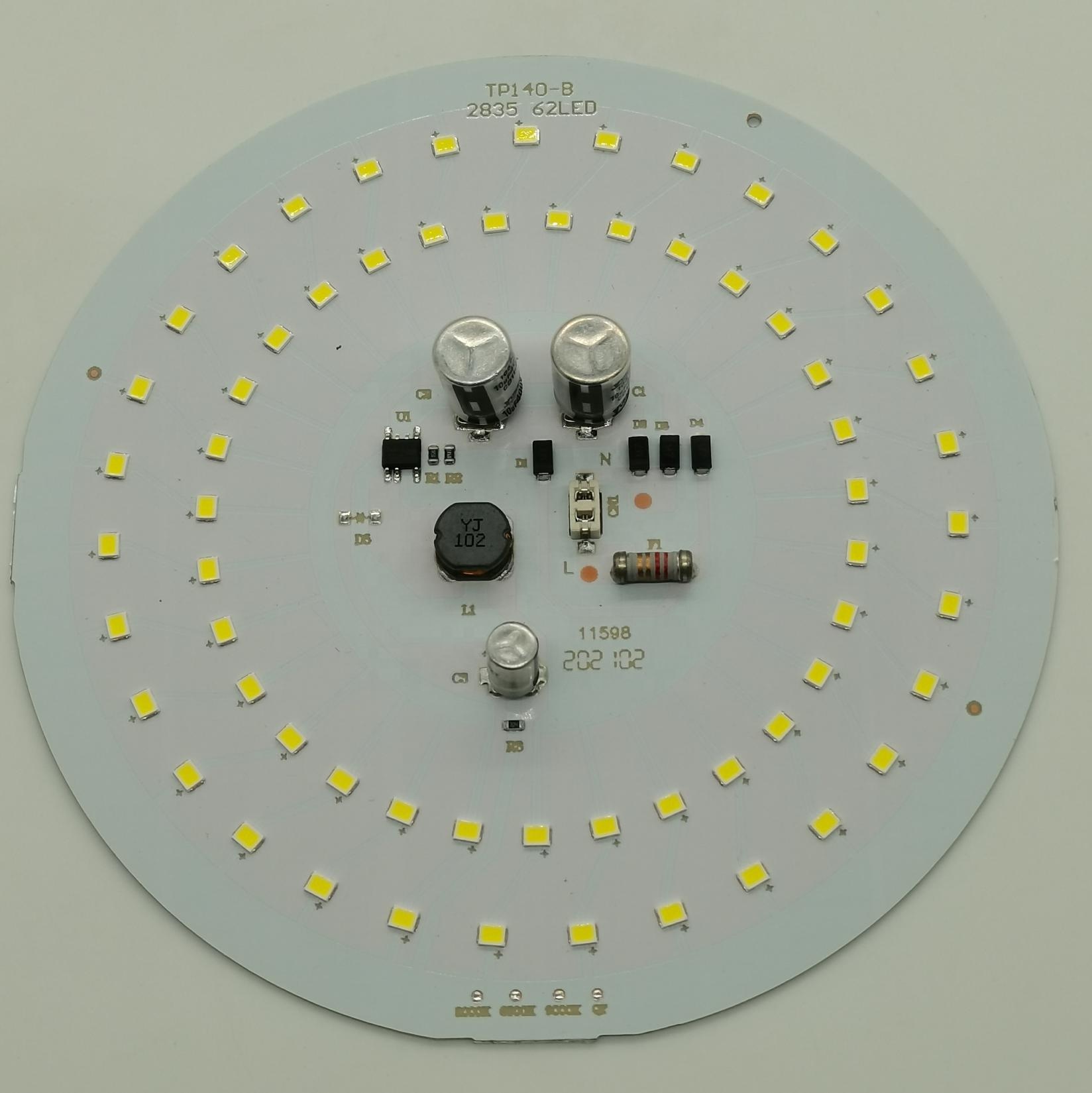

SMD aluminum led pcb /3w 5w 7w 9w 12w 15w 18w bulb round led pcb
We provide fast proofing service and one-stop service. Any customized aluminum substrate PCB can be done, if you need SMD, we also have SMD machine to stick LED lamp beads to PCB board.
raw material | Various thickness PCB boards, FR4, FPC, CEM-3, 22F, VO, HB, KB |
printing art | screen printing |
surface treatment | HASL(LF), Gold Plated, Enig, Immersion Gold, Immersion Tin, OSP |
layers | single layer |
copper thickness | 15uf, 18uf, 22uf, 25uf, 35uf, etc. (1/2oz-2oz) |
PCB board cutting | Die punching, CNC gong shape, V cut |
Solder Mask and Silkscreen Colors | Green/Black/White/Red/Blue/Yellow |

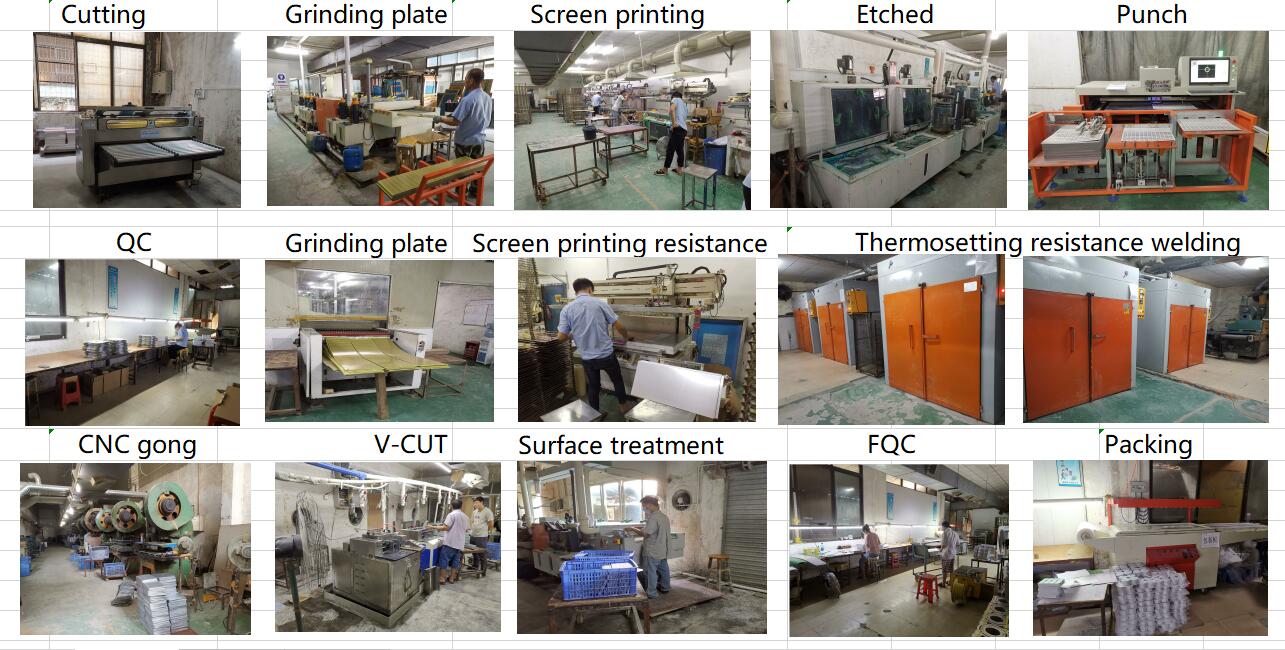

Manufacturing Technology
