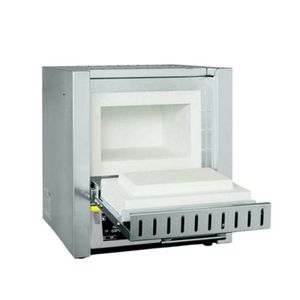

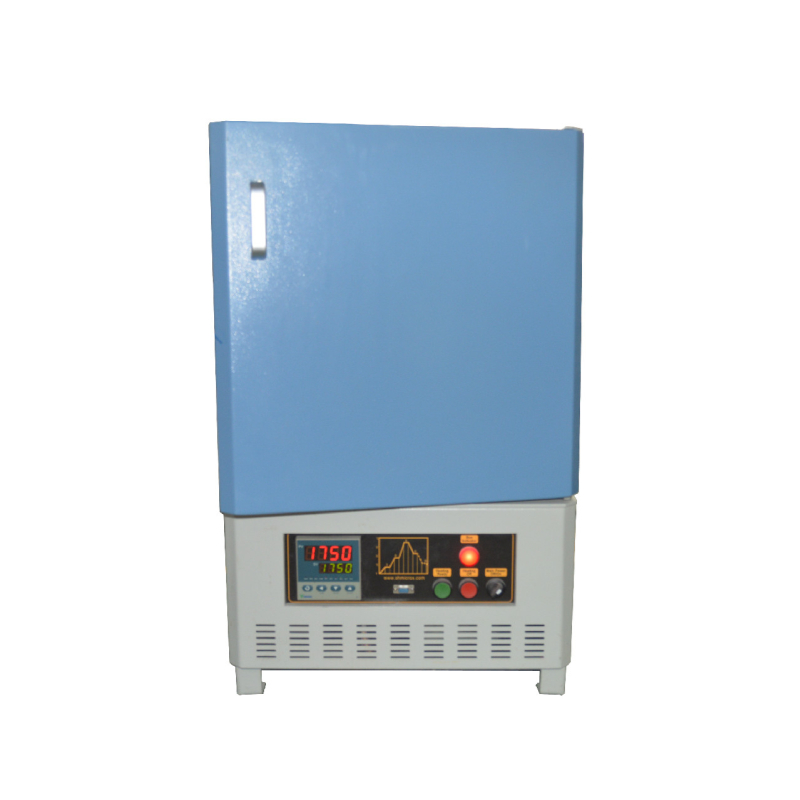

Laboratory of ceramic fiber furnace Muffle furnace 1300 degrees

PRODUCT DETAIL
Applicable industries:Manufacturing plant, other, 1300 degree muffle furnaceShowroom location:None, 1300 degree muffle furnace
Main selling points:Easy to operateSupply capacity:200 sets per month
Heating element:Resistance wire/SiC/Mosi2 heaterCore components:1300 degree muffle furnace motor
Commonly used temperatures (℃):100-1600Key words:1300 degree muffle furnace
Weight (tons):0.1 tonsPackaging details:Fumigation-free wooden box 1300 degree muffle furnace
Package preview:Dimensions (length*width*height):200*200*200mm
Health status:newMechanical test report:if
Vacuum degree (Mpa):-0.0099Place of origin:Henan, China
type:Induction furnacebrand:Jawo
application:Laboratory heating test equipmentproduct name:1300 degree muffle furnace
port:Qingdao Port or according to customer requirementsWarranty:2 years
Video outbound inspection:ifTemperature control accuracy:±1%
Limit temperature (℃):1700Material:Stainless steel
Marketing type:Popular productsPower (kW):5
payment terms:L/C, Western Union, T/T, MoneyGram, 1300 degree muffle furnaceCore component warranty:2 years
usage:muffle furnaceVoltage:220/380V,220/380V
product description
Muffle Furnace Laboratory Ceramic Fiber Muffle Furnace 1300 Degree Muffle Furnace
The high-temperature furnace adopts a double-shell structure and intelligent phase-shifting temperature control. The furnace body is composed of high-purity alumina polycrystalline fiber bricks, and an air cooling system is installed between the double-layer furnace shells to quickly cool down and heat up the temperature. The unique touch screen system makes the control more accurate and the graphical interface more convenient. This series of muffle furnaces can be widely used in colleges and universities, scientific research institutes, and industrial and mining enterprises for high-temperature sintering, material sintering, composition analysis and quality testing and related heat treatment work.
feature:
The high-temperature furnace adopts a double-shell structure and intelligent phase-shifting temperature control. The furnace body is composed of high-purity alumina polycrystalline fiber bricks, and an air cooling system is installed between the double-layer furnace shells to quickly cool down and heat up the temperature. The unique touch screen system makes the control more accurate and the graphical interface more convenient. This series of muffle furnaces can be widely used in colleges and universities, scientific research institutes, and industrial and mining enterprises for high-temperature sintering, material sintering, composition analysis and quality testing and related heat treatment work.
Product parameters
Model
JW-MF1200
JW-MF1400
JW-MF1700
maximum. temperature
1200
1400
1700
Operating temperature
1100
1300
1600
Heating element
Molybdenum resistance wire
silicon carbide
Molybdenum disilicide
Thermocouple
K type
S type
Type B
Cavity material
Ceramic fiber
Ceramic fiber
Ceramic fiber
Heating rate
0-20℃/minute
0-20℃/minute
0-20℃/minute
Temperature accuracy
+-1°C
+-1°C
+-1°C
temperature uniformity
+-5°C
+-5°C
+-5°C
power supply
220/380V, 50/60HZ
220/380V, 50/60HZ
220/380V, 50/60HZ
Cavity size (mm)
Effective volume (L)
150*150*150
3.4
150*150*200
4.5
200*200*200
8
200*200*300
12
300*300*300
No. 27
300*300*400
36
400*400*400
64
500*500*500
125
600*600*600
216
800*800*800
Chapter 512
Note: Customer designed size and volume are accepted.

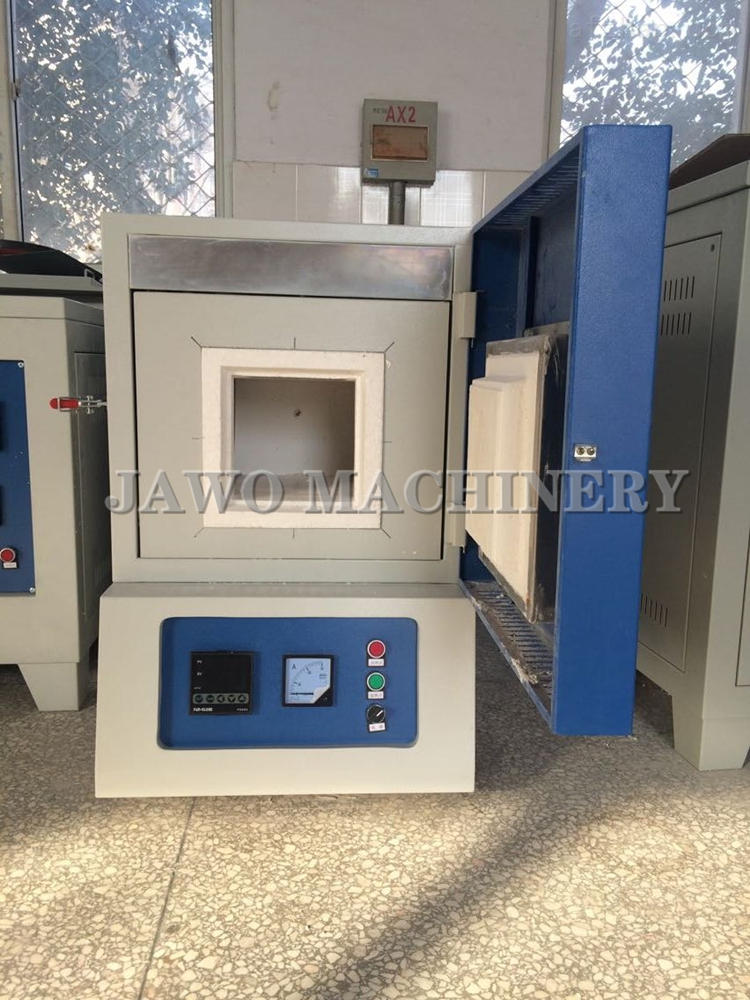

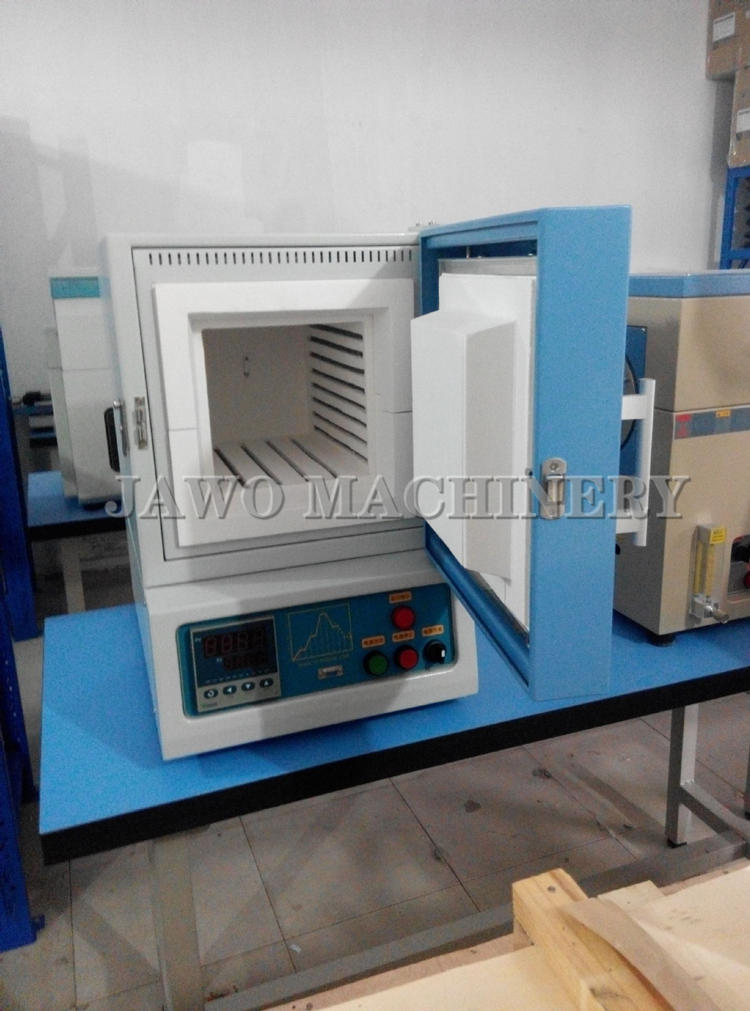

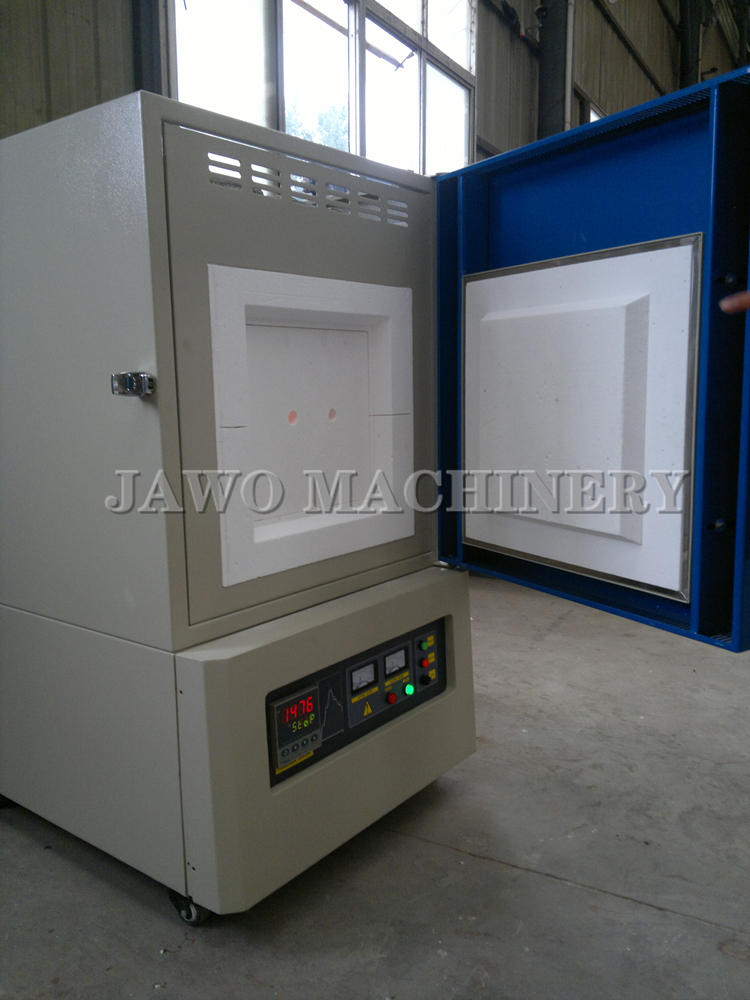

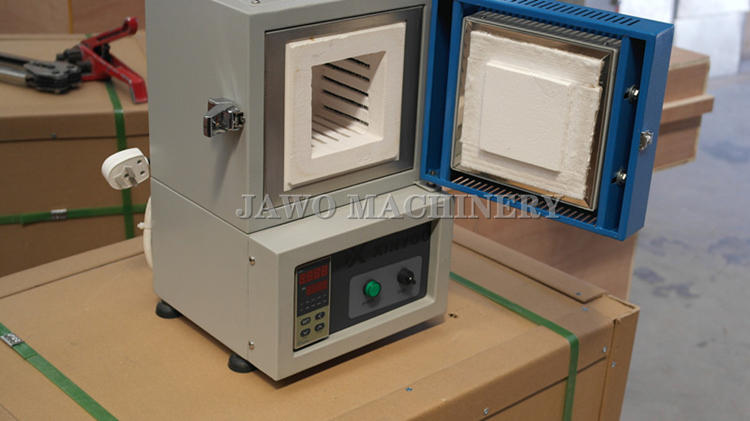

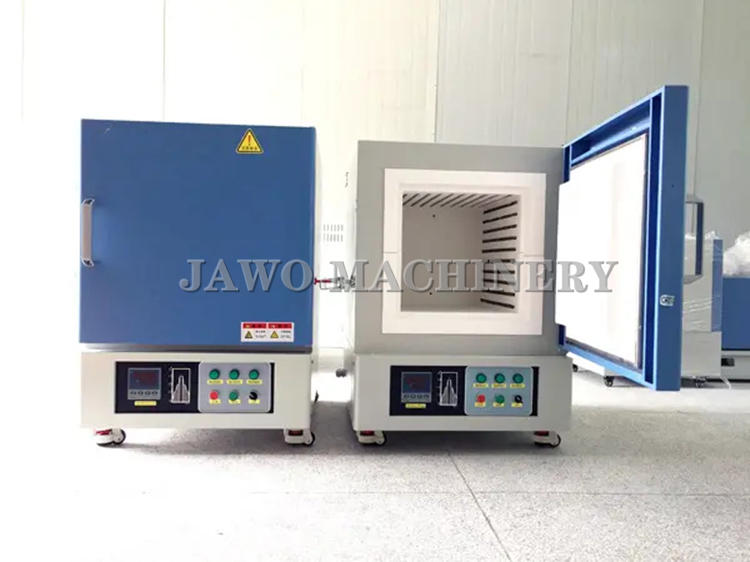

detailed picture
Product packaging
