PAKISTAN Market High Quality 220V AC Drive Synchronous Motor Fan Motor
- $0.20 /piece
- 1 piece
- Ningbo Quanjia Paeumatic Components Manufacturing Co., Ltd.
- Zhejiang, China
- Ms Michelle Wu
| efficiency: | browser 1 | application: | General Machinery |
| port: | Ningbo | model: | 49TYD-500 |
| Supply capacity: | 300000 pieces per month | frequency: | 50/60 Hz |
| payment terms: | T/T, Western Union | product name: | synchronous motor |
| stage: | Simplex | Certification: | CCC, CE, RoHS |
| Warranty: | 1 year 3 months - 1 year | Package preview: | |
| color: | silver+yellow | Packaging Details: | 160pcs/box |
| sample: | usable | AC voltage: | 208-230 / 240 volts |
| place of origin; place of origin: | Zhejiang, China | Protective function: | Explosion-proof |
| Types of: | Asynchronous motor | brand: | OEM production |

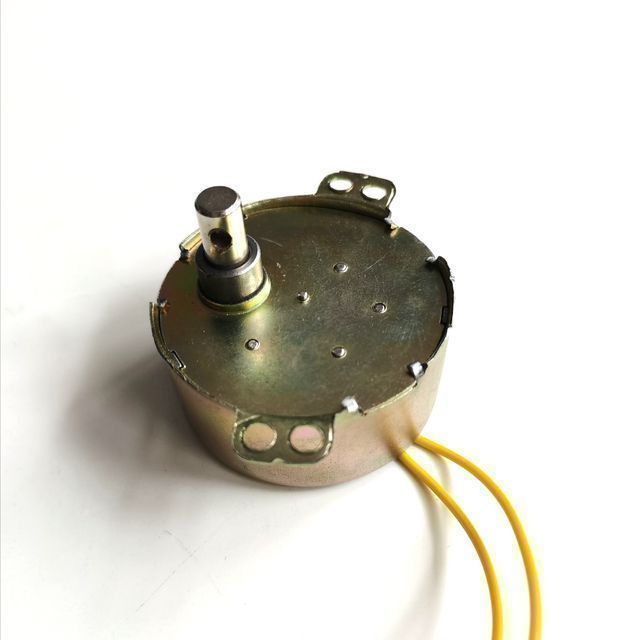

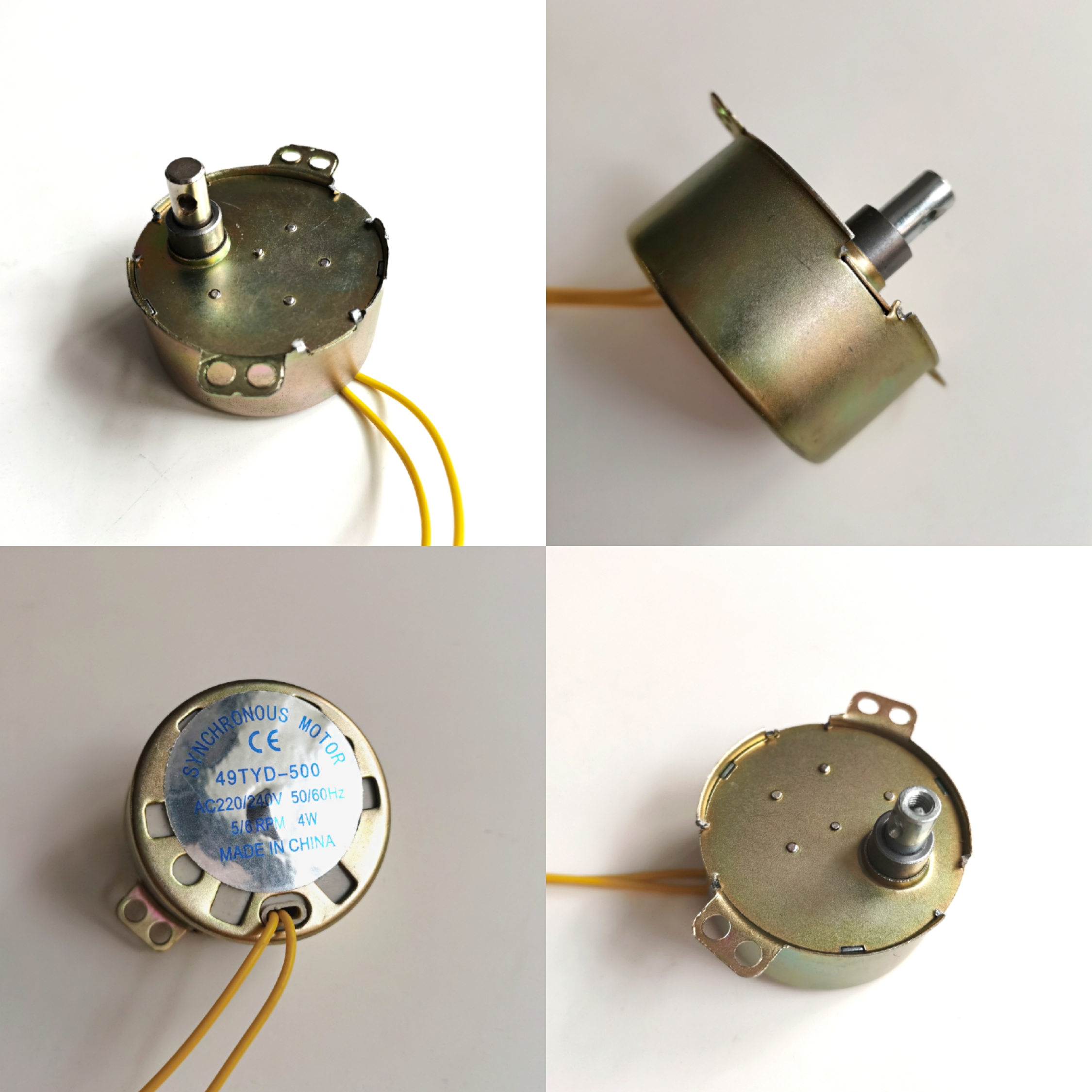

Pakistan market high quality 220V AC mobile synchronous motor fan motor
|
Rated voltage |
AC 220V |
Dielectric strength |
1500VAC/1 minute |
|
energy consumption |
≤4W |
noise |
<40dB |
|
Input Current |
<25mA |
Coil temperature rise |
≤60K |
|
rated frequency |
50/60 Hz |
insulation level |
Second |
|
speed |
1.5, 2, 3, 4, 5, 10, 15, 30 rpm |
insulation power |
1500 V/1 minute |
|
Running torque |
1.5 kg-cm~ 15 kg-cm |
turn around |
CW, CCW or Free |
|
Insulation resistance |
>100MΩ |
lead wire |
40cm |
1. Typical application:
1) Household appliances: electric fans, air conditioner leaf turners, microwave oven turntables, quartz heaters, dishwashers, can openers, knife sharpeners, washing machines, citrus juicers, juice extractors, etc.
2) Indoor and outdoor electric decorations: rotating electric tables, stage curtains, tape recorder turn lights, decorative lights, fiber optic turn lights, Christmas trees, rotating electric advertisements and shelves, etc.
3) Motors: automatic vending machines, automatic electrical instruments, rotating TV antennas, etc.
4) Technological equipment: rotating electric models, electric curtains, etc.
5) Medical equipment: mixers, pumps, etc.
6) Industrial fields: electric bus meters, etc.
2. Features:
1) Stable speed
2) Long life
3) High torque
4) High efficiency
5) Low noise
6) Low vibration
7) The direction of rotation can be arbitrary, directional (CW or CCW) or reversible (controlled by wiring)
8) Wire lead-out or terminal lead-out can be used
1. Advanced equipment and technology
2. Strong production capacity
3. Quick response
4. Experienced service
5. High quality and competitive price
