VW BUG VW BEETLE Fuel Gas to Electric Vehicle Conversion Kit
- $2500.00 / 1 - 9 sets
$2300.00 / >=10 sets - 1 set
- Foshan Green Electric Vehicle Techology Co., Ltd.
- Guangdong, China
- Ms Maggie Chen
PRODUCT DETAIL
| Warranty: | 1 year | port: | Guangzhou/Shenzhen |
| payment terms: | Western Union, wire transfer | cooling method: | Air |
| Protective function: | Drip-proof | Protection class: | IP55 |
| Peak RPM: | 6000 | type: | Induction motor |
| Rated torque: | 48 | maximum. speed: | 90 km/h |
| strength: | 15kW | brand: | GMT |
| Voltage: | 96V 108V 144V | model: | electric car |
| efficiency: | 90% | Supply capacity: | 2000 sets per month |
| frequency: | 50/60Hz | place of origin; place of origin: | China |
| Packaging Details: | wooden box | Max torque: | 120 |
| AC voltage: | 96V 108V 144V | Rated speed: | 3000 |
| stage: | three phase | Drive mode: | rear axle drive |
Why Choose Green Motor Technology
26+ years of manufacturing and supply experience
600+ customers in 120+ countries
200+ customer site visits
12+ years of electric vehicle modification
Alibaba member for more than 8 years
China's leading electric vehicle total solution provider

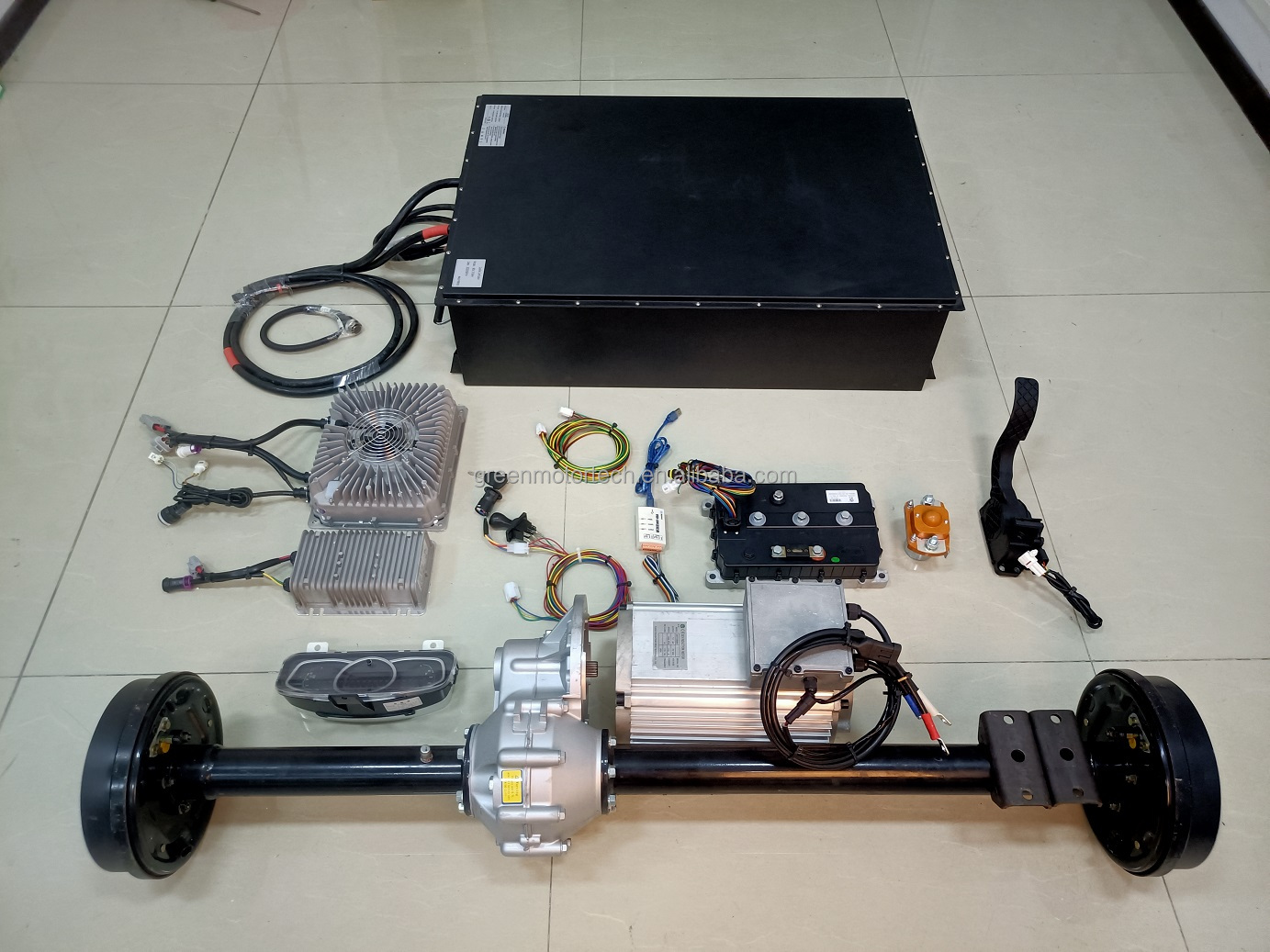

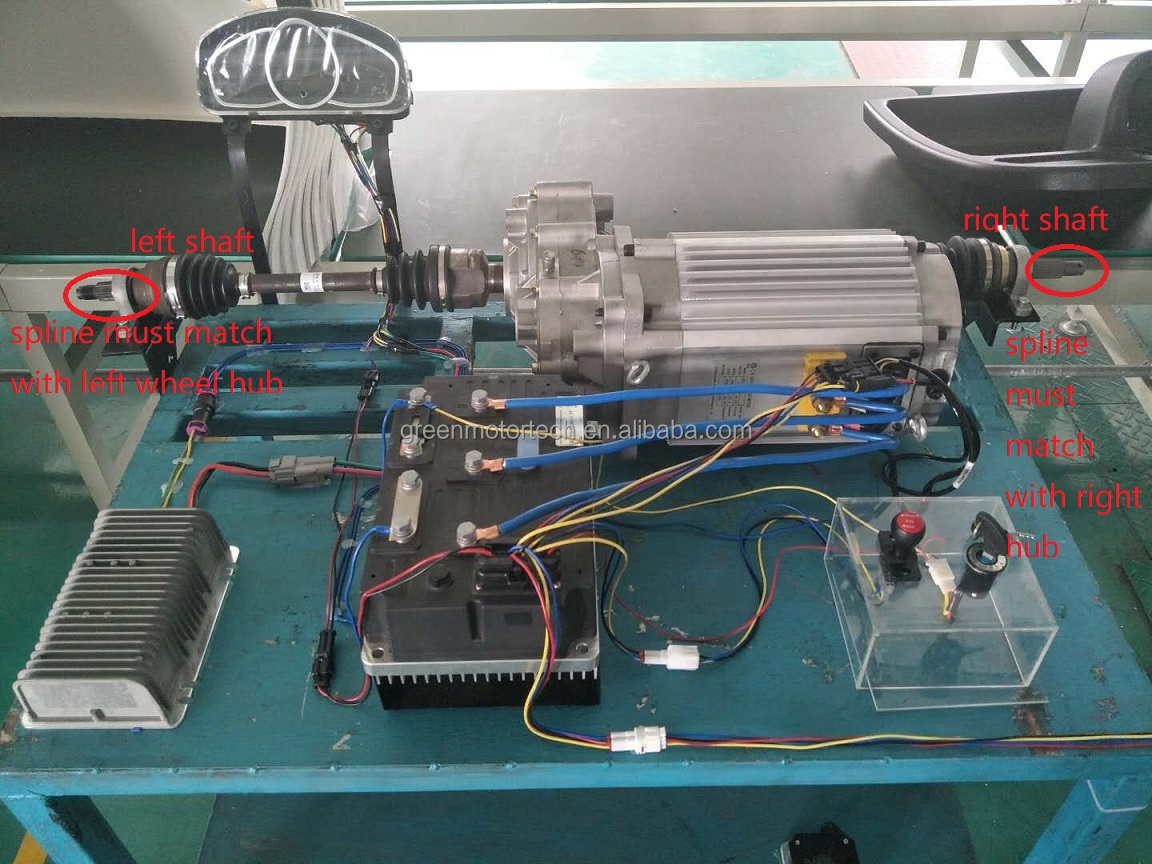

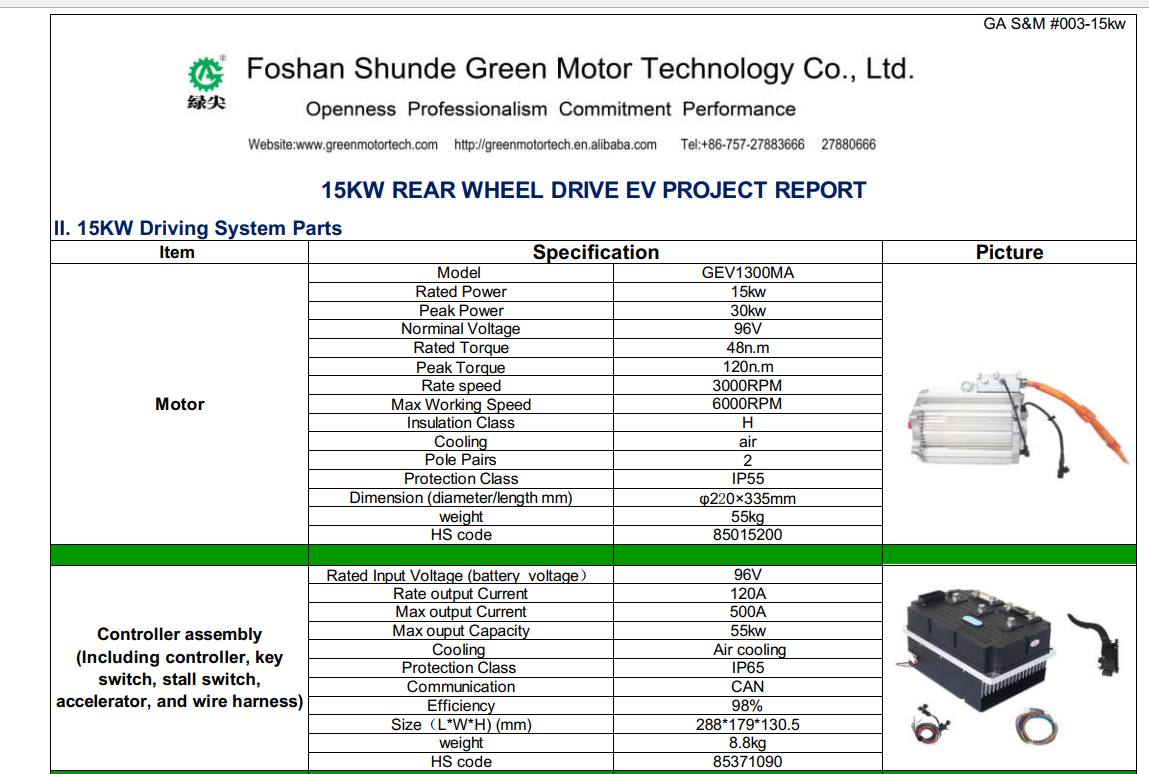

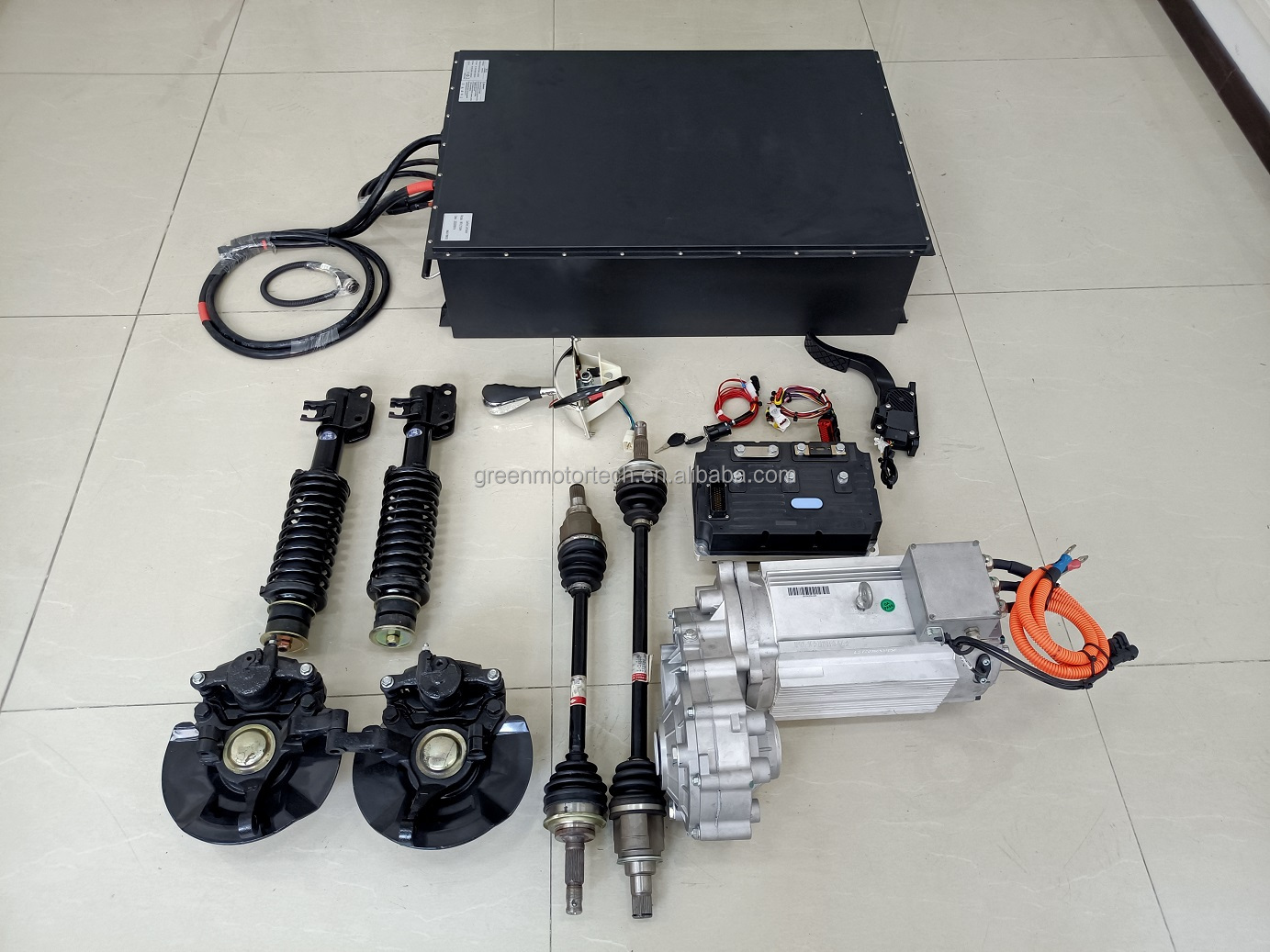

| 2. 15KW drive system parts | ||||
| thing | Specification | picture | ||
| motor | Model | GEV1300MA |
|
|
| rated power | 15kW | |||
| peak power | 30kW | |||
| standard | 96V | |||
| Rated torque | 48 nautical miles | |||
| peak torque | 120nm | |||
| rate speed | 3000 rpm | |||
| maximum working speed | 6000 rpm | |||
| Insulation level | H | |||
| cool down | Air | |||
| pole pair | 2 | |||
| Protection class | IP55 | |||
| Dimensions (diameter/length mm) | φ220×335mm | |||
| weight | 55kg | |||
| HS code | 85015200 | |||
| Controller assembly (including controller, key switch, stall switch, throttle, wiring harness) |
Rated input voltage (battery voltage) | 96V |
|
|
| Rated output current | 120A | |||
| Maximum output current | 500A | |||
| Maximum output capacity | 55kW | |||
| cool down | air cooling | |||
| Protection class | IP65 | |||
| communicate | were able | |||
| efficiency | 98% | |||
| Dimensions (L*W*H) (mm) | 288*179*130.5 | |||
| weight | 8.8kg | |||
| HS code | 85371090 | |||

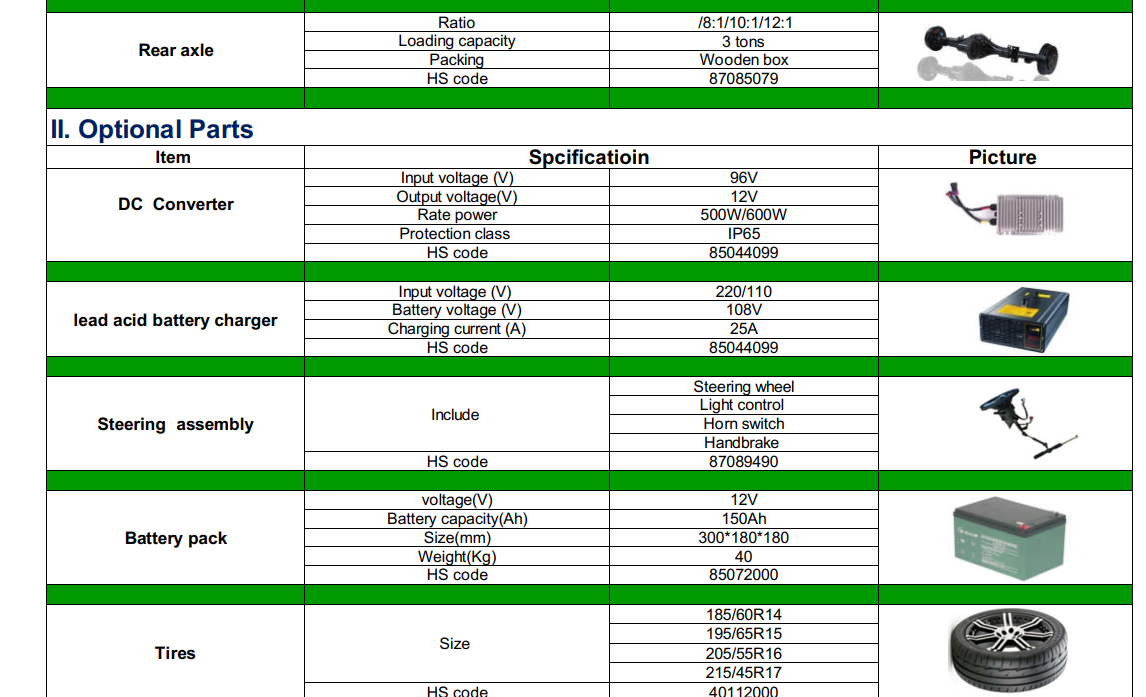

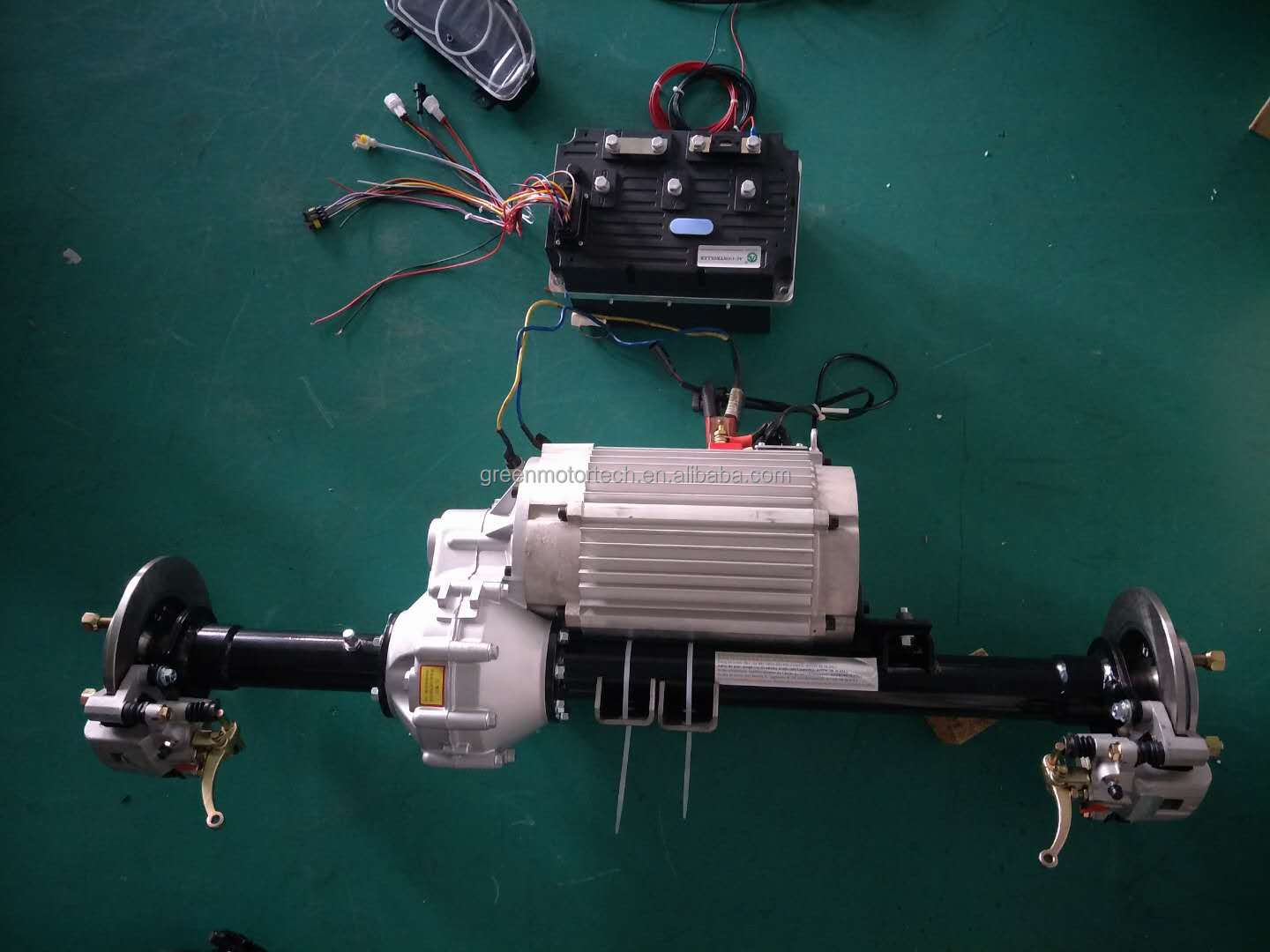

| rear axle | ratio | /8:1/10:1/12:1 |
|
|
| loading capacity | 3 tons | |||
| Package | wooden box | |||
| HS code | 87085079 | |||
| 2. Optional parts | ||||
| thing | Specification | picture | ||
| DC converter | Input voltage (V) | 96V |
|
|
| Output voltage (V) | 12V | |||
| rated power | 500W/600W | |||
| Protection class | IP65 | |||
| HS code | 85044099 | |||
| Lead acid battery charger | Input voltage (V) | 220/110 |
|
|
| Battery voltage (V) | 108V | |||
| Charging current (A) | 25A | |||
| HS code | 85044099 | |||
| steering assembly | include | steering wheel |
|
|
| Lighting control | ||||
| Horn switch | ||||
| handbrake | ||||
| HS code | 87089490 | |||
| Battery | Voltage (V) | 12V |
|
|
| Battery capacity (Ah) | 150Ah | |||
| Dimensions (mm) | 300*180*180 | |||
| Weight (kg) | 40 | |||
| HS code | 85072000 | |||
| tire | size | 185/60R14 |
|
|
| 195/65R15 | ||||
| 205/55R16 | ||||
| 215/45R17 | ||||
| HS code | 40112000 | |||
