PET Mold Dehumidifiers

PRODUCT DETAIL

payment terms:	L/C, Western Union, T/T	Electric heating power (kW):	13.5kW
brand:	Wensui	Maximum air throughput:	1000
Showroom location:	Canada	Place of origin:	Guangdong, China
After-sales service provided:	Video technical support	Power (kW):	0.37
Certification:	CE certificate	Weight (kg):	380kg
Blower power (W):	0.37 watts	Cooling air capacity:	13.5kW
Warranty:	1 year	Supply capacity:	2000 sets per month
Capacity (kg):	1000kg	Health status:	new
Core component warranty:	1 year	Video outbound inspection:	if
Blower power:	0.37kW	Cooling air diameter:	200mm
Key words:	Plastic hopper dryer	Packaging details:	The plastic dehumidifier is packed in ordinary export wooden boxes
Mechanical test report:	if	Core components:	Bearings, gearboxes, motors, gears
port:	Guangzhou	Post-warranty service:	spare parts
Applicable industries:	Plastic industry

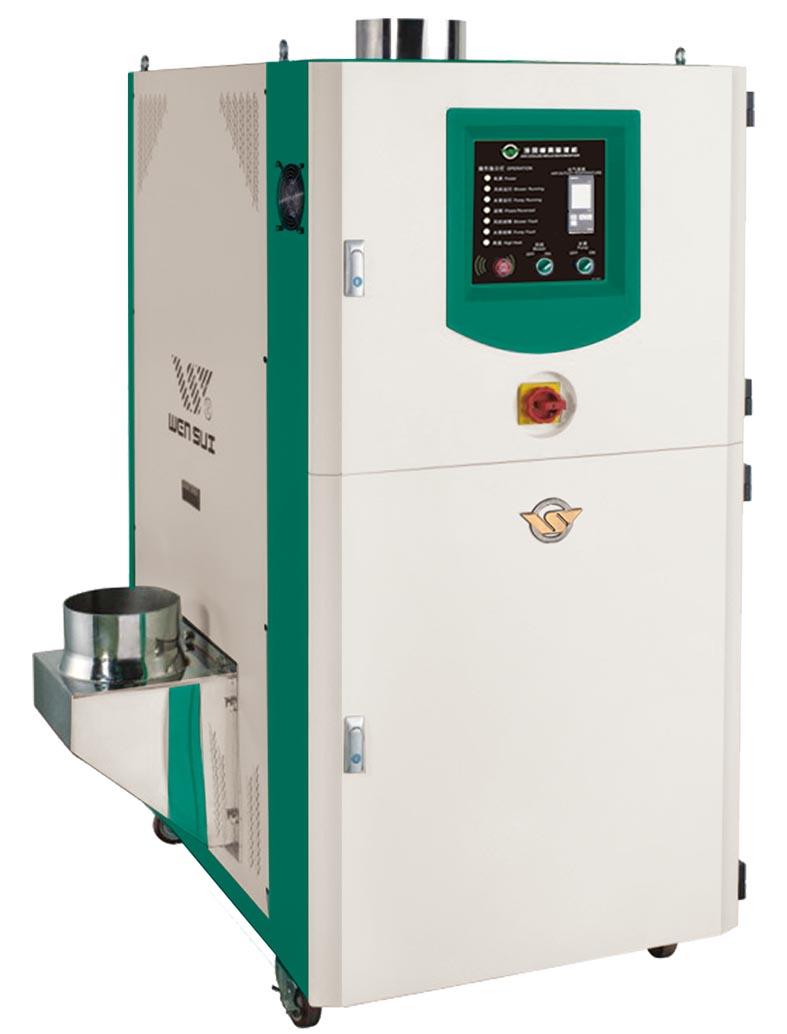

Product Image

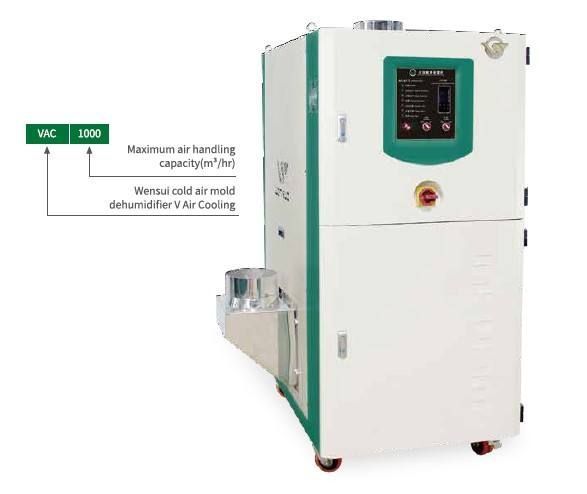

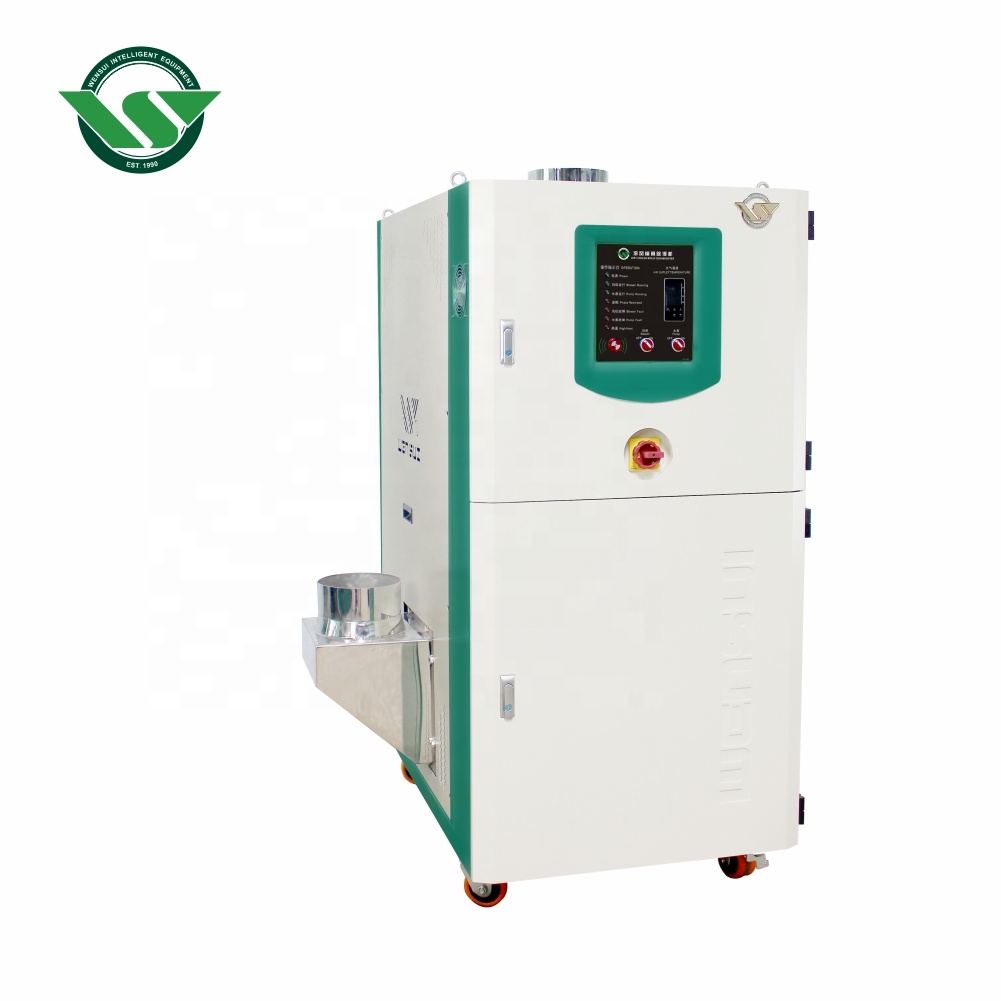

Dehumidifier air cooling mold

>Equipped with phase reversal, blower failure, pump overload and high temperature protection.

>Composed of buzzer and alarm to ensure safe operation.

>The cooling air temperature can be adjusted within the range of 12-14℃ and displayed on the controller.

> Equipped with air filter, easy to clean.

> Optional air hood for reuse of cooling air.

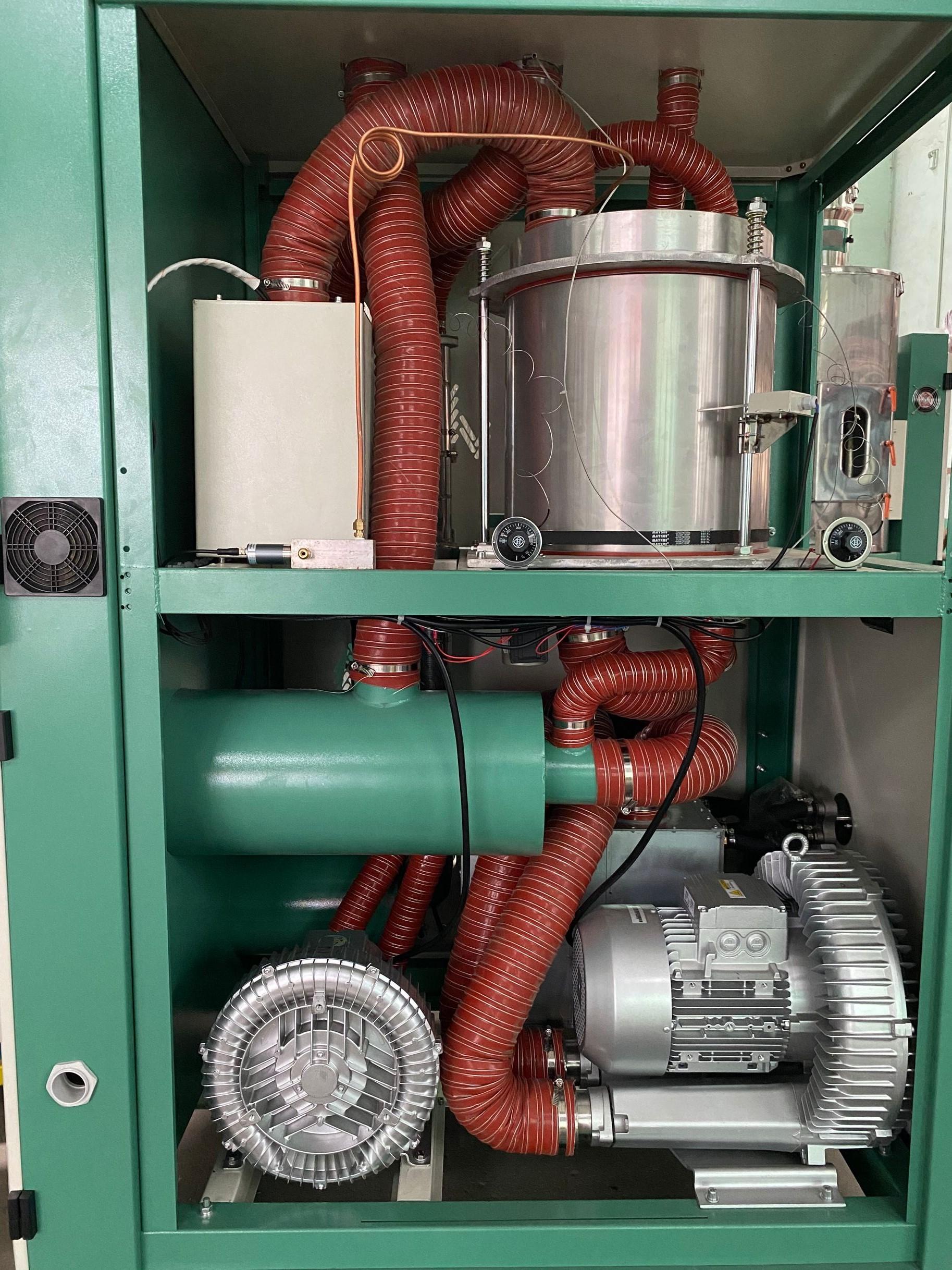

Motors and heaters

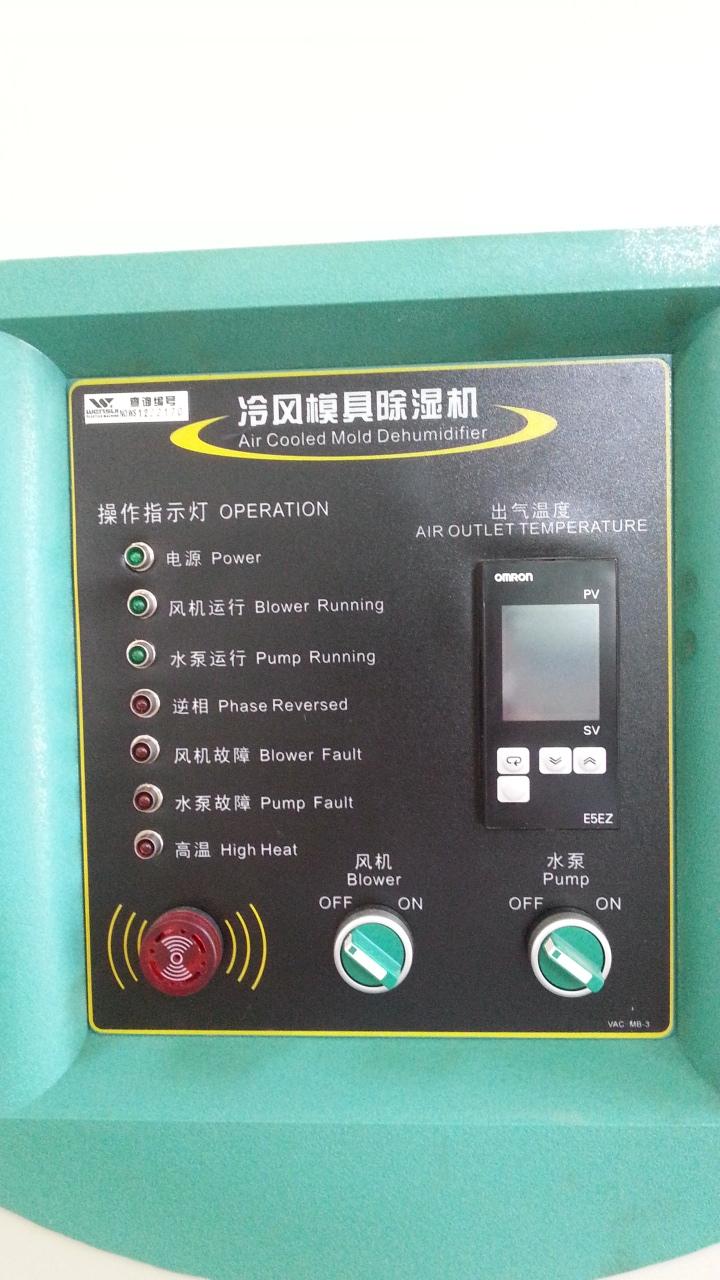

control Panel

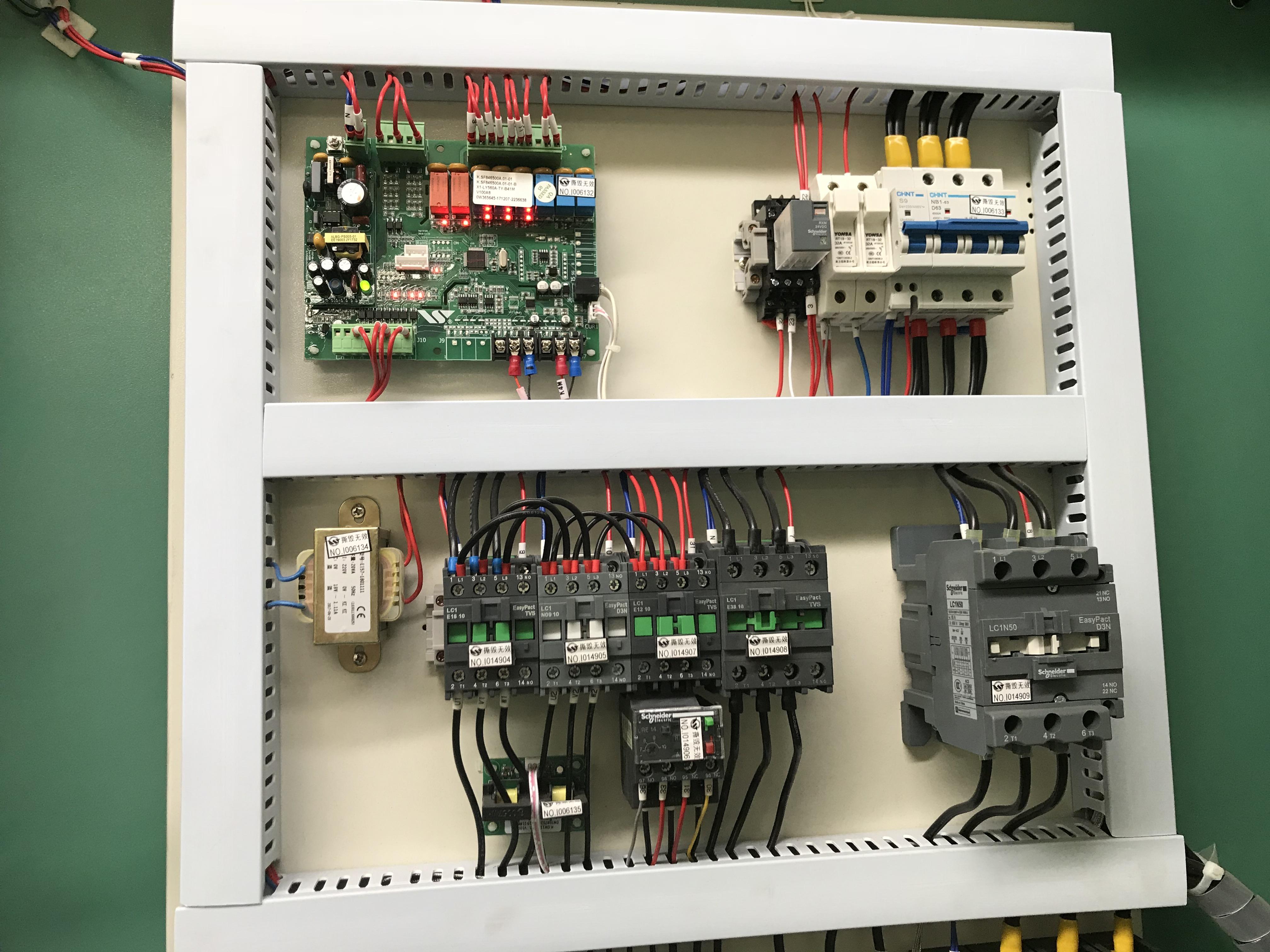

Electric controller

air mask

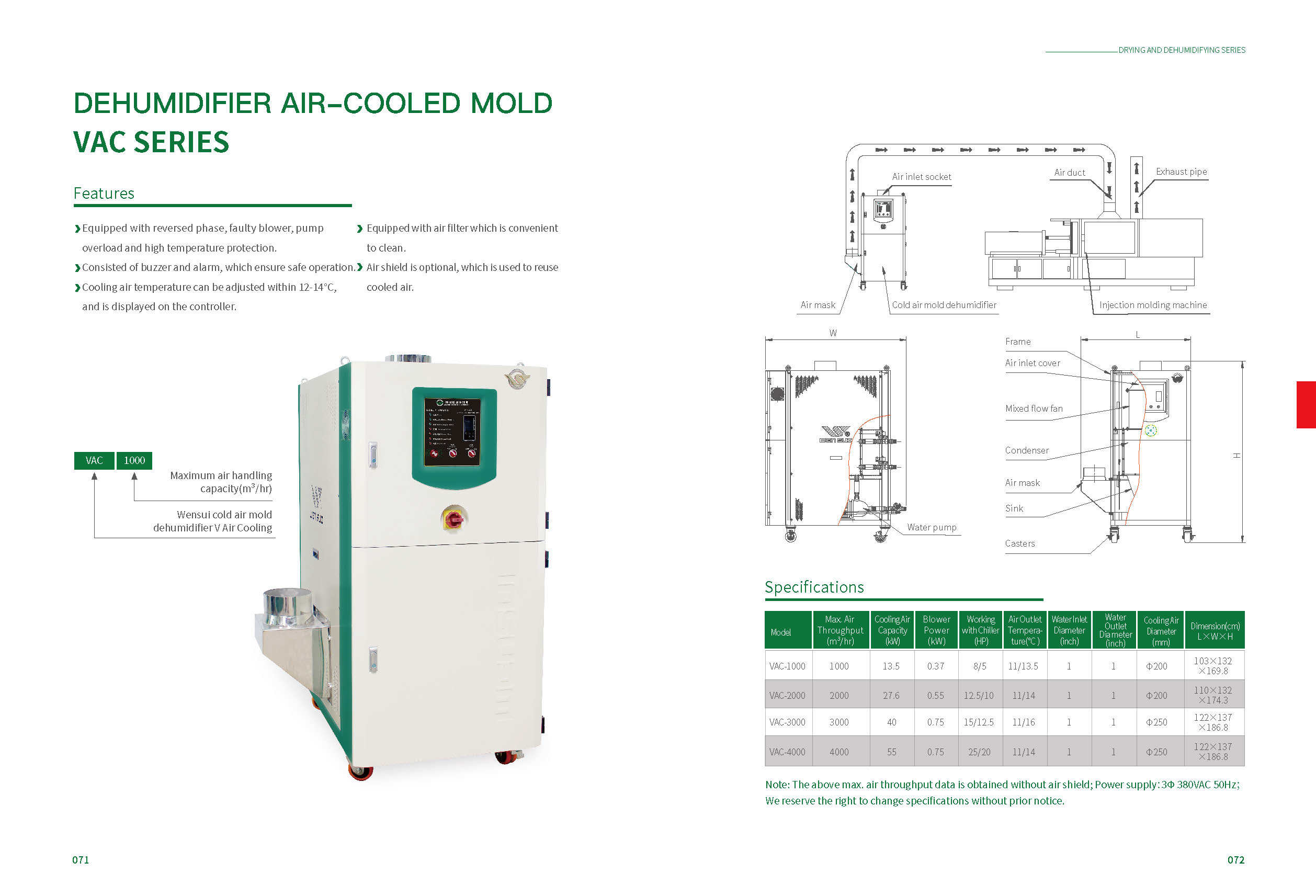

Product parameters

Model	maximum. Air throughput (cubic meters/hour)	Cooling air volume (kW)	Blower power (kW)	Use cooler (HP)	Air outlet temperature (°C)	Water inlet diameter (inches)	Outlet diameter (inches)	Cooling air diameter (mm)	Dimensions length × width × height (cm)
VAC-1000	1000	13.5	0.37	8/5	11/13.5	1	1	Φ200	103132169.8
VAC-2000	2000	27.6	0.55	12.5/10	11/14	1	1	Φ200	110132174.3
VAC-3000	3000	40	0.75	15/12.	11/16	1	1	Φ250	122137186.8
VAC-4000	4000	55	0.75	25/20	11/14	1	1	Φ250	122137186
