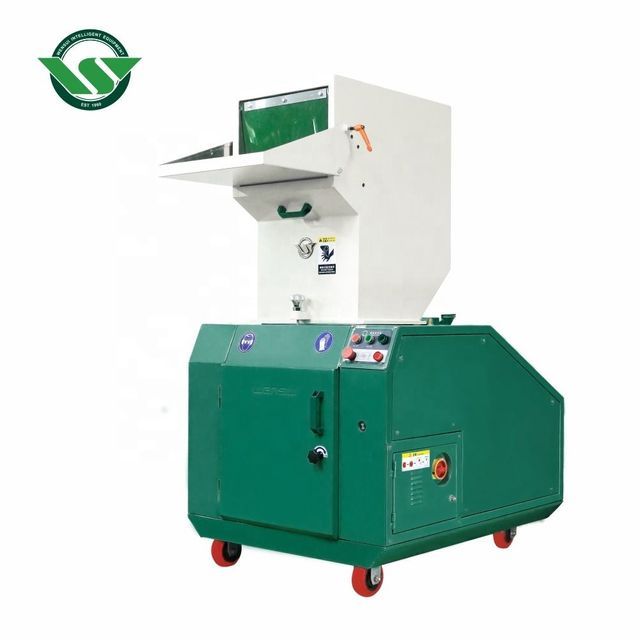

Plastic pipe high speed soundproof granulator crusher
- $2800.00 / 1 - 4 sets
$2500.00 / >=5 sets - 1 set
- Wensui Intelligent Equipment Inc.
- GuangDong, China
- Ms Orpheus Wen
PRODUCT DETAIL
| Main selling points: | high productivity | Local service location: | not any |
| port: | Guangzhou | Certification: | CE/ISO9001 |
| WSGJ: | 400 | After warranty service: | online support |
| Warranty: | 1 year | Weight (kg): | 800 |
| Video shipment inspection: | if | After-sales service provided: | online support |
| Mechanical test report: | not available | Dimensions (L*W*H): | 118*93*170cm |
| Packaging Details: | Plywood bags | Marketing Type: | 2019 Hot Products |
| Showroom location: | not any | Health status: | new |
| Origin: | Guangdong, China | Package preview: | |
| payment terms: | L/C, Western Union, T/T, Paypal | Applicable industries: | plastic |
| Core component warranty: | 6 months | Supply capacity: | 500 sets per month |
| Core components: | engine | brand: | Wen Sui |
Product Description
1. Fully sealed crushing chamber, to achievelow noise (Below 80 decibels within 1 meter from the machine) No dust.
2. Install a cooling system to protect the motor and ensure long-term operation.
3. Consists of multiple safety devices and CE certified electrical appliances that meet European standards.
4. Use a phase controller to prevent the motor from reversing.
5. Equipped with isolating switch, the operation and maintenance are safer.
6. Adjustable feeding port and ring lock, easy to operate.
7. The standard configuration is the storage trolley, and the optional hopper and cyclone system.
2. Install a cooling system to protect the motor and ensure long-term operation.
3. Consists of multiple safety devices and CE certified electrical appliances that meet European standards.
4. Use a phase controller to prevent the motor from reversing.
5. Equipped with isolating switch, the operation and maintenance are safer.
6. Adjustable feeding port and ring lock, easy to operate.
7. The standard configuration is the storage trolley, and the optional hopper and cyclone system.
Specification
Model | Crushing chamber(mm) | Crushing capacity(kg/h) | Fixed blade(pcs) | Rotary blade (pcs) | strength (kW/hp) | ||
WSGJ230 | 230*215 | 100-150 | 2 | 6 | 4KW/5HP | 100*72*149 | 500 |
WSGJ400 | 410*270 | 200-250 | 2 | 12 | 7.5KW/10HP | 118*93*170 | 800 |
WSGJ500 | 520*320 | 300-450 | 2 | 15 | 11KW/15HP | 130*106*196 | 1100 |
WSGJ600 | 620*340 | 350-450 | 4 | 18 | 15KW/20HP | 136*116*213 | 1350 |
WSGJ800 | 815*480 | 450-600 | 4 | twenty four | 22KW/30HP | 185*157*268 | 2250 |

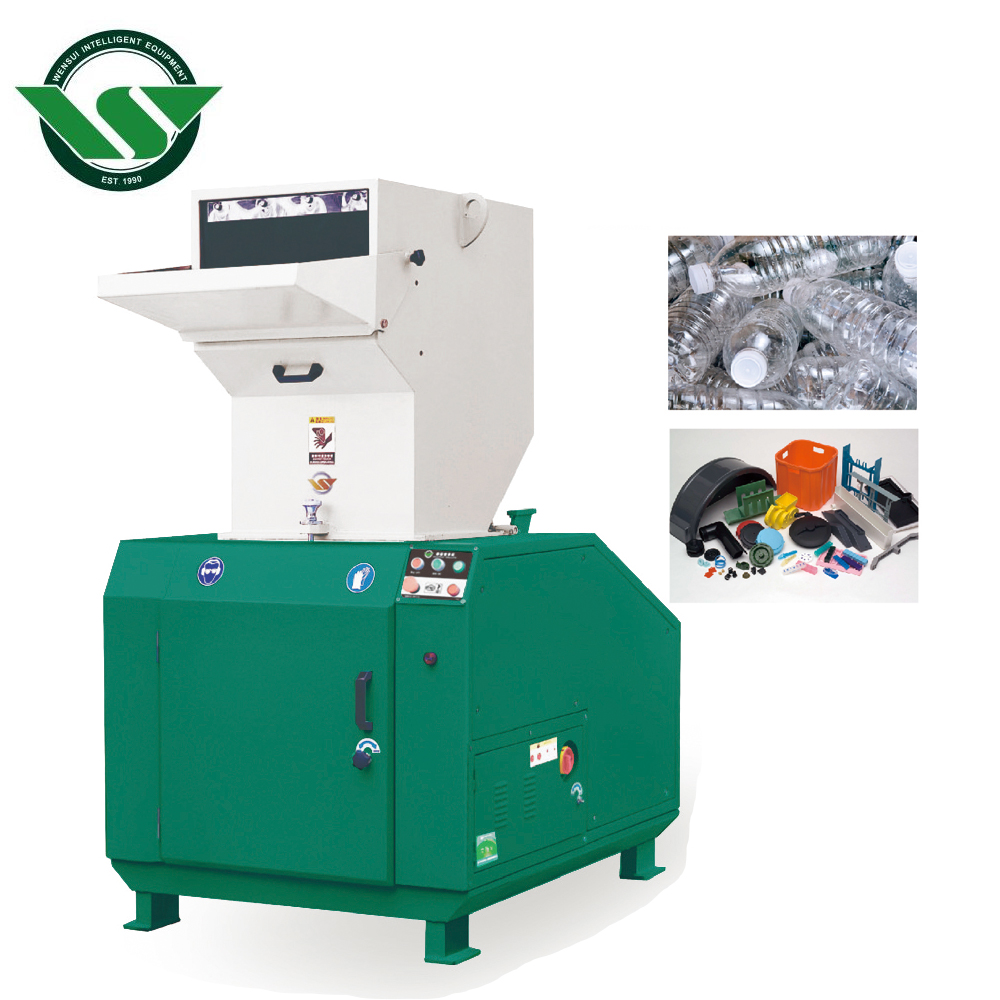

product display

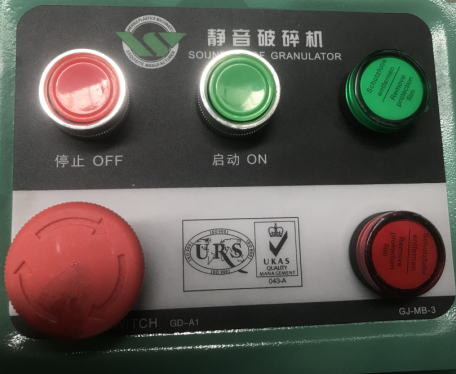

clear control panel
Easy to control
Easy to control

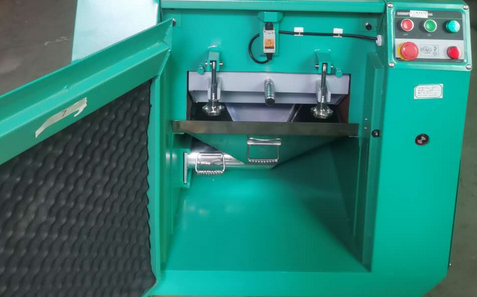

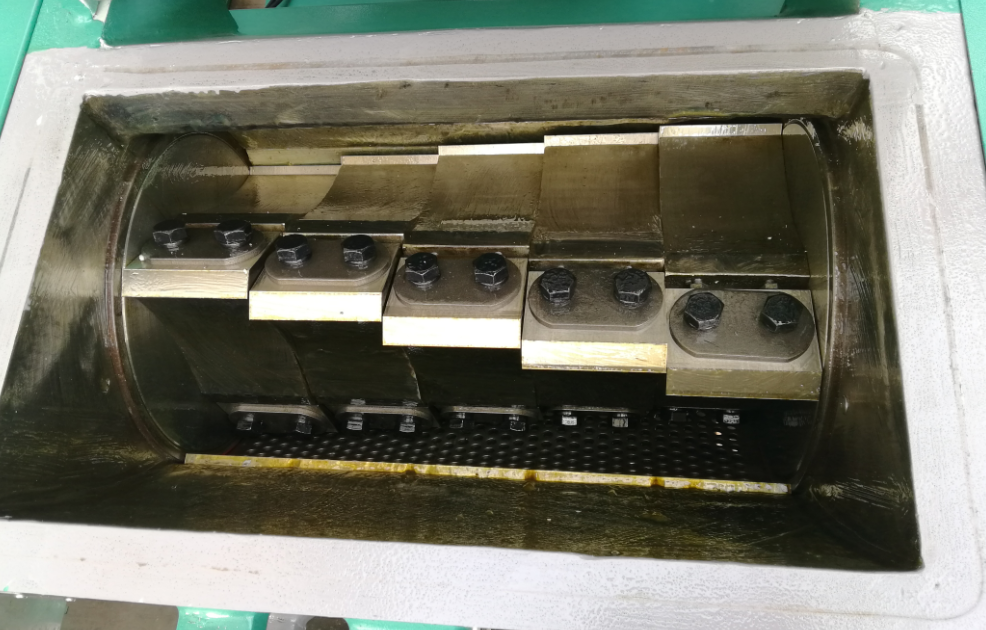

Flake blade design, suitable for different kinds of plastic materials

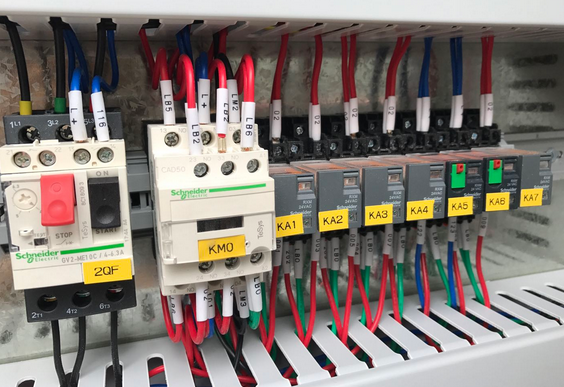

The electrical system adopts well-known brands to ensure the stable operation of Wensui products

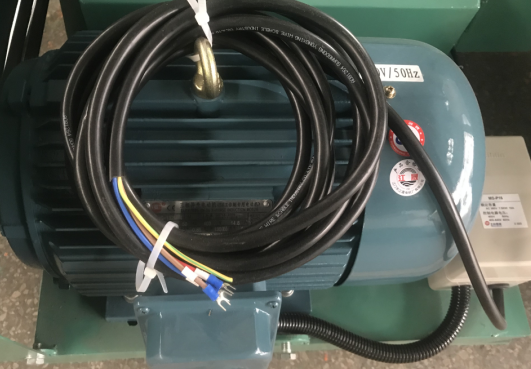

Famous brand motors have stable performance and have passed CQC, CCC, CE certification

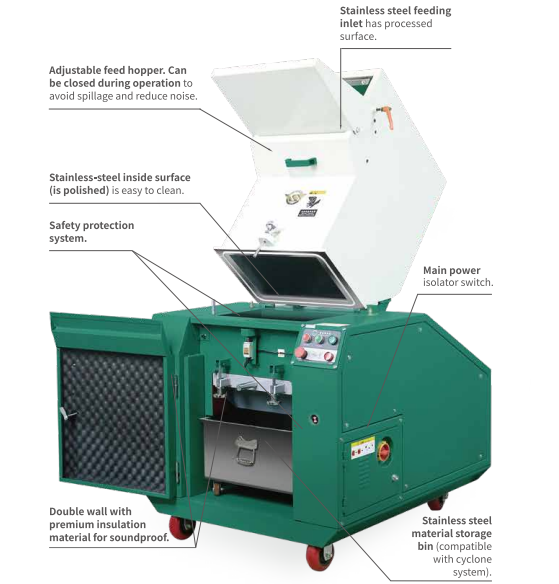

The sound insulation layer of the whole machine ensures lower noise

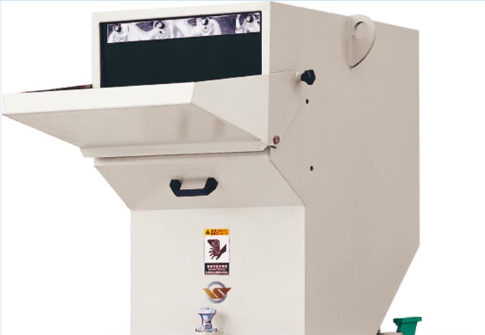

The sound insulation layer and the entire hopper reduce noise, and the interior is stainless steel to avoid paint peeling off when materials and particles are brokenspinning at high speed
