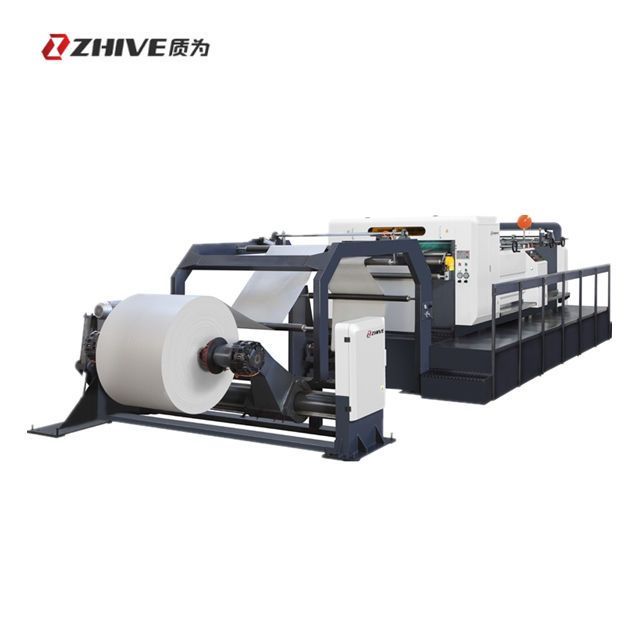

Paper roll to sheet cutting machine paper cutter
- $80000.00 / 1 - 1 units
$38000.00 / >=2 units - 1 unit
- Zhejiang Leanon Machinery Co.,Ltd.
- Zhejiang, China
- Mr Mia Yang
PRODUCT DETAIL
| Computerized: | Yes | Voltage: | AC 380v/220v*50HZ |
| Health status: | new | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Local service locations: | not any | maximum. Working width: | 1400mm |
| Supply capacity: | 10 roll to sheet cutting machines per month | Dimensions (length*width*height): | 9m*3.9m*2.35m |
| Maximum cutting width: | 1800mm | Certification: | CE |
| port: | Ningbo or Shanghai, China | security system: | Infrared protection paper cutter |
| product name: | Paper roll to sheet cutting machine paper cutter | brand: | Zhiwei |
| Applicable industries: | manufacturing plant | Main selling points: | Easy to operate |
| speed: | 300 times/minute | Model: | Fully automatic |
| Production capacity: | 300m/min | Function: | paper cutting |
| Output paper: | Kraft paper, corrugated paper, corrugated paper | Mechanical test report: | not available |
| Post-warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Cutting length: | 400-1600mm |
| Place of origin: | Zhejiang, China | Video outbound inspection: | if |
| Drive System: | servo motor | PLC brand: | Siemens |
| Packaging details: | Standard wood packaging | After-sales service provided: | Engineers can repair machinery overseas, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support |
| Core components: | engine | weight: | 9T-12T |
| type: | paper cutter | Showroom location: | not any |
| Core component warranty: | 1 year | Marketing type: | normal product |
| Warranty: | 1 year |

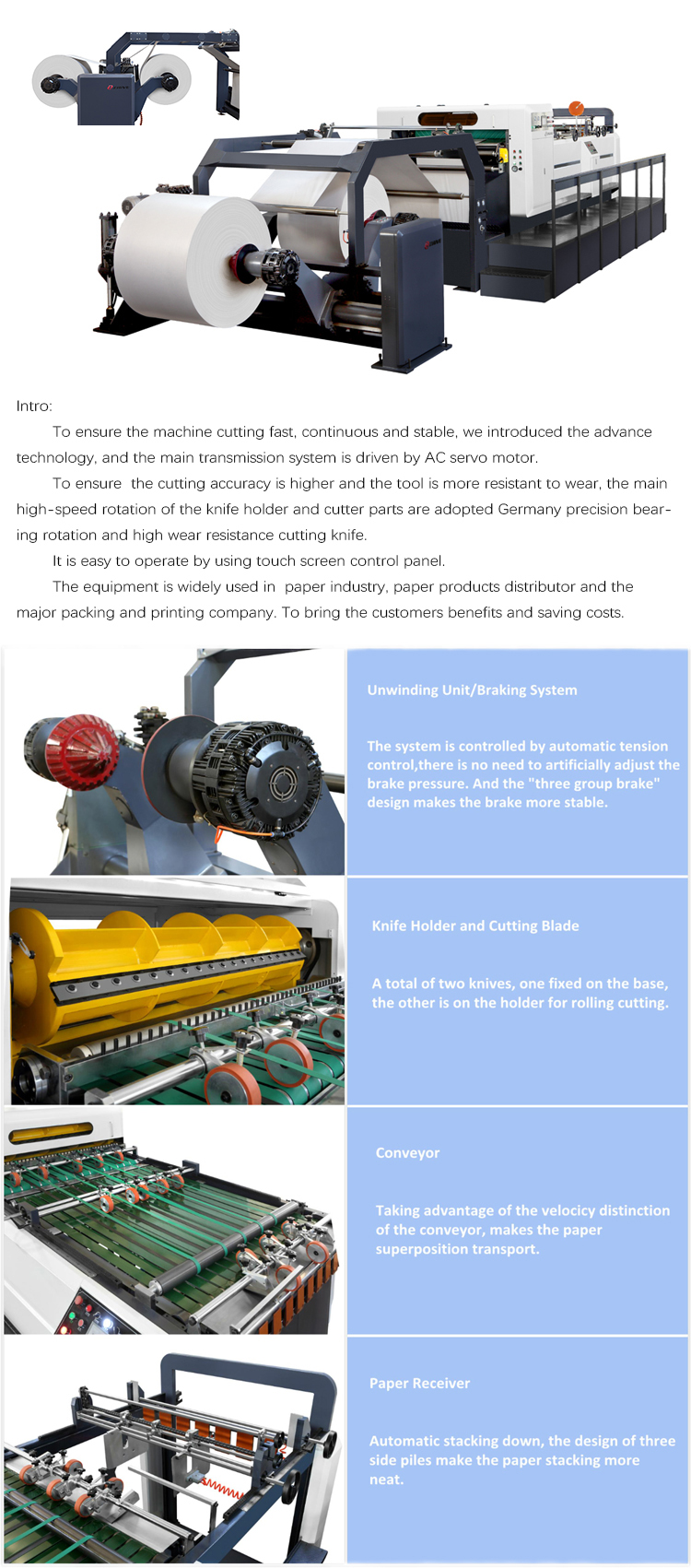

Product Description
Product parameters
| Model | 1400-1 | 1700-1 | 1400-2 | 1700-2 | 1400-4 | 1700-4 | HQD-1300 |
| Reference weight of cutting paper (g/m2) | 50-500 | 50-500 | 50-500 | 50-500 | 50-500 | 50-500 | 40-550 |
| Applicable core diameter range (cm) | 7-30 | 7-30 | 7-30 | 7-30 | 7-30 | 7-30 | 7-30 |
| Maximum diameter of paper roll (mm) | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 |
| Maximum width of paper roll (mm) | 1400 | 1700 | 1400 | 1700 | 1400 | 1700 | 1300 |
| Total power (kW) | twenty three | 25 | 25 | 30 | 30 | 32 | 7 |
| Cutting length (mm) | 400-1600 | 400-1600 | 400-1600 | 400-1600 | 400-1600 | 400-1600 | 200-1450 |
| Cutting accuracy (mm) | +/- 0.4 | +/-0.4 | +/-0.4 | +/-0.4 | +/-0.4 | +/-0.4 | +/-0.2 |
| Maximum cutting speed (times/minute) | 300 | 300 | 300 | 300 | 300 | 300 | 120 |
| Maximum cutting speed (m/min) | 300 | 300 | 300 | 300 | 300 | 300 | ---- |
| Atmospheric pressure (MPa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ---- |
| Supply voltage (V) | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 |
| Total weight (kg) | 10,000 | 11,000 | 11,000 | 13,000 | 15,000 | 16,000 | 5000 |
| Dimensions (meters) | 9*3.9*2.35 | 9*4.2*2.35 | 12*3.9*2.35 | 12*4.2*2.35 | 16*3.9*2.35 | 16*4.2*2.35 | 9.5*1.9*1.2 |
| Machine video |
https://www.youtube.com/watch?v=OSbmstI2PTo |
||||||
Note: Please contact us for more models.
