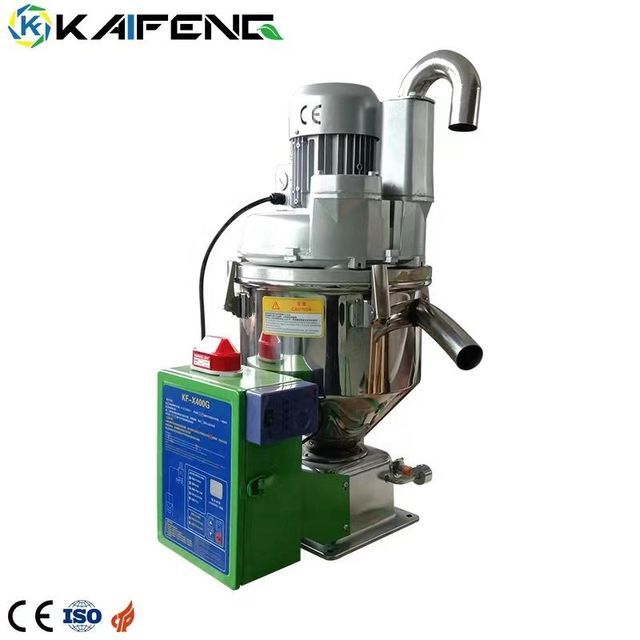

Plastic Automatic Stainless Steel 300-1200kg Powder Vacuum Hopper Loader
- $130.00 / 1 - 1 sets
$125.00 / 2 - 4 sets
$120.00 / >=5 sets - 1 set
- Anhui Kaifeng Intelligent Equipment Co., Ltd.
- Anhui, China
- Ms KAIFENG Machinery
PRODUCT DETAIL
| Marketing Type: | 2020 New Products | Hopper capacity: | 7.5~50 liters |
| Used for: | Molding injection machine | Warranty: | 1 year |
| Health status: | new | Motor Power: | 1.1~7.5kw |
| Supply capacity: | 1000 sets per month | brand: | Kaifeng |
| Voltage: | 220~380V | Auxiliary equipment: | Automatic Loader Hopper Loader |
| Name: | Vacuum automatic feeding machine | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| port: | Shanghai | life: | 5 years |
| Mechanical test report: | if | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia |
| Applicable industries: | Building materials store, manufacturing plant, food and beverage factory | product name: | Automatic vacuum feeder |
| Delivery capacity: | 300-1500kg/hour | Origin: | Anhui, China |
| Video outbound inspection: | if | Core components: | engine |
| Key words: | Industrial Vacuum Feeder | Weight (kg): | 12 kg |
| Autoloader: | powder particles | Packaging Details: | Export plywood packaging |
| Capacity (kg/hour): | 400 kg/h | Core component warranty: | 1 year |

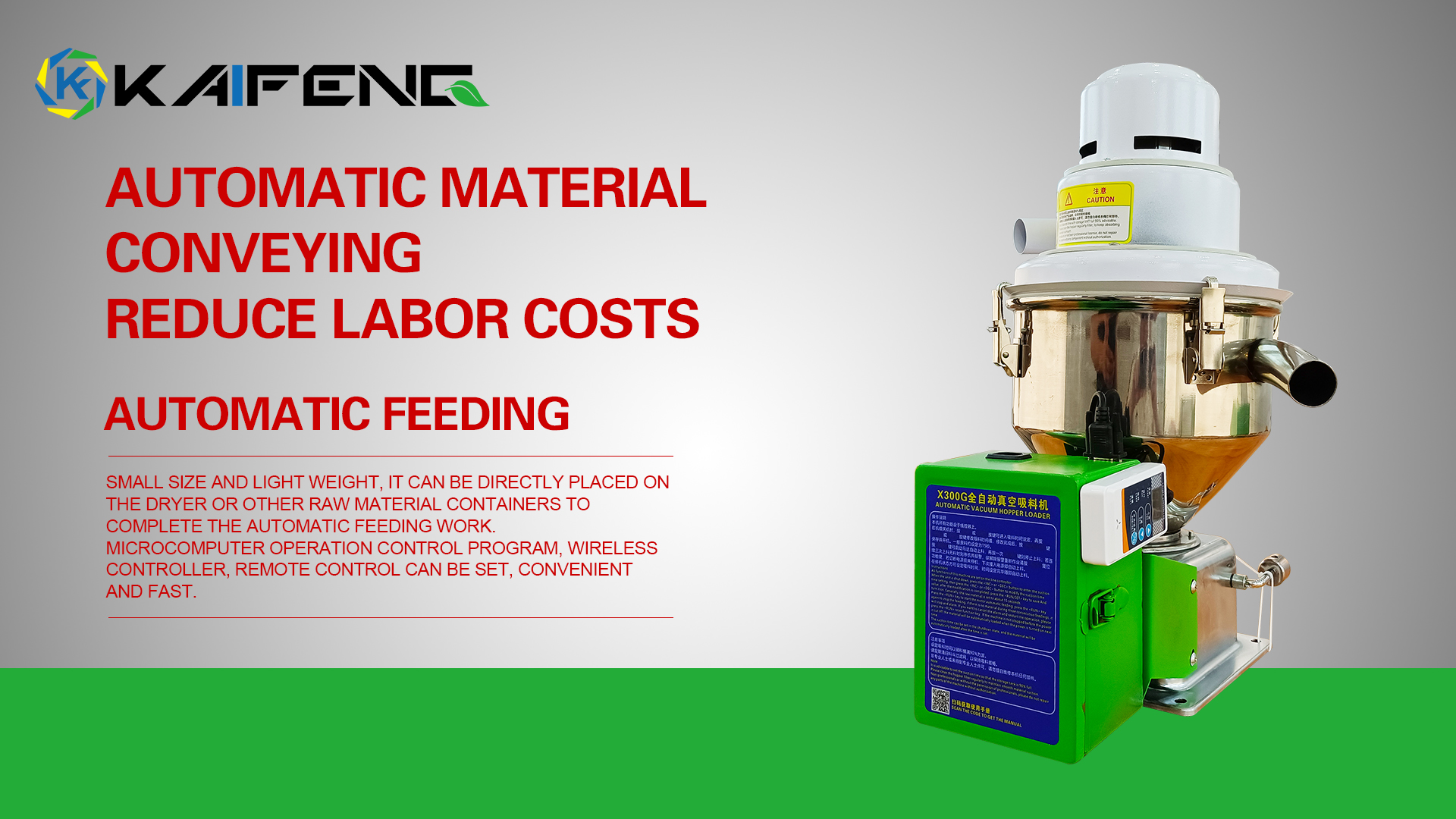

Product Description
The hopper feeding machine is suitable for the raw material transportation industry of injection molding machines, extruders and other equipment. It is not difficult to install, easy to use and operate, strong in long-distance transportation, stable in production and reliable in operation. It is an auxiliary equipment for fully automated production.

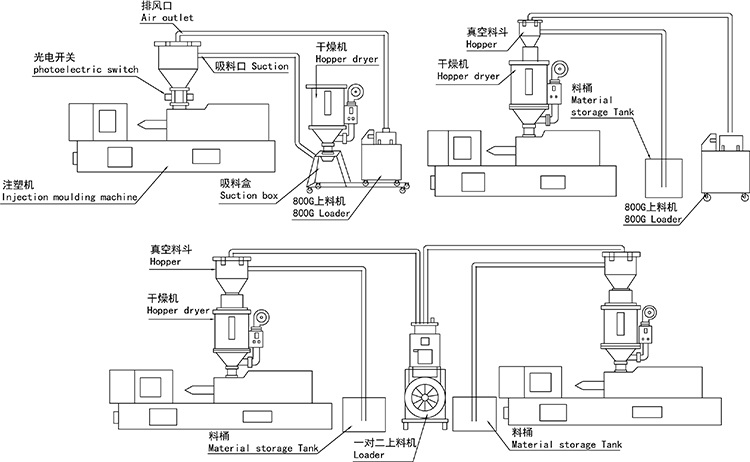

Connection schematics and technical data
Model | X300G | X400G | X700G | X800G | X800G2 | X900G2 | X900G3 | |||
motor type | brush | take office | brush | take office | ||||||
Power (kW) | 1.5 | 0.75 | 1.5 | 1.1 | 1.5 | 1.5 | 2.2 | |||
Power (horsepower) | 2 | 1 | 2 | 1.5 | 2 | 2 | 3 | |||
Conveying capacity(Kg/h) | 300 | 330 | 310 | 450 | 590 | 500 | 590 | |||
Loading height (m) | 3.5 | 4 | 4 | 4 | 5 | 4 | 5 | |||
Hopper capacity (L) | 7.5 | 12 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | |||
Pipe diameter and length | φ38&4m | φ38&4m | φ38&8m | φ38&8m | φ38&8m | φ38&8m | φ38&10m | |||
Dimensions (L*W*H cm) | 39*39*59 | 45*37*66 | 40*48*70 | 42*46*70 | 50*40*72 | 51*37*67 | 54*56*123 | |||
Weight (kg) | 12 | 27 | 20 | 57 | 76 | 58 | 66 | |||
Model | X900G4 | X900G5 | X900G7 | X900G10 | X900G2-2 | X900G3-2 | X900G5-4 | ||||
motor type | take office | 2 in 1 | 4 in 1 | ||||||||
Power (kW) | 3 | 4 | 5.5 | 7.5 | 1.5 | 2.2 | 4 | ||||
Power (horsepower) | 4 | 5 | 7 | 10 | 2 | 3 | 5 | ||||
Conveying capacity(Kg/h) | 590 | 820 | 960 | 1300 | 500 | 590 | 590 | ||||
Loading height (m) | 5 | 5 | 5 | 5 | 4 | 5 | 5 | ||||
Hopper capacity (L) | 7.5 | 25 | 25 | 50 | 7.5*2 | 7.5*2 | 7.5*4 | ||||
Pipe diameter and length | φ38&10m | φ50&10m | φ50&10m | φ50&20m | φ38&8m | φ38&10m | φ38&10m | ||||
Dimensions (L*W*H cm) | 54*56*123 | 54*62*123 | 58*60*160 | 58*60*160 | 51*37*67 | 54*56*123 | 54*62*123 | ||||
Weight (kg) | 72 | 89 | 93 | 101 | 61 | 68 | 110 | ||||
