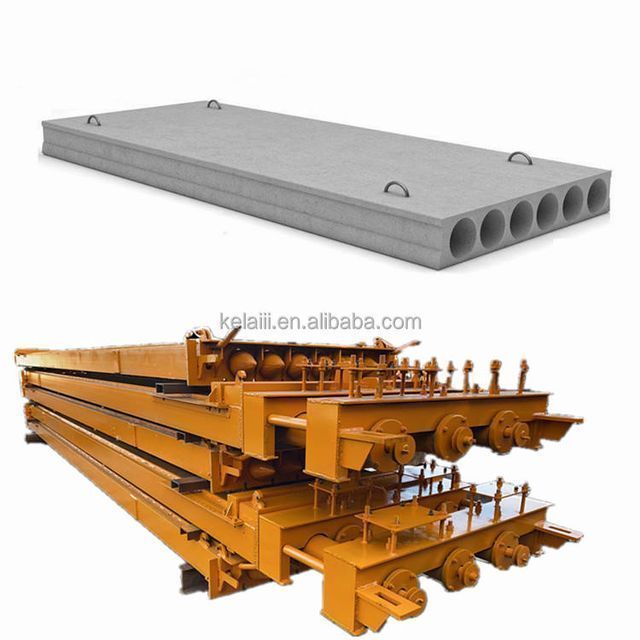

Precast Hollow Concrete Slab Forming Machine Precast Concrete Slab Pusher Machine Concrete Slab Mold
- $4500.00 /set
- 1 set
- Henan Kelai Industrial Co., Ltd.
- Henan, China
- Ms SARA ZHANG
PRODUCT DETAIL
| After warranty service: | Video technical support, online support | brand: | No |
| manufactures: | concrete floor | Automatic level: | semi-automatic |
| Board use: | flat floor | Dimensions (L*W*H): | 8250MMX1350MMX300MM |
| Packaging Details: | standard packaging | place of origin; place of origin: | Henan, China |
| payment terms: | L/C, T/T, Western Union | Local service location: | not any |
| product name: | concrete panel machine | application: | Make Concrete Slabs |
| Voltage: | 380V 50HZ | Core components: | motor |
| Popular Sizes: | 1200*220*7100 | raw material: | specific |
| Production capacity: | 1PCE/10MIN | strength: | 7.5KW |
| port: | Qingdao Port | Showroom location: | not any |
| Core component warranty: | Not available | State of health: | new |
| After-sales service provided: | Online support, video technical support | Advantage: | easy to produce |
| Marketing Type: | New Products 2020 | weight: | 3000KG |
| Warranty: | 1 year | Machine Features: | durable |
| feature: | Low cost and fast construction | Plate thickness: | 220mm |
| Main selling points: | long lasting | Supply capacity: | 30 sets per month |
| Video shipment inspection: | if | color: | yellow |
| usage: | put up | Applicable industries: | Hotels, building material stores, manufacturing plants, farms, restaurants, construction projects |
| Mechanical test report: | Not available |
Product Description
Concrete slab pavers
Standard 18-22cm high 1.5m, 1.2m or 1.0m wide self-propelled internal shock floor machine, 6 shock tubes, diameter 146mm, popular board length 6.5m 7m 7.1m 7.5m, building height 22cm, width 1.2 m, 6 shock tubes, the diameter of the shock tube is 146mm, and the length is 7.5 meters, which can produce hollow floor slabsBelow 7.5 meters.
The self-induction internal shock hollow floor machine is based on the original manual and ground anchor drawing dies, after careful improvement and repeated tests. It is to install a hoist on the outer mold frame, use the working principle of the rope wheel group, and control the positive and negative switches to make the inner and outer molds of the wire drawing die move forward separately, eliminating the need for ground anchors and manual unloading of the hooks, which saves time and effort.
The vibration of the concrete drives the advanced vibration mandrel product to vibrate strongly through the motor. The produced components have firm structure, no looseness, high strength and large safety factor. Through a simple positioning device, the head of the hollow core board can be made neat, without edges and corners, with accurate dimensions, saving labor and materials, and saving time and effort. It is an ideal hollow panel forming equipment for prefabricated component factories.
Can be customized according to user requirements.

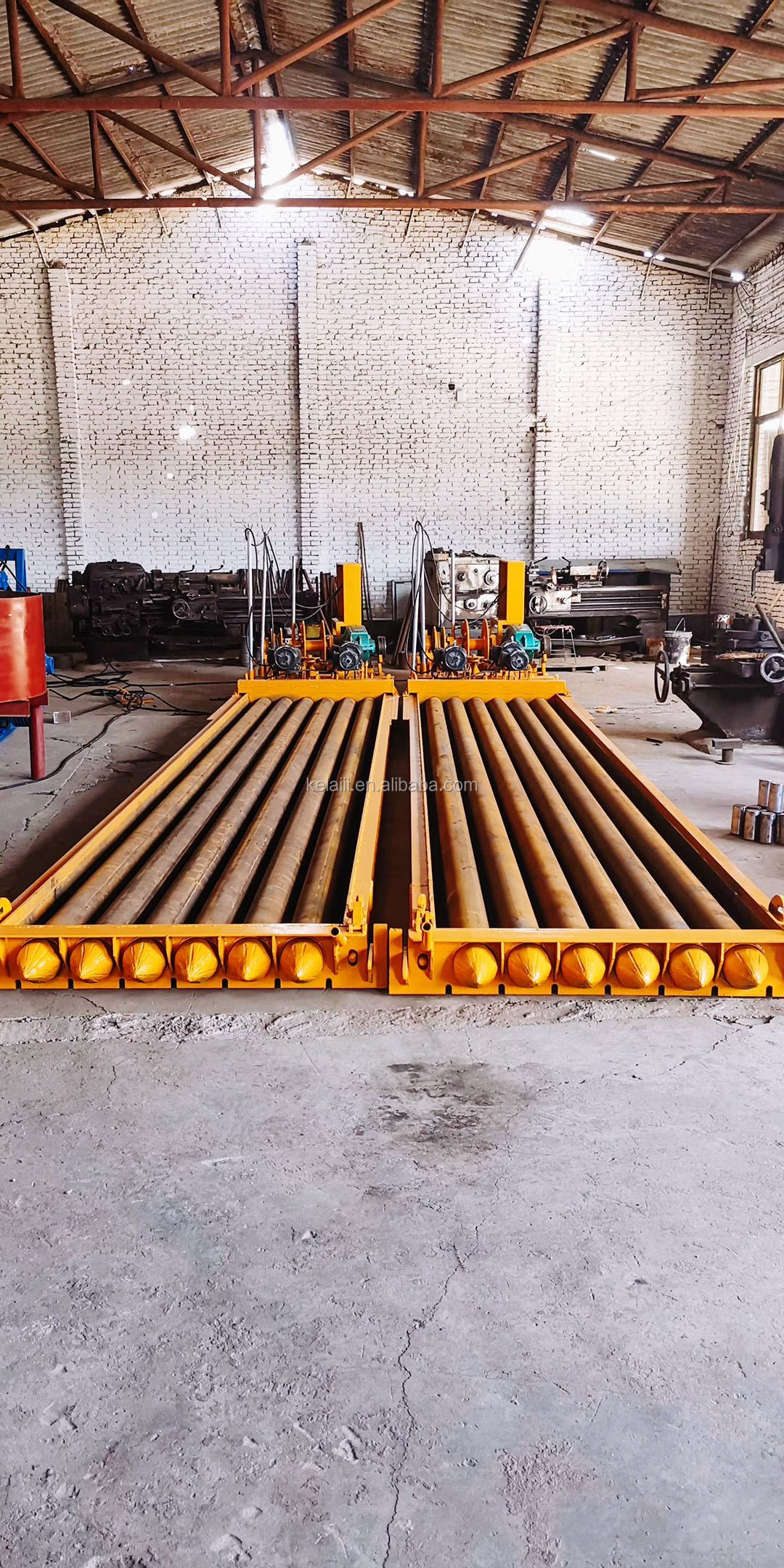

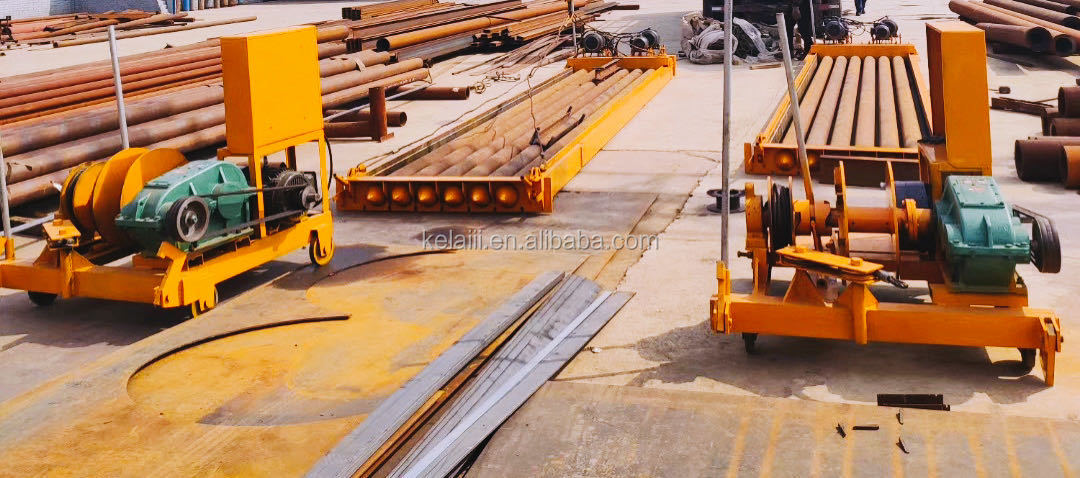

detailed drawing

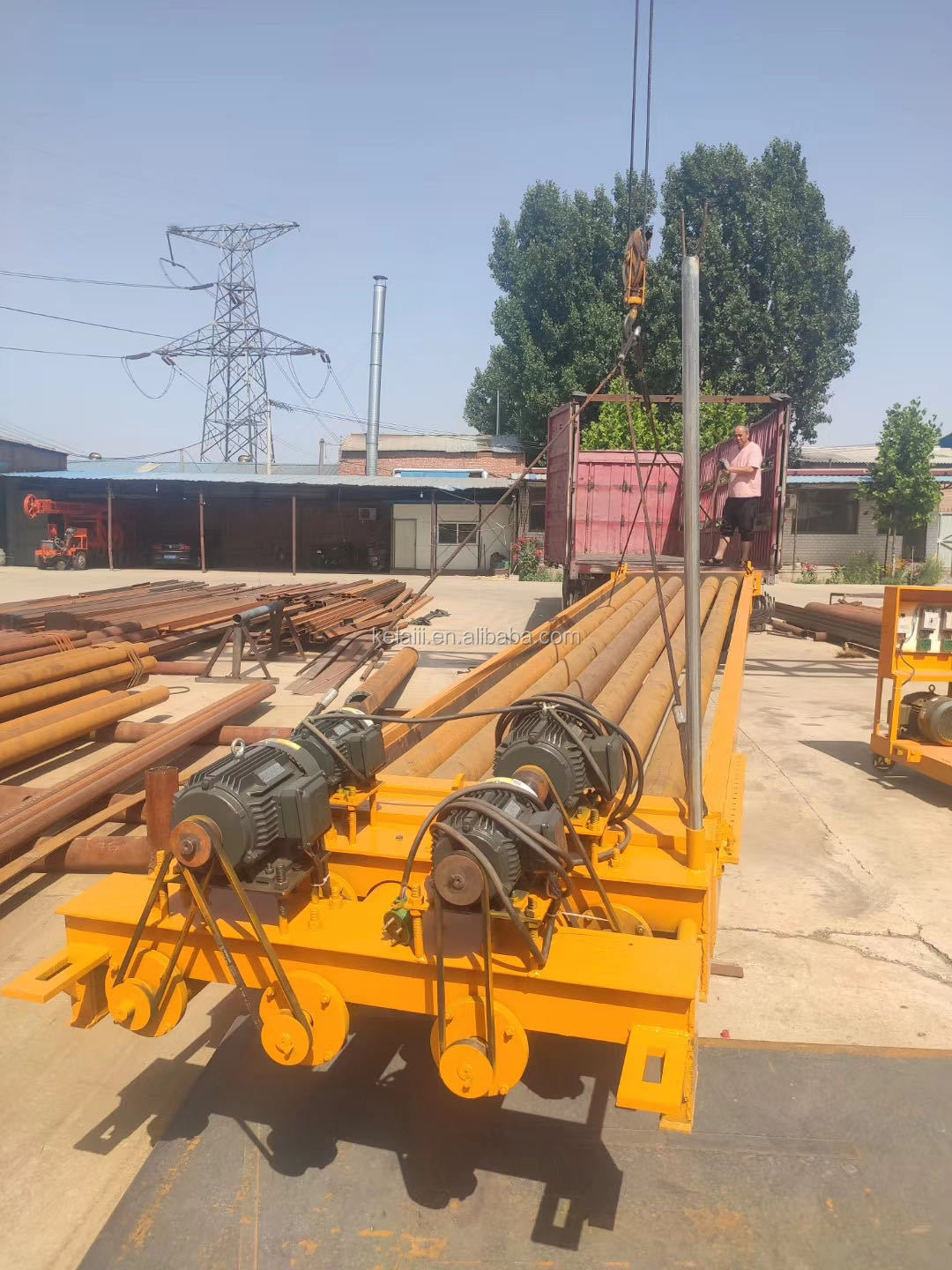

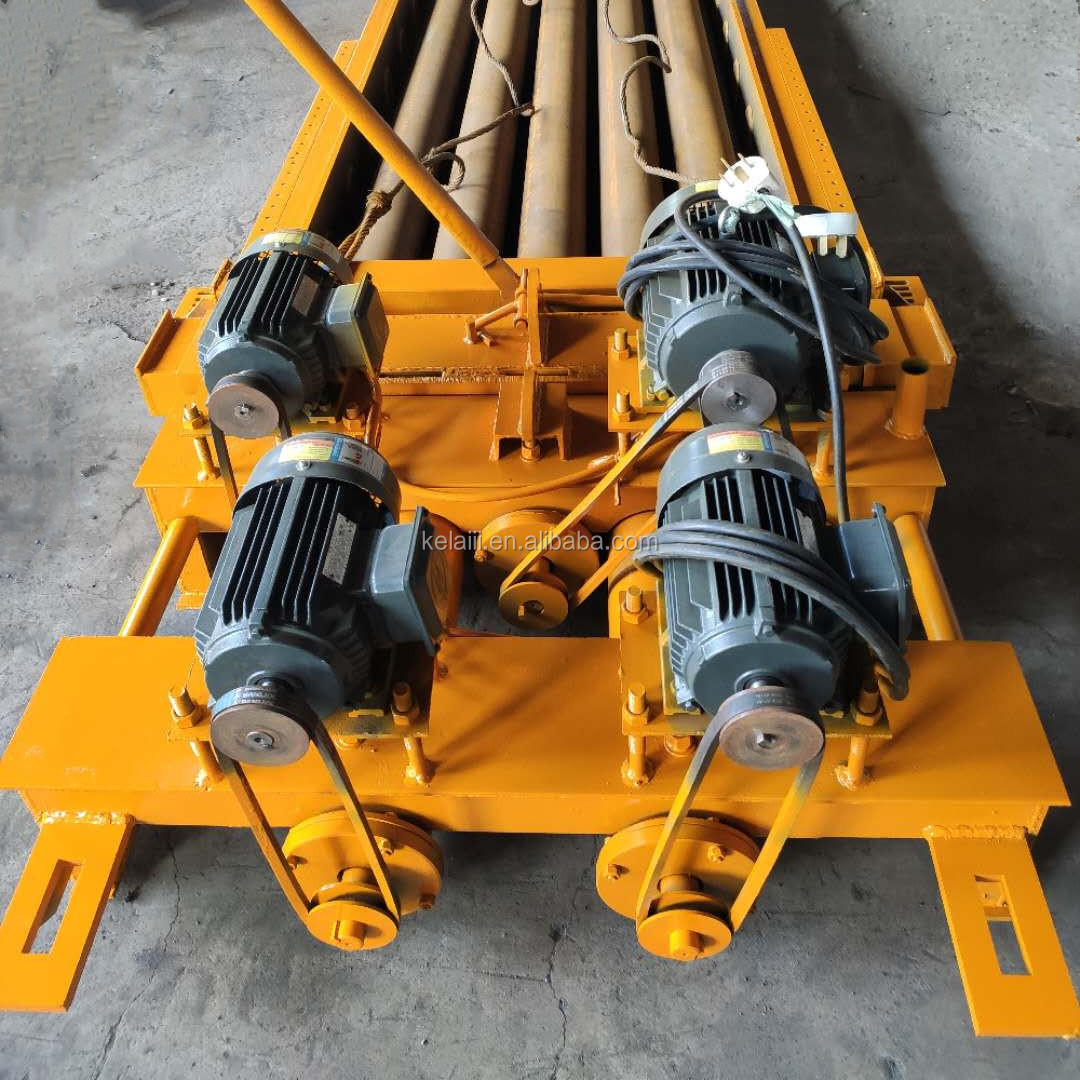

durable motor

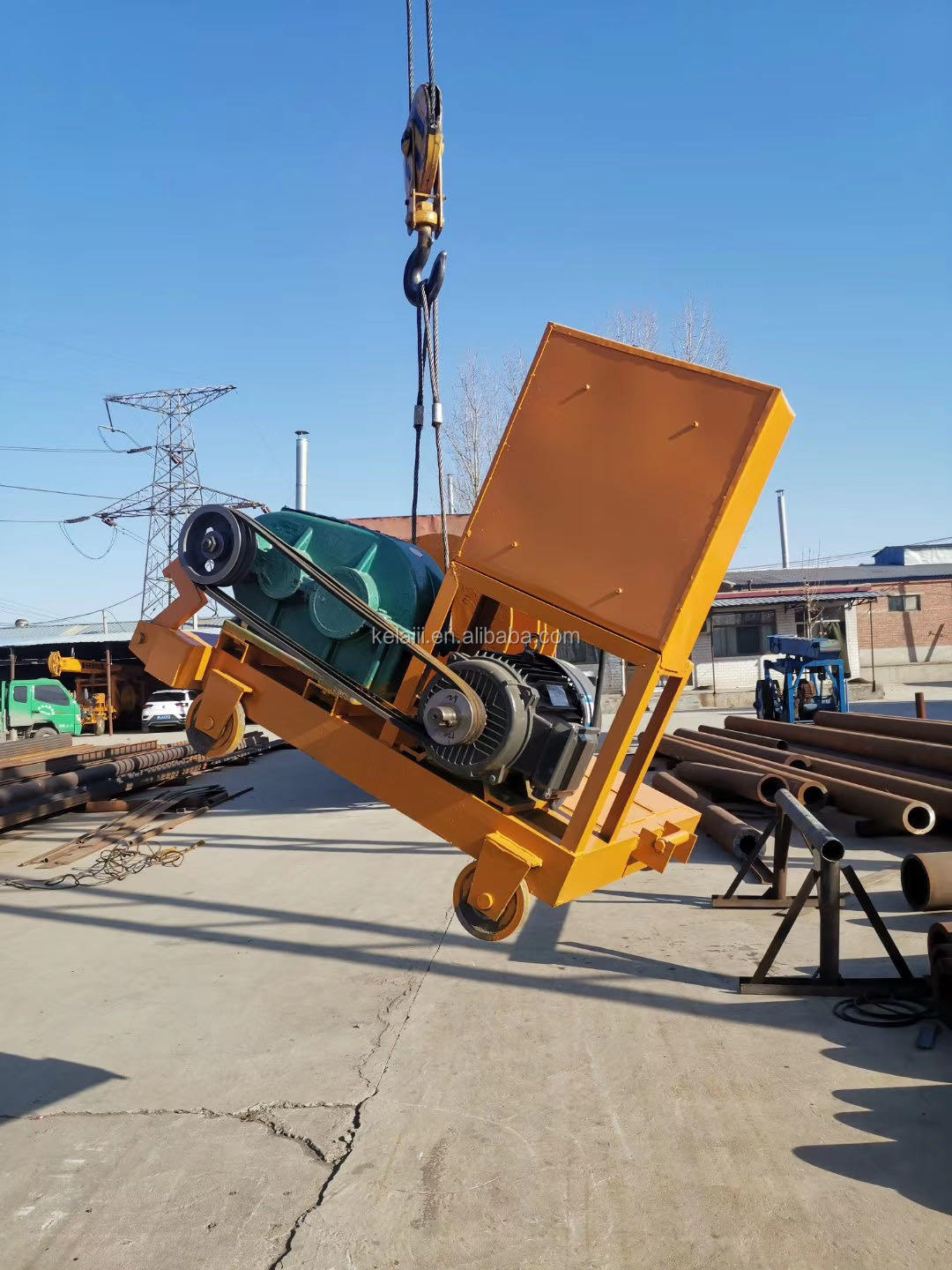

electric car

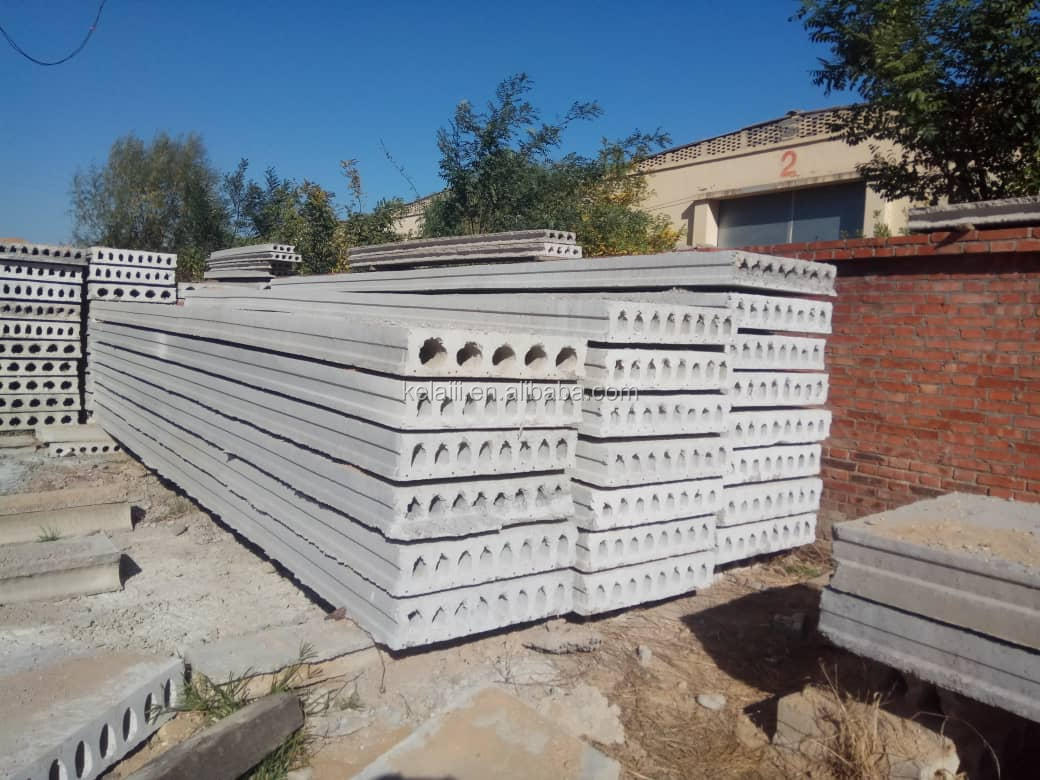

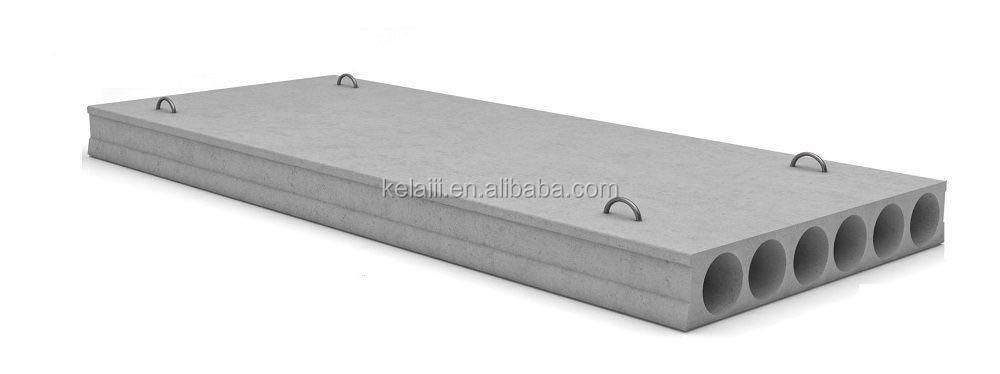

finished concrete slab
Product parameters
popular size | 1200*220*7100MM |
width | 1200/1000/1500MM |
thickness | 220mm |
length | 6000~7500MM |
hole number | 5 holes/6 holes... |
hole size | Popular size 146MM |
customer feedback

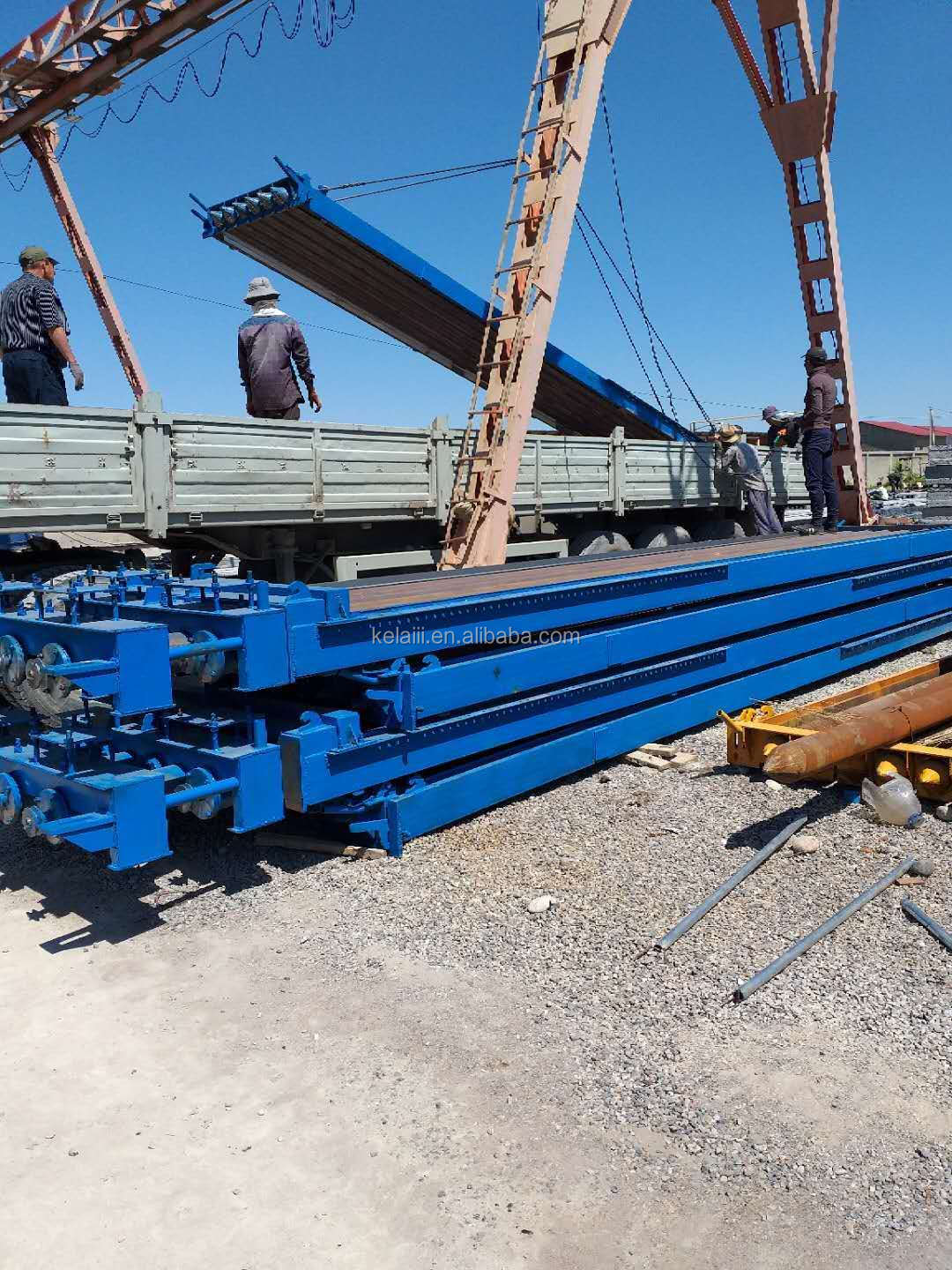

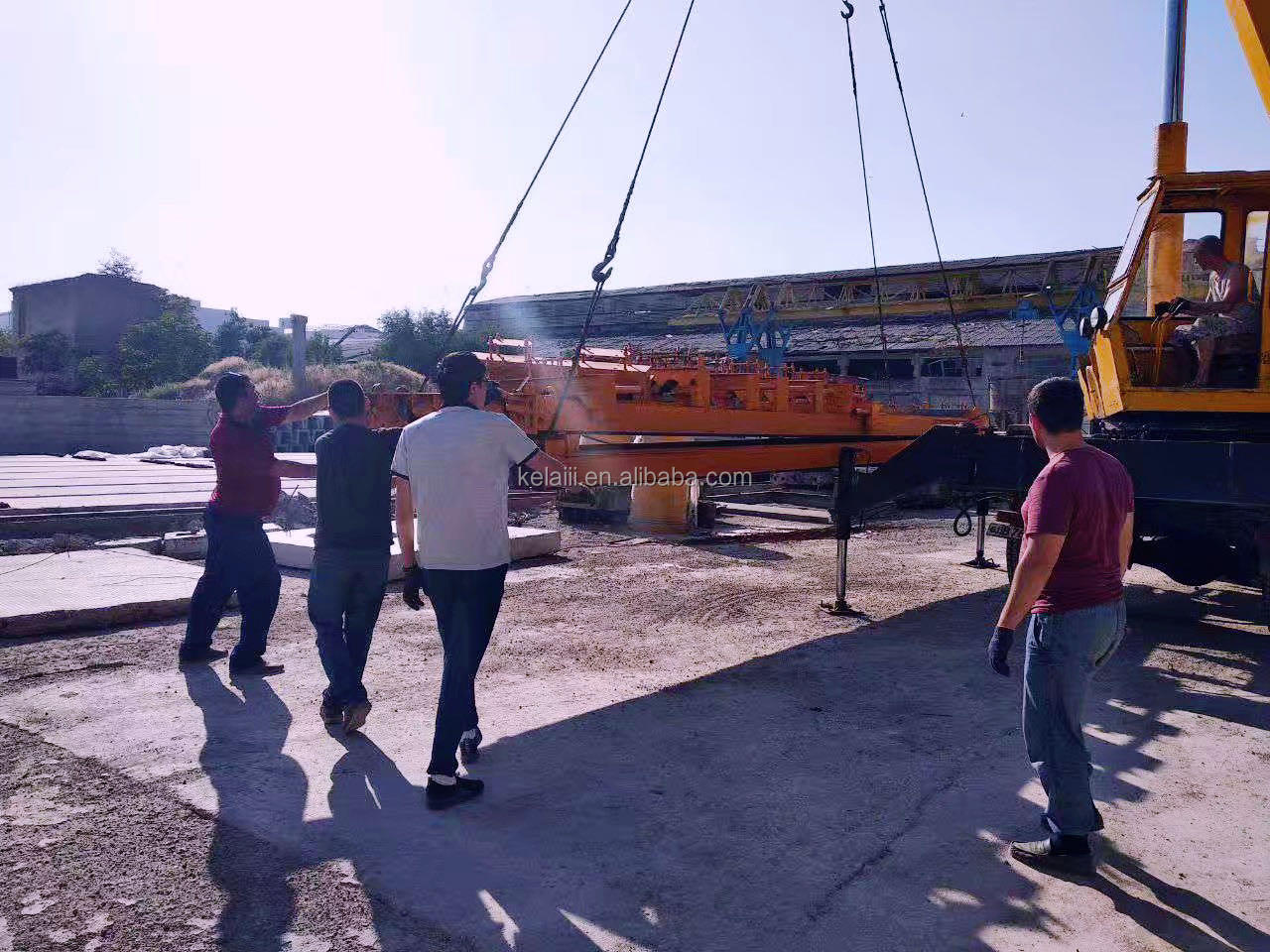

Kazakhstan customer feedback

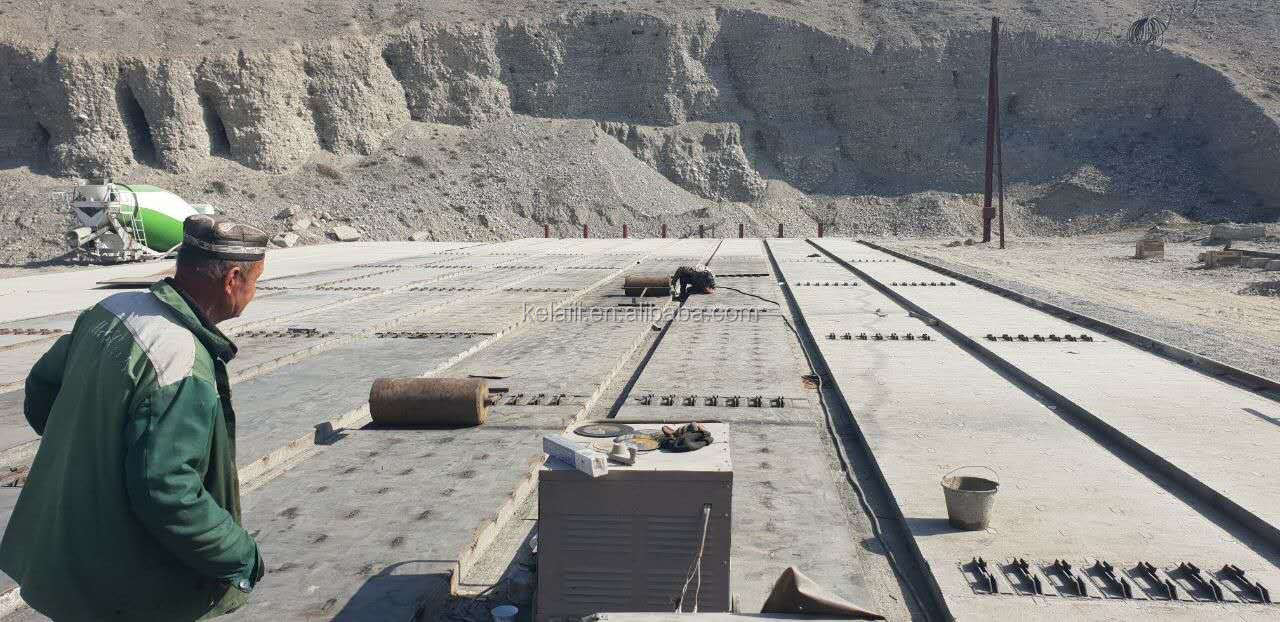

Uzbekistan customer feedback
