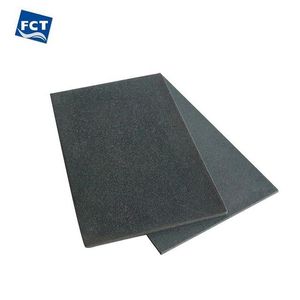

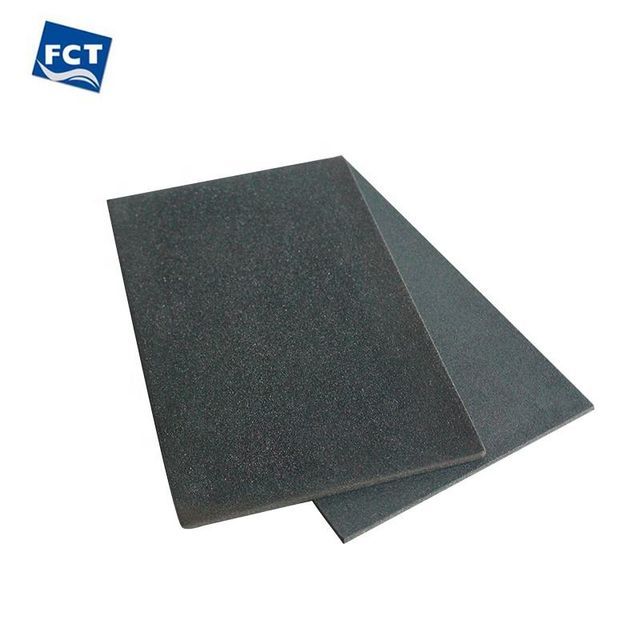

Recrystallized silicon carbide plate kiln frame
- $1.00 /piece
- 1 piece
- FCT(Tangshan) New Material Co., Ltd.
- Hebei, China
- Ms Nancy ZHENG
PRODUCT DETAIL
| MgO content (%): | 0 | density: | 2.65 g/cm3 |
| Sintering temperature: | 2400°C | Processing services: | forming |
| Silicon carbide content (%): | 98.5% | CaO content (%): | 0 |
| Al2O3 content (%): | 0 | Key words: | Recrystallized silicon carbide plate |
| Refractoriness (degrees): | Ordinary (1580° | Silica content (%): | 0 |
| raw material: | Imported from Saint-Gobain | Thermal Conductivity: | 26W/Mg |
| Origin: | China | Supply capacity: | 10000 kg per month |
| Material: | Silicon carbide (SiC) | Packaging Details: | Export packing-wooden case/pallet/customized |
| Package preview: | product name: | Recrystallized silicon carbide plate rsic plate high-purity sic | |
| Bending strength (1100 degrees): | 100-120Mpa | brand: | FCT |
| technology: | German capital | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| port: | Tianjin | shape: | plate |
| Operating temperature: | 1200-1650℃ | Thermal expansion a @20-1000 degrees: | 5.0 |
| model: | custom made | CrO content (%): | 0 |
index | RSIC | NSIC | Shanghai International Information Center | Silicon Nitride Silicon Carbide |
Bulk density (g/cm3) | 2.60-2.74 | 2.75-2.82 | >3.02 | 2.68 |
Porosity(%) | 15 | 10-12 | <0.1 | <16 |
Compressive strength (MPa) | ≥600 | 600-700 |
| 180 |
Bending strength (MPa) | 90-100(20OC) |
| 250(20OC) | ≥45(20OC) |
100-120(1100OC) | 160-180(1100OC) | 280(1200OC) | ≥50(1200℃) | |
Young's modulus (GPa) | 280(20OC) | 220-260 |
| ≥16(1200℃) |
Thermal conductivity (W/MK) | 26(1200OC) | 15(1200OC) | 45(1200OC) |
|
Thermal expansion (20-1000 oC) 10-6k-1 | 4.8 | 5.0 | 4.5 | ≤4.7×10-6 |
maximum. Working temperature (oC) | 1650 | 1500 | 1380 | 1500 |
Acid and alkali resistance | 1-14 |
| Excellent |
|
Mohs coefficient of thermal expansion |
|
| 13 |
|
Silicon nitride (%) | 0 | 20-40 |
| ≥22 |
a-SIC(%) | 98.5 | 60-80 |
| ≥75 |
