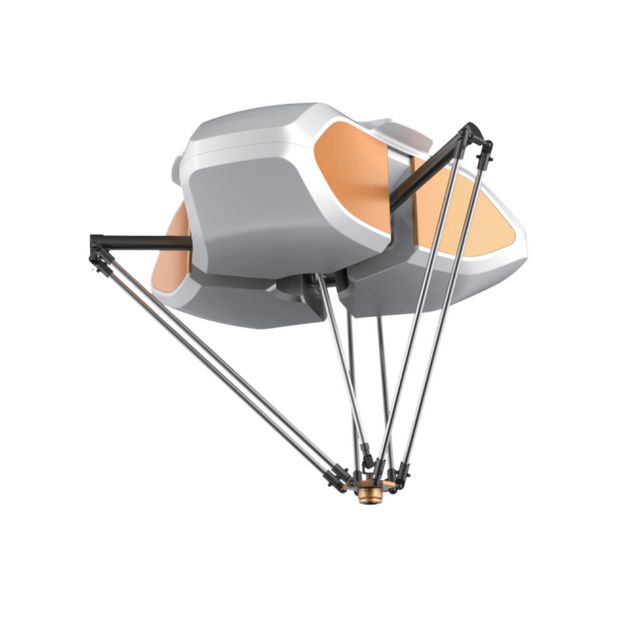

RobotPhoenix BAT delta robot for pick and place processes in the food, medical industry
- $15000.00 /set
- 1 set
- Robotphoenix LLC
- Shandong, China
- Mr Jimmy Zhang
| Voltage: | 220V/380V | application: | Food/Medical/3C |
| Supply capacity: | 200 sets per month | Labeling speed: | 120 sheets/min. |
| Storage: | 200/600 images | Warranty: | 1 year |
| Spraying method: | direct | Certification: | CE, ISO |
| Singular precision: | ±3° | Dimensions (L*W*H): | 4.9x1.4x1.4 |
| place of origin; place of origin: | Shandong China | voltage: | 220V/380V |

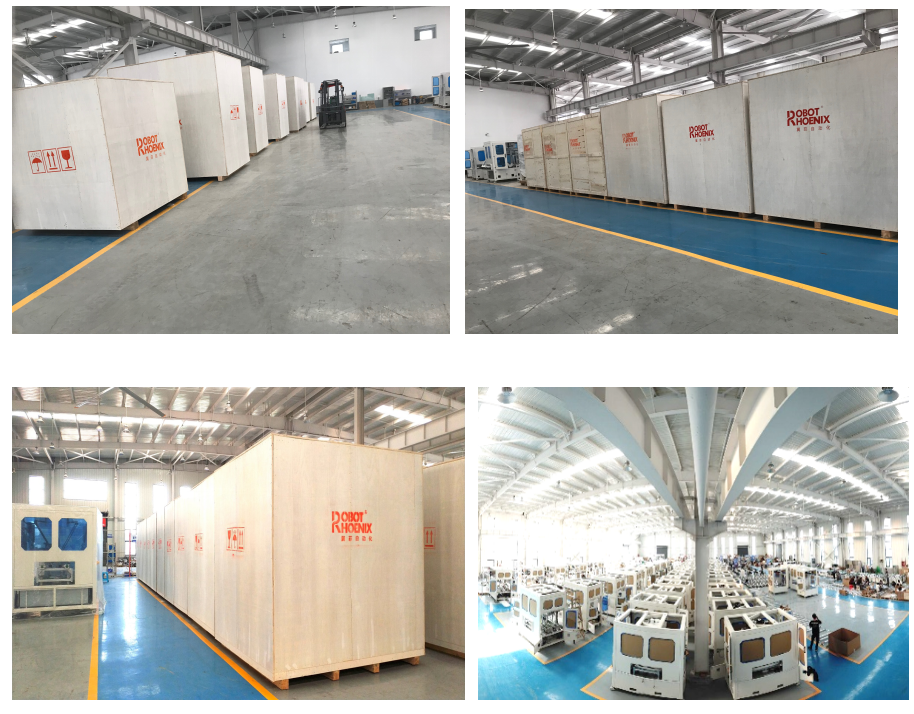

| Production capacity: | 200/600 | Packaging Details: | Rectangular wooden box packed with double foam plastic |
| positioning accuracy: | ±0.1mm | port: | Qingdao/Shanghai/Shenzhen/Beijing |
| After-sales service provided: | Engineers can repair machinery overseas | strength: | 10KW |
| Clamping model: | single/double | speed: | 100-120 sheets/min. |
| brand: | Robot Phoenix | payment terms: | T/T, Western Union |
| feature: | Fully automatic robot | Packaging Preview: | |
| Applicable Lid Types: | custom made | Minimum airflow: | 60 l/min. |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants |

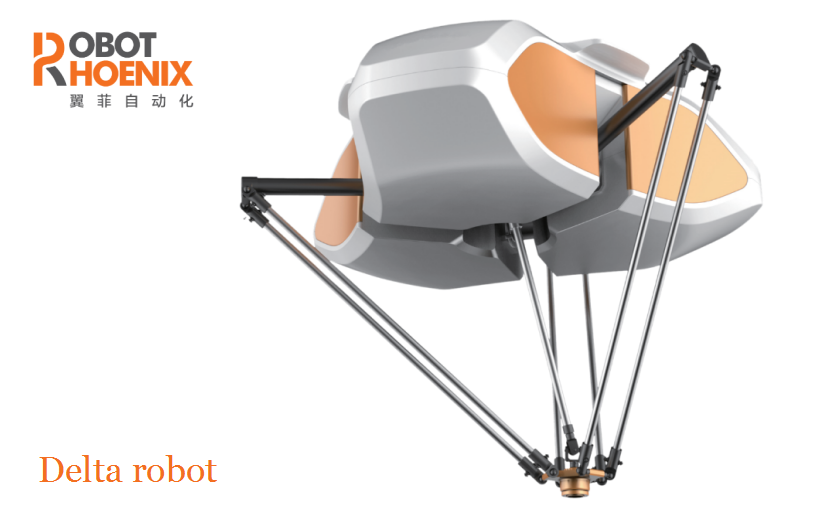

RobotPhoenix Delta Robotic Food Box Packaging System
BAT Robot is perfectly integrated with robot control, visual recognition and conveyor tracking technology. It can/accurately track the speed of the conveyor belt and identify the position, color, shape and size of objects through an intelligent vision system. It can also carry out packaging, sorting, sorting and other work according to special requirements. With its fast and flexible characteristics, the BAT robot greatly improves the efficiency of the production line and reduces the operating cost of the enterprise.
1. High speed
The BAT robot adopts a high-response servo drive system and a highly optimized transmission structure, and also combines the robot-specific control system developed by Robotphoenix, which greatly improves the speed and acceleration of the movement. Under the standard stroke, the working speed of the robot can reach within 0.3s, which fully meets the needs of high-speed production.
2. Overload
The BAT robot can carry objects over 10kg.
3. Multi-robot cooperation
Each control system can support up to 12 axes (3 parallel robots). Share information through internal communications. Multiple machines can share the same vision system
4. High precision
Repeated positioning accuracy up to0.08mm, ideal for high precision work.
5. Small area covers large workspace
bat-1100,area only1.4m*1.4m, has a cylindrical workspace1100mmdiameter and250mmhigh.
6. Modular structure design
The robot structure adopts a modular design for easy maintenance. Its quick-change grab mechanism makes product line transformation quick and easy.
7. Integrated control system
BAT series controllers are not only motion controllers, but also a machine control system integrating vision processing and belt tracking; the motion control module is responsible for the processing and motion control algorithms of machine kinematics, path planning, etc.; the vision module includes visual calibration, template matching and image processing; the tracking module matches the visual processing results with the operation of the external conveyor line, performs dynamic tracking, and realizes the seamless transition between machine and vision.
8. Zero grade oil-free
With the characteristics of zero-grade oil-free, clean and pollution-free, it can provide cleaning robots for food, medicine, high-precision electronics and other industries to meet the production needs of various industries.
