SBG-15-FL SBC rail and slider carriage SBG15FL for CNC rails
- $35.00 / 10 - 49 units
$30.00 / >=50 units - 10 units
- Tianjin Xurui Hengda International Trading Co., Ltd.
- Tianjin, China
- Mr Xianliang Tian
| Matching guide rail: | SBG15-1500L Korean SBC linear guide rail is suitable for SBG15FL | Performance: | high performance |
| application: | High-speed transmission device for automation equipment | Warranty: | 6 months |
| Linear guide applications: | Spare parts for CNC machine tools SBG15-FL SBC | type: | SBI seriesSBI55FL SBG25SLL |
| feature: | smooth motion | port: | any port |
| brand: | small computer company | Health status: | new |
| Applicable industries: | Manufacturing plants, machinery repair shops, food and beverage plants, retail, energy and mining | payment terms: | L/C, T/T, Western Union, MoneyGram |
| Supply capacity: | 200 units per month | Packaging Details: | standard packaging |
| SBC sliders for rails: | SBG15FL | product name: | SBG-15-FL original Korean SBC linear guide block |
| Origin: | Chungcheongbuk-do, South Korea | Material: | Bearing steel, GCR15 |
| guide: | SBG25-1000L | model: | SBG15FL Korean SBC guide rail |
SBG-15-FL SBC rail and slider carriage SBG15FL for CNC rails
| Block SBG-15-FL in stock |
| SBG15FLL Korean SBC linear guide block and guide rail system SBI15FL |
SBC rail and carriage/slider features:
1: The friction coefficient is low, which can completely resist the obstacles of high-speed transmission. At the same time, it also produces high-yield, high-frequency mechanical equipment to reduce power loss and prolong service life.
Second: The coefficient of friction is reduced to 1/50 to achieve micro-displacement and precise positioning.
Three: Easy installation without affecting high strength and high precision.
Four: Compared with Japanese high-end products, the cost performance is as low as 30%-40%. According to different usage specifications, Kemeixin has carried out all-round stocking, so that supporting engineering customers can fully realize zero inventory management.
Advantages of SBC linear guide system:
1. High cost performance
SBC linear guides are very economical in all aspects, especially in terms of simple design, high structural strength and localization of products.
2. Complete variety
All standard models are available from stock.
3. Accurate positioning accuracy
Since the difference between dynamic and static friction is very small, SBC guides reduce the coefficient of friction to 1/50. Therefore, precise positioning in response to small displacements can be achieved.
4. Save production cost and power consumption
Due to the small coefficient of friction of the SBC guideway, the drive unit can be miniaturized and high-speed motion can be provided. Therefore, SBC guide rails can be used to produce high-performance machinery while reducing power loss.
5. Maintain high precision for a long time
Long-term, wear-free, high-precision operation is achieved by reducing rolling friction.
6. Simple installation
SBC rails are simply bolted to maintain high precision and carry the same load in all four directions.
7. Improve the reliability of the machine Estimate the life of the machine according to the number of reciprocations to improve the reliability of the machine.

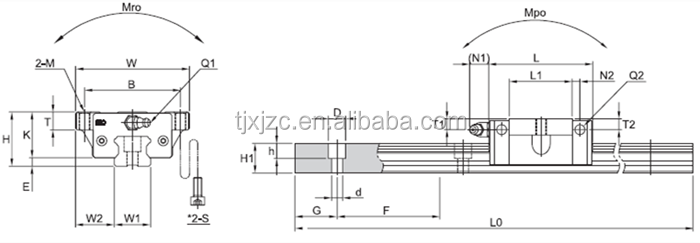

Model | installation size | block size | |||||||||||||||
| h | watt | L | Second | Mounting screw holes | L1 | Temperature ±1 | K | Grease nozzle | |||||||||
| Second | J | Medium | *S | T1 | N1 | T2 | Nitrogen | Q1 | *Second quarter | ||||||||
| SBG15FL | twenty four | 47 | 60.8 | 3 | 38 | 30 | M5 | M4 | 38.8 | 7.2 | twenty one | 4 | 5.5 | 4.5 | 4.5 | M4x0.7 | ø3.5 |
| SBG20FL | 30 | 63 | 77.2 | 3.5 | 53 | 40 | M6 | M5 | 50.8 | 9 | 26.5 | 7 | 12 | 7 | 5 | M6x0.75 | ø5.5 |
| SBG20FLL | 30 | 63 | 93.2 | 3.5 | 53 | 40 | M6 | M5 | 66.8 | 9 | 26.5 | 7 | 12 | 7 | 5 | M6x0.75 | ø5.5 |
| SBG25FL | 36 | 70 | 86.9 | 6.5 | 57 | 45 | M8 | M6 | 59.5 | 10 | 29.5 | 8.2 | 12 | 8.1 | 5.5 | M6x0.75 | ø5.5 |
| SBG25FLL | 36 | 70 | 106.4 | 6.5 | 57 | 45 | M8 | M6 | 79 | 10 | 29.5 | 8.2 | 12 | 8.1 | 5.5 | M6x0.75 | ø5.5 |
| SBG30FL | 42 | 90 | 100 | 7 | 72 | 52 | M10 | M8 | 70.4 | 12 | 35 | 8.5 | 12 | 8.5 | 5.5 | M6x0.75 | ø5.5 |
| SBG30FLL | 42 | 90 | 122.5 | 7 | 72 | 52 | M10 | M8 | 92.9 | 12 | 35 | 8.5 | 12 | 8.5 | 5.5 | M6x0.75 | ø5.5 |
| SBG35FL | 48 | 100 | 112.6 | 7.5 | 82 | 62 | M10 | M8 | 80.4 | 13 | 40.5 | 8 | 12 | 8 | 6 | M6x0.75 | ø5.5 |
| SBG35FLL | 48 | 100 | 138.1 | 7.5 | 82 | 62 | M10 | M8 | 105.9 | 13 | 40.5 | 8 | 12 | 8 | 6 | M6x0.75 | ø5.5 |
| SBG45FL | 60 | 120 | 140.3 | 10 | 100 | 80 | M12 | M10 | 98 | 15 | 50 | 10 | 16.5 | 10 | 8 | PT1/8 | ø8.5 |
| SBG45FLL | 60 | 120 | 172.3 | 10 | 100 | 80 | M12 | M10 | 130 | 15 | 50 | 10 | 16.5 | 10 | 8 | PT1/8 | ø8.5 |
| SBG55FL | 70 | 140 | 166.8 | 13 | 116 | 95 | M14 | M12 | 118 | number 17 | 57 | 12 | 16.5 | 10.5 | 10 | PT1/8 | ø8.5 |
| SBG55FLL | 70 | 140 | 204.8 | 13 | 116 | 95 | M14 | M12 | 156 | number 17 | 57 | 12 | 16.5 | 10.5 | 10 | PT1/8 | ø8.5 |
| SBG65FL | 90 | 170 | 195.2 | 17.5 | 142 | 110 | M16 | M14 | 147 | twenty three | 72.5 | 15 | 16.5 | 12 | 10 | PT1/8 | ø8.5 |
| SBG65FLL | 90 | 170 | 255.2 | 17.5 | 142 | 110 | M16 | M14 | 207 | twenty three | 72.5 | 15 | 16.5 | 12 | 10 | PT1/8 | ø8.5 |
For other series and models, please contact us!

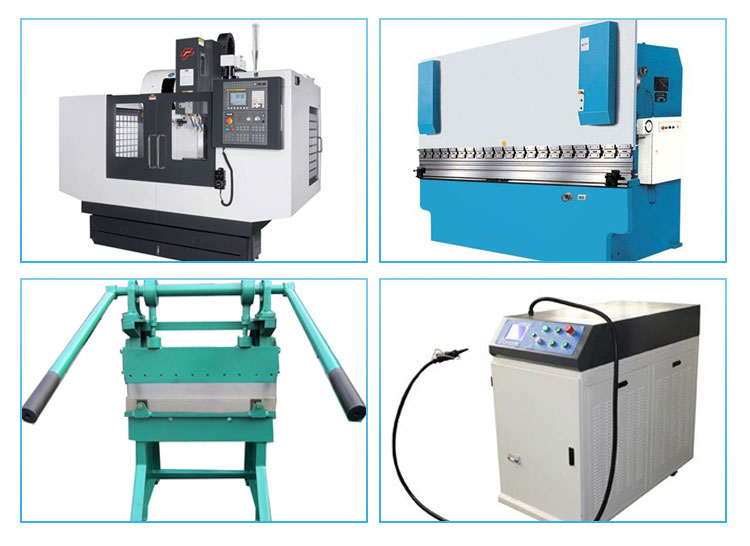

Machining centers, injection molding machines, machine tools, presses, precision machining
Centers, automation, heavy cutting machines, transport equipment.
