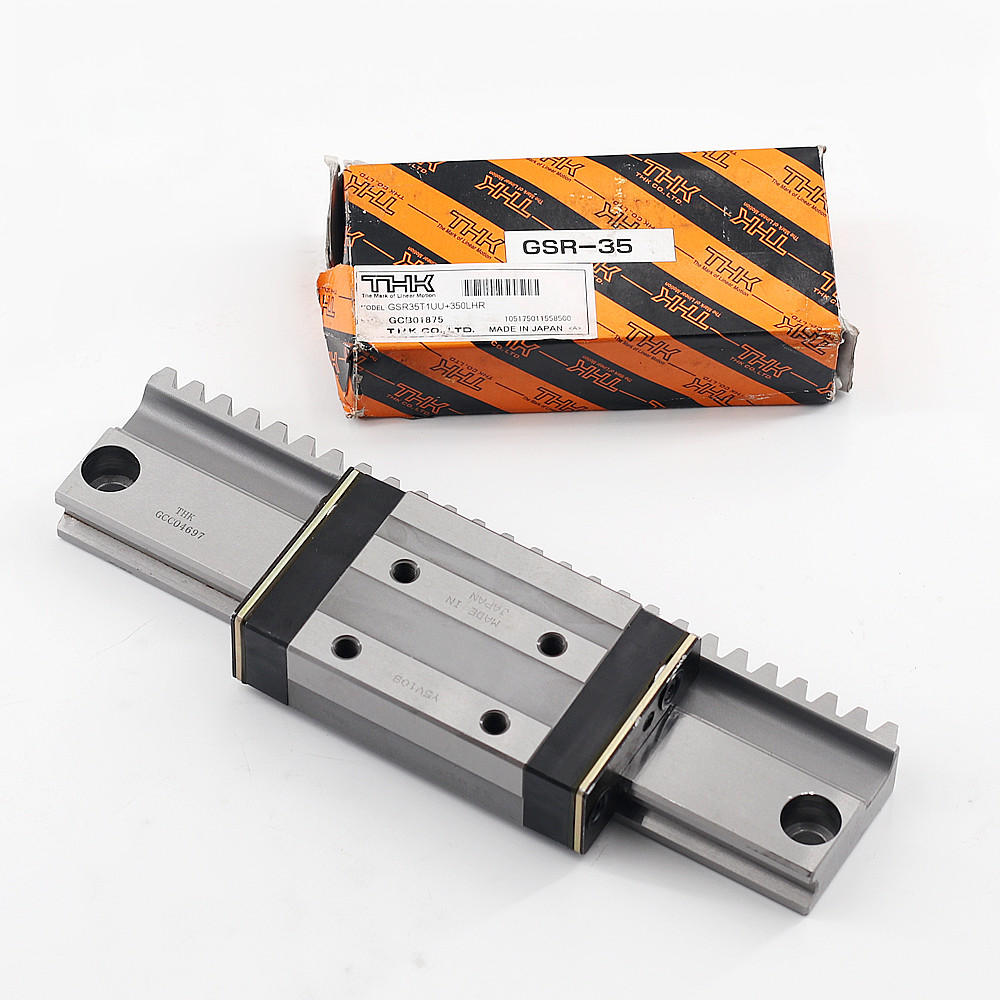

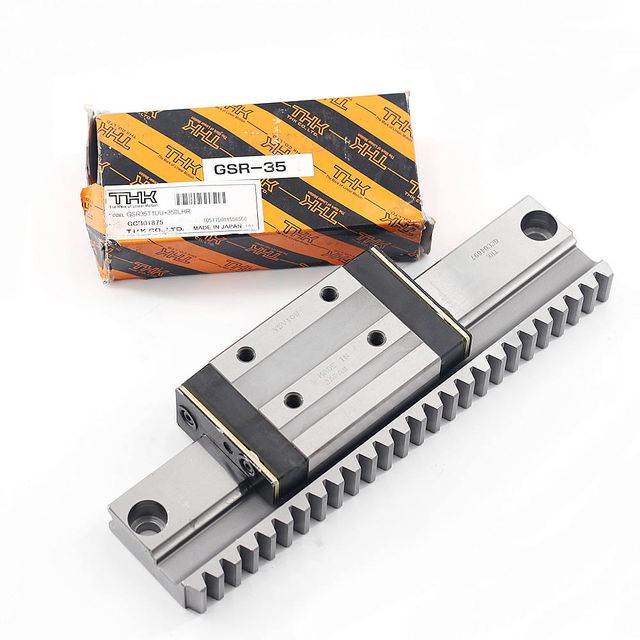

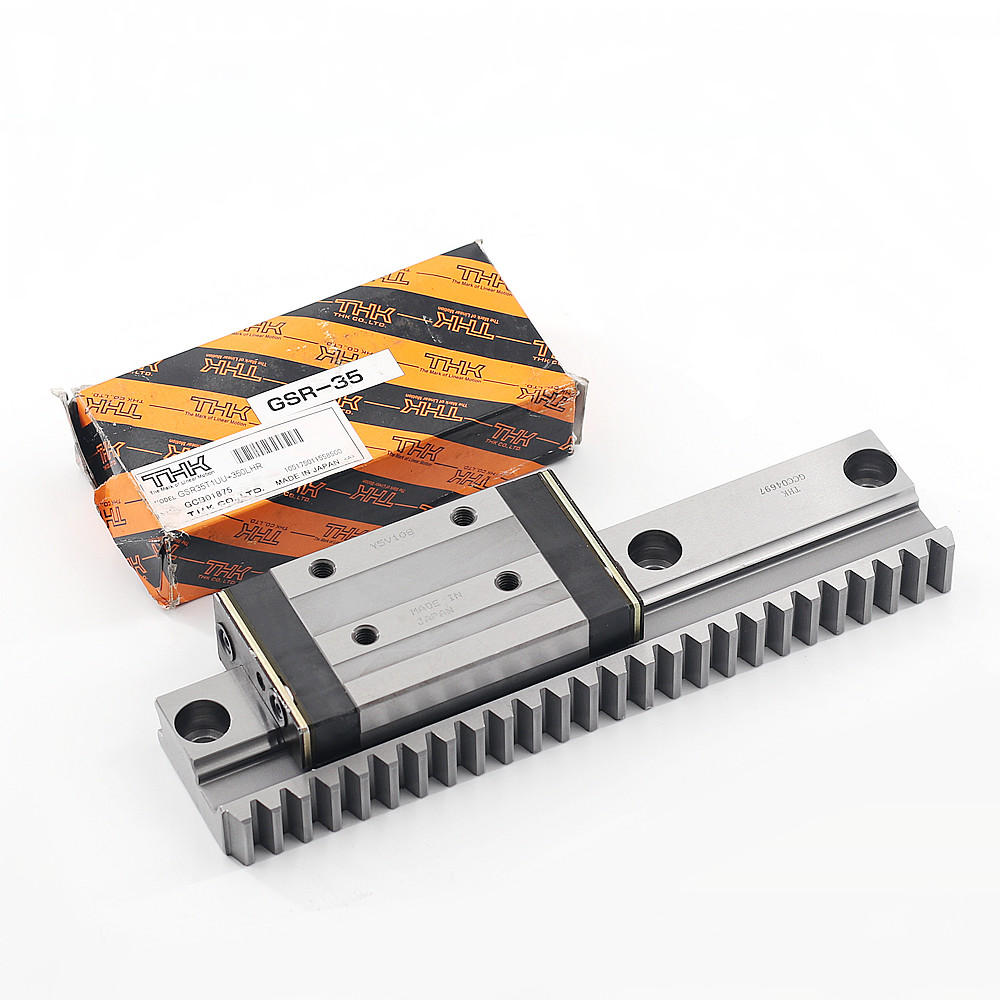

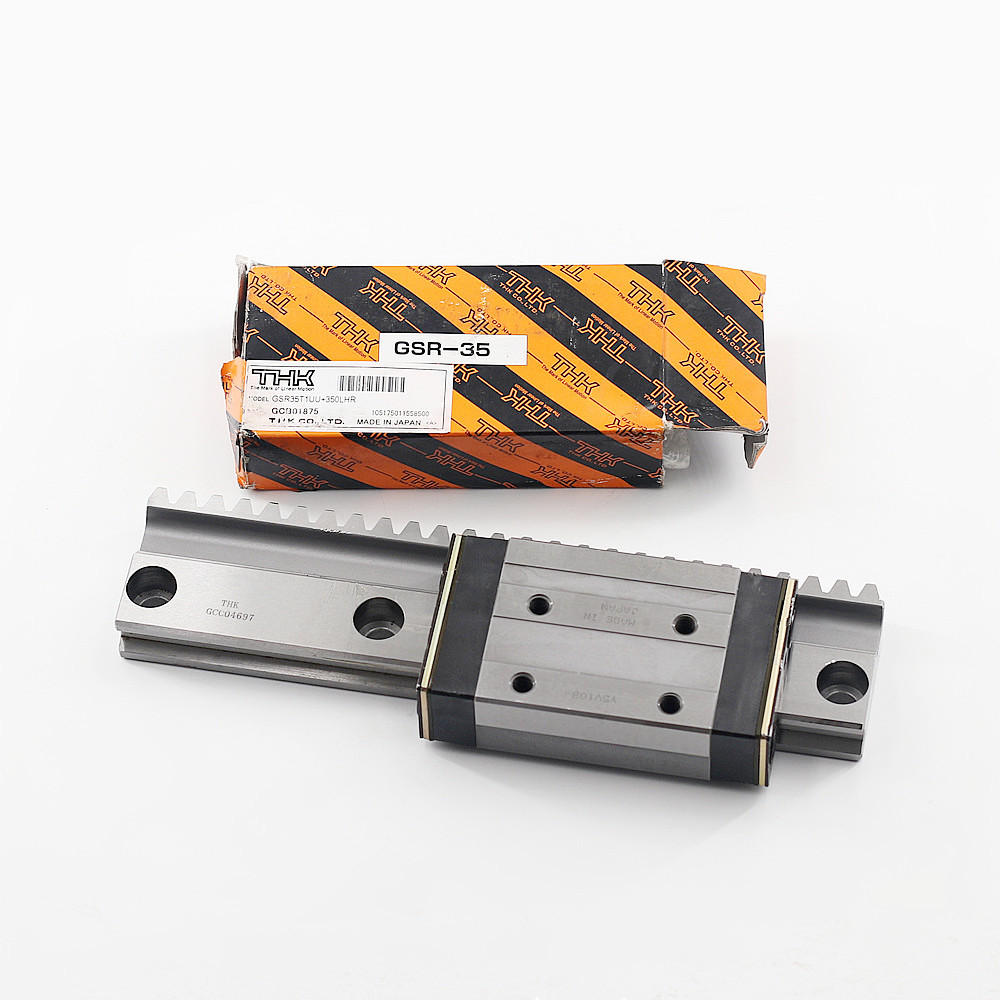

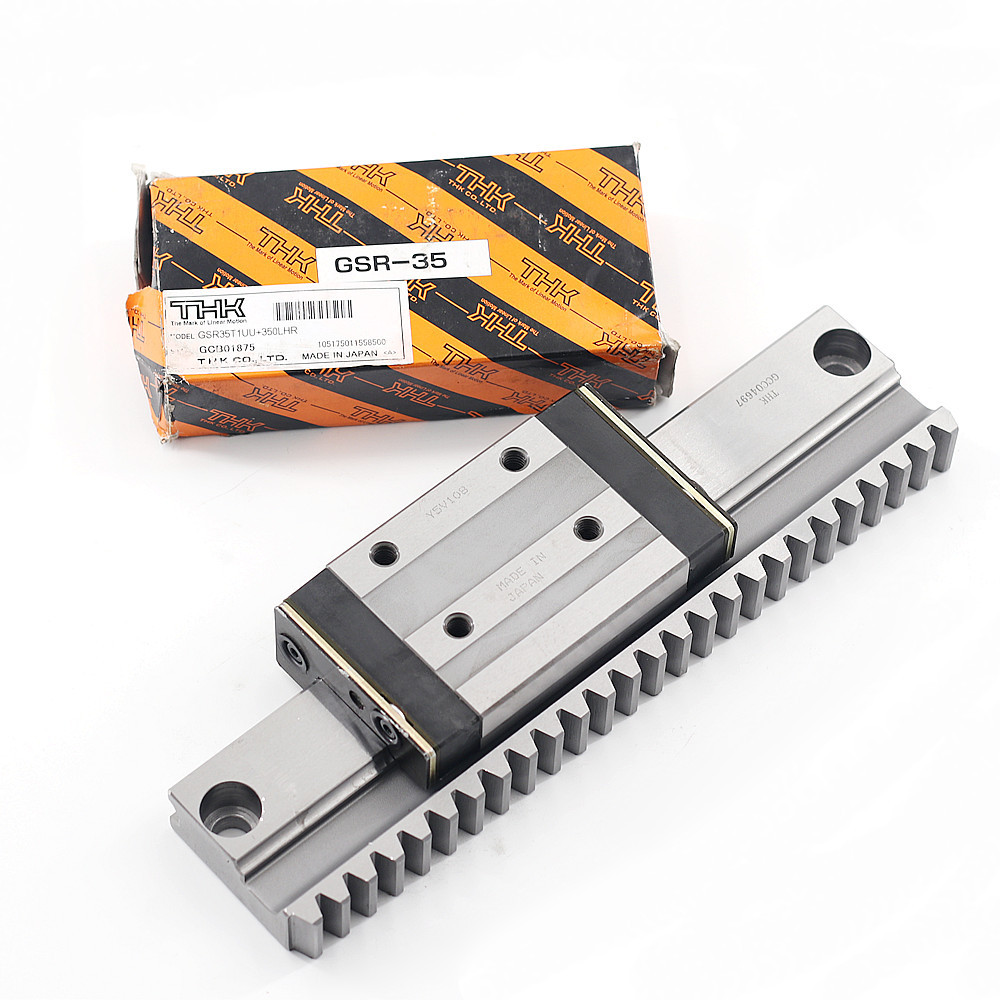

THK GSR35T-R Rack Guide LM Guide Special Type THK GSR35 Bearing GSR Linear Motion Guide Block
- $28.00 /piece
- 1 piece
- Qingdao Baoxi Automation Technology Co., Ltd.
- Shandong, China
- Mr XUESHAN
PRODUCT DETAIL
| Packaging Details: | carton | place of origin; place of origin: | Japan |
| model: | Jinsha River | Applicable industries: | Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Retail |
| Video external inspection: | Not available | Marketing Type: | Hot Products of 2020 |
| Health status: | new | Showroom location: | not any |
| Local service location: | not any | Core Components Warranty: | 6 months |
| Material: | bearing steel | Warranty: | unavailable |
| Mechanical test report: | Not available | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| After Warranty Service: | No service, online support | brand: | THK |
| Core components: | Bearings, balls |
Structure and Features

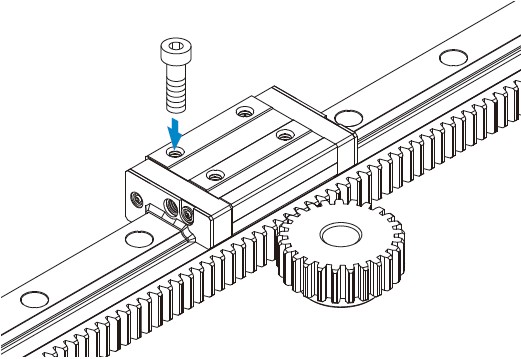

The balls roll in two rows of precision ground raceways on the LM guide and LM block, and end plates in the LM block allow the balls to circulate. They won't fall off due to the holding plate holding the balls in place. Since the top surface of the LM block is inclined, it is only necessary to fix the LM block with mounting bolts to eliminate the backlash and apply an appropriate preload. Model GSR-R is based on model GSR, but has a rack on the LM guide. This facilitates the design and assembly of the drive mechanism. * Model GSR-R cannot be used for single axis applications.[Reduce machining and assembly costs]
The one-piece structure of the LM guide (linear guide) and the rack (drive) reduces the labor and time for the machining of the rack mounting surface and the assembly and adjustment of the guide rail system, thereby achieving significant cost reduction.
[easy to design]
The travel distance per revolution of the pinion is specified by an integer value. This makes it easy to calculate the travel distance per pulse when the LM rail is used in combination with a stepper motor or servo motor.
[save space]
Machine size can be reduced due to the rails with racks.[Long stroke]
The end faces of the LM Guide are machined for engagement. For long strokes, simply attach standard length LM rails.[Long stroke]The rack tooth width is equal to the LM rail height, the rack is made of high-quality steel with reliable performance, and the tooth surface is heat treated to ensure high durability.

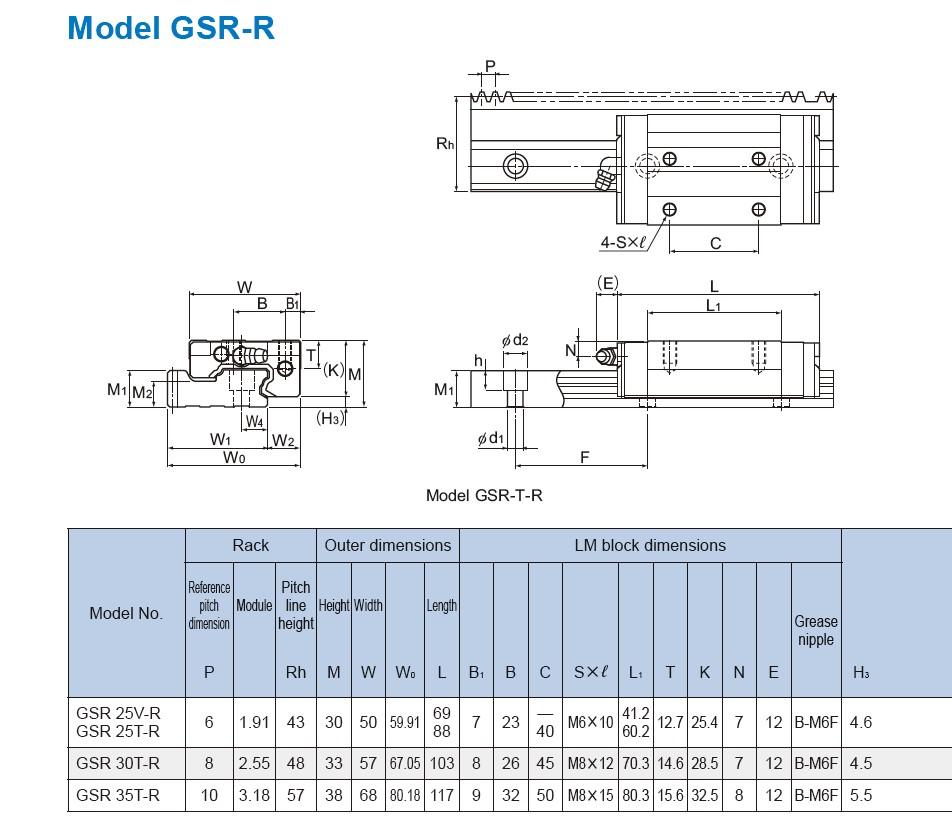

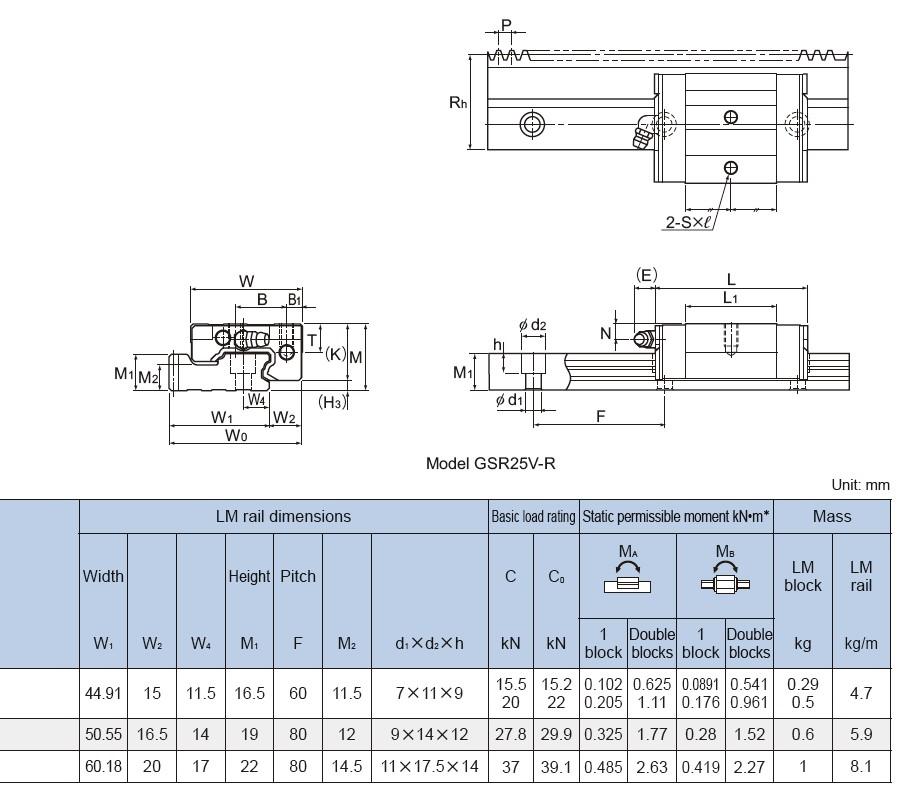

Type GSR-R (rails with rack)
Because the rack and pinion meshing keeps the thrust load on the pinion shaft low, it is easy to design a system with a pinion shaftbearingand less rigid tables.

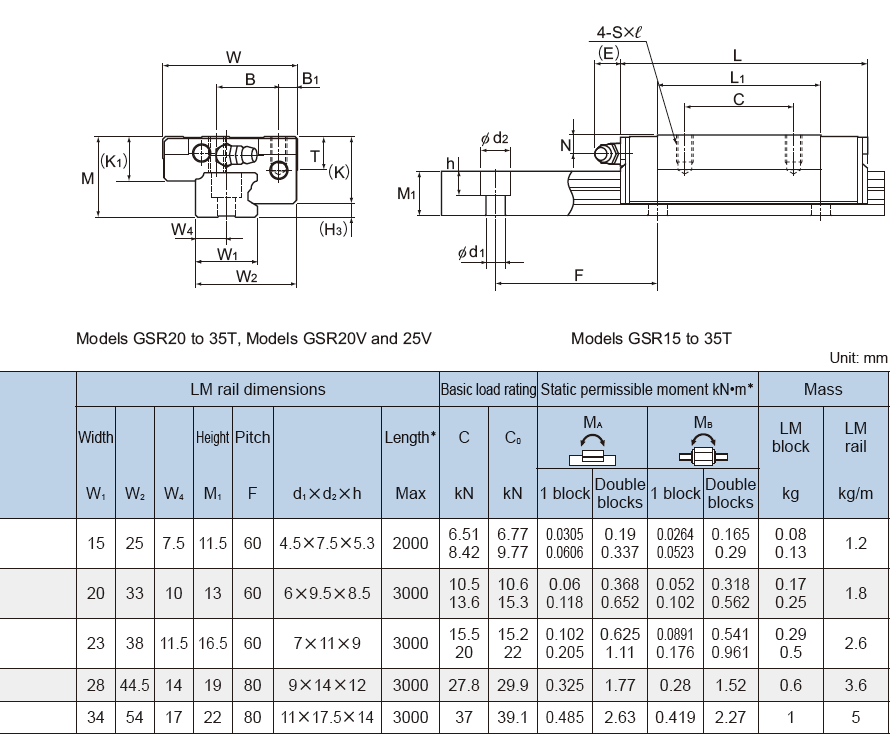

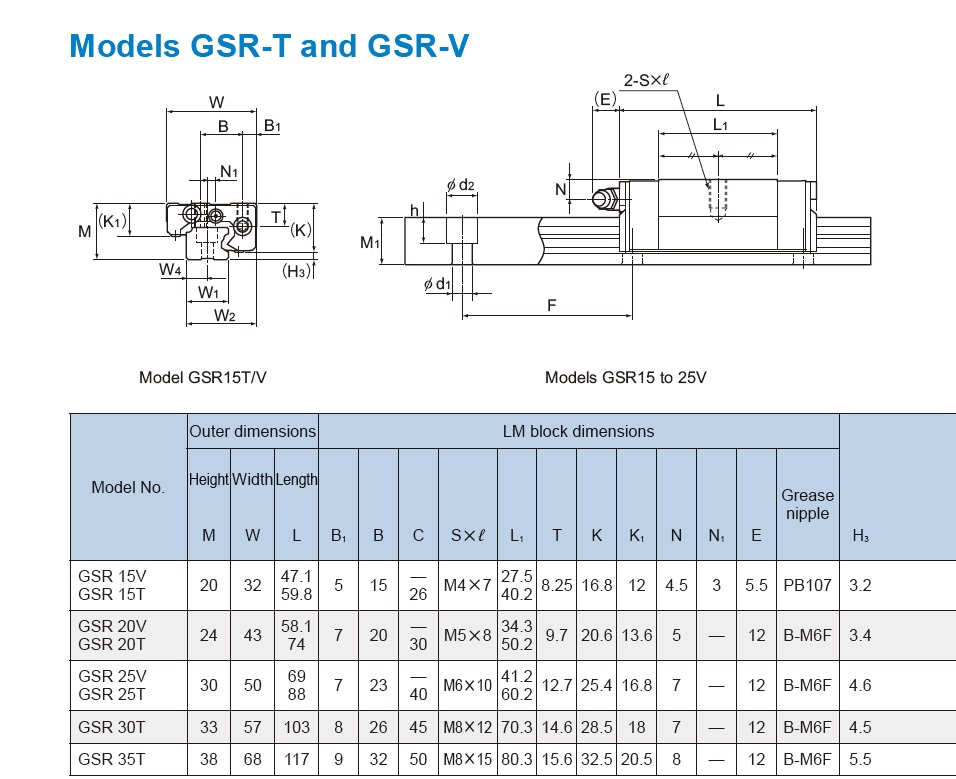

Card | THK |
Types and Features | Model GSR |
model. | GSR35T-R |
