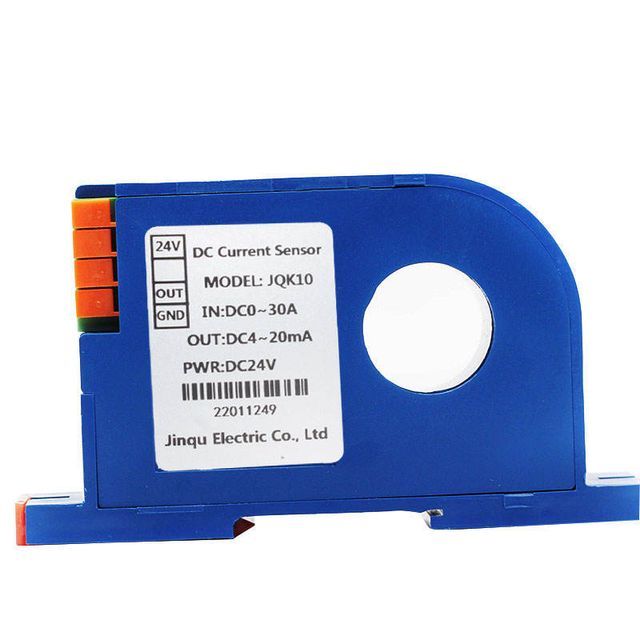

SWK-10 AC DC Closed Loop Hall Current Sensor 0-500A 4-20mA Hall Effect Sensor

Price:$30.00 / 1 - 49 pieces
$27.00 / 50 - 99 pieces
$25.00 / >=100 pieces
Min. Order:1 piece
Supplier:Anhui Jinqu Electric Co., Ltd.
Region:Anhui, China
Contact:Mr Alex Yang

PRODUCT DETAIL

Packaging Details:	1 piece in 1 box with English user manual.	Isolation withstand voltage:	2.5kV/50Hz, 1 minute
output:	analog sensor	product name:	Hall current sensor
Supply capacity:	10000 pieces per month	Response time:	<200ms
model:	SWK-10	Package preview:
type:	Hall Effect Current Sensors	power supply:	DC12V, DC24V, AC/DC220V
theory:	Hall sensor	brand:	Sovakam
Input range:	AC 0-600A, DC 0-600A	describe:	current sensor
Operating temperature:	-10℃~+70℃	usage:	industrial

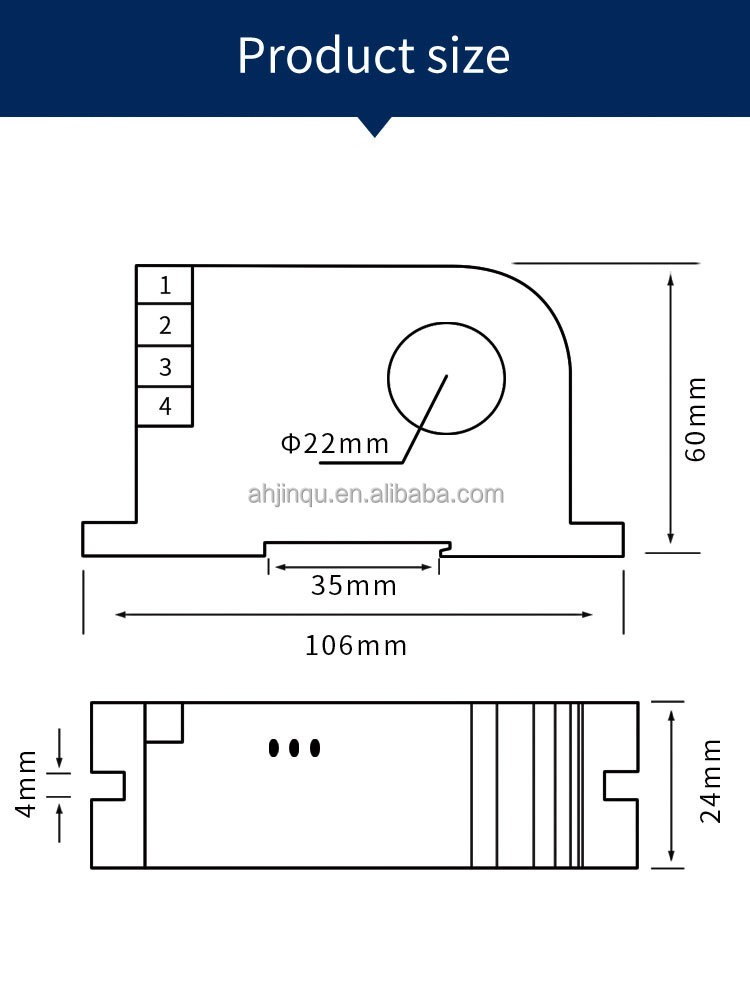

installation method:	35mm DIN rail	Aperture:	22mm, 25mm, 31mm
Origin:	Anhui, China	port:	Shanghai, Ningbo
output signal:	4-20mA, 0-20mA, 0-5V, 0-10V, etc.	application:	automated industry
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

Specification

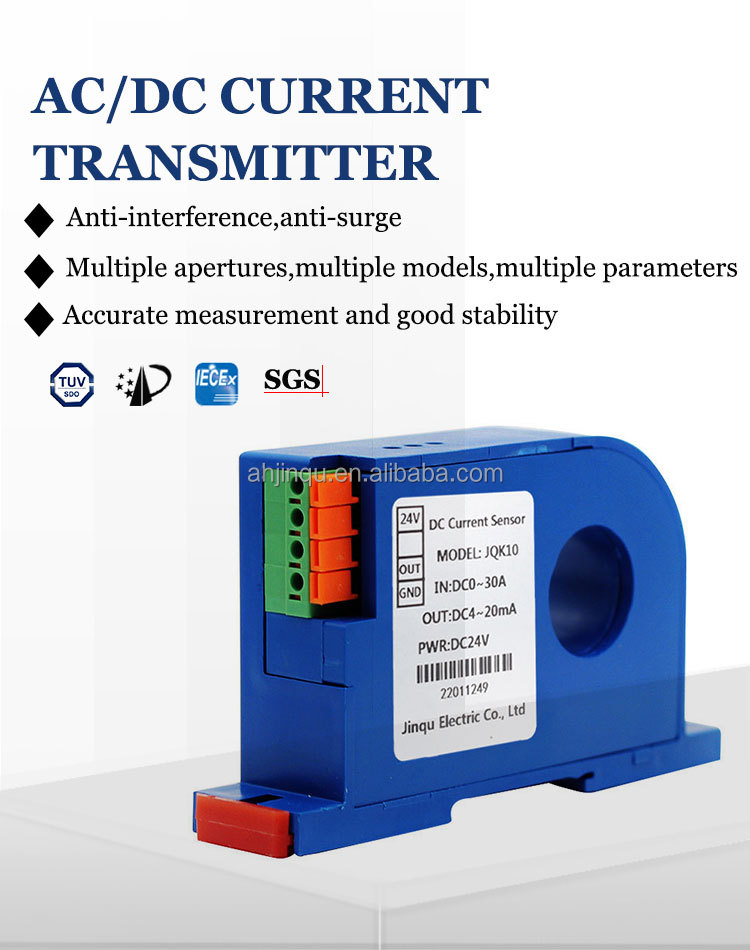

SWK-10 AC and DC current transmitter
Aperture					22mm, 25mm, 31mm
input range					AC0-600A, DC0-600A
output signal					4-20mA, 0-20mA, 0-5V, 0-10V, etc.
power supply					DC 12V, DC 24V

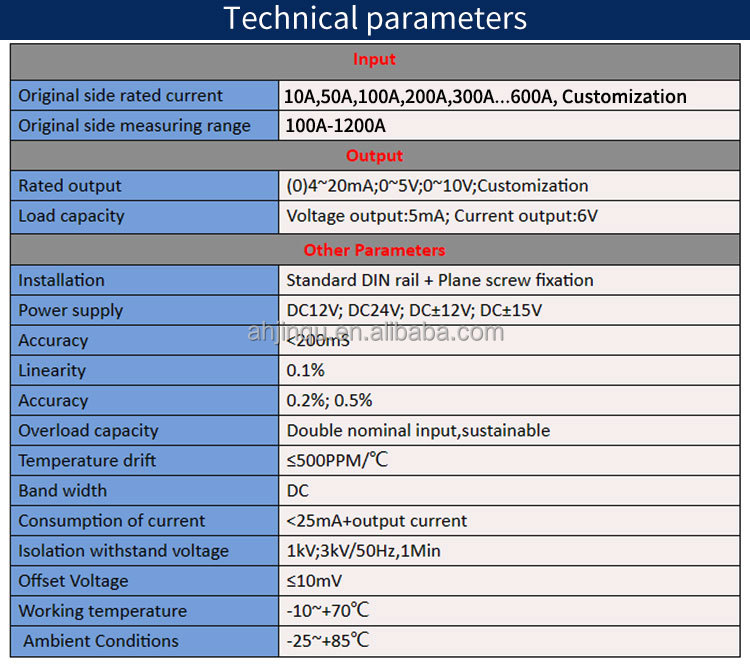

Technical indicators and specifications:

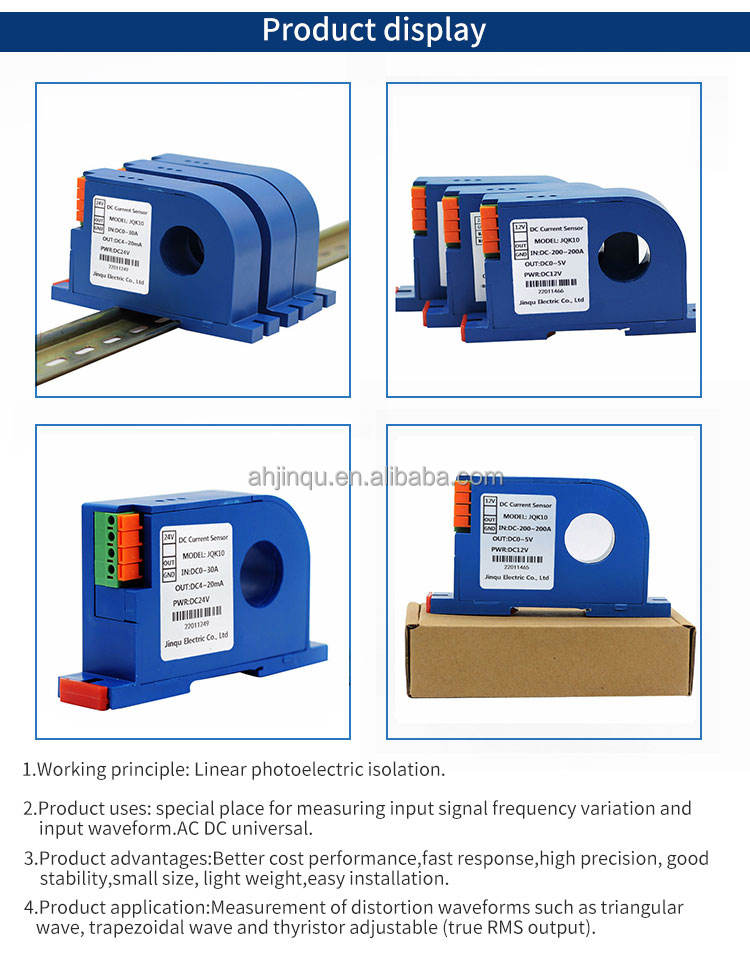

1>. Working principle: linear photoelectric isolation.
2>. Purpose: used to measure the frequency change of the input signal and the input waveform, AC and DC.
3>. Advantages: good cost performance, fast response, high precision, good stability, small size, light weight,

Easy installation.
4>. Application: measurement of triangular wave, trapezoidal wave, thyristor and other distorted waveforms

Adjustable (true RMS output).

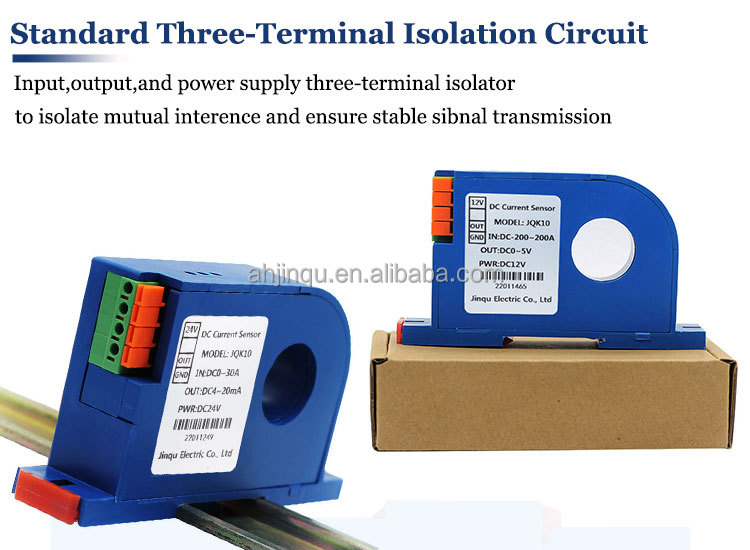

5>. Input, output, power supply are isolated from the shell, with strong anti-interference ability and high reliability.

Full channel configuration, parameters can be customized.

Product Description
