Best selling high precision current measurement current sensor rogowski coil integrator

PRODUCT DETAIL
usage:Rogowski coilMeasurement:Secondary CT for measuring integrator output
Phase error:≤0.5°energy consumption:10W
theory:Rogowski coilpayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL
Linearity:±0.2% of reading (10% to 120% of range)brand:Botox
Rated output:1A AC RMSMaximum output (overload:1.5A AC RMS
Supply capacity:50,000 pieces per monthmodel:ATP01
output:analog sensorReading Accuracy:0.5% typical at 1%(≥10A) to 110% rated current @25℃
bandwidth:30Hz to 5kHzplace of origin; place of origin:China Shanghai
Biggest burden:0.5Ω (per phase)0A output:≤0.01A
Packaging Details:Plastic bag for rogowski coil current sensor, carton for plastic bag.Packaging Preview:
port:Shanghai
Product Description

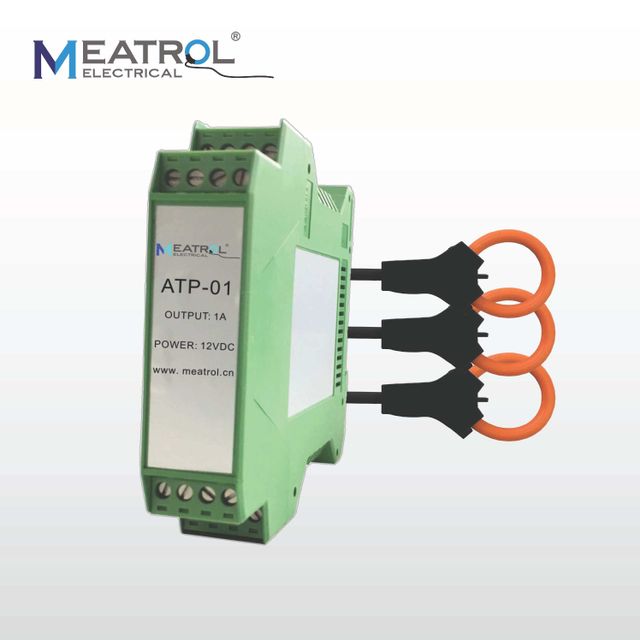

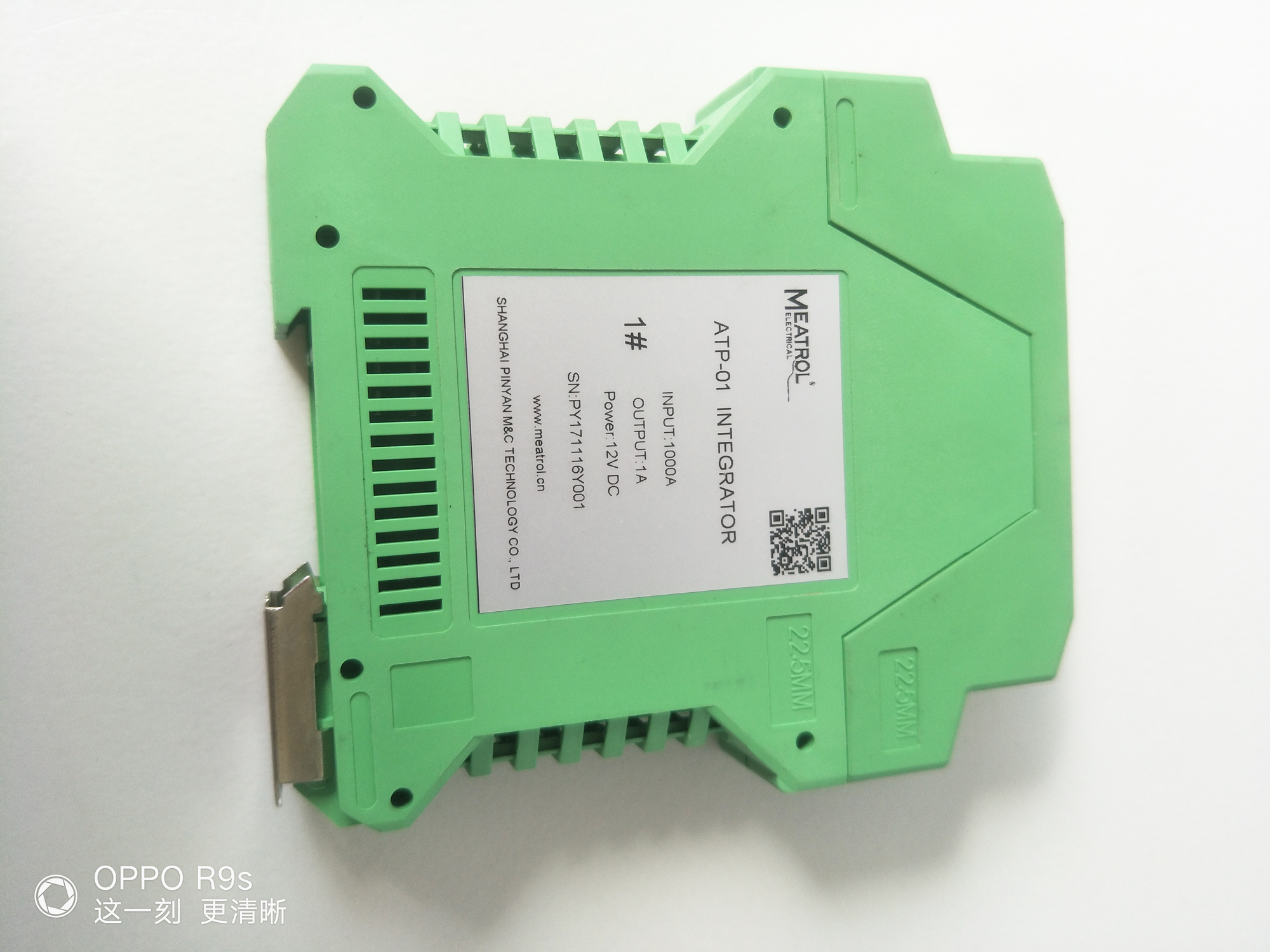

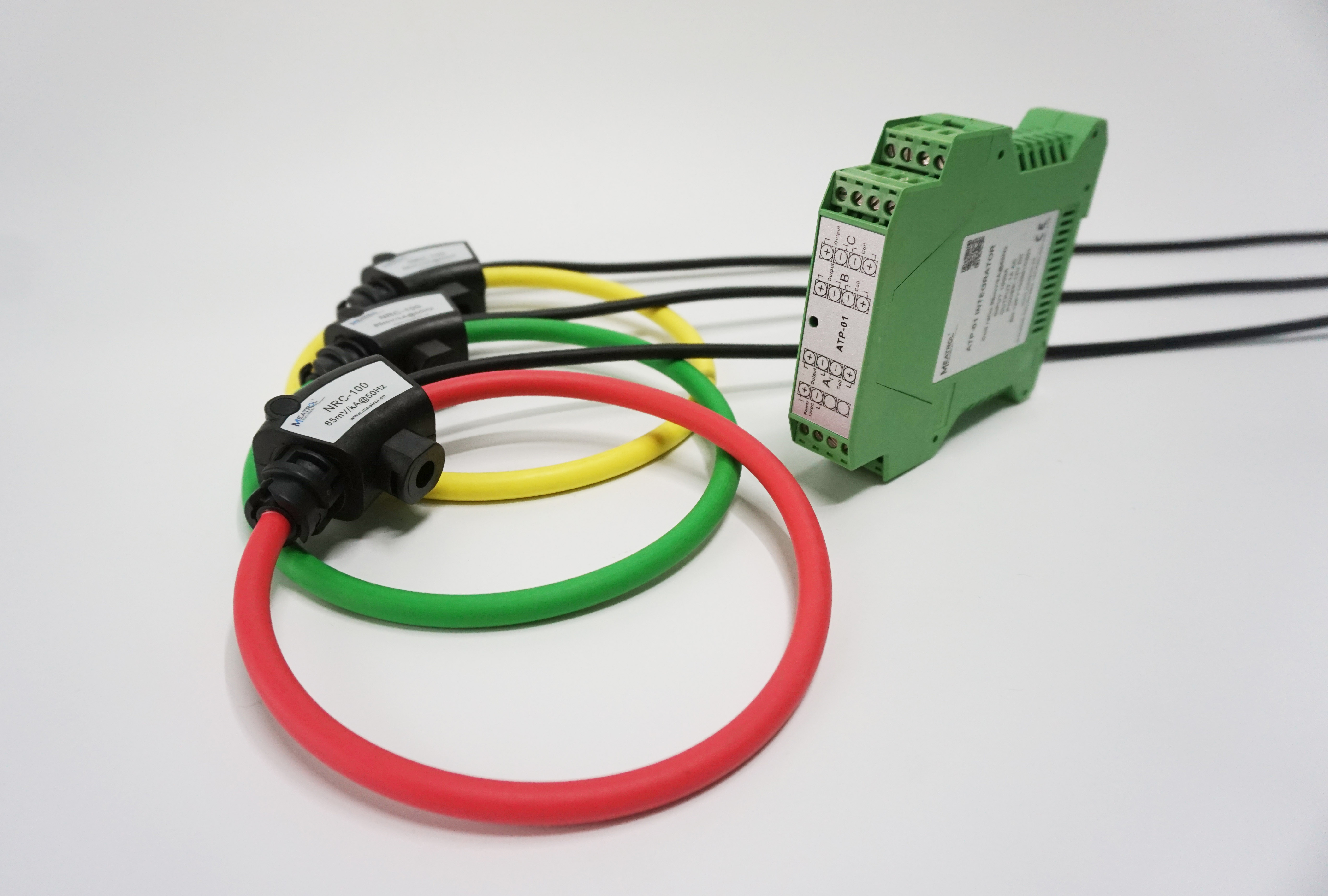

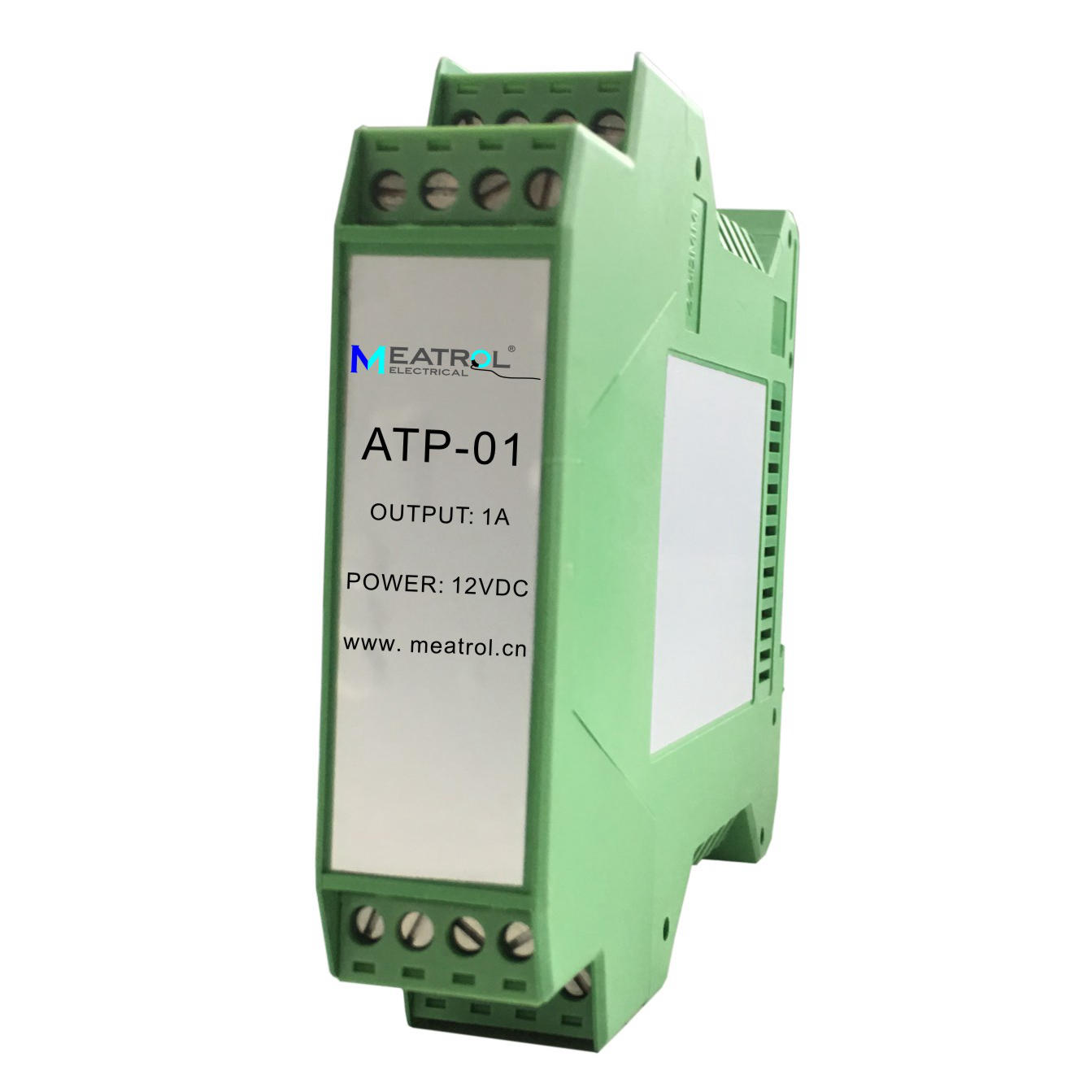

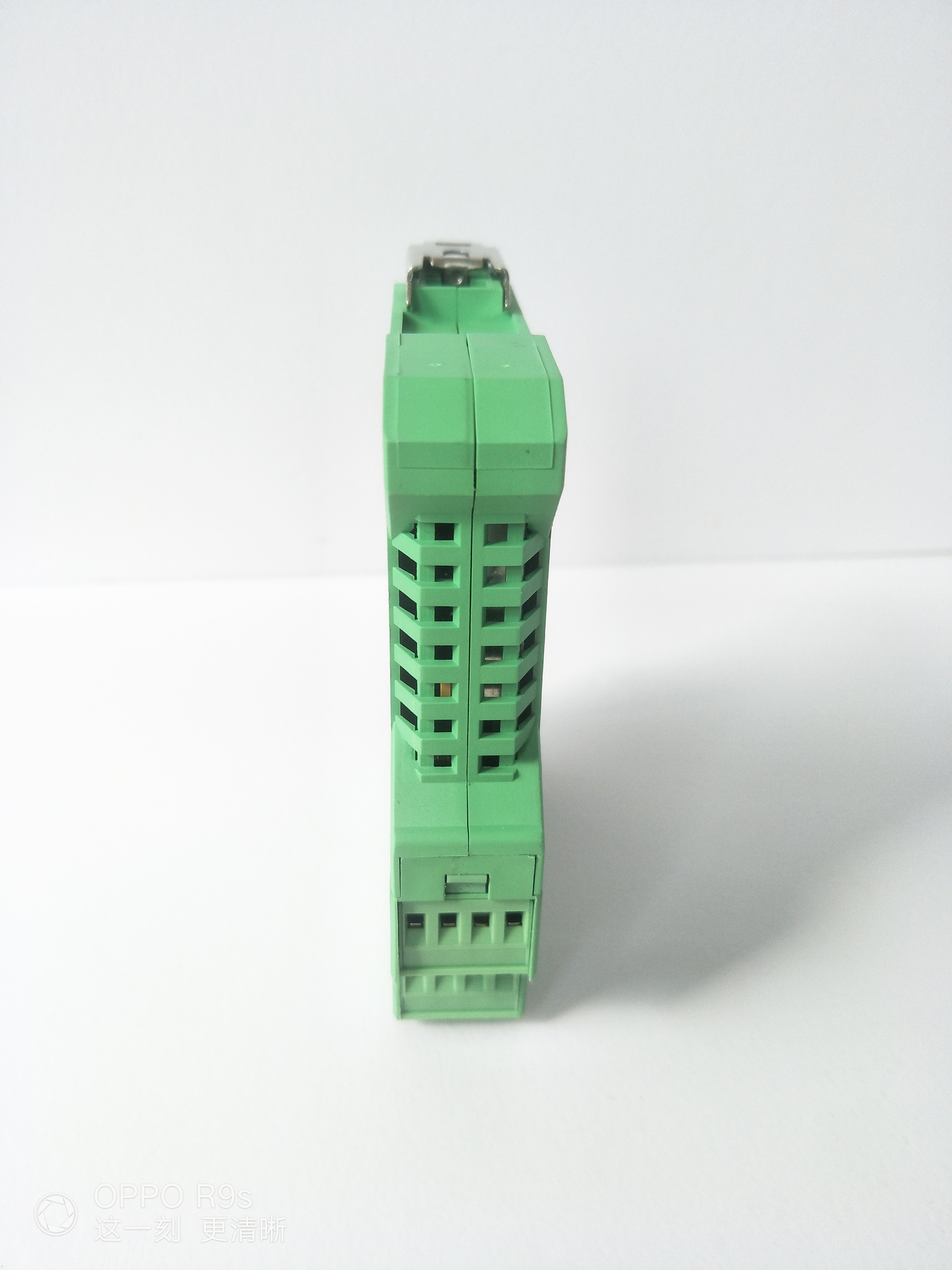

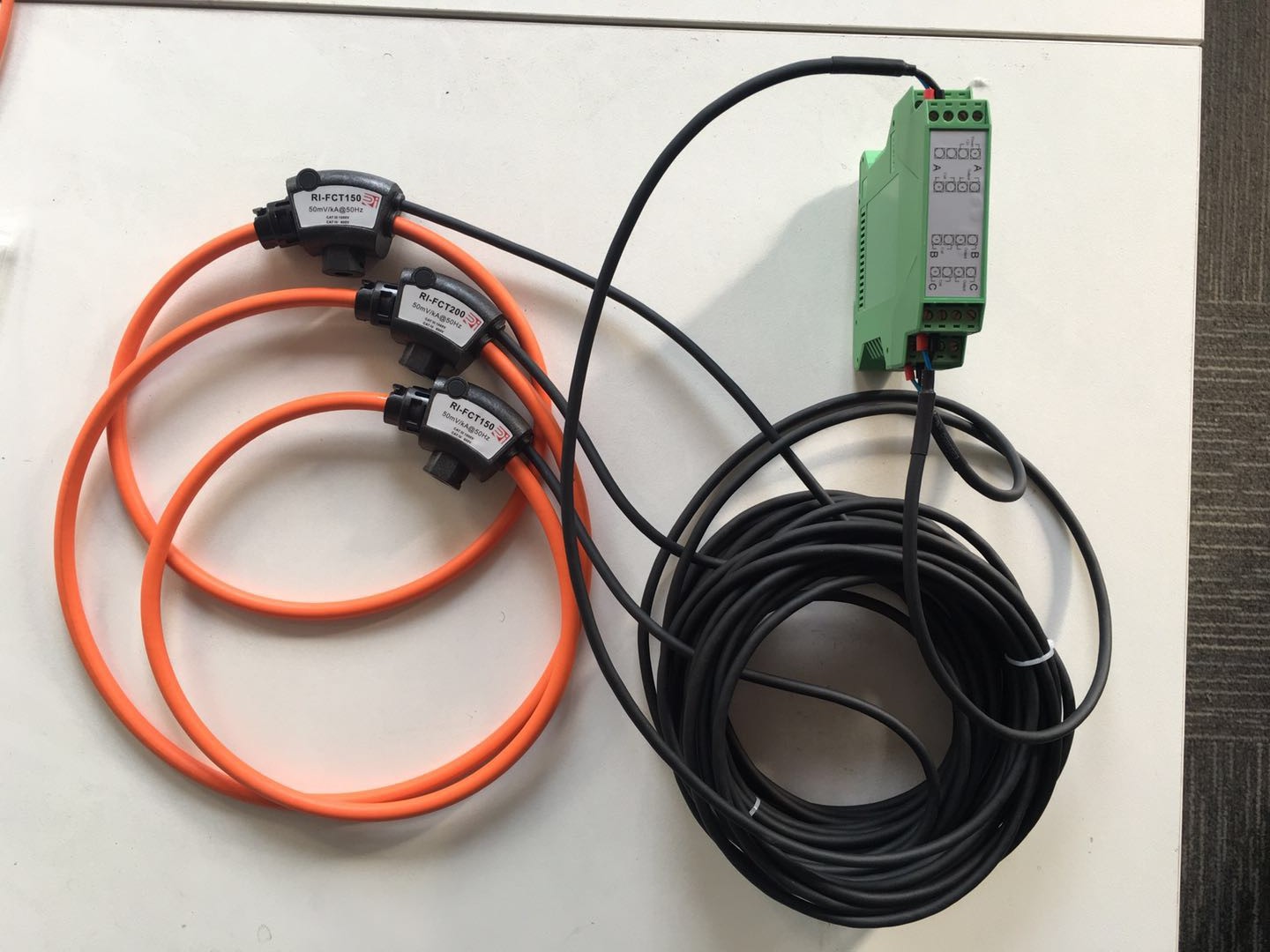

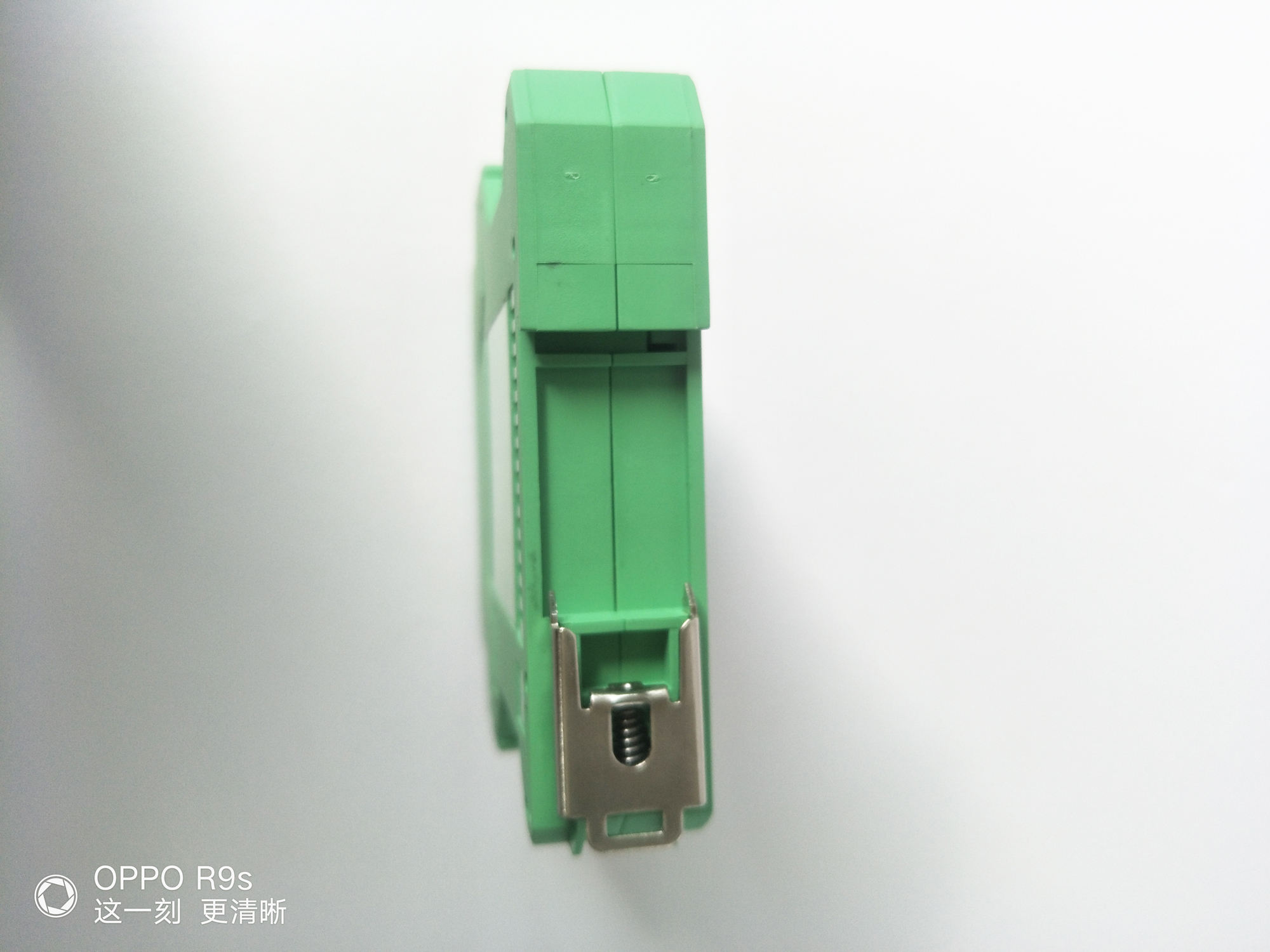

The ATP01 is a three-phase DIN-RAIL 1A output Rogowski coil integrator installed in a distribution box, in a plastic 1-module DIN-RAIL enclosure, powered directly from the mains.
advantage
* 0.5% higher reading accuracy
* Compact DIN rail structure
* High bandwidth 30 to 5kHz for measurement
* Output 1A rms

  • application

Measuring equipment, laboratory instruments
* Power monitoring and analysis
* Harmonic and transient monitoring
* Welder control
* High current measurement

detailed image
Size Information
Model
ATP-01
Rated output
1A AC RMS
Maximum output (overload)
1.5A AC RMS
Rated ratio
100A
600A
1000A
3000A
6000A
reading accuracy
0.5% typical at 1%(≥10A) to 110% rated current @25℃
Phase error
≤0.5°
Linearity
±0.2% of reading (10% to 120% of range)
bandwidth
30Hz to 5kHz
maximum burden
0.5Ω (per phase)
Measurement
Secondary CT for measuring integrator output
energy consumption
10W
0A output (zero drift)
≤0.01A
temperature drift
200ppm/℃
weight
185 grams
aspect
114*100*22.5mm
power supply
12V DC
Operating temperature
-20℃ to 50℃
Storage temperature
-30℃ to 70℃
Relative humidity
Up to 80% non-condensing
Protection class
IP20
For other requirements, please contact us for OEM.
