Sheet Metal Sheet Stainless Steel CNC Hydraulic V-groove Machine V-groove Cutting Machine CNC V-groove Cutting Machine
- $5500.00 / 1 - 4 sets
$5000.00 / >=5 sets - 1 set
- Anhui Harting Machinery Technology Co., Ltd.
- Anhui, China
- Mr Davis Wang
PRODUCT DETAIL
| Supply capacity: | 100 sets per month | Origin: | Anhui, China |
| Weight (kg): | 6500 | Health status: | new |
| Main selling points: | easy to operate | Marketing Type: | New Products 2021 |
| Packaging Details: | CNC slotting machine wooden box | Power (kW): | 5.5 |
| Package preview: | Applicable industries: | Energy and Mining, Print Shop, Food and Beverage Factory, Retail, Construction Works, Other, Building Supply Store, Advertising Agency, Machinery Repair Shop, Manufacturing Plant | |
| Warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| port: | Shanghai Port | Dimensions (L*W*H): | 5500x2300x1680mm |
| Core component warranty: | 1 year | Core components: | engine |
| Voltage: | 380V | Year: | 2021 |
| brand: | Mi Haoting | After-sales service provided: | online support |
| Video shipment inspection: | if | Mechanical test report: | if |
| Showroom location: | not any |
Product Description

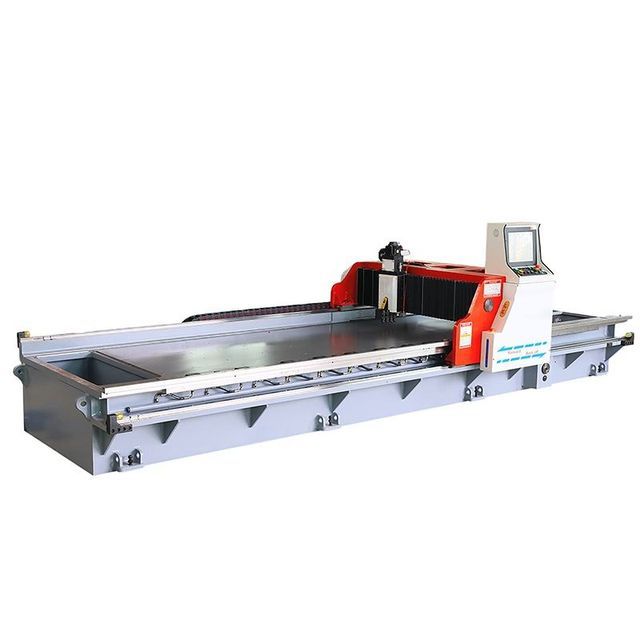

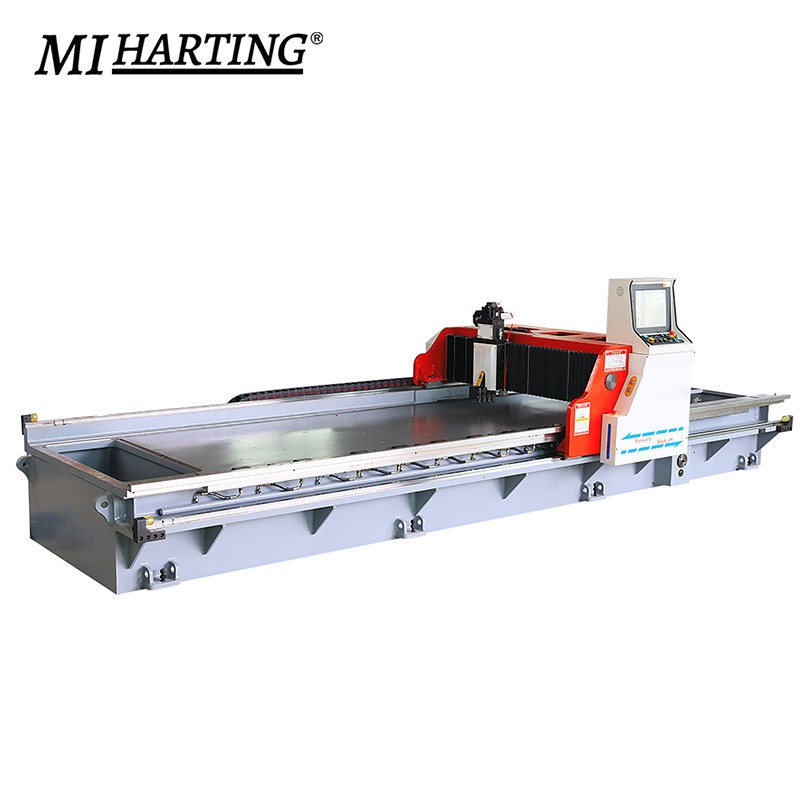

This equipment is a CNC planer. This machine adopts advanced numerical control system with novel design. It has the characteristics of high processing precision, simple operation, no noise and no vibration. This machine tool is used to process irregular grooves such as V-shaped grooves and U-shaped grooves on sheet metal parts (stainless steel, aluminum, aluminum-plastic, copper, iron, bakelite, acrylic and other special plates).

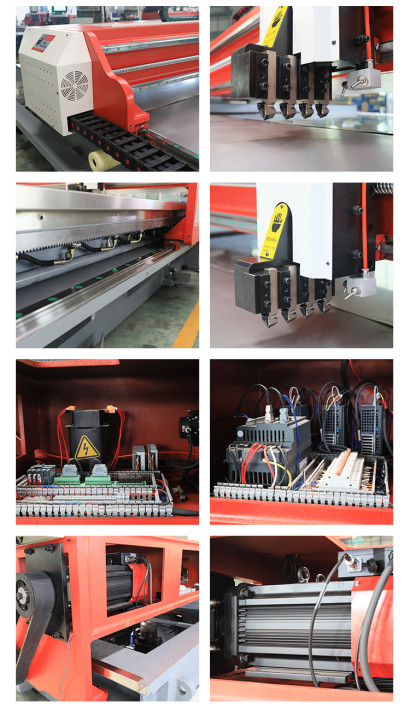

detailed drawing
Specification
Model | maximum. Groove thickness(mm) | minute groove thickness (mm) | Tank speed (m/min) | Knife LR resolution (mm) | Knife UD resolution (mm) | positioning accuracy (mm) | Pneumatic pressure (Marine Protected Area) | aspect (length x width x height) (mm) |
1220x2500 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 4650x2300x1680 |
1220x3200 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 5500x2300x1680 |
1220x4000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 6000x2300x1680 |
1220x5000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 7500x2300x1680 |
1220x6000 | 6 | 0.5 | 65 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 8500x2300x1680 |
1500x4000 | 6 | 0.5 | 45 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 6000x2550x1700 |
1500x6000 | 6 | 0.5 | 45 | ±0.001 | ±0.001 | ±0.01 | 6-8 | 8500x2550x1700 |
