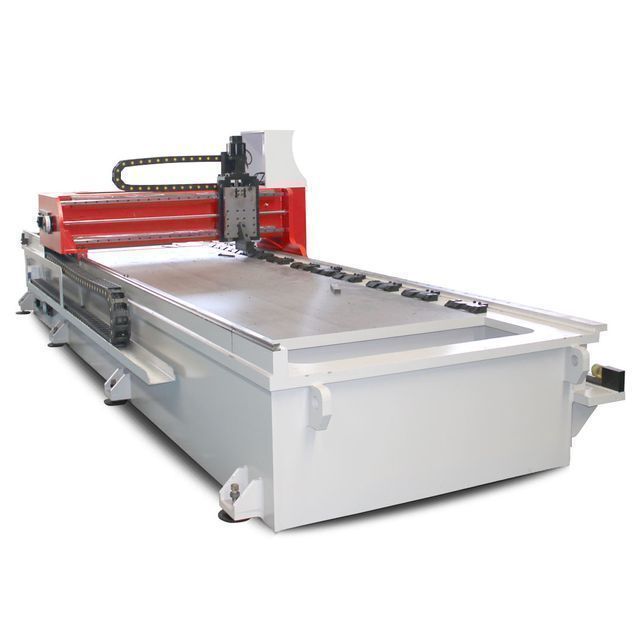

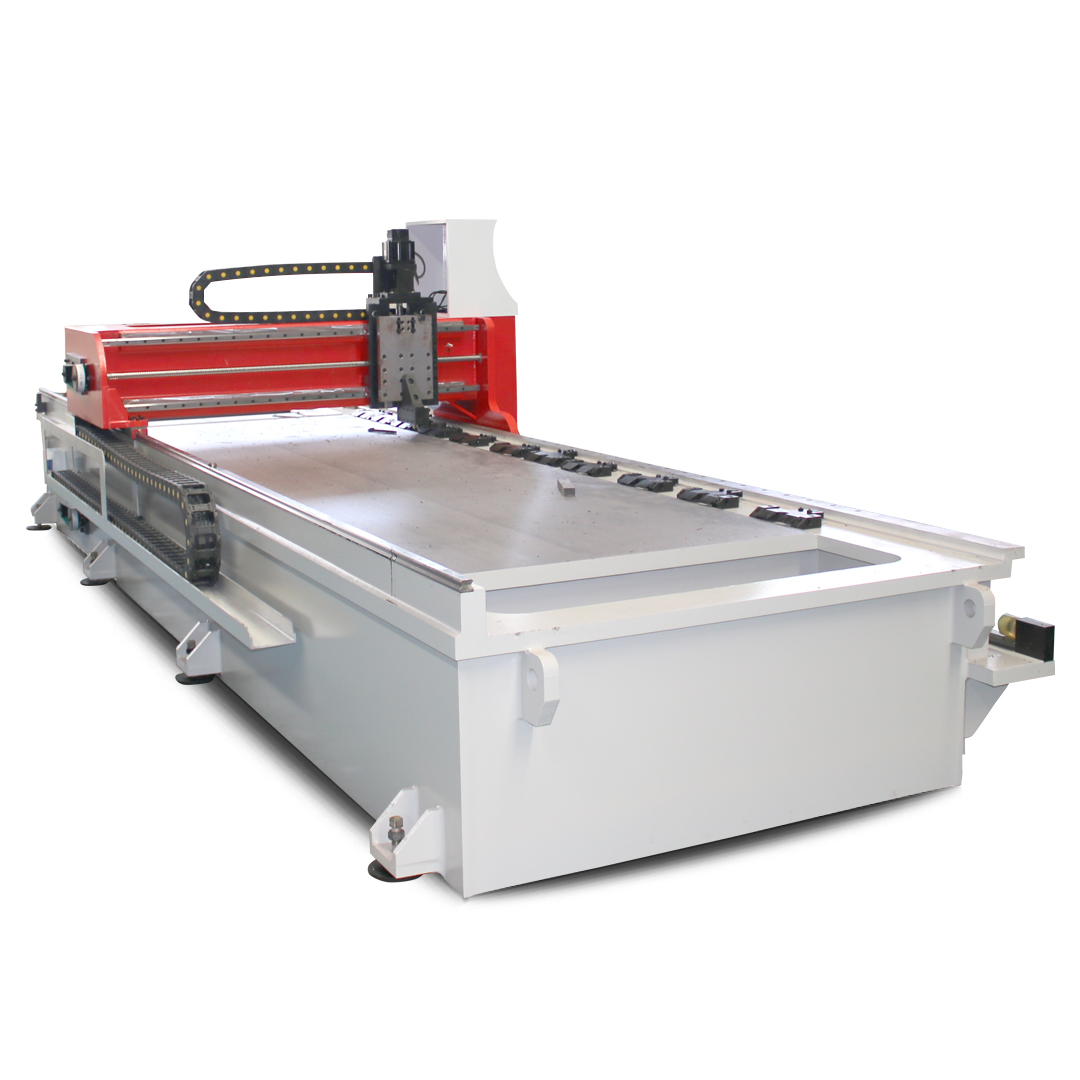

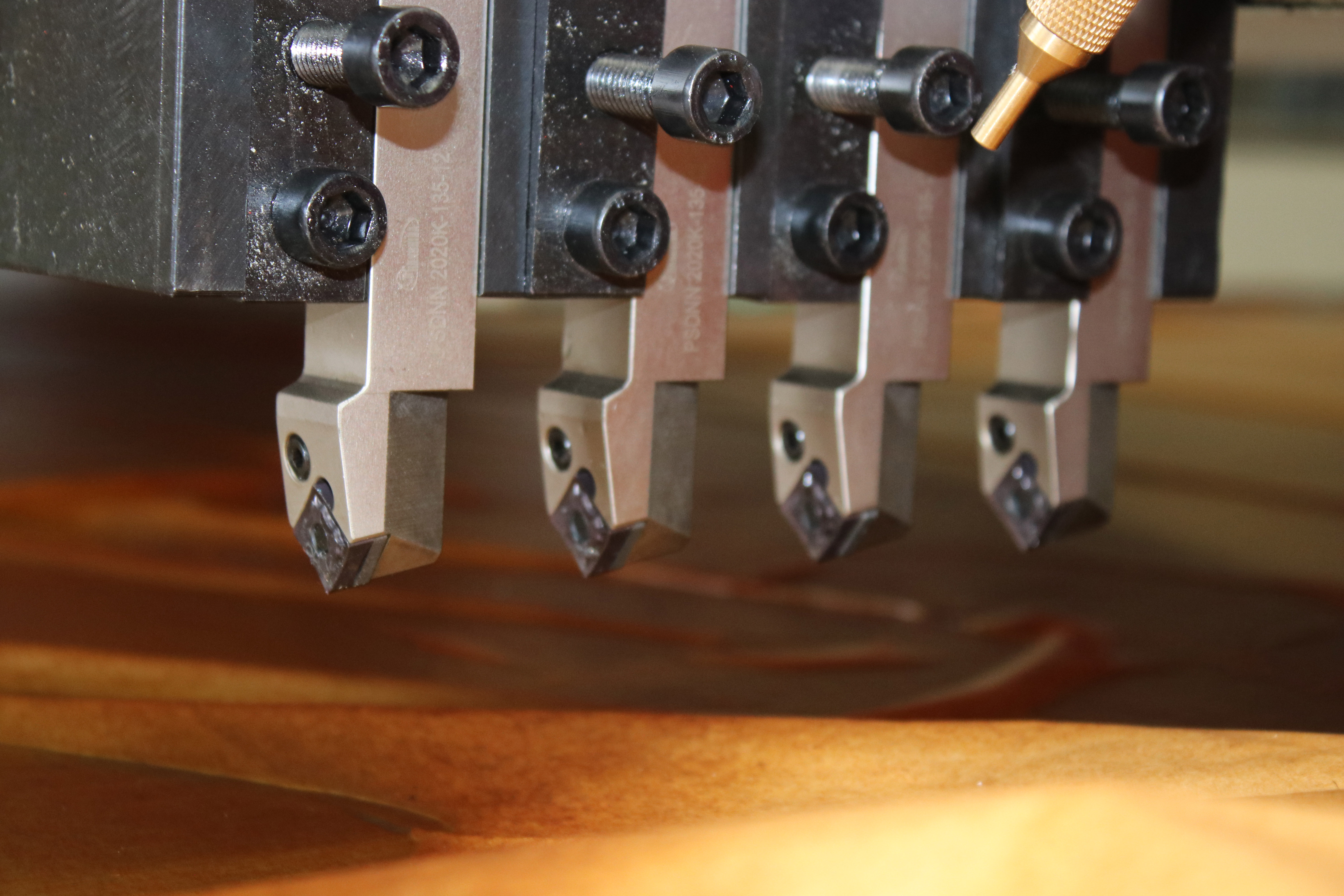

cnc v groove cutting machine for stainless steel plate with good quality v groove knife with good factory price
- $29000.00 /set
- 1 set
- Nanjing Huangshi Machine Tool Manufacturing Co., Ltd.
- Jiangsu, China
- Ms qin xu
PRODUCT DETAIL
| port: | Shanghai | Main motor: | 8.5KW |
| Applicable industries: | Building materials store, manufacturing plant, retail, construction | Main selling points: | high productivity |
| Warranty: | one year | weight: | 8000 kg |
| Cutting thickness: | 0.4-6MM | Warranty: | 12 months |
| Certification: | ISO9001 | Voltage: | 220V/380V |
| brand: | HSK | Type of machine: | HSL-1250/4000 |
| Control System: | ASUS Taiwan | Supply capacity: | 90 sets per month |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Package preview: | |
| Local service location: | not any | Showroom location: | not any |
| place of origin; place of origin: | China | product name: | Slot shears |
| After-sales service provided: | Engineers available to service machinery overseas | Packaging Details: | Elective |
| year: | 2018 | Types of: | Slot shears |
| After warranty service: | no signal | State of health: | new |
| application: | Stainless steel | Dimensions (L*W*H): | 6100*2100*1550 |
| rated power: | 5.5kw |
Product Description
No. | project | scope | unit | ||
1 | Processing capacity | maximum. length | 4000 | mm | |
maximum. width | 1500 | mm | |||
maximum. Grooving thickness | 4 | mm | |||
slotting thickness in minutes | 0.6 | mm | |||
2 | X axis | maximum. travel | ≥4000 | mm | |
cutting speed | 45000 | mm/min | |||
return speed | 65000 | mm/min | |||
3 | Y axis | maximum. travel | ≥1500 | mm | |
Moving speed | 20000 | mm/min | |||
4 | Z axis | maximum. travel | ≥100 | mm | |
Moving speed | 20000 | mm/min | |||
5 | X axis | Motor Power | 5.5 | kilowatt | |
6 | Control axes (X,Y1,Y2,Z) | 3+1 | personal computer | ||
7 | machine weight | 8000 | Kilogram | ||
8 | size | length | 6000 | mm | |
width | 2000 | ||||
high | 650 | ||||
Performance
1. The frame and beam of the machine are designed with a frame structure. The overall rigidity is good, the whole body heats up
Treatment ensures that the machine tool does not deform for a long time
2. The track of the machine is fixed, and the rack and pinion drives the beam to move. The moving speed can be adjusted by frequency conversion; the cutting process is smooth and efficient. The cutting surface is smooth and flat.
Treatment ensures that the machine tool does not deform for a long time
2. The track of the machine is fixed, and the rack and pinion drives the beam to move. The moving speed can be adjusted by frequency conversion; the cutting process is smooth and efficient. The cutting surface is smooth and flat.
Performance

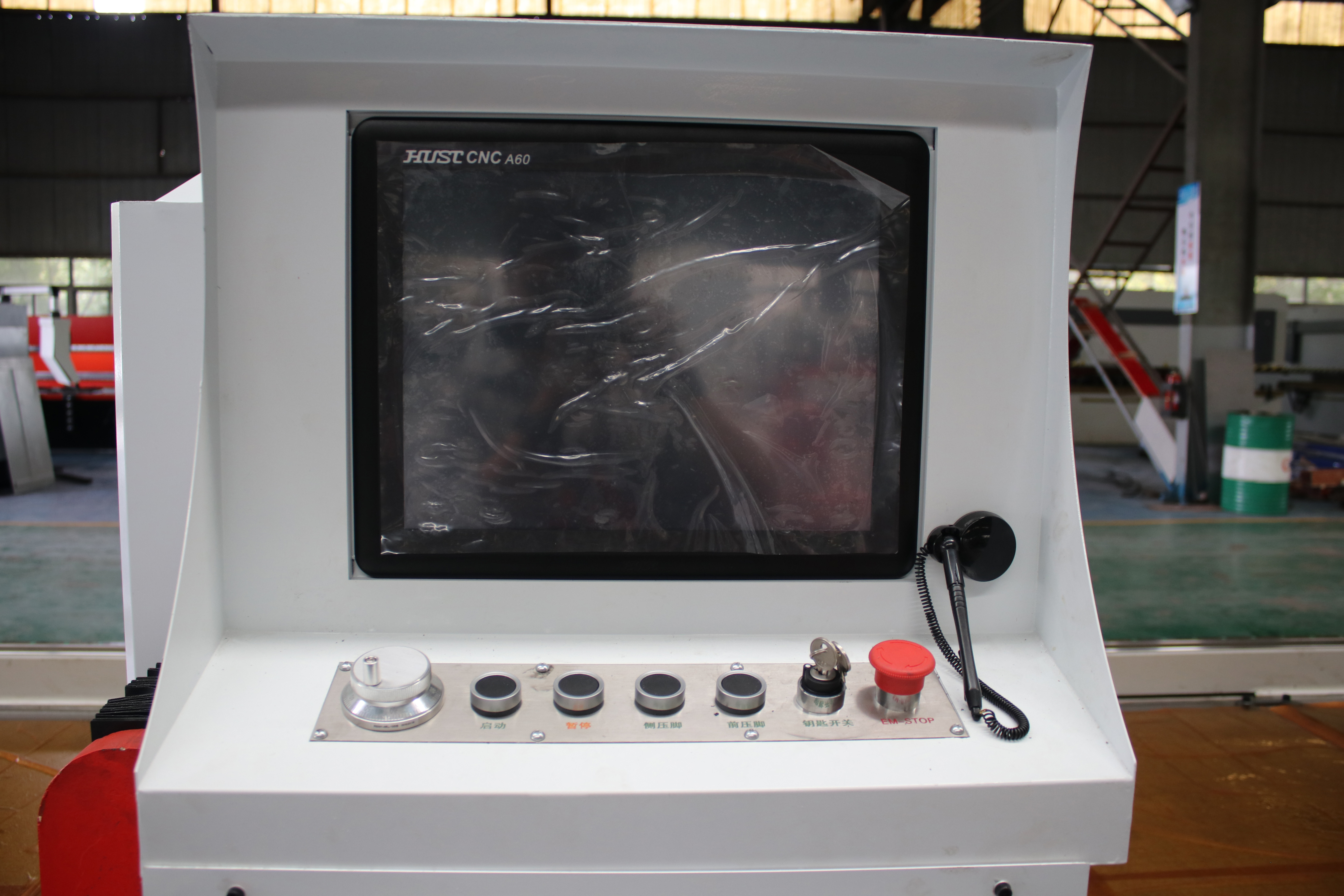

3. The digital display of the machine is X-axis, Y1-axis, Y2-axis, Z-axis four-axis CNC machine tool, high positioning
Precision, processing range
4. The machine is equipped with side pressing material and end pressing material respectively, both of which are hydraulic
press. material press
Precision, processing range
4. The machine is equipped with side pressing material and end pressing material respectively, both of which are hydraulic
press. material press
Performance
5. The primary drive of the motor is driven by a V-belt. Because the elongation force of the V-belt reduces the impact force
During emergency stop and quick return. Ensure the normal operation of the equipment and prolong the service life of the equipment
6. The hydraulic system adds accumulator compensation, and the motor works in gaps, which can save energy and control oil temperature
7. This machine has sharpening function. I1 After a long time of use, the surface is not smooth or has blemishes.
Planing function can be used to recondition the machine
During emergency stop and quick return. Ensure the normal operation of the equipment and prolong the service life of the equipment
6. The hydraulic system adds accumulator compensation, and the motor works in gaps, which can save energy and control oil temperature
7. This machine has sharpening function. I1 After a long time of use, the surface is not smooth or has blemishes.
Planing function can be used to recondition the machine

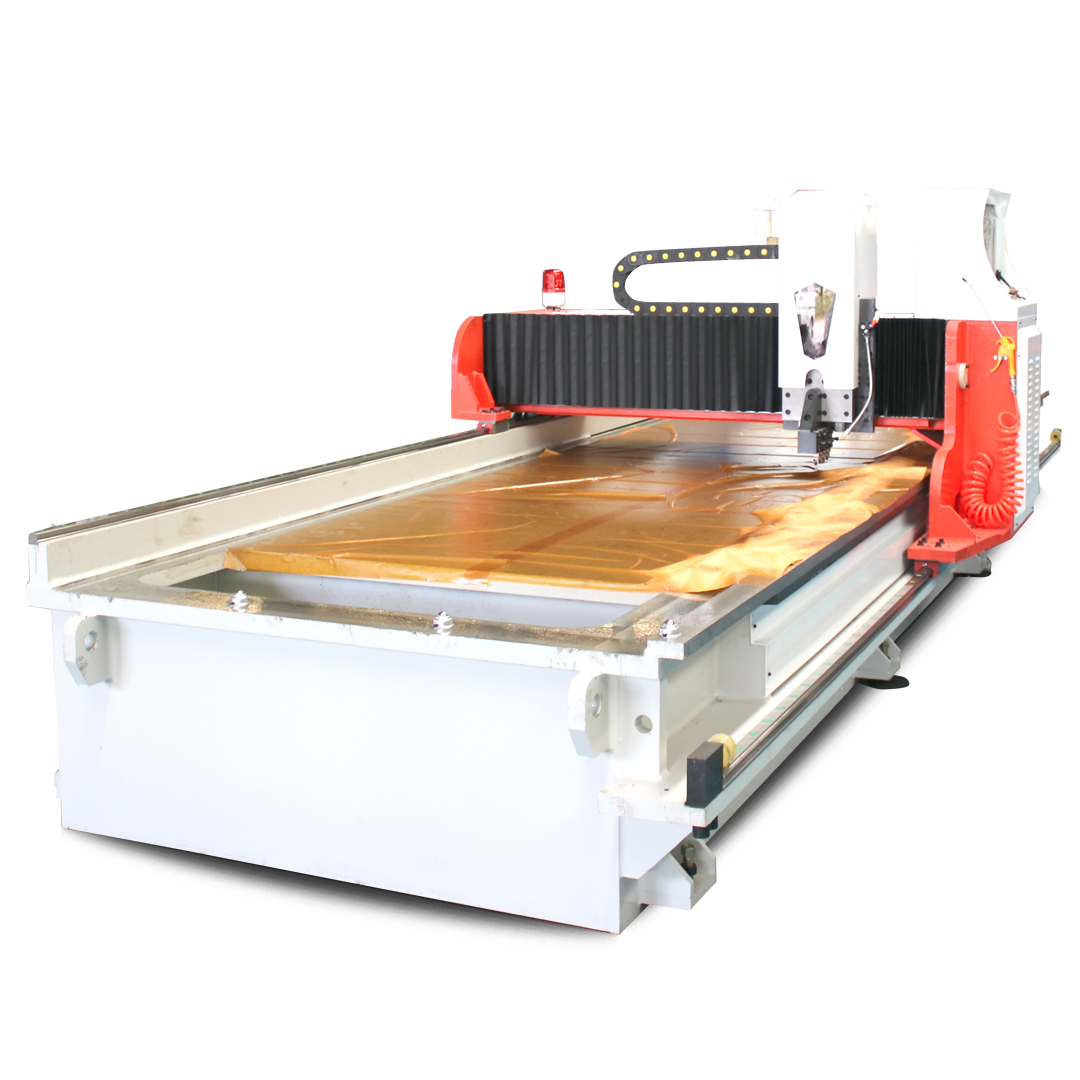

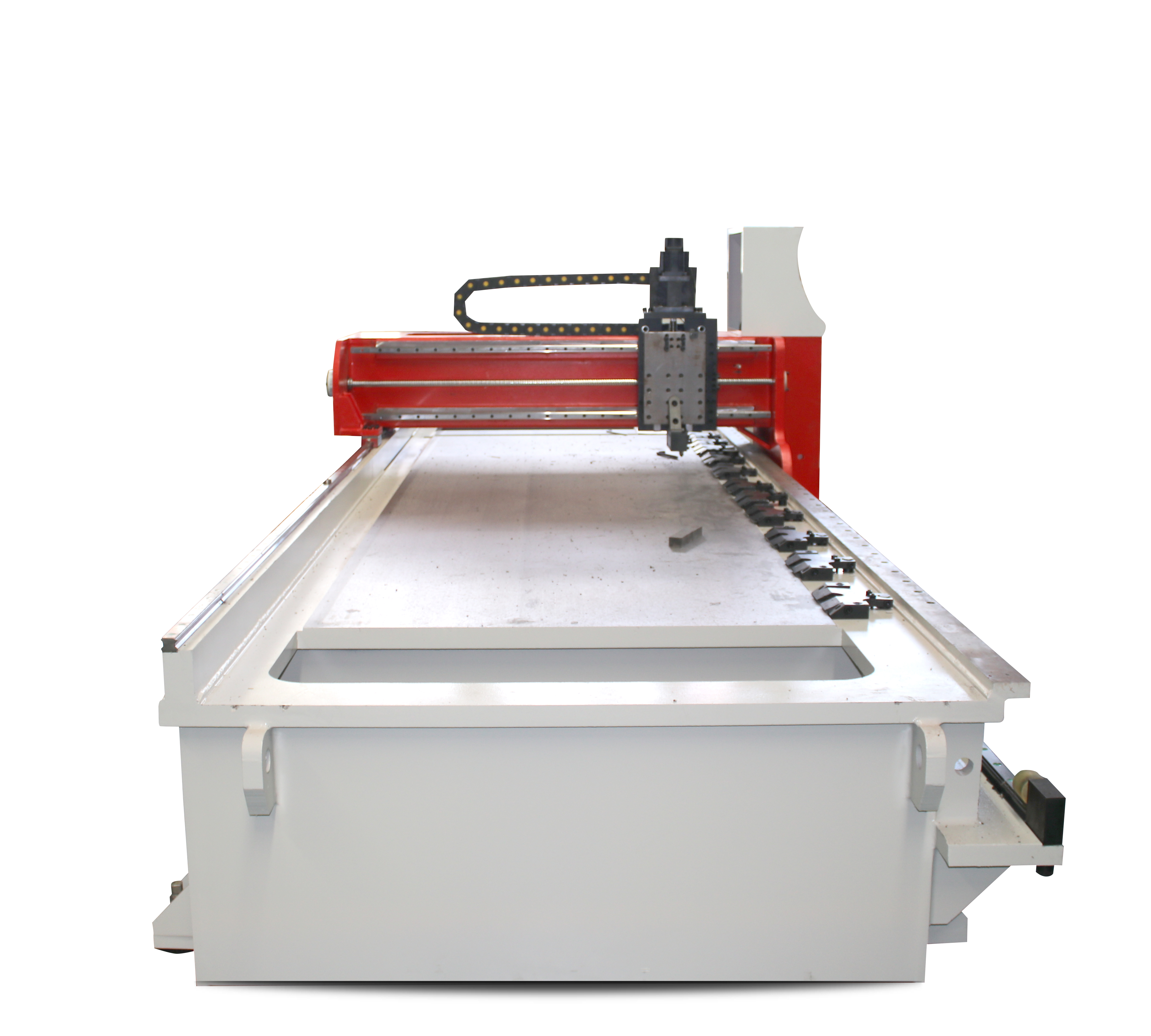

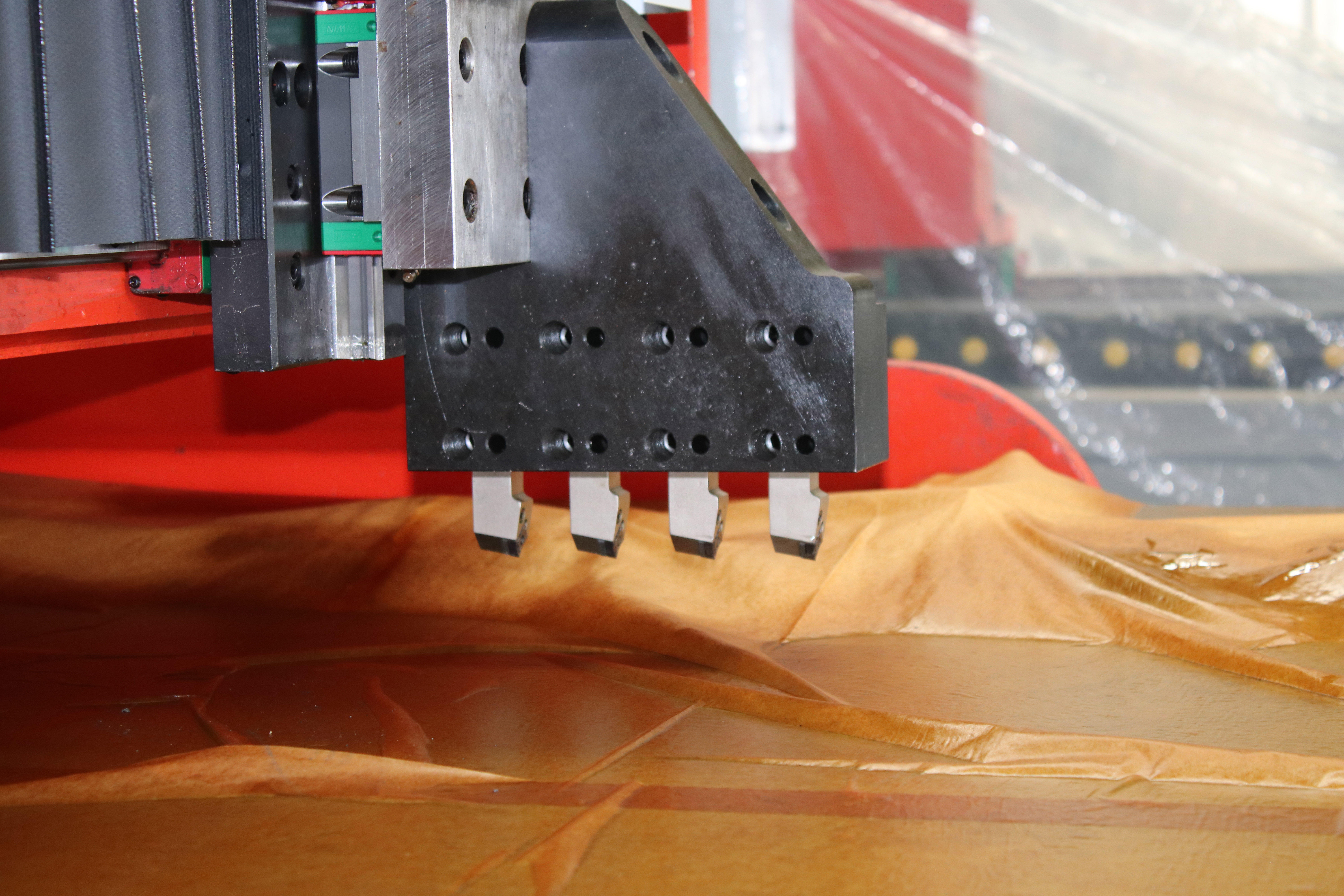

detailed image
product list
No. | Model | aspect |
1 | 1250*3200 | 5300mm*2300mm*1560mm |
2 | 1250*4000 | 6100mm*2300mm*1560mm |
3 | 1250*5000 | 7100mm*2300mm*1560mm |
4 | 1500*4000 | 6100mm*2600mm*1560mm |
