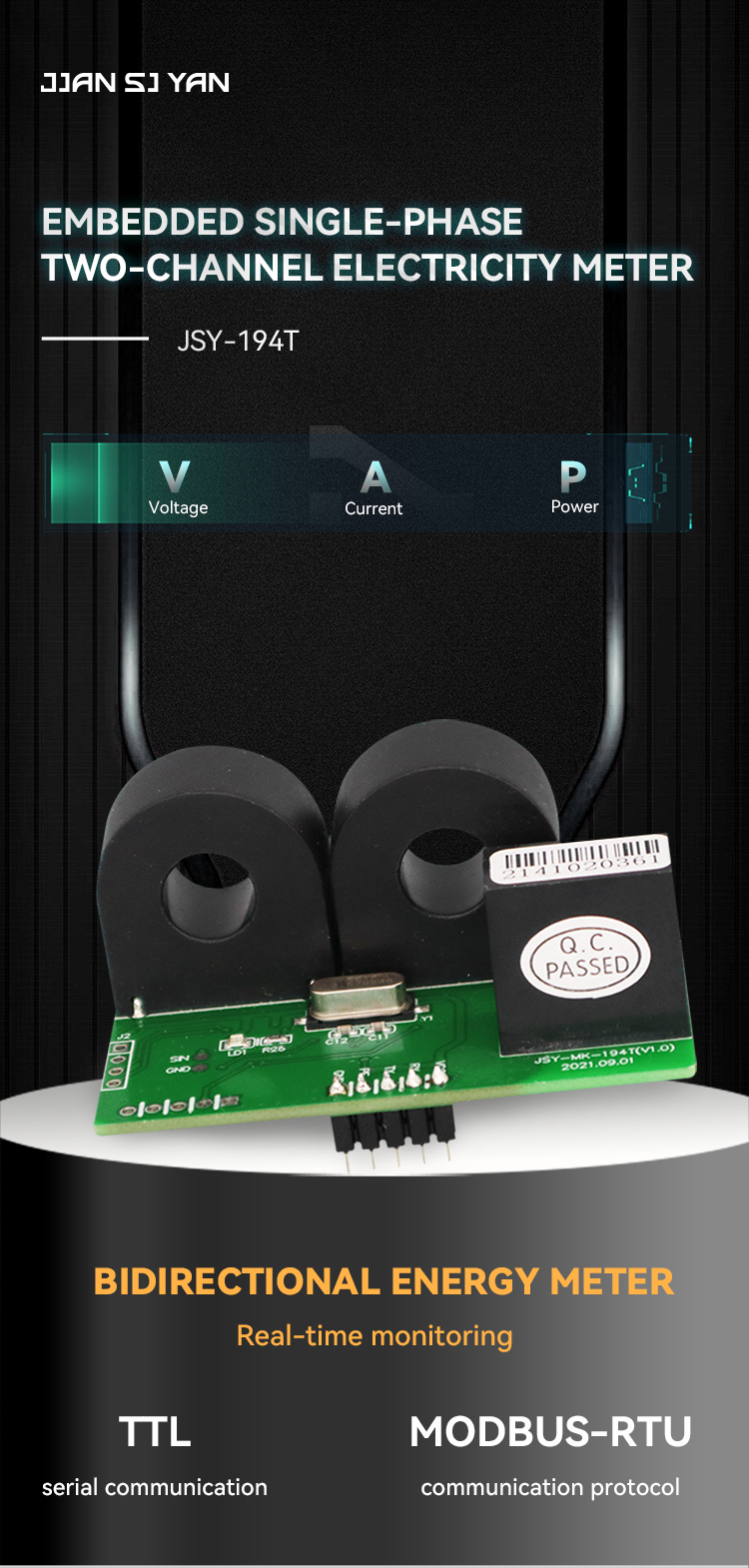

Single-phase electric energy meter two-way electricity metering module JSY-MK-194T TTL 1-way modbus acquisition module
- $15.30 / 5 - 499 pieces
$15.20 / 500 - 999 pieces
$15.10 / 1000 - 4999 pieces
$14.80 / >=5000 pieces - 5 pieces
- Shenzhen Jiansiyan Technologies Co., Ltd.
- Guangdong, China
- Mr lianxin yang
PRODUCT DETAIL
| measurement accuracy: | Voltage, current, power: ±1.0%; active power level 1 | Data Format: | Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2" |
| Input resistance: | Voltage channel>1KΩ/V | Measuring current range: | 1mA-60A external open current transformer |
| Measuring voltage range: | 0~264V | Origin: | Guangdong, China |
| Package preview: | brand: | Ji Shiyuan | |
| aspect: | 68.5*25.5*33.5mm | product name: | Wide Range Embedded Energy Metering Module |
| port: | Ningbo/Shanghai | Current measurement range: | 1mA-60A with external open current transformer model optional |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Operating temperature: | 5-95%, non-condensing (at 40°C) |
| Voltage measurement range: | 0~264V | Interface Type: | TTL communication interface |
| protocol: | MODBUS-RTU protocol | level of accuracy: | 1.0 |
| model: | JSY-MK-194T | Temperature drift: | 5-95%, non-condensing (at 40°C) |
| power supply: | DC single power supply 5V power supply, power consumption 10mA |
product name | Wide Range Embedded Energy Metering Module | ||||||
Voltage measurement range | 0~264V | ||||||
Current measurement range | 1mA-60A with external open current transformer model optional | ||||||
measurement accuracy | Voltage, current, power: ±1.0%; active power level 1 | ||||||
input resistance | Voltage channel>1KΩ/V | ||||||
overload capacity | The range of 1.2 times is sustainable; the range of instantaneous (<20ms) current is 5 times, and the range of 1.2 times of voltage is not damaged | ||||||
power supply | DC single power supply 5V power supply, power consumption 10mA | ||||||
Interface Type | TTL communication interface | ||||||
protocol | MODBUS-RTU protocol | ||||||
communication rate | RS-485 communication interface baud rate can be set to 4800, 9600, 19200bps; | ||||||
Data Format | Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2" | ||||||
Operating temperature | Working temperature: -20-+70℃; Storage temperature: -40-+85℃ | ||||||
temperature drift | ≤100ppm/℃ | ||||||
Relative humidity | 5-95%, non-condensing (at 40°C) | ||||||
Product Size | 68.5*25.5*33.5 mm | ||||||
installation method | PCB welding, module plane size is 68.5*25.5mm | ||||||
