Thruster tunnel
- $20000.00 /unit
- 1 unit
- Chongqing CYS Machinery Co., Ltd.
- Chongqing, China
- Ms Fang Yu
| Function: | drive | part: | Marine outboard rudder propeller |
| blade: | 4 | Name: | marine propeller |
| surface: | Smooth | Propeller Type: | FP Bow Thruster |
| thing: | Azimuth propeller | Packaging Details: | wooden box |
| application: | ocean | payment terms: | letter of credit, wire transfer |
| port: | Shanghai | Supply capacity: | 10 units per month |
| Certification: | other | Diameter (mm): | customer request |
| type: | Accessories | Propeller Material: | steel/copper |

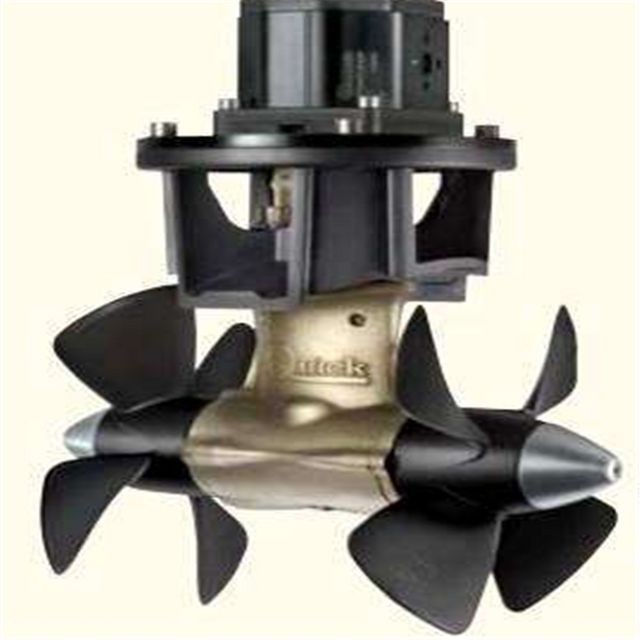

tunnel thruster
Tunnel propellers are divided into CTT controllable pitch propellers and COCC fixed pitch propellers, generally including prime mover, hydraulic system, remote control system and the propeller itself. The prime mover is usually an electric motor; sometimes it can be a diesel engine or a hydraulic motor, which can work under S2-30, S2-60, and S1; the remote system can be connected to Joystick and DP interfaces. The thrusters themselves can be transformed into a retractable configuration when connected to hydraulic cylinders.

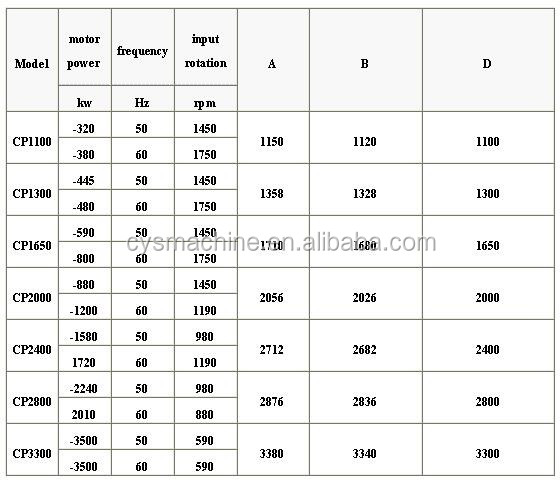

CP power: 320~3500kW, blade diameter: 1100mm~3300mm
CTT power: 50~1000kW, blade diameter: 500mm~2100mm
Performance characteristics
Simplicity and efficiency are what COSC pursues when designing the thrusters. Making parts easy to maintain and interchangeable is our quality assurance for the Tunnel Thruster package.
The large pitched propeller blades increase the blade ratio, which greatly reduces the probability of cavitation, noise and vibration; the reasonable blade tip clearance significantly improves the propulsion efficiency.
The bevel gear is designed and manufactured by ISO-4 grade, which can meet the requirements of different input speeds; the bearing arrangement with long service life and high precision ensures the gear meshing accuracy.
Reliable materials: Blades and hubs are made of high-strength nickel-aluminum bronze, and drive shafts and gears are made of high-quality alloy steel.
drive type
series
Tunnel thruster system
COCC series

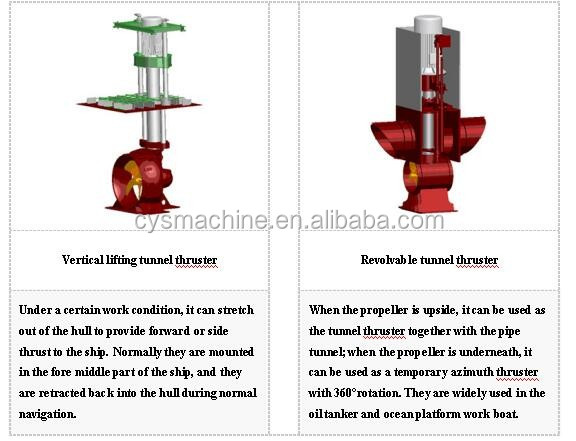

COSC series telescopic tunnel thrusters are variants of COSC CP and FP type tunnel thrusters coupled with hydraulic cylinders.
