Upgraded Msr015 Card Reader with 0.5mm Slim Micro Head
- $220.00 / 1 - 4 sets
$210.00 / 5 - 9 sets
$200.00 / >=10 sets - 1 set
- Shenzhen Topmax Electronics Co., Ltd.
- Guangdong, China
- Mr Yura Yu
| application: | Hotels, shops, banks | Supply capacity: | 1000 sets per week |
| Charge data interface: | USB | brand: | MSR |
| Data transmission method: | serial | place of origin; place of origin: | Guangdong, China |
| port: | Shenzhen | Read range: | 1.2.3 Track |
| data storage: | 2MB, keep 16000 records permanently. | structure: | storage card |
| Battery: | 30mAh and 9mAh rechargeable | Function: | information, encrypted/decrypted |
| Packaging Preview: | Packaging Details: | carton for msr015 card reader | |
| protocol: | ISO 14443A | frequency: | 134.2KHZ |
| payment terms: | Western Union, T/T, MoneyGram | Card Standard: | ANSI, ISO, ABA |
| Swipe direction: | two-way |
Msr014 Msr015 Magnetic Stripe Card Reader
The MSR015 is a portable data logger. It is a portable magstripe card reader designed for capturing magstripe data anytime, anywhere without the need for a computer. Large memory can collect 32000 pieces of data. The built-in clock indicates the date and time of each transaction. The data is read from the card and saved in the internal memory, then downloaded to the computer.
feature:
1. Ultra-low power consumption - less than 10uA when idle, less than 80uA when swiping a card
2. Swipe for bidirectional read interrupt
3. Read all magnetic cards
4. Low pressure operation
5. Swipe direction - bidirectional
6. The data can be downloaded to the computer through the USB cable
7. Timestamp shows the date and time of each transaction
8. Hardware embedded password protection
9. The three-track version can collect all three-track data
10. Full encryption
11. Store 32000 card scans
12. All swipes have timestamps
13. Retain data even if power is lost
14. No programming, easy to use, such as 1-2-3
15. Intermittent data collection
16. Interrupt function
17. The battery is rechargeable

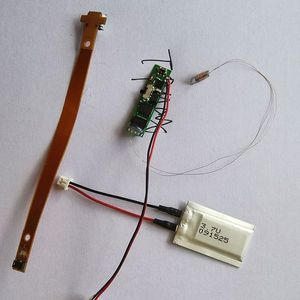

| Board size | Length: 26.75mm, Width: 6.23mm, Height: 1.016mm |
| weight | 10.4 grams |
|---|---|
| electric | Standby current: 75uA working; Current: 3.34-3.50mA; Working voltage: 3-3.7V; Charging voltage: 4.2V |
| CPU | 8-bit microcontroller |
| data storage | 2MB, keep 16000 records permanently. |
| Operating mode | Offline and USB mode |
| Product Description | Small, rechargeable battery, download data via USB cable |
| ISO standard | Track1 210bpi, 79 alphanumeric characters Track2 75bpi, 40 numeric characters Track3 210bpi, 107 numeric characters |
| card standard | ANSI, ISO, ABA |
| operating system | Windows XP, Windows 7 / 8 / 10 |
application:
1. Any removable data collection (trade shows, racing events)
2. Point of sale
3. Law Enforcement (DMV Card)
4. Attendance (student ID, membership card)
5. Meeting attendance
6. Class attendance
7. Attending meetings
8. Door Lock System
International Organization for Standardization Standards:
Track1: 210bpi, 79 alphanumeric characters
Track2: 75bpi, 40 numeric characters
Track3: 210bpi, 107 numeric characters
