VAT1100 100V 100A LCD Digital Wireless DC Voltage Current VA Meter Car Battery Monitor Coulomb Counter Wattmeter

 Specification:

Specification
Model: VAT1100
Voltage measurement range: 0~100V
Voltage resolution: 0.01V
Current measurement range: 0~100A
Current resolution: 0.1A
Relay: optional
Temperature range: -20~120°
Capacity display range: 0%~100%
Power measurement range: 0~200kW
Power resolution: 0.001W
Ah measuring range: 0~2000kAH
Capacity resolution: 0.001AH
Watt-hour measurement range: 0~4000kWH
Watt hour accuracy: 0.001WH
Time measurement range: 0 to 99 days
Time resolution: 1 second
Communication channel range: A ~ Z (26 channels)
Communication address range: 01~99
Voltage accuracy: ±2%+3 characters
Current accuracy: ±5%+10 characters
Sampling rate: 5 times/second
Communication distance: up to 10 meters
Measurement module power consumption: 0.4W
Display module power consumption: 0.5W
NCP:0 ~-30A (negative overcurrent protection setting)
OCP: 0～30A (forward overcurrent protection setting)
OVP: 0~100V (overvoltage protection setting)
LVP: 0~100V (undervoltage protection setting)
Protection delay time: 0～10s

VAT1100 100V 100A LCD Digital Wireless DC Voltage Current VA Meter Car Battery Monitor Coulomb Counter Wattmeter

feature:
1. The shell of the display module adopts sand blasting oxidation process, which is beautiful and generous. The key adopts touch key, which has high sensitivity and long service life.

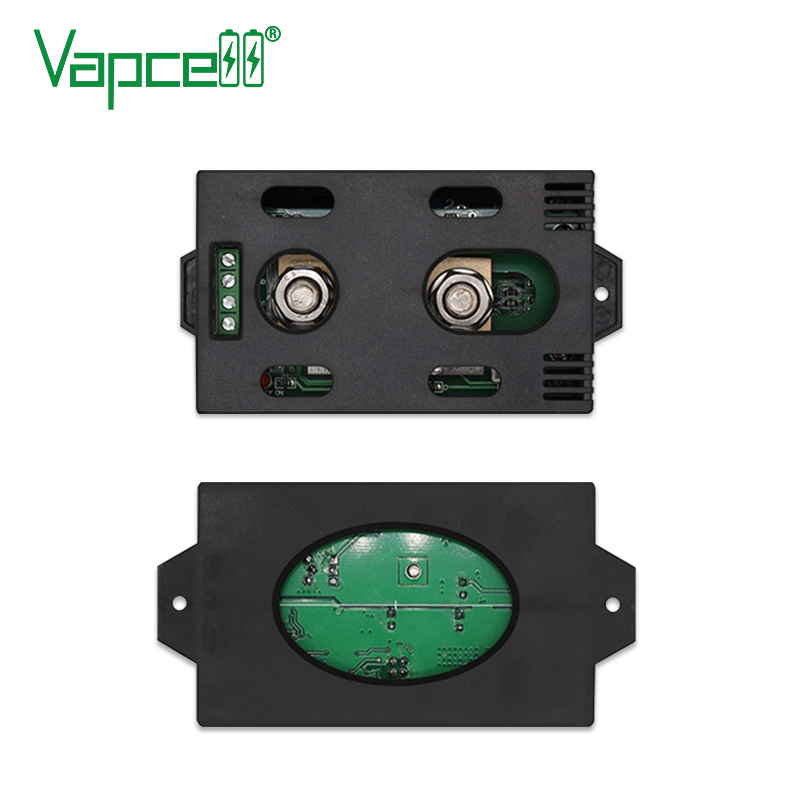

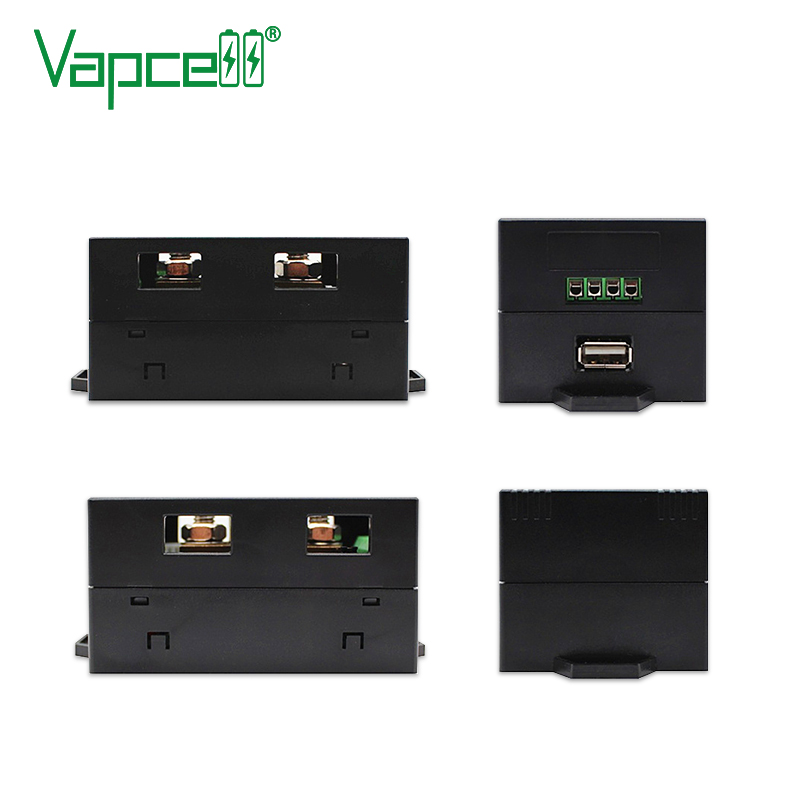

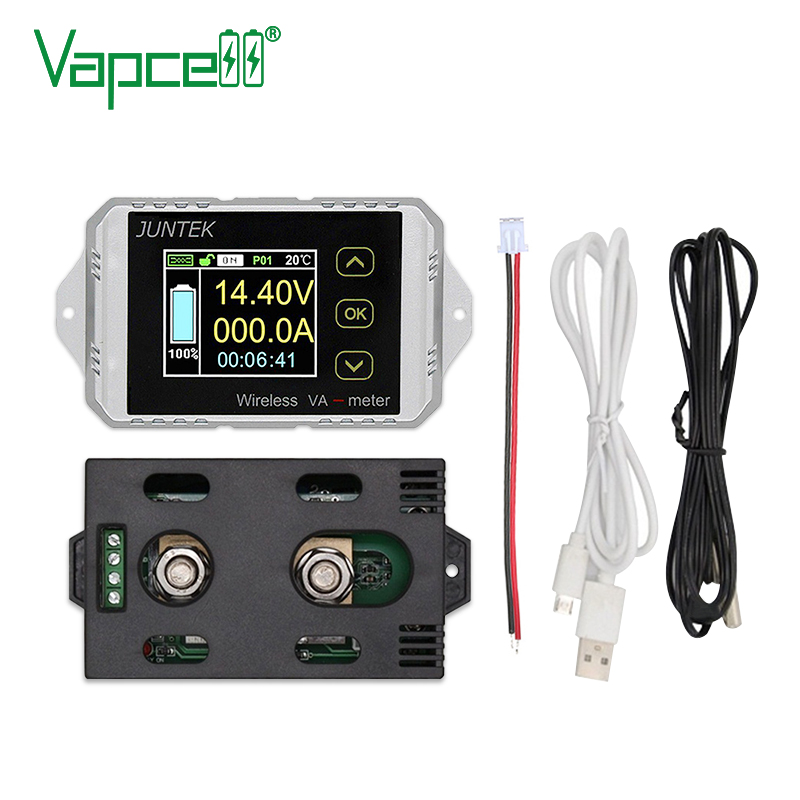

2. The measurement module needs to be connected in series with the circuit under test, and the measurement data is sent to the display module for display. The data between them can be transmitted via USB cable (1 meter long); it can also be transmitted wirelessly through the built-in wireless module. Wireless transmission distance up to 10 meters.
3. The measurement module can detect bidirectional current. There is no need to change the wiring mode during the charging and discharging process of the battery, and the wiring is convenient. model. ).
4. The instrument adds self-calibration function to solve the problem of zero drift of old products. After working for a long time, the current and capacity can still maintain good accuracy.

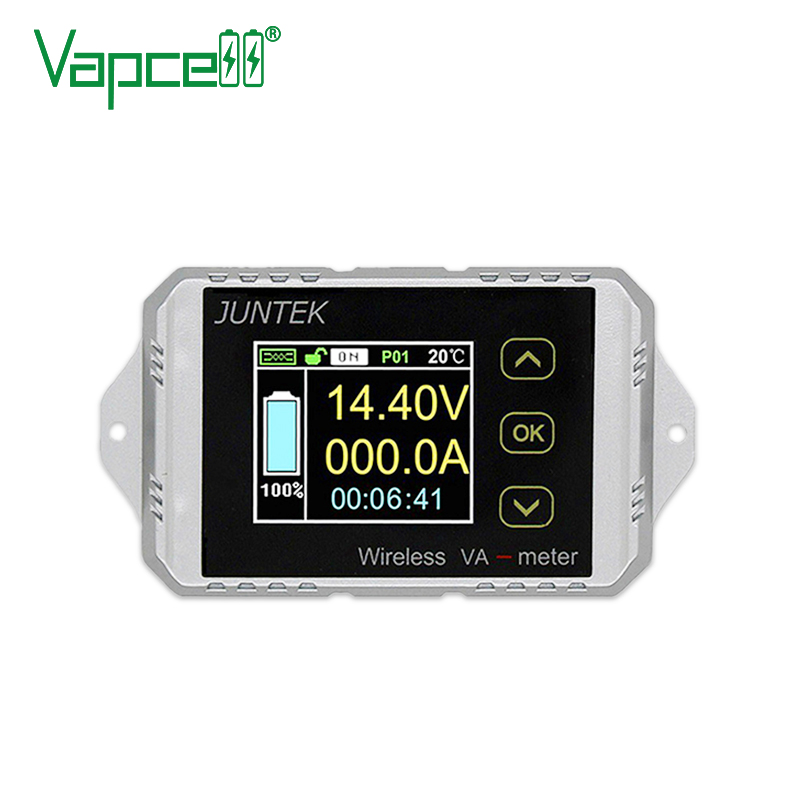

5. The display has three display interfaces. The default display is in large font mode, displaying main parameters such as voltage, current, capacity, temperature, etc. Press any key to switch to full-function display mode. In the full-featured interface, you can set the required parameters, and you can also set the white screen and black screen, and the display screen can be seen clearly even in sunlight.
6. After the measurement module is connected to the relay, it has the functions of overvoltage protection, overcurrent protection and undervoltage protection in the circuit. VAT series models do not include relays, except VAT1030.
7. The ampere-hour, watt-hour and time data can be cleared during the measurement process without affecting the next measurement.
8. Different communication addresses can be set in wireless mode. Multiple machines can work simultaneously without interfering with each other.

illustrate:
1. AT series multifunctional voltage and ammeter can measure the voltage, current, power, watt-hour, temperature and real-time capacity and discharge time during the charging and discharging process of the DC circuit.

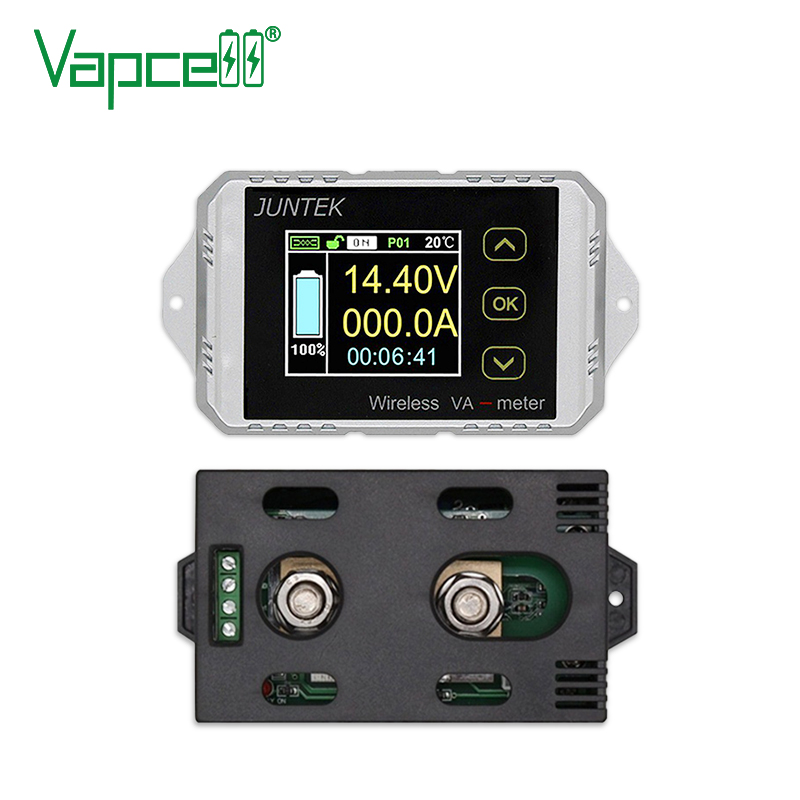

2. The instrument is divided into two parts: measurement module and display module.
3. The display module adopts a 1.8-inch high-definition color LCD display, which is very suitable for electric vehicle battery capacity monitoring and DC circuit working status monitoring.
