conductivity controller EC/TDS-600 TDS controller monitor
- $58.90 / >=5 pieces
- 5 pieces
- Shijiazhuang Bilo Import & Export Co., Ltd.
- Hebei, China
- Mr Ray C
| aspect: | H48*W96*D100mm | Currency output: | Isolated 4-20mA |
| Install: | Panel Mount (Flush) | Measurable voltage range: | 0-5V DC |
| type: | On-line conductivity/TDS | sensor: | 1.0cm -1 Platinum Black, SS 316L Electrode |
| brand: | JIRS | Certification: | CE certification |
| Single package size: | 48X96X110 cm | Range 2: | 0-20 ms/cm |
| custom made: | Yes | Sales unit: | single product |
| model: | EC/TDS-600 | Origin: | Hebei china |
| Range 1: | 0-20/200/2000 microseconds/cm | Packaging Details: | The conductivity controller is packaged in a sturdy carton for long distance shipments by air or sea. |
| accuracy: | 1.5% (full scale) | Control output: | High/low limit relay alarm |
| Name: | Conductivity controller ec 450 | Gross weight per piece: | 2.000 kg |
| Operating temperature: | Normal: 0--50°C, high temperature. 70-100℃ |
Conductivity Controller EC/TDS-600
Online Conductivity Controller,1.0cm Conductivity Monitor-1electrode
- Code: EC/TDS-600
- Measuring range:0-20uS, 0-200uS, 0-2000uS, 0-20mS, 0-20/200/2000ppm.

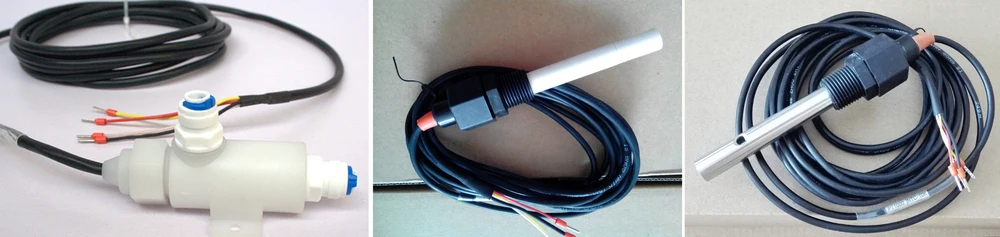

- Matching electrode:1.0cm-1continuous
- Display method:3½ digit daylight LCD,
- Accuracy: 1.5% (full scale),
- ability:±2×10-3(FS)/24h,
- Working pressure: 0-0.5MPa,
- Medium temperature:Normal temperature: 0~50℃,high temperature.:70~100°C
- Temperature compensation: Normal temperature: based on 25°C, automatic temperature compensation High temperature: based on 90°C, automatic temperature compensation
- Output Current:: Isolation Current Output 4~20mA(≤300Ω)
- Control output: maximum and minimum (normally open and normally closed) contact output
- Contact rating:7A/AC250V (with resistive load)
- Environmental conditions: Temperature: 0-50°C; Humidity: ≤85%RH
- power supply: AC 220V±10% 50/60hertz,AC 110V±10% 50/60Hz

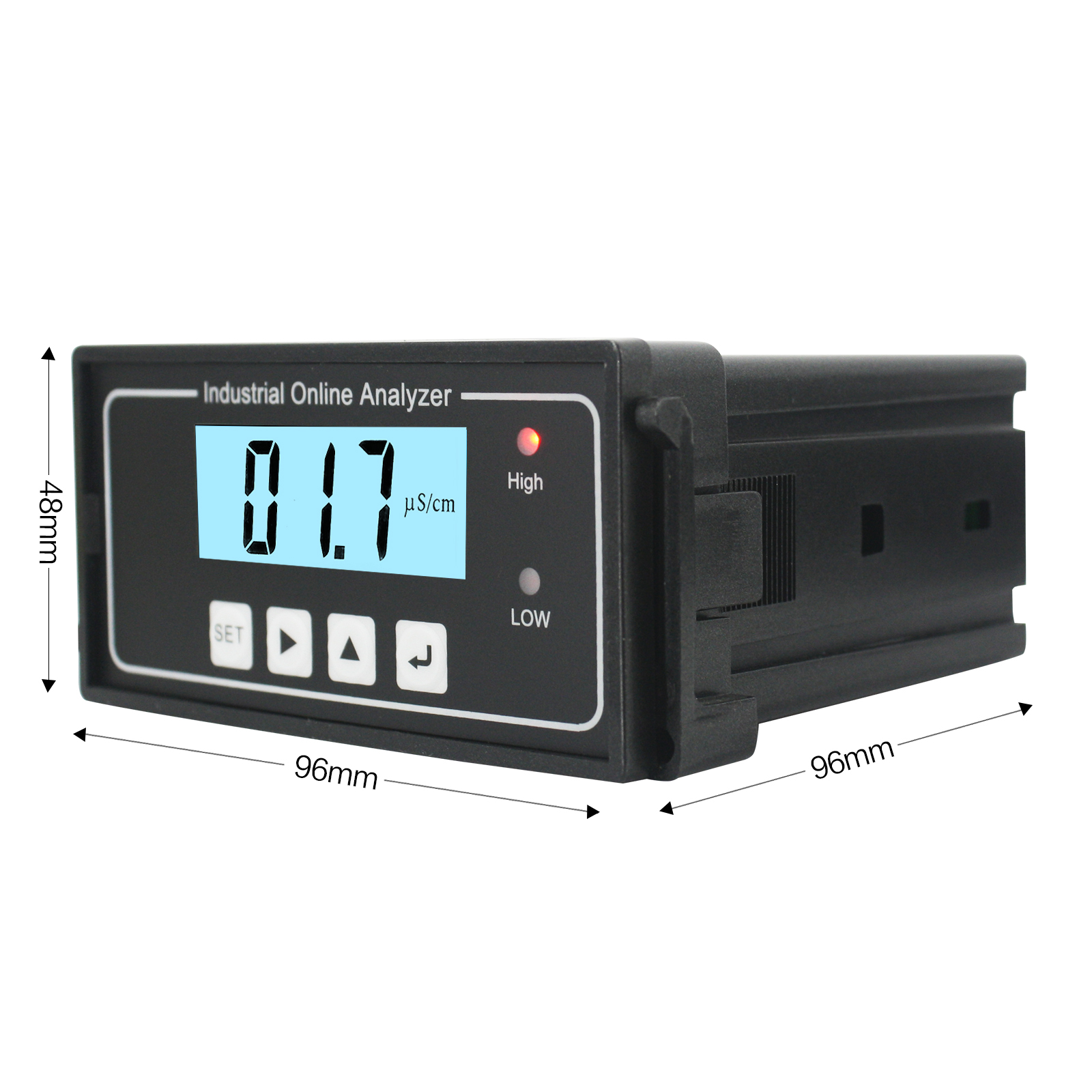

- Dimensions: 48×96×100mm (height×width×depth)
- Hole size:45×91mm
Conductivity controller EC 411, EC 450
|
Function Model |
EC500 |
EC 600 |
|
scope |
0~20/200/2000 μS/cm; 0~20/200/2000 ppm; 0~20 mS/cm |
|
|
accuracy |
1.5% (full scale) |
|
|
temperature. Compare. |
Normal temperature: based on 25°C, automatic temperature compensation |
|
|
High temperature: based on 90°C, automatic temperature compensation |
||
|
operating temperature. |
Normal temperature: 0~50℃ |
|
|
High temperature::70~100°C |
||
|

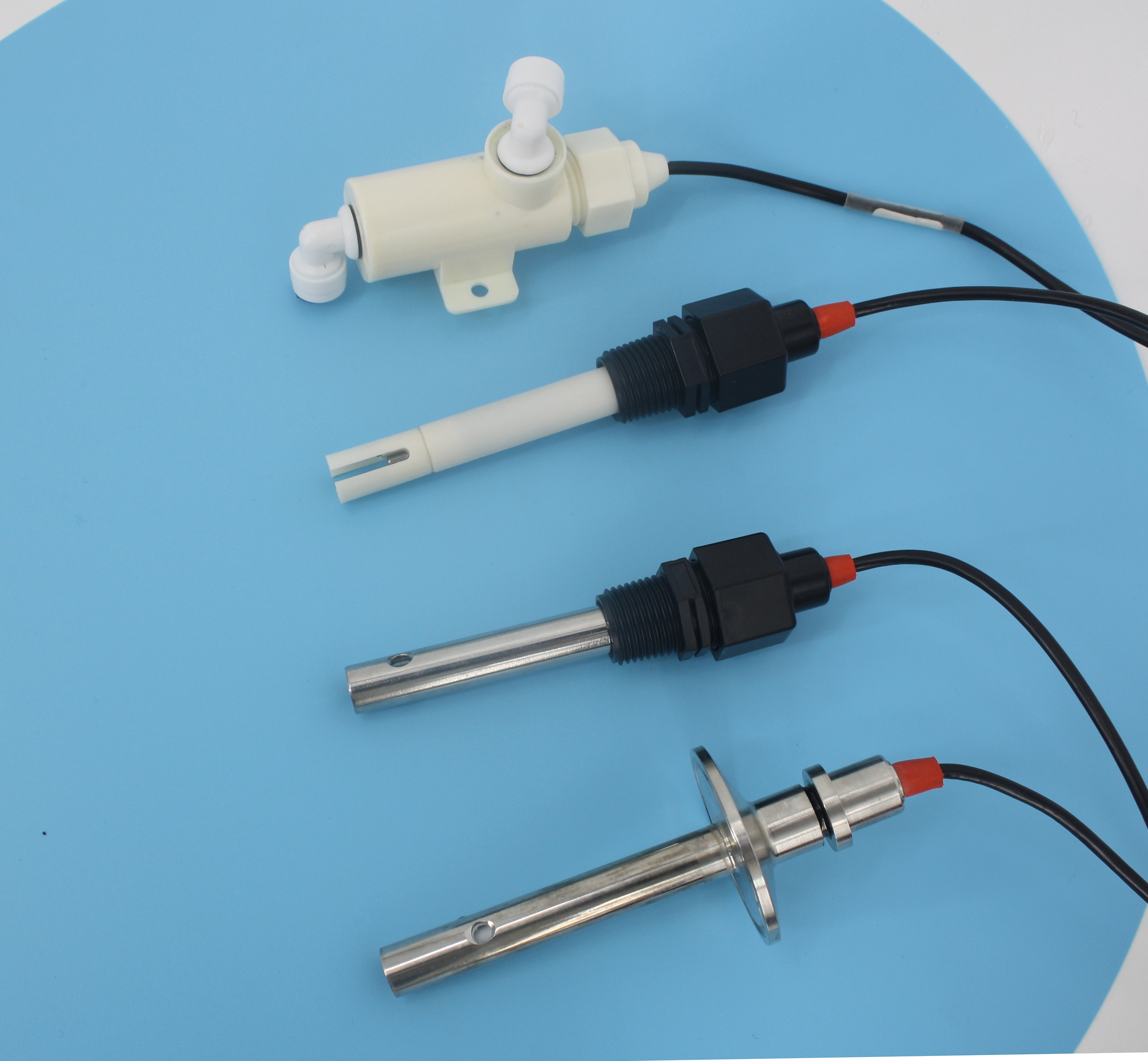

sensor |
1.0cm-1 Pt. Black or SS316 electrode |
|
|
exhibit |
3½-digit LCD |
|
|
Current output signal |
— — — |
4-20mA current signal output |
|
control output signal |
ON/OFF upper limit relay alarm |
|
|
strength |
AC 110/220V±10%, 50/60Hz |
|
|
working environment |
ambient temperature. 0~50℃, relative humidity≤85% |
|
|
Dimensions |
48×96×100mm (height×width×depth) |
|
|
hole size |
45×92mm (height×width) |
|
|
installation method |
Panel Mount (Flush) |
|
Conductivity ControllerPacked in a sturdy carton suitable for long-distance shipping, with colorful labels
Available upon request on the carton.
1.Conductivity ControllerShipping by express DHL, TNT, EMS etc. will be available upon request, which will take 3-5 days.
2. For large orders, it will take 5-7 days for different regions.
3. Shipping by sea for non-urgent bulky orders.
- Commercial terms: FOB, C&F, CIF, DDU, DDP are acceptable.
- We accept Western Union, T/T, L/C, PayPal and other payment methods.
If you want more detailed information. about usConductivity Controllerand our company,
Please check out our website:www.watequipment.com
or email me:Information on watequipment.com.
Or add me on Skype: sunnylee301
or QQ: 544432716
