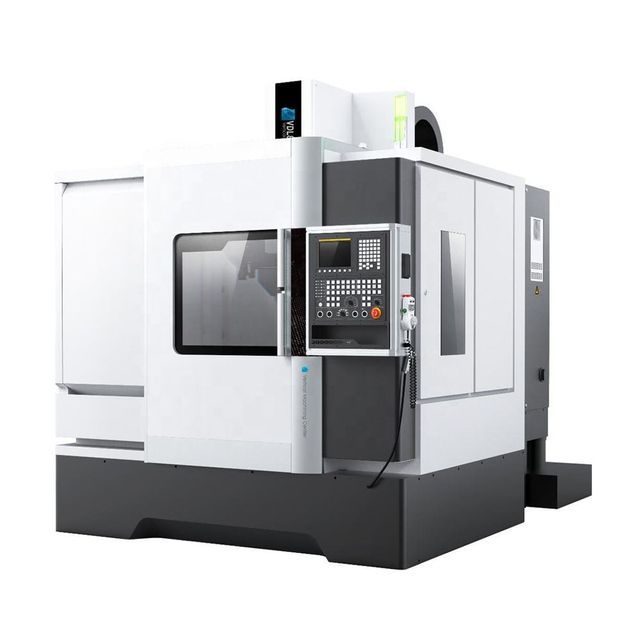

VDL1000 DMTC brand low price 3 axis cnc milling machine vertical lathe
- $12400.00 / 1 - 4 sets
$12100.00 / 5 - 9 sets
$11500.00 / 10 - 14 sets
$10500.00 / >=15 sets - 1 set
- Dalian Dahui Machine Tool Co., Ltd.
- Liaoning, China
- Mr Hui Liu
| Dimensions (L*W*H): | 2900*2280*2500 | Showroom location: | not any |
| CNC system: | FANUC | type: | vertical |
| model: | VDL1000 | Weight (kg): | 7000 |
| Mechanical test report: | if | Processing capacity: | medium |
| Core component warranty: | 1 year | Table travel (Z) (mm): | 550 |
| port: | Dalian | Health status: | new |
| Table travel (Y) (mm): | 550 | X/Y/Z axis: | 24/24/18 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Video shipment inspection: | if |
| Spindle motor power (kW): | 15/11 FANUC | Table travel (X) (mm): | 1000 |
| brand: | DMTC | Core components: | gear, other |
| Spindle: | High speed and high precision | Repeatability (X/Y/Z) (mm): | X, Z: 0.010 Y: 0.008 |
| Main selling points: | multifunctional | Spindle taper: | Number 40 (7:24) |
| Positioning accuracy (mm): | X, Z: 0.018Y: 0.014 | Marketing Type: | 2019 Hot Products |
| Packaging Details: | The first layer of plastic sheeting, the second layer of canvas, and finally packed in wooden boxes with pallets at the bottom of the wooden boxes. | After-sales service provided: | Overseas service center available |
| Spindle type: | Gear transmission structure | Spindle bearing: | high performance |
| Origin: | Liaoning, China | Number of axes: | 3 |
| Basic part: | high steel | Year: | 2022 |
| Internal structure: | very stable | Applicable industries: | manufacturing plant |
| maximum. Table load(kg): | 7000 kg | Spindle speed range (rpm): | 45 - 10000 |
| Spindle maximum speed: | 8000/10000 (operating) rpm | main body: | high steel performance |
| Warranty: | 1 year | Supply capacity: | 40pcs VDL1000 DMTC brand low price 3 axis cnc milling machine per month |
| Product Category: | VDL 1000 DMTC brand low price 3 axis cnc milling machine |

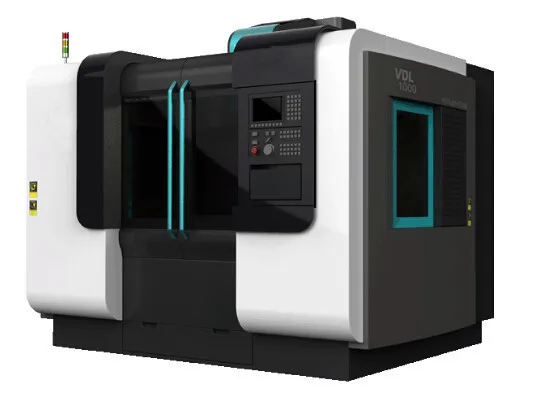

VDL1000 DMTG Brand Low Price Three Axis CNC Milling Machine
feature
1. High-strength casting technology
The foundation, column, spindle box, cross slide table, workbench and other components are designed with high-strength casting technology. The internal metallographic structure is very stable. Through machine tool dynamics and finite element analysis, the casting geometry is reasonable.
2. High rigidity
The base part is matched with the reinforcing rib, which has high rigidity. The wide foundation, box-shaped hollow column, widened and extended sliding base, and advanced material mechanics design ensure the load-bearing capacity.
3. High speed and high precision spindle
High-torque toothed belt transmission is adopted, the motor does not slip, and noise and heat are avoided.
4. CE safety standard basis
Compliant with CE safety regulations, the wiring inside the electrical box can control the system without external interference. The courtyard heat exchanger is used to maintain a constant temperature and make the control system work stably for a long time.
5. High-precision laser measuring instrument
The high-precision pitch compensation design can make the spindle positioning more accurate, and can process high-precision parts through high-precision laser measuring instruments.
parameter
|
index name |
unit |
VDL600A |
VDL800 |
VDL1000 |
VDL1200 |
|
working desk size |
mm |
800×420 |
900×420 |
1120×560 |
1200×620 |
|
The maximum load capacity of the workbench |
Kilogram |
500 |
500 |
750 |
1200 |
|
X/Y/Z travel |
mm |
600/420/520 |
800/420/520 |
1020/560/600 |
1200/600/675 |
|
The distance from the top surface of the spindle to the table surface |
mm |
150 |
150-670 |
135-735 |
100-775 |
|
Spindle speed |
Rotating speed |
8000/10000(operation) |
6000/8000(operation) |
||
|
X/Y/Z rapid movement |
m/min |
24/24/20 |
24/24/20 |
24/24/18 rails |
|
|
Tool magazine capacity (bamboo hat/manipulator type |
|
16/24 |
16/24 |
20/24 |
/twenty four |
|
Machine size |
mm |
2246*2372*2317 |
2246*2372*2317 |
2900*2280*2500 |
3080*2400*2780 |
|
weight |
Kilogram |
4800 |
5200 |
7000 |
8000 |
