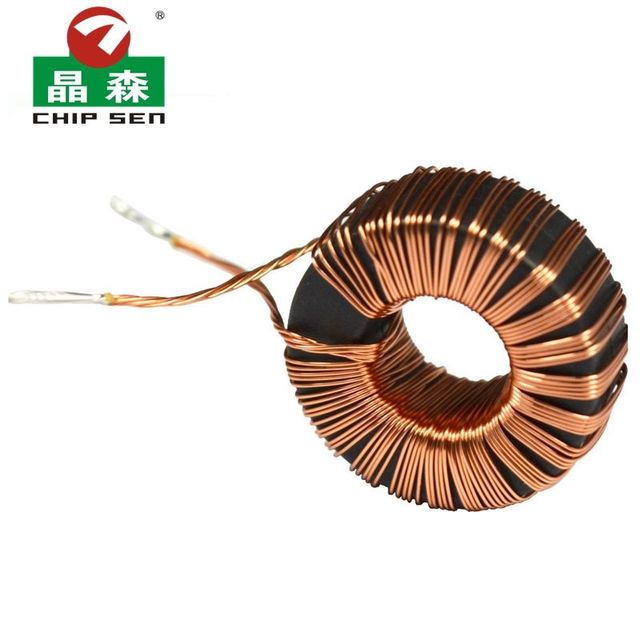

Variable high current inductance winding ferrite core Common mode power throttle
- $0.50 / 1 - 4999 pieces
$0.35 / 5000 - 9999 pieces
$0.12 / >=10000 pieces - 1 piece
- Dongguan Chipsen Electronics Technology Co., Ltd.
- Guangdong, China
- Mr Jacky Wong
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | lead wire: | Tinned copper wire |
| inductance: | 0.5-1000(mH) | Supply capacity: | 500000 pieces/month negotiation |
| model: | T20*12*8 | nuclear: | Ferrite Core |
| port: | Shenzhen | type: | Inductor lead |
| working frequency: | high frequency | Card: | Chipson |
| Packaging Details: | Standard export packaging | Installation type: | upright |
| tolerant: | custom | capacitance: | 0.5(F) |
| place of origin; place of origin: | Guangdong, China | brand: | Chipson |
| application: | electronic product |
| title | toroidal inductor |
| Types of Coils We Offer | Wireless Charger Coils, Air Coils, Flat Coils and Other Coils. |
| Element | self-adhesive copper wire |
| wire diameter | 0.01-4.0mm |
| shape | square or round |
| Storage temperature | -25-85°c |
| Operating temperature | -40-100°c |
| Storage humidity | 30% to 95% |
| Test items | Ø Maximum size Ø Inductance Ø DC resistance Ø Insulation resistance Ø Pressure cooker |
| Certification | ISO9001:2008, ISO14001:2008, UL, CQC. |
| Minimum order quantity | 1000 |
| OEM | acceptable |
| sample | free |
| sampling time | 3-5 working days |
| pack | EPE foam + export carton, or plastic pallet + export carton |
| delivery time | 7-15 days after order confirmed |
| feature | Antenna coils (square, helical and circular) · IC coil (square, round, oval) · Low profile without skeleton · Wide inductance range · Wide DCR range · Single or multilayer coils. · RoHS certification |
| application | Switching Regulators and Automotive Systems / Power Amplifiers / Power Supplies / Thyristor Control Networks / EM / RFI Suppression / Mobile Phone Series, Iphone 4S, Iphone 5S, Lenovo, SAMSUNG, Ipad, MIONE, Nokia, etc. |
choke coil
Specification:
1 high frequency
2 Low leakage flux
3 Useful for various power coverage and line filter applications
4 Low radiation noise based on ring structure
5 kinds of materials are available to meet different frequency requirements.
6 Special specifications available upon request
7 Main competitive advantages: regional countries; accept small orders; experienced technicians; pass ISO, RoHs, UL; standard packaging
application:
1. Switching power supply output and smoothing circuit
2. Used as a choke coil for high frequency SMP
3. Spike and ripple countermeasures
4. EMI/RFI filter
5. DC/DC converter
6. IP and OP equipment
Our products will be your best choice.
Welcome to provide us with your specifications. We will submit the best offer as soon as possible.
Do not hesitate to contact us, we will try our best to satisfy you within our ability.
Why choose us:
1. 12 years experience.
2. High quality products.
3. Competitive price.
4. OEM projects.
5. Short delivery time.
6. Samples are free.
7. The sample delivery time is short.
8. Has complete production machines and experienced workers.
9. Friendly atmosphere and comfortable environment, composed of Chisen family
10. We have obtained UL insulation system, ISO 9001:2008, ISO1400 certification, ROHS SGS report.
