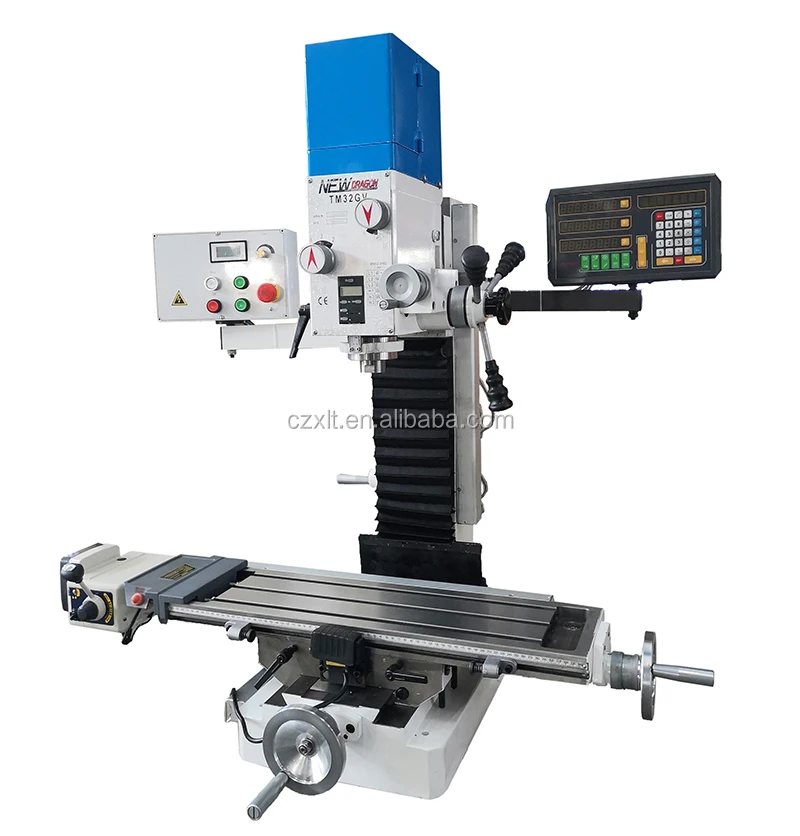

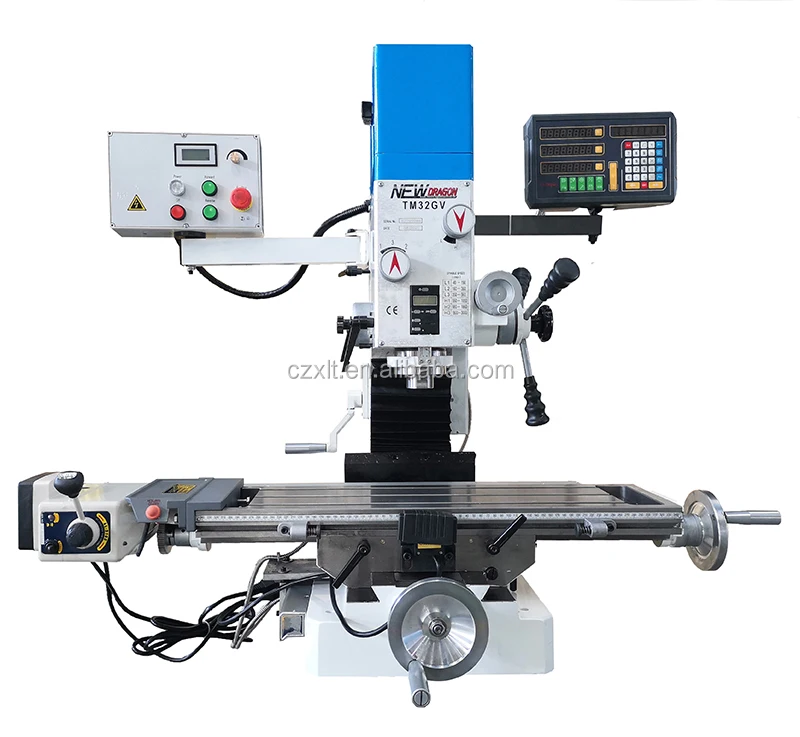

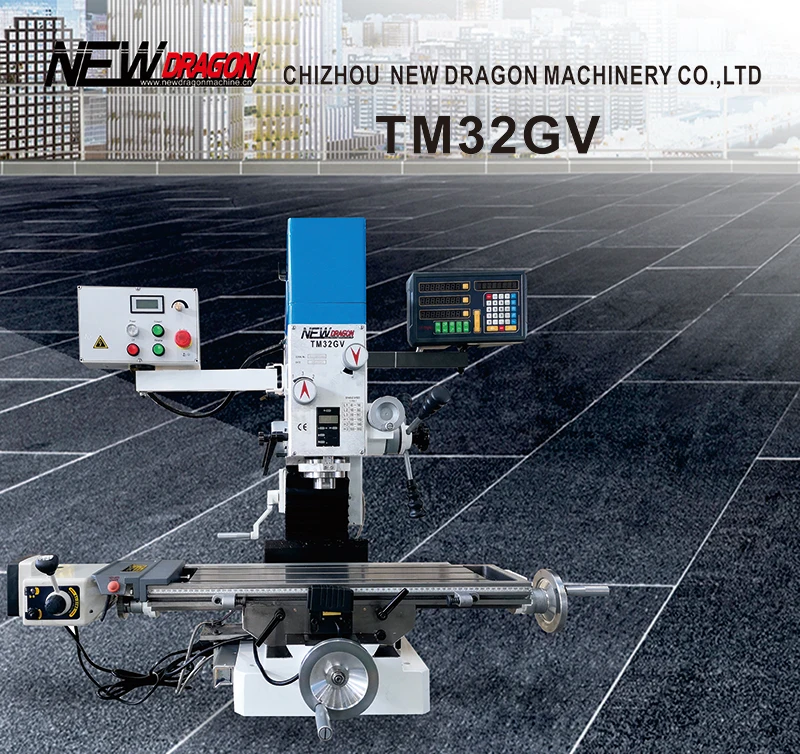

Variable speed milling machine 32mm TM32GV with brushless motor 1500W mini milling machine
- $1230.00 / 1 - 4 sets
$1170.00 / >=5 sets - 1 set
- Chizhou New Dragon Machinery Co., Ltd.
- Anhui, China
- Mr GUANGQING XU
| Table Travel (mm): | 700X190mm; | Range of Spindle Speed(r.p.m): | 50 - 3000 r.p.m; |
| Weight (KG): | 230; | Table Travel (Y) (mm): | 230; |
| Supply Ability: | 200 Set/Sets per Month; | Table Travel (X) (mm): | 380; |
| Packaging Detail: | wooden case; | Brand Name: | NEW DRAGON; |
| Type: | VERTICAL; | Voltage: | 220/110/120V; |
| Video outgoing-inspection: | Provided; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Home Use; |
| Condition: | New; | Machining Capacity: | Light Duty; |
| Payment Terms: | L/C,D/P,T/T; | Number of Axes: | 3; |
| Power(W): | 1500W; | Place of Origin: | Anhui China; |
| Machinery Test Report: | Provided; | CNC or Not: | Normal; |
| Marketing Type: | Hot Product 2019; | Spindle Taper: | R8, MT3; |
| Table Travel (Z) (mm): | 350; | Warranty: | 2 years; |
| Showroom Location: | None; | Warranty of core components: | 1 Year; |
| Key Selling Points: | High Rigidity; | Weight: | 230KG; |
| Model Number: | TM32GV; | Core Components: | Bearing,Motor,Gear; |
| Port: | FOB Shanghai; |
|
Model |
TM32GV |
|||
|
Max. Drilling capacity |
32mm |
|||
|
Max. Face milling capacity |
63mm |
|||
|
Max. End milling capacity |
20mm |
|||
|
Swivel angle of head-stock at perpendicular direction |
±90° |
|||
|
travel Spindle |
85mm |
|||
|
Max. Distance between spindle nose and table |
445mm |
|||
|
Distance between spindle axis and surface of square column |
203mm |
|||
|
Spindle taper |
MT3 |
|||
|
Spindle speed
|
L1 |
40-190 |
H1 |
550-1000 |
|
L2 |
180-360 |
H2 |
980-1860 |
|
|
L3 |
350-560 |
H3 |
1800-3000 |
|
|
T-solt |
3x12mm |
|||
|
Forward and backward travel of table |
150mm |
|||
|
Left and right travel of table |
390mm |
|||
|
Table size |
700mm×190mm |
|||
|
Motor |
1500W,3000r/min |
|||
| Weight | 220/260kg | |||
| Packing size | ||||
Standard accessories
|
1 |
Double-head wrench 22mm×24mm |
|
2 |
Allen wrench 5mm,6mm |
|
3 |
Screw driver(-) 150mm |
|
4 |
Drill stock |
|
5 |
Drill chuck |
|
6 |
Wedge |
Optional accessories:
|
1 |
QH80 machine vice |
|
2 |
58pcs tool clamping kit M12 |
|
3 |
DRO 3 axis |
|
4 |
HSS end mills 2-12mm 8PCS |
|
5 |
Auto feeder for table |
|
6 |
Milling chuck set ER25 8pcs |
|
7 |
stand and oil tray |
|
8 |
HSS end mills 3-20mm coated 20pcs |
