SP2240 16mm drilling capacity factory best prices milling machine tool for sale
- $350.00 /set
- 1 set
- Shanghai Sumore Industrial Co., Ltd.
- Shanghai, China
- Ms Tobey Yu
PRODUCT DETAIL
| Range of Spindle Speed(r.p.m): | 50 - 2500 r.p.m; | Dimension(L*W*H): | 640x570x720mm; |
| Payment Terms: | L/C,T/T; | Model Number: | SP2240; |
| Video outgoing-inspection: | Provided; | Table Travel (X) (mm): | 300 mm; |
| Longitudinal travel(X): | 250/300mm; | Drilling capacity: | 16mm; |
| Port: | Shanghai Port; | Key Selling Points: | Competitive Price; |
| Spindle Motor Power(kW): | 0.55; | Spindle Taper: | MT3; |
| Table Travel (Z) (mm): | 180 mm; | Showroom Location: | Viet Nam; |
| Voltage: | Customer Requirement; | Machining Capacity: | Light Duty; |
| Condition: | New; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Home Use,Retail; |
| Table Travel (Y) (mm): | 130 mm; | Place of Origin: | Shanghai China; |
| Working table size: | 410/460*112mm; | Weight (KG): | 80; |
| Spindle rotary angle: | -45°~+45°; | Color: | Customized Option; |
| Spindle stroke: | 180mm; | Spindle taper: | MT3; |
| Warranty: | 1 Year; | Number of Axes: | 3; |
| Type: | VERTICAL; | Brand Name: | Sumore Machinery; |
| Warranty of core components: | 1 Year; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Machinery Test Report: | Provided; | Marketing Type: | Hot Product 2019; |
| Supply Ability: | 1000 Set/Sets per Month; | Local Service Location: | Viet Nam; |
| Face milling capacity: | 13mm; | Cross travel(Y): | 100/130mm; |
| Core Components: | Gearbox; | Certification: | CE/ISO/SGS; |
| End milling capacity: | 30mm; |
Product Description

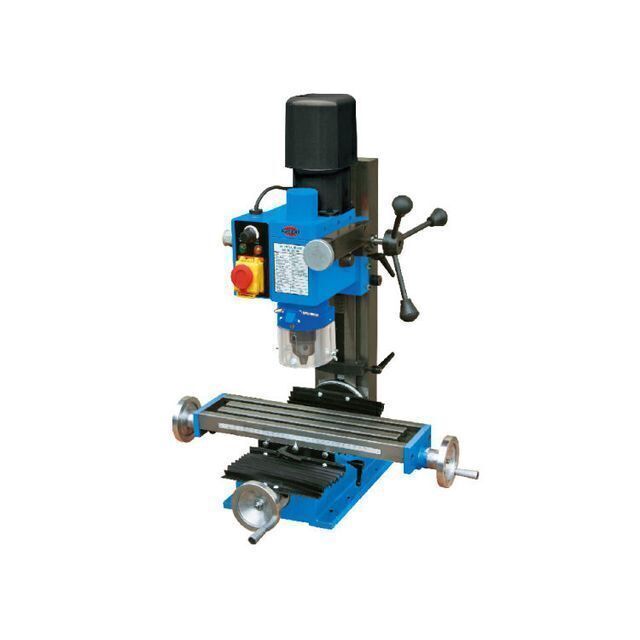

SP2240 16mm drilling capacity factory best prices milling machine tool for sale
Looking for excellent milling machine? Check out our generous range of various metal-working appliations from bench lathe, milling machine, band saw, drilling machine,surface grinder to the spareparts & accessories related from Sumore Machinary.
Sumore SP2240 milling machine belongs to one of our most economic manual milling machine, compare to normal larger gear head lathe,it has unique advantage,such as smaller size,lighter weight,lower noise,high accuracy and so on. It's relatively simply structure also remain in full rigid and high strength hardened steel base construction.
Specification
| Model | SP2240 |
| Drilling Capacity | 16 mm |
| End Milling Capacity | 13 mm |
| Face Milling Capacity | 30 mm |
| Longitudinal Travel (X) | 250 / 300 mm |
| Cross Travel (Y) | 100 / 130 mm |
| Spindle Stroke (Z) | 180 mm |
| Spindle Rotary Angle | ±45° |
| Working Table Size | 410 / 460 x 112 mm |
| Spindle Taper | MT3 |
| Spindle Speed Range | 50 - 2,500 rpm |
| Motor Power | 550 W |
| Voltage and Frequency | Customrized |
| Net Weight | 62 kg |
| Packing Size (LxWxH) |
570 x 510 x 740 mm / 640 x 565 x 720 mm |
| Gross Weight | 80 kg |
