Waterproof light 16mm metal 4 pin momentary led push button connection
- $3.00 / 1 - 99 pieces
$2.50 / 100 - 999 pieces
$2.00 / >=1000 pieces - 1 piece
- Yueqing Haifei Electronics Co., Ltd.
- Zhejiang, China
- Mr Victor Gao
PRODUCT DETAIL
| Gross weight per piece: | 0.031 kg | Maximum voltage: | 250VAC |
| Shell Metal: | stainless steel/copper | Sales unit: | single product |
| Launch Type: | Ring LED/Dot LED/Symbol LED | Light Color: | red green yellow blue white orange purple pink |
| Waterproof/Protection: | IP67 IK10 | place of origin; place of origin: | Zhejiang, China |
| product name: | 16MM Waterproof Momentary/Locking Metal Push Button Switch | model: | HF-P16 |
| Protection class: | IP67 IK10 | head type: | Flat head / high head |
| maximum. Voltage: | 250V | maximum. current: | 10A |
| Packaging Details: | Blister packaging+foam+color box or as your request | brand: | high frequency |
| Single package size: | 30X20X10 cm | Operation Type: | momentary or locking |
| LED voltage: | 2V/3V/6V/12V/24V/36V/110V/220V/250V | diameter: | 16mm |
Product Description

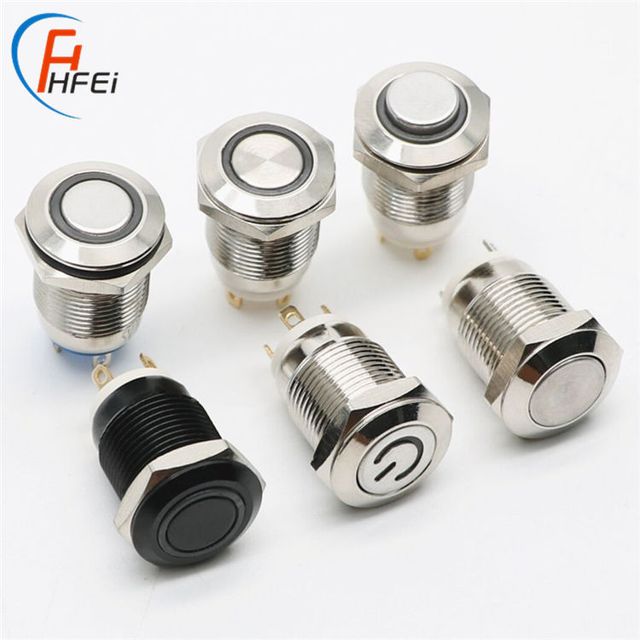

Waterproof Light 16mm Metal 4 Pin Momentary LED Push Button Switch Connection
| Product parameters | |||
| project | scope | project | scope |
| contact details | slow motion single contact | running schedule | Connection: 1.8mm, Total: 3.5mm |
| Contact resistance | ≤50mΩ | driving force | about 8N |
| Insulation resistance | ≥1000mΩ | Mounting plate thickness | ≤11mm or other customized |
| Dielectric strength | 1000VAC minimum | Nut torque | 5~14N.m |
| ambient temperature | -30℃~+80℃ | Shell/Key | Stainless steel/Copper/Alumina |
| Electrical life | 100000 cycles | substrate | PA66 |
| Mechanical life | Latch 200,000 cycles Instantaneous 800,000 cycles | Translucent cover | personal computer |
| Protection class | IK10 | pin contact | Copper plated silver bars |
| waterproof level | IP67 | spring | steel wire |
| LED light parameters | |
| project | scope |
| LED symbols | Ring / Power Symbol / Dot / Ring + Power Symbol / Customize |
| LED color | red, green, blue, yellow, orange, white, purple, pink |
| Rated voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated current | ≤20mA |
| reference life | 40,000 hours |

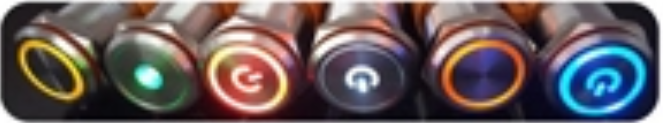

Product display
