soken 16a 250vac t100/55 listed 16a t85 55 250v kdc4 bipolar rocker switch with light
- $0.01 /piece
- 1 piece
- Yueqing Haifei Electronics Co., Ltd.
- Zhejiang, China
- Mr Victor Gao
PRODUCT DETAIL
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Mechanical life: | 50000 cycles |
| brand: | Haifei | product name: | rocker switch |
| Light Color: | red, green, yellow, blue | Function: | on-off, on-off-on |
| Operating temperature: | -25℃~+125℃ | maximum. current: | 20A |
| Pin: | 2P\3P\4P\6P | Certification: | CE,CQC,CCC,TUV |
| Packaging Details: | 1: Neutral packaging: commodity plastic bag + inner box bubble + inner box + carton. 2: Special packaging: according to customer requirements. | maximum. Voltage: | 250V |
| Material: | PA66/PC | Supply capacity: | 50,000 pieces per day |
| Certificate: | CE,CQC,CCC,TUV | place of origin; place of origin: | Zhejiang, China |
| color: | red, yellow, green, blue, white | score: | 20A 125VAC; 16A 250VAC |
| application: | Electronic equipment | port: | Ningbo/Taizhou/Wenzhou/Shanghai/Guangzhou |
| model: | kcd8 |
Product Description
soken 16a 250vac t100/55 listed 16a t85 55 250v kdc4 bipolar rocker switch with light
Hi-Fi rocker switches are compact in design and provide high switching currents.It is a snap-fit rocker switch with high mechanical life in a rugged nylon 66 housing.They are high quality for long life under heavy loads and industry standard mounting dimensions.This rocker switch can be used in a variety of applications such as water dispensers and extension sockets.

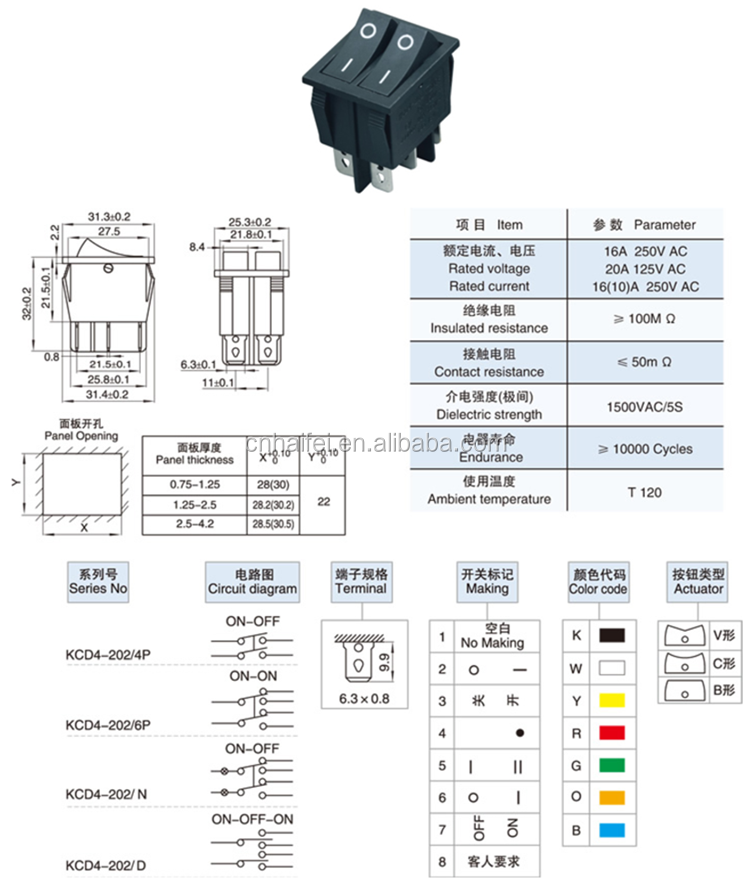

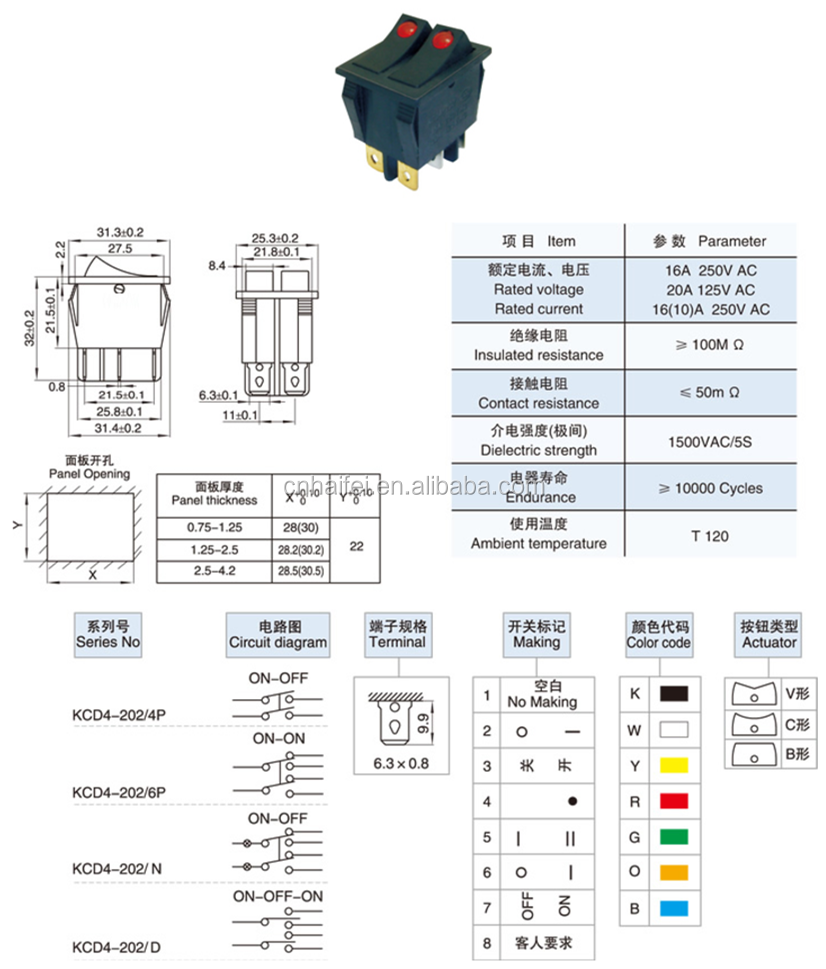

| project | Rocker switch details |
| building materials | PA66 |
| Button material | personal computer |
| Contact material | Copper and Composite Silver |
| score | 3A 6A 10A 15A 250VAC |
| temperature | -40°C to 125°C |
| Dielectric strength | 1500Vrms minimum |
| Contact resistance | <30MΩ |
| Insulation resistance | >100MΩ |
| flammable | UL94V0 |
| Electrical life | 50000 cycles |
| Mechanical life | 50000 cycles |
| Guideline | EN 61058-1 |
| Approval sign | CE CQC CCC TUV ROHS ENEC VDE UL |
