Wide operating temperature range, 3M super 33+ PVC electrical tape
- $0.50 / >=100 pieces
- 100 pieces
- Wuxi Wontion Communications Equipment Co., Ltd.
- Jiangsu, China
- Mr kyler Wu
| brand: | 3M | Name: | 3M tape |
| payment terms: | L/C,Western Union,T/T | place of origin; place of origin: | U.S. |
| model: | Super 33+ | type: | Insulation Tape |
| size: | 19mmx20.1mx0.18mm/roll | Model: | 3M Super 33+ |
| Rated voltage: | 600V | Wide range of operating temperature: | -18°C--+105°C |
| tensile strength: | 151bs/inch | tensile strength: | 151bs/inch |

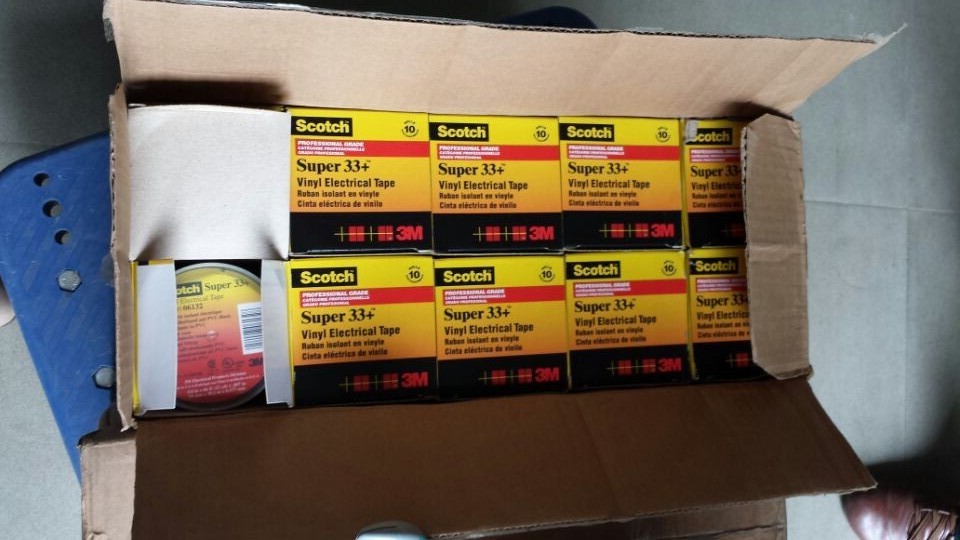

| color: | Black | Packaging Details: | Plastic box, color box, standard carton, pallet. |
| Packaging Preview: | Supply capacity: | 500,000 pieces per month | |
| port: | Shanghai Port, Ningbo Port | Material: | polyvinyl chloride, polyvinyl chloride |
| UV: | anti-UV | application: | low voltage |
Wide operating temperature range, 3M super 33+ PVC electrical tape
1.3M Super 33+ Vinyl Electrical Tape:
Size: 0.18mm*19mm*20.1m (thickness*width*length), 100 rolls per carton.
3M Super 33+ Vinyl Electrical Tape is a premium grade, 7 mil thick all-weather vinyl insulating tape. It is designed for continuous operation at ambient temperatures up to 105°C (220°F). The tape is suitable for cold weather applications down to –18°C (0°F). It has excellent resistance to abrasion, moisture, alkali, acid, corrosion and all weather conditions (including UV exposure).
2. Features:
|
Mechanical properties |
Typical value |
|
Operating temperature: |
-18°C(CSA) ~ 105°C(CSA) |
|
color: |
Black |
|
thickness: |
7 mil (0.18 mm) |
|
Maximum pulling force: |
250% |
|
Breaking strength: |
151bs/inch |
|
Viscosity to Steel: |
28 oz/in (22°C, 72°F); 60 oz/in (-18°C, 0°F) |
|
Viscosity to Matrix: |
25 oz/in (22°C, 72°F); 60 oz/in (-18°C, 0°F) |
|
France: |
1 second max (UL510) |
|
Thermal shock: |
Pass 168hrs.113°C, no crack, no corrosion after thermal shock |
|
Cold Shock: |
Passed 2 hours, -10°C, no cracks. No corrosion after cold shock |
|
|
|
|
Electrical Specifications |
Typical value |
|
Voltage level: |
600V (UL510) |
|
Dielectric strength: |
1150v/mm |
|
Dielectric resistance |
>1012Ω |

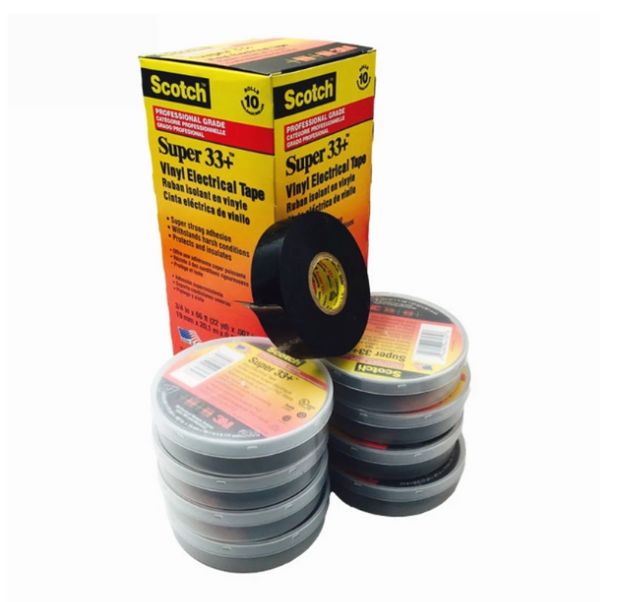

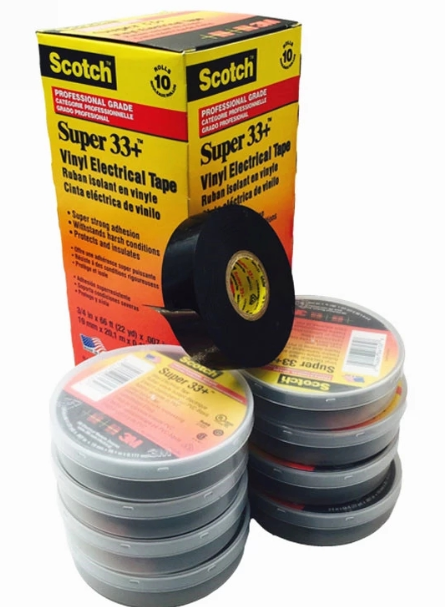

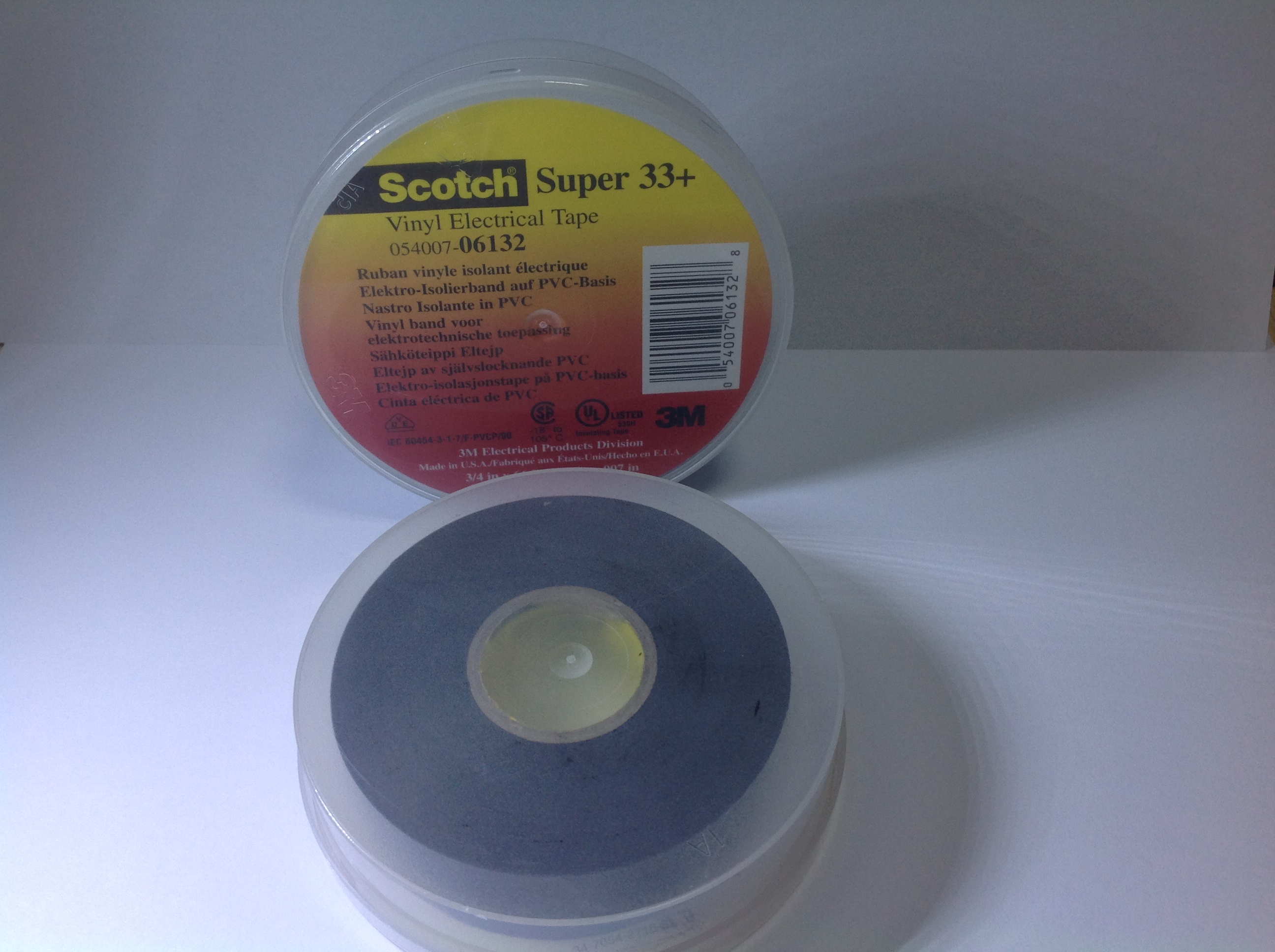

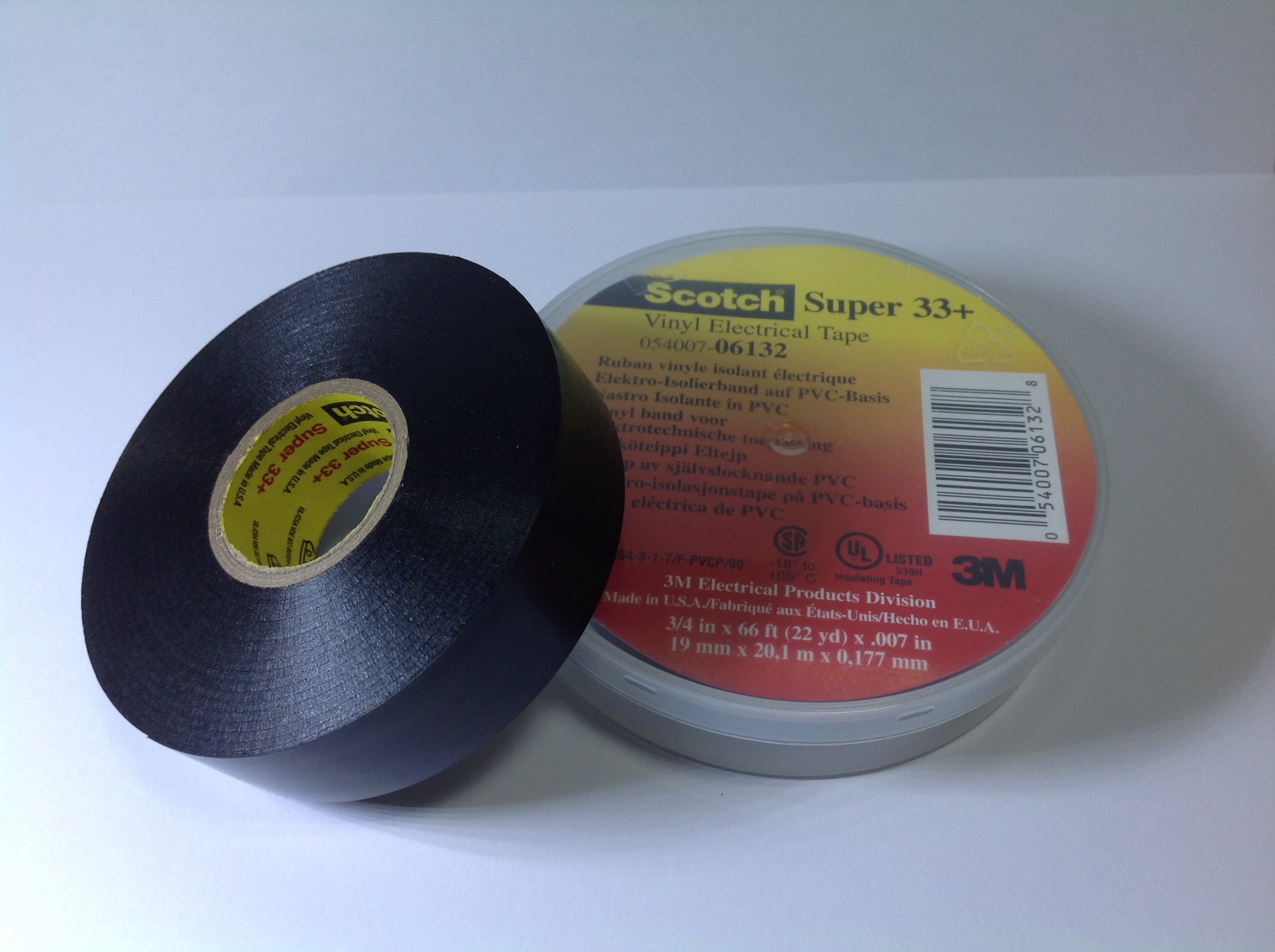

3. Pictures:
4. Company display:
5. Certificate:
6. Always-On Contact Information:
