XKP-560 Double Roller Rubber Crusher Waste Tire Rubber Crusher

PRODUCT DETAIL
After-sales service provided:Engineers available to service machinery overseasPackaging Details:Bulk or according to customer requirements
Supply capacity:30 sets per monthbrand:Kozuki
use:crushing of rubberpayment terms:L/C, T/T
weight:different size different weightOrigin:Shandong China
Gear reducer:Large gearboxes, planetary gearboxes, hardened gearboxesWarranty:one year of life
capacity:200-2000kgmodel:XKP-560
Type of machine:fully automaticbushing:Nylon Bushing, Ball Bushing
port:QingdaoHealth status:new
type:tire machinecolor:According to customer's request
strength:1.5KW - 75KWquality:best quality
Voltage:220V/380VShipping Details:Within 20 years after receiving your deposit
Type of tire machine:tire recycling machineFinished product:6-30 mesh rubber powder
Dimensions (L*W*H):5064*2284*1978application:Rubber recycling industry
product name:XKP-560 double roll rubber crusherCertification:ISO9001:2008, SGS

XKP-560 Double Roller Rubber Crusher Waste Tire Rubber Crusher







1. Detailed information

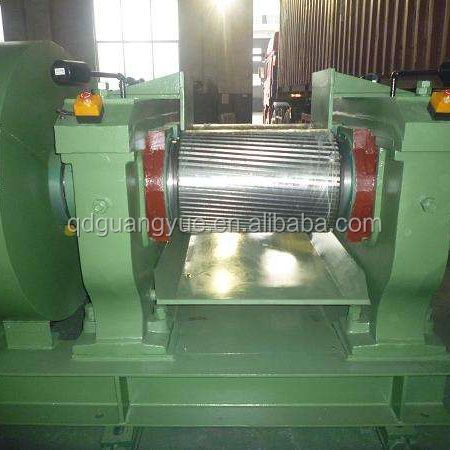

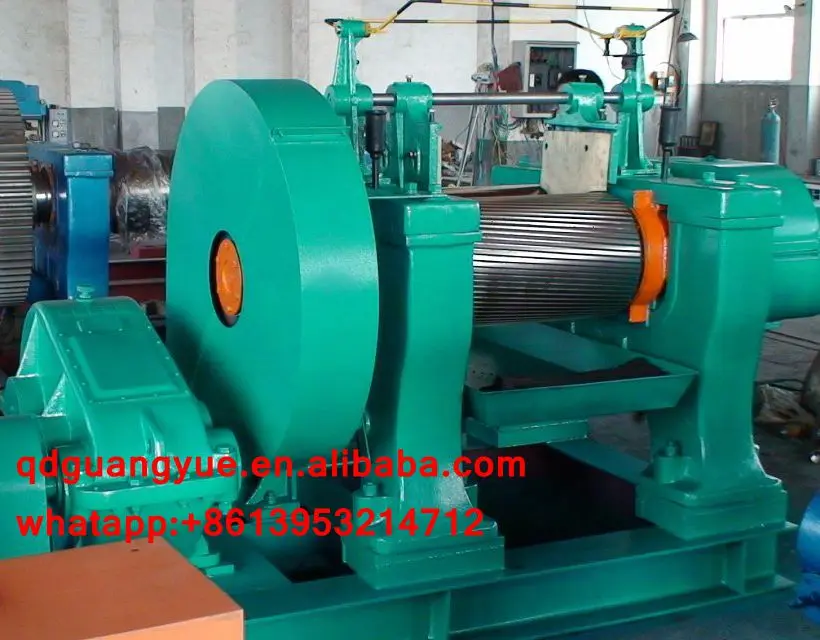

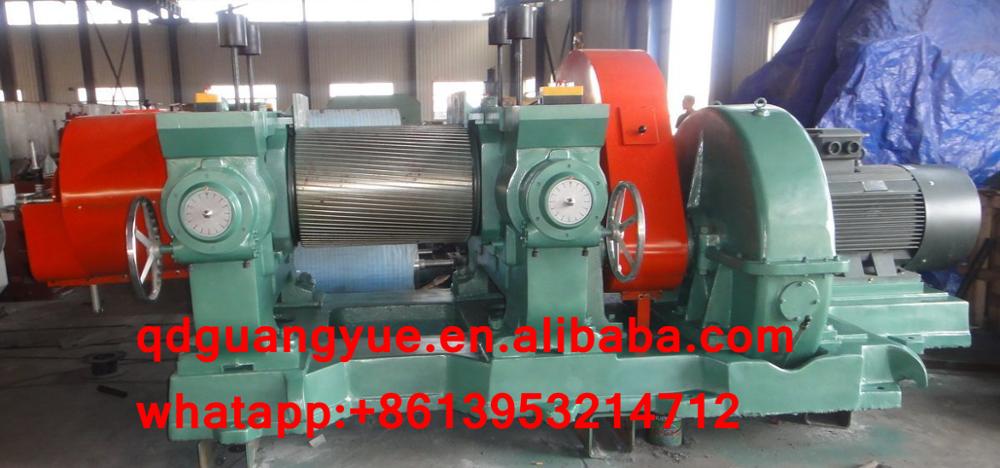

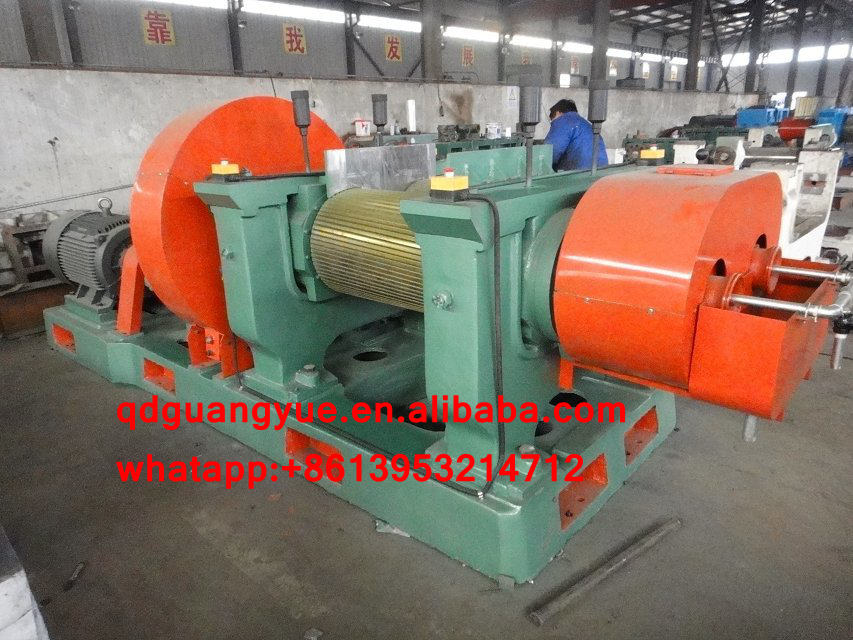

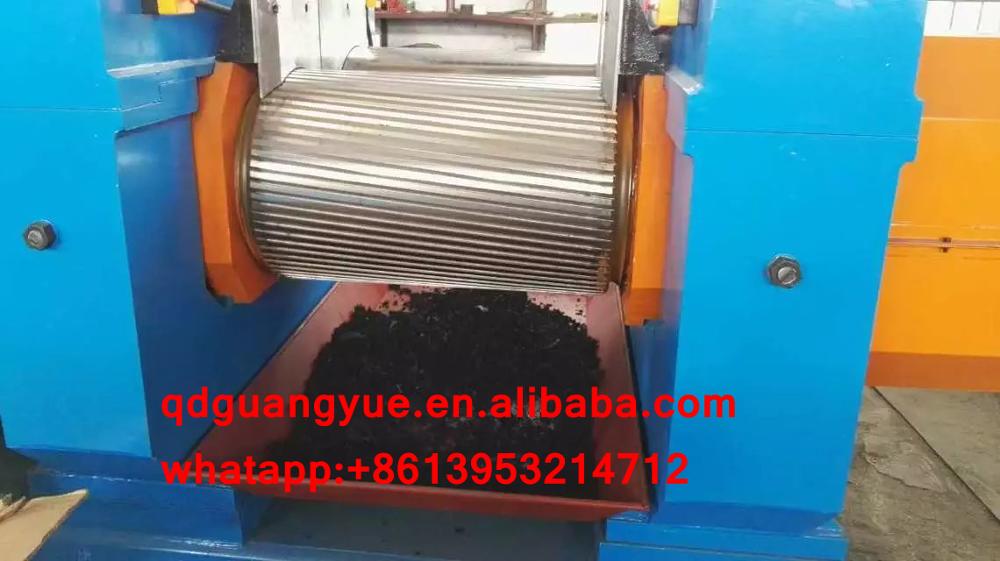

This machine is composed of machine base, frame, front roller, transmission gear, reducer, distance adjustment device, temperature adjustment device, cutter assembly, winding structure, safety switch and electric control system.

The roller is made of chilled alloy iron with high hardness and wear resistance. The temperature adjustment device can adjust the temperature of the steam and cooling water in the general roller to meet the process requirements.

Turn the rewind roller formed by the handwheel rewinder to adjust as needed.

The machine is equipped with a brake. In an emergency, pull the safety lever to brake immediately, reducing personal accidents.



2. Features



1. Transmission quality.

2. The roll is made of hard surface wear-resistant hard chilled cast iron.

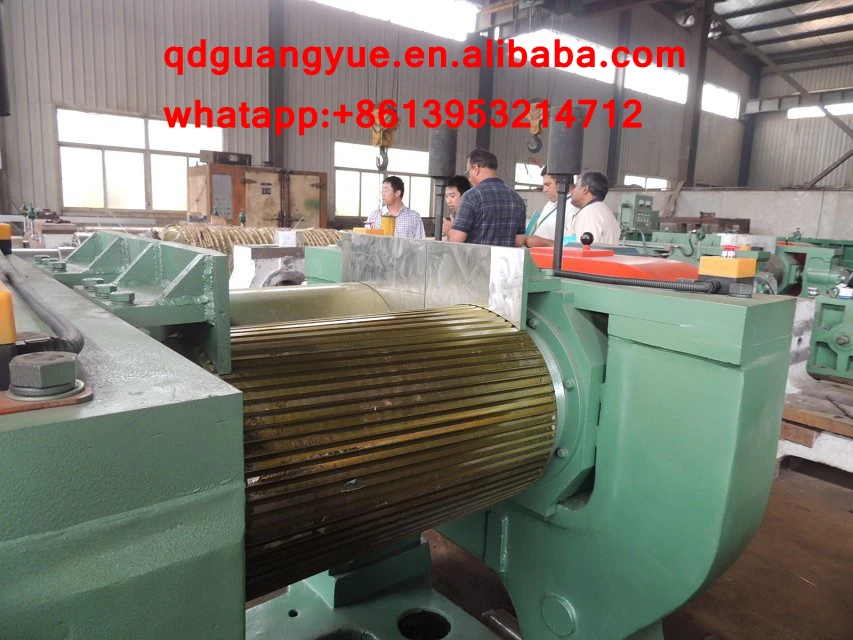

3. Roller slotting.

4. The boring roll can be cooled with steam and cooling water.

5. The two rollers rotate at different speeds, so that rubber materials can be processed

6. The excellent crushing structure is open gear transmission

7. The product complies with IS09001/CE/SGS standard.



3. Parameters of rubber cracker

parameter/version

XKP-400

XKP-450

XKP-560

Front Roller Diameter

400

450

560

Backing roll diameter

400

450

510

roll length

600

650

800

Front roller surface speed (m/min)

17.32

23.2

25.56

friction ratio

1:1.38

1:1.38

1:1.30

maximum. pinch

8

8

8

Feed amount per (kg)



200-300



600-800



1500

Power(kw)

45

60

75

Dimensions (L*W*H)

3950*1800*1780

4770*1846*1835

5064*2284*1978

Weight (kg)

7000

12000

19000



about Us

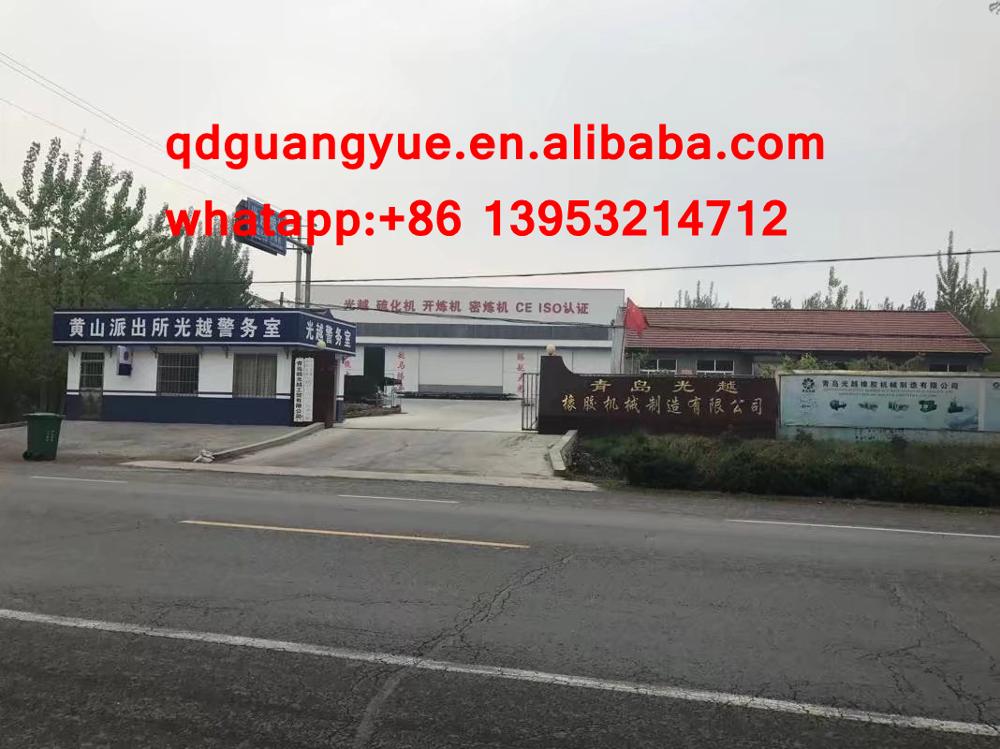

We are Qingdao Guangyue Rubber Machinery Co., Ltd.


1. Professional manufacturers with professional production team and technical support



Top sales teams communicate with customers via email, phone, and face-to-face.



2. Professional machine explanation (technology, application, user guide, etc.)



The best after-sales---Track the whole production situation, provide machine packing photos, track customer's operation and usage in case of any problems.



3. Reasonable price



4. Flexible delivery time



5. More than 30 years experience in export capability

advantage

1. Simple and convenient structure, flexible operation and spacious space. The cylinder and plunger are made of high quality materials.



2. The hydraulic station and electrical cabinet are located on both sides of the main engine.



3. Easy to operate



4. No oil leakage, no loss of pressure.



5. Excellent reputation



6. CE standard and ISO9001 SGS certification





      We have been in this line for many years and have advanced technology and experience. We can also design and produce according to customers' requirements.

If you are interested in our products, please feel free to contact me.
